2-26 — MANUAL TRANSMISSION GEAR (#134122) — 195 parça

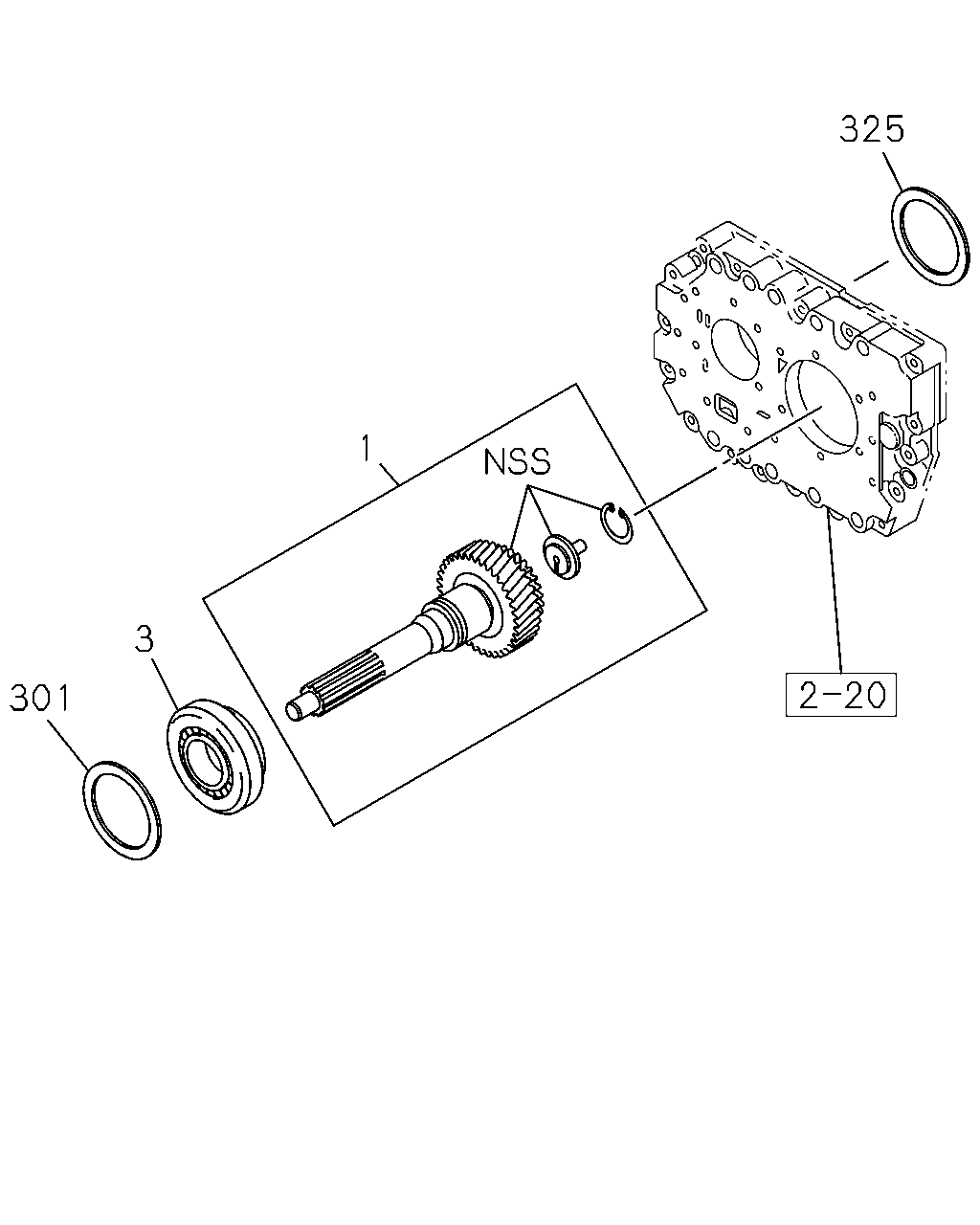

çizim 406531
325 1 3 301
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-036-0 01 1 1402-
3 BEARING; TOP GEAR SHAFT 1-33219-320-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33139-039-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33139-041-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33139-042-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33139-043-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33139-045-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33139-046-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33139-047-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33139-050-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33139-201-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33139-202-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33139-204-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33139-205-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33139-206-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.30 		1-33139-223-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.25 		1-33139-224-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33139-225-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33139-226-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33139-227-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33139-228-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33139-229-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33139-230-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33139-231-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33139-232-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33139-233-0 01 1 1402-
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33139-234-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.60 		1-33389-047-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.50 		1-33389-049-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.50 		8-98080-571-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.60 		8-98080-572-0 01 1 1402-

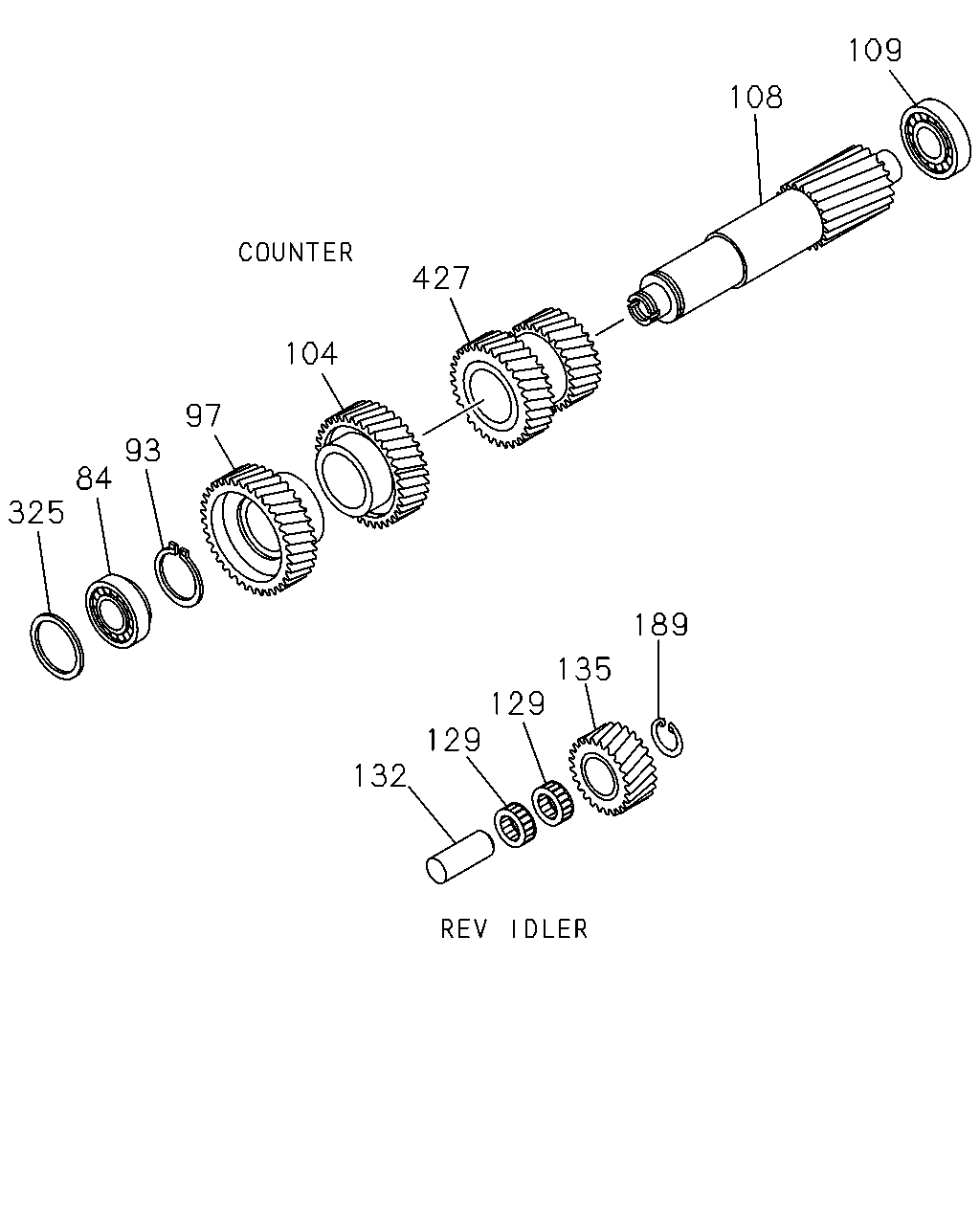

çizim 406540
189 135 129 129 132 325 84 93 97 104 427 108 109
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33312-016-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.0 		1-33319-251-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.5 		1-33319-252-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.4 		1-33319-253-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.3 		1-33319-254-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.2 		1-33319-255-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.1 		1-33319-256-0 01 1 1402-
93 RING; SNAP,COUNTER FRT BRG
T=2.6 		1-33319-264-0 01 1 1402-
97 GEAR; 5TH,COUNTER 1-33338-398-0 01 1 1402-
104 GEAR; 4TH,COUNTER 1-33338-397-0 01 1 1402-
108 SHAFT; COUNTER 1-33311-347-0 01 1 1402-
109 BEARING; COUNTER SHAFT,RR 1-33312-006-0 01 1 1402-
129 BEARING; NEEDLE,IDLER 1-33369-026-0 02 1 1402-
132 SHAFT; REV 1-33351-024-0 01 1 1402-
135 GEAR; REV IDLER 1-33361-096-0 01 1 1402-
189 RING; SNAP,REV,GEAR 1-44519-224-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33389-082-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33389-083-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33389-084-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33389-086-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33389-087-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33389-088-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33389-089-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.60 		1-33389-047-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
PTO ZF TRANS RR<BDM> T=1.50 		1-33389-049-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.50 		8-98080-571-0 01 1 1402-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR<BDM> T=1.60 		8-98080-572-0 01 1 1402-
427 GEAR; 2ND & 3RD,COUNTER 1-33332-132-0 01 1 1402-

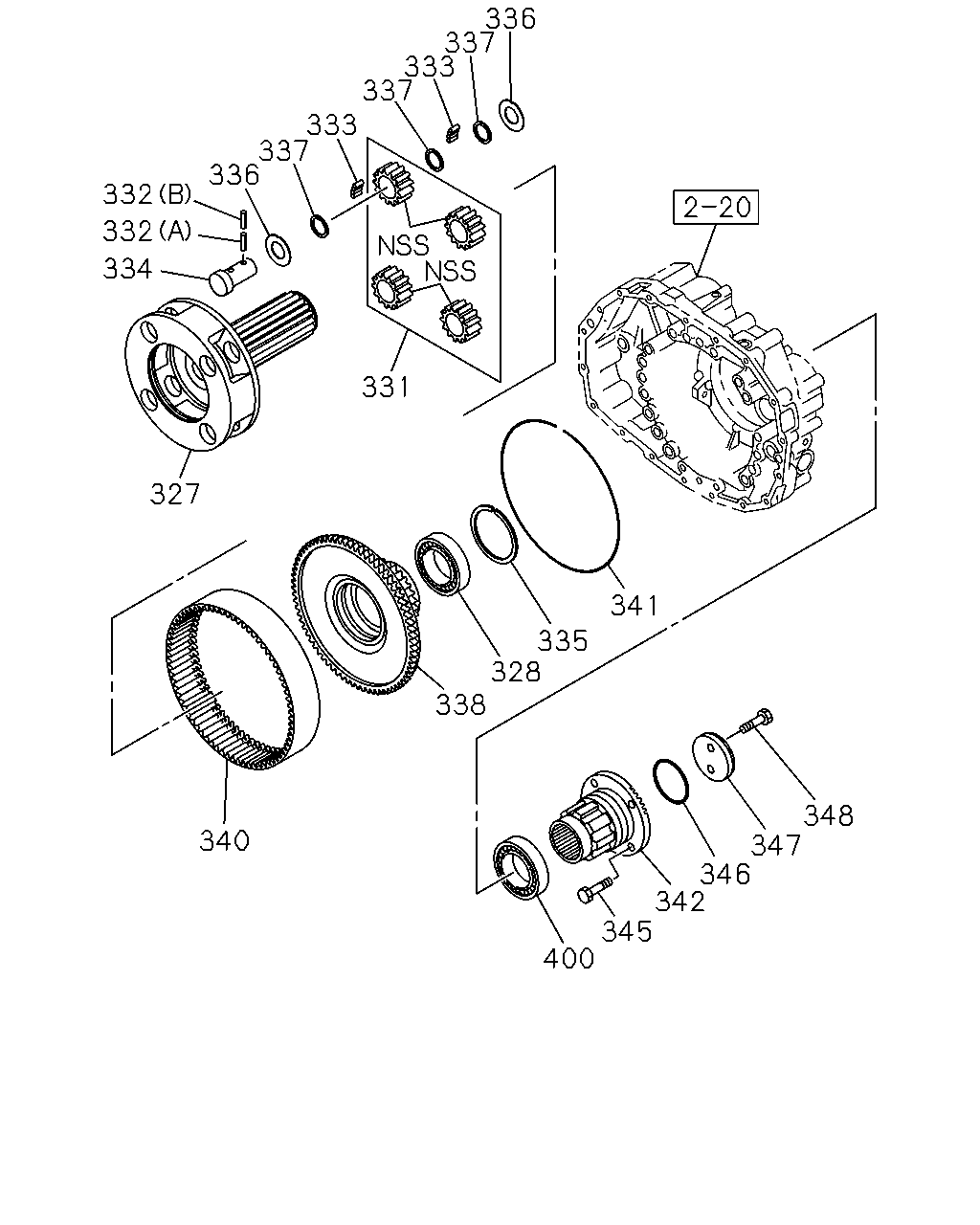

çizim 406566
348 347 346 342 345 400 340 338 328 335 341 327 331 334 332 332 336 337 333 337 333 337 336
BalonParca AdiParca NoAdetTipApplied Date
327 CARRIER; PLANETARY GEAR 1-33231-338-0 01 1 1402-
328 BEARING; CARRIER 1-33339-094-0 01 1 1402-
331 GEAR SET; PLANETARY 1-33239-350-0 01 1 1402-
332 PIN; LOCK,SHAFT
(A) 		1-33239-178-0 04 1 1402-
332 PIN; LOCK,SHAFT
(B) 		1-33239-179-0 04 1 1402-
333 ROLLER; PLANETARY GEAR 1-33239-232-0 AR 1 1402-
334 SHAFT; PLANETARY GEAR 1-33239-359-0 04 1 1402-
335 RING; SNAP,BEARING
T=2.50 		1-33339-075-0 01 1 1402-
335 RING; SNAP,BEARING
T=2.40 		1-33339-076-0 01 1 1402-
335 RING; SNAP,BEARING
T=2.30 		1-33339-077-0 01 1 1402-
335 RING; SNAP,BEARING
T=2.20 		1-33339-078-0 01 1 1402-
335 RING; SNAP,BEARING
T=2.10 		1-33339-079-0 01 1 1402-
335 RING; SNAP,BEARING
T=2.00 		1-33339-080-0 01 1 1402-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-174-0 08 1 1402-
337 WASHER; PLANETARY GEAR,INNER 1-33239-176-0 12 1 1402-
338 CARRIER; RING GEAR 1-33331-275-0 01 1 1402-
340 GEAR; RING 1-33339-099-0 01 1 1402-
341 WIRE; LOCK,CARRIER 1-33339-096-0 01 1 1402-
342 FLANGE; OUTPUT 1-37243-429-0 01 1 1402-
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 1402-
346 GASKET; FLANGE 1-37249-156-0 01 1 1402-
347 WASHER; FLANGE 1-09509-060-0 01 1 1402-
348 BOLT; SHAFT 1-37249-215-0 02 1 1402-
400 BEARING; OUTPUT SHAFT RR 1-33139-212-0 01 1 1402-

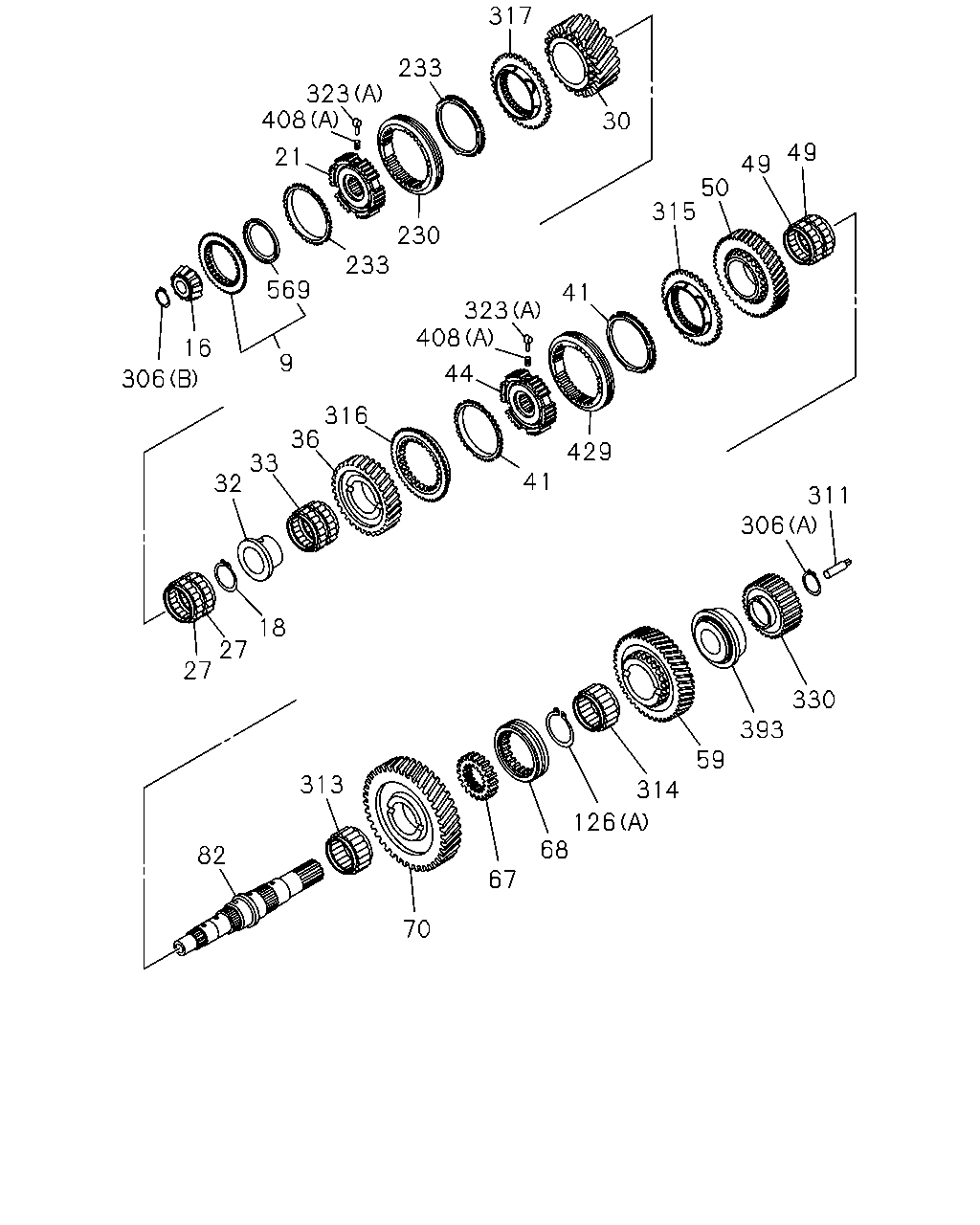

çizim 407039
323 233 317 30 230 233 569 16 306 9 316 36 33 32 27 27 18 82 313 408 21 408 44 323 41 429 41 315 50 49 49 311 306 330 393 59 314 126 68 67 70
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR 1-33265-631-0 01 1 1402-
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=2.4 		1-33259-054-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=2.3 		1-33259-060-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=2.2 		1-33259-061-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=2.1 		1-33259-062-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=2.0 		1-33259-063-0 01 1 1402-
18 RING; SNAP,CLU HUB
T=1.9 		1-33259-064-0 01 1 1402-
21 HUB; CLU,4TH & 5TH 1-33261-295-0 01 1 1402-
27 BEARING; 4TH GEAR 1-33259-128-0 02 1 1402-
30 GEAR; 4TH,MAINSHAFT 1-33251-436-0 01 1 1402-
32 COLLAR; 3RD GEAR 1-33259-140-0 01 1 1402-
33 BEARING; NEEDLE,3RD GEAR 1-33259-127-0 01 1 1402-
36 GEAR; 3RD,MAINSHAFT 1-33252-478-0 01 1 1402-
41 RING; BLOCK,2ND & 3RD 1-33265-498-0 02 1 1402-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-303-0 01 1 1402-
49 BEARING; NEEDLE,2ND GEAR 1-33259-126-0 02 1 1402-
50 GEAR; 2ND,MAINSHAFT 1-33251-448-0 01 1 1402-
59 GEAR; REV MAINSHAFT 1-33257-101-0 01 1 1402-
67 HUB; CLU,1ST TO REV 1-33259-135-0 01 1 1402-
68 SLEEVE; 1ST TO REV 1-33259-049-0 01 1 1402-
70 GEAR; 1ST,MAINSHAFT 1-33251-434-0 01 1 1402-
82 SHAFT; MAIN,TRANS 1-33231-337-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1402-
230 SLEEVE; 4TH TO 5TH 1-33262-239-0 01 1 1402-
233 RING; BLOCK 4TH TO 5TH 1-33269-096-0 02 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.95 		1-33319-066-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.90 		1-33319-067-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.85 		1-33319-068-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.80 		1-33319-069-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.75 		1-33319-070-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.70 		1-33319-071-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.65 		1-33319-072-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.60 		1-33319-073-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.55 		1-33319-074-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.50 		1-33319-075-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(A) T=2.45 		1-33319-076-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.5 		1-43319-021-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.4 		1-43319-101-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.3 		1-43319-102-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.0 		1-43319-103-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.1 		1-43319-104-0 01 1 1402-
306 RING; SNAP,MAINSHAFT
(B) T=2.2 		1-43319-105-0 01 1 1402-
311 PIPE; MAINSHAFT 1-33239-349-0 01 1 1402-
313 BEARING; NEEDLE,LOW GEAR 1-33259-124-0 01 1 1402-
314 BEARING; NEEDLE,REV GEAR 1-33259-125-0 01 1 1402-
315 CLUTCH; DOG,2ND GEAR 1-33265-629-0 01 1 1402-
316 CLUTCH; DOG,3RD GEAR 1-33265-629-0 01 1 1402-
317 CLUTCH; DOG,4TH GEAR 1-33265-630-0 01 1 1402-
323 INSERT
(B) 		1-33263-027-0 09 1 1402-
323 INSERT
(A) 		1-33263-030-0 06 1 1402-
330 GEAR; SUN 1-33259-134-0 01 1 1402-
393 BEARING; MAINSHAFT END 1-33259-104-0 01 1 1402-
408 SPRING
(B) 		1-33269-038-0 09 1 1402-
408 SPRING
(C) 		1-33269-039-0 09 1 1402-
408 SPRING
(A) 		1-33269-042-0 06 1 1402-
429 SLEEVE; 2ND & 3RD 1-33262-244-0 01 1 1402-
569 DAM; OIL 1-33269-097-0 01 1 1402-
çizim 407393
339 126 66 42 324 66 339 323 408 408
BalonParca AdiParca NoAdetTipApplied Date
42 SLEEVE 1-33262-195-0 01 1 1402-
66 RING; BLOCK,SYN 1-33339-069-0 02 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.8 		1-33259-050-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.7 		1-33259-051-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.6 		1-33259-052-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.5 		1-33259-053-0 01 1 1402-
126 RING; SNAP,CLU HUB
(A) T=2.4 		1-33259-054-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=4.0 		1-33269-047-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.9 		1-33269-048-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.8 		1-33269-049-0 01 1 1402-
126 RING; SNAP,CLU HUB
(B) T=3.7 		1-33269-050-0 01 1 1402-
323 INSERT
(B) 		1-33263-027-0 09 1 1402-
323 INSERT
(A) 		1-33263-030-0 06 1 1402-
324 HUB; CLU 1-33261-230-0 01 1 1402-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-453-0 01 1 1402-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-632-0 01 1 1402-
408 SPRING
(B) 		1-33269-038-0 09 1 1402-
408 SPRING
(C) 		1-33269-039-0 09 1 1402-
408 SPRING
(A) 		1-33269-042-0 06 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
