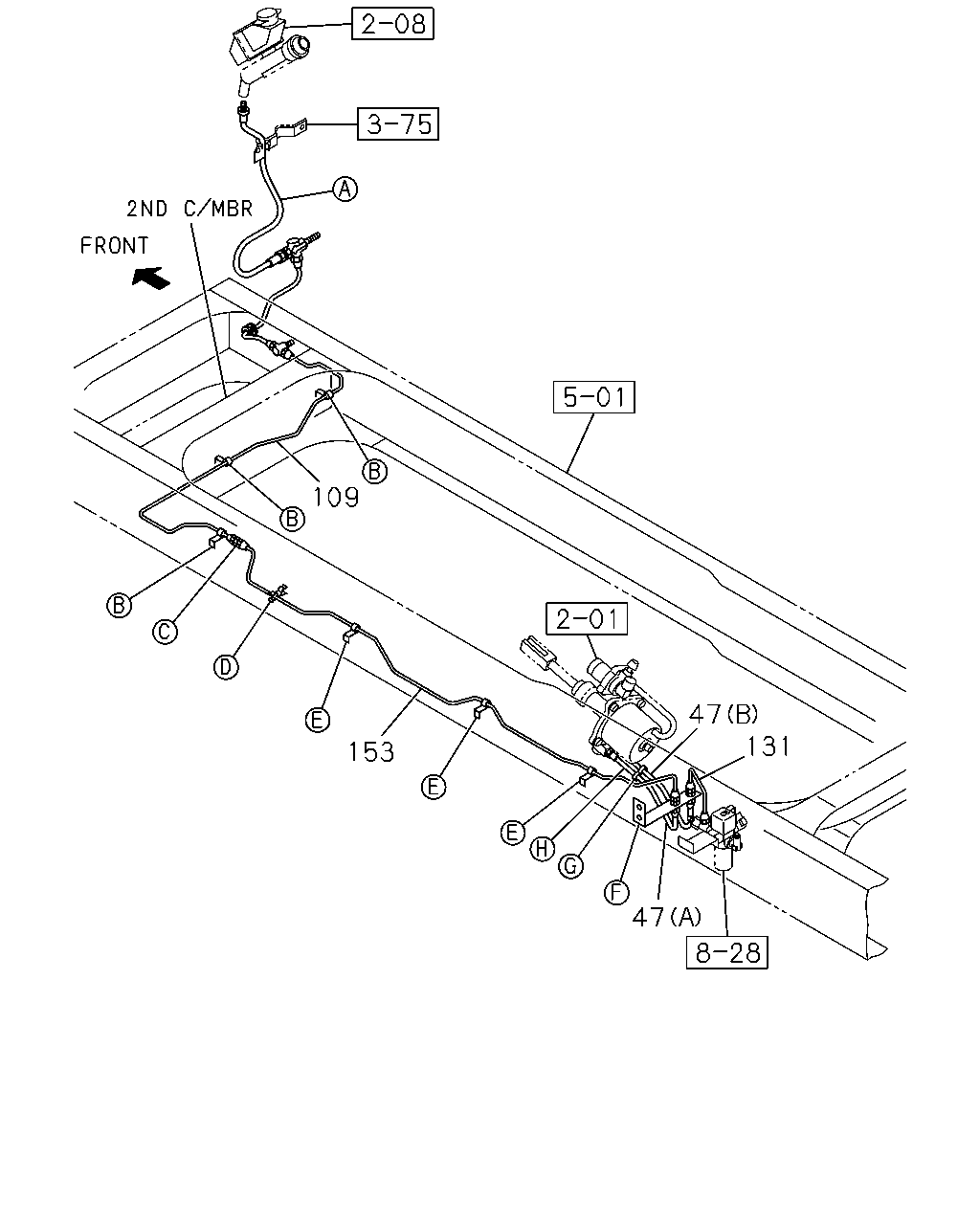

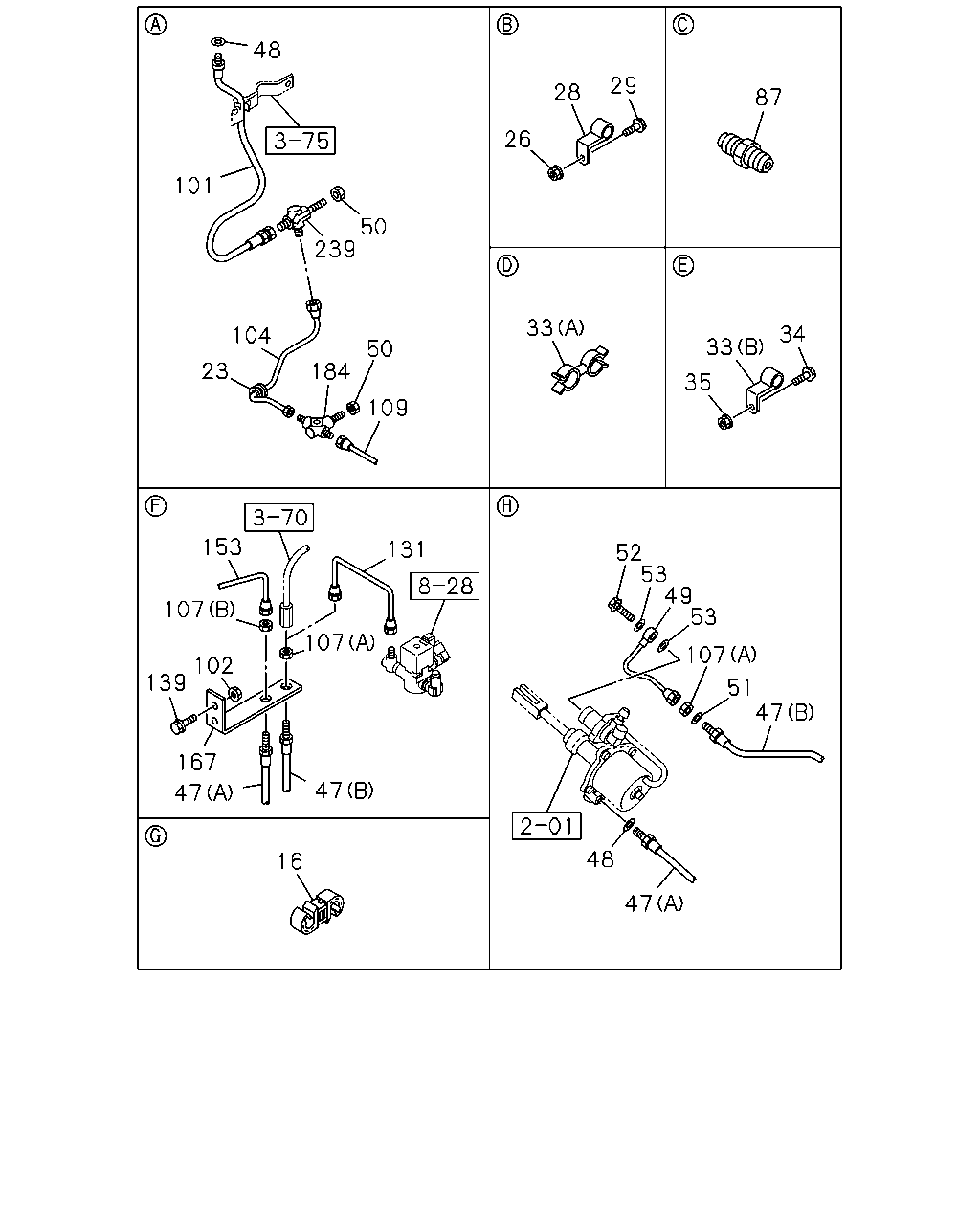

2-05 — CLUTCH PIPING (#134117) — 36 parça

109 153 47 47 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT (B) L=560	1-09363-689-0	01	1	1402-
47	HOSE; FLEX,CLU CONT (A) L=520	1-09364-583-0	01	1	1402-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550	1-47428-766-0	01	1	1402-
131	PIPE; AIR,UNION TO FLEX HOSE L=275 THA	8-98140-710-0	01	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	1402-

87 29 28 26 33 35 33 34 48 101 239 50 104 23 184 50 109 131 153 107 102 139 107 167 47 47 16 48 47 47 51 107 53 49 53 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE ID=10 & 12	1-09709-278-1	01	1	1402-
23	GROMMET; CLU PIPE ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
26	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	1402-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	1402-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
33	CLIP; OIL PIPE (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1402-
33	CLIP; OIL PIPE (A) ID=8.3 & 10	8-94176-792-0	01	1	1402-
34	BOLT; PIPE CLIP M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
35	NUT; PIPE CLIP M8 FLANGE THA	0-91180-108-0	04	1	1402-
47	HOSE; FLEX,CLU CONT (B) L=560	1-09363-689-0	01	1	1402-
47	HOSE; FLEX,CLU CONT (A) L=520	1-09364-583-0	01	1	1402-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0 THA	9-09571-410-0	02	1	1402-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=232 THA	8-97948-222-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
50	NUT; UNION M12	0-91111-512-0	01	1	1402-
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	1402-
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	1402-
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1402-
87	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1402-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=440	8-98072-346-0	01	1	1402-
102	NUT; FLEX HOSE,CLU CONT M8 FLANGE THA	0-91180-108-0	02	1	1402-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=542 SERVICED BY L=550	1-47428-753-0	01	1	1402-
107	NUT; UNION,OIL PIPE (B) M14	0-91111-514-0	01	1	1402-
107	NUT; UNION,OIL PIPE (A) M12	9-09840-280-0	02	1	1402-
109	PIPE; AIR,UNION TO UNION L=1407 SERVICED BY L=1550	1-47428-766-0	01	1	1402-
131	PIPE; AIR,UNION TO FLEX HOSE L=275 THA	8-98140-710-0	01	1	1402-
139	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
153	PIPE ASM; CLU,UNION TO FLEX L=2227 THA	8-98130-573-0	01	1	1402-
167	BRACKET; UNION	8-98077-571-0	01	1	1402-
184	UNION; FLEX HOSE M14 2WAY	1-09654-176-2	01	1	1402-
239	UNION; CLU HOSE	8-98107-850-0	01	1	1402-
