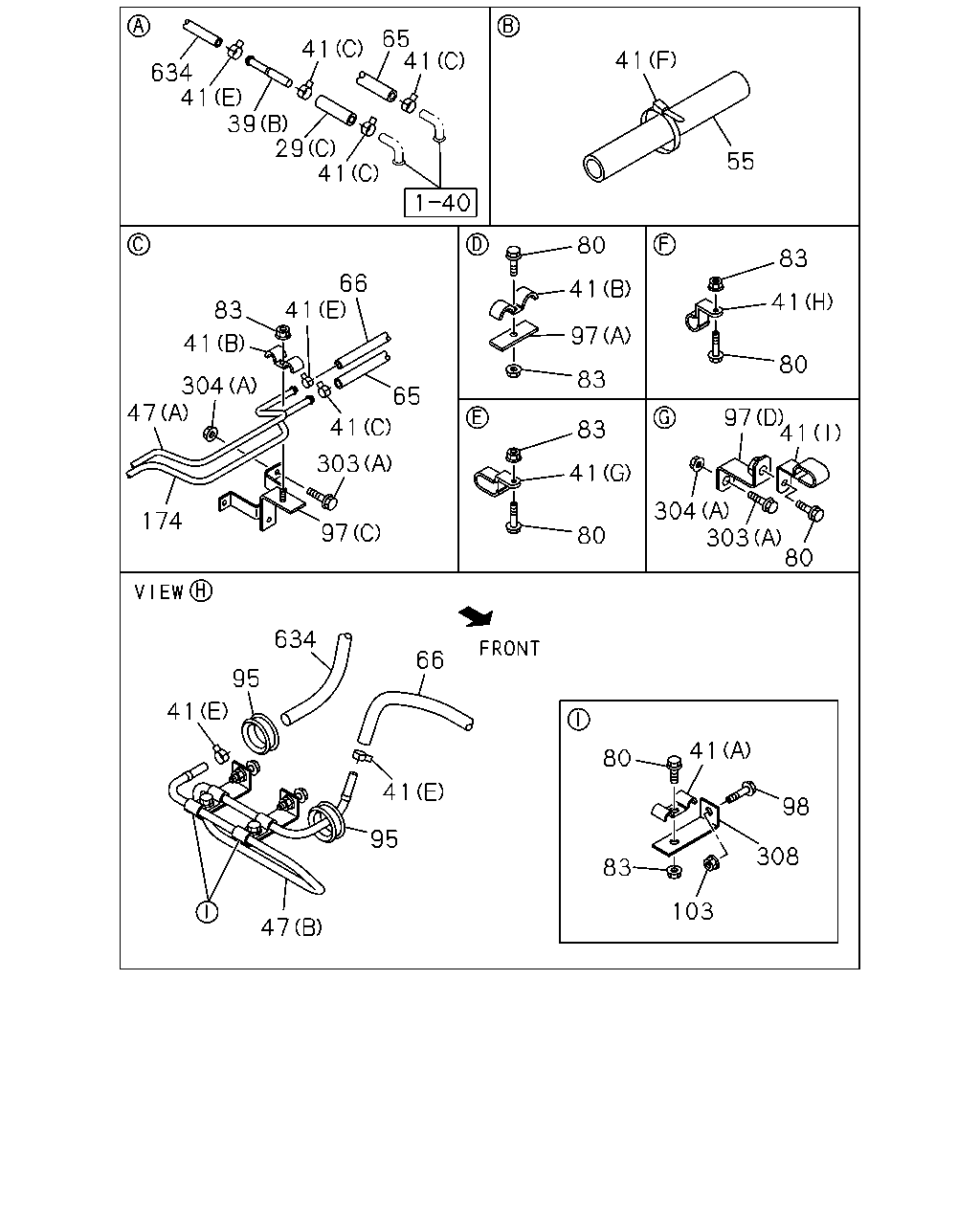

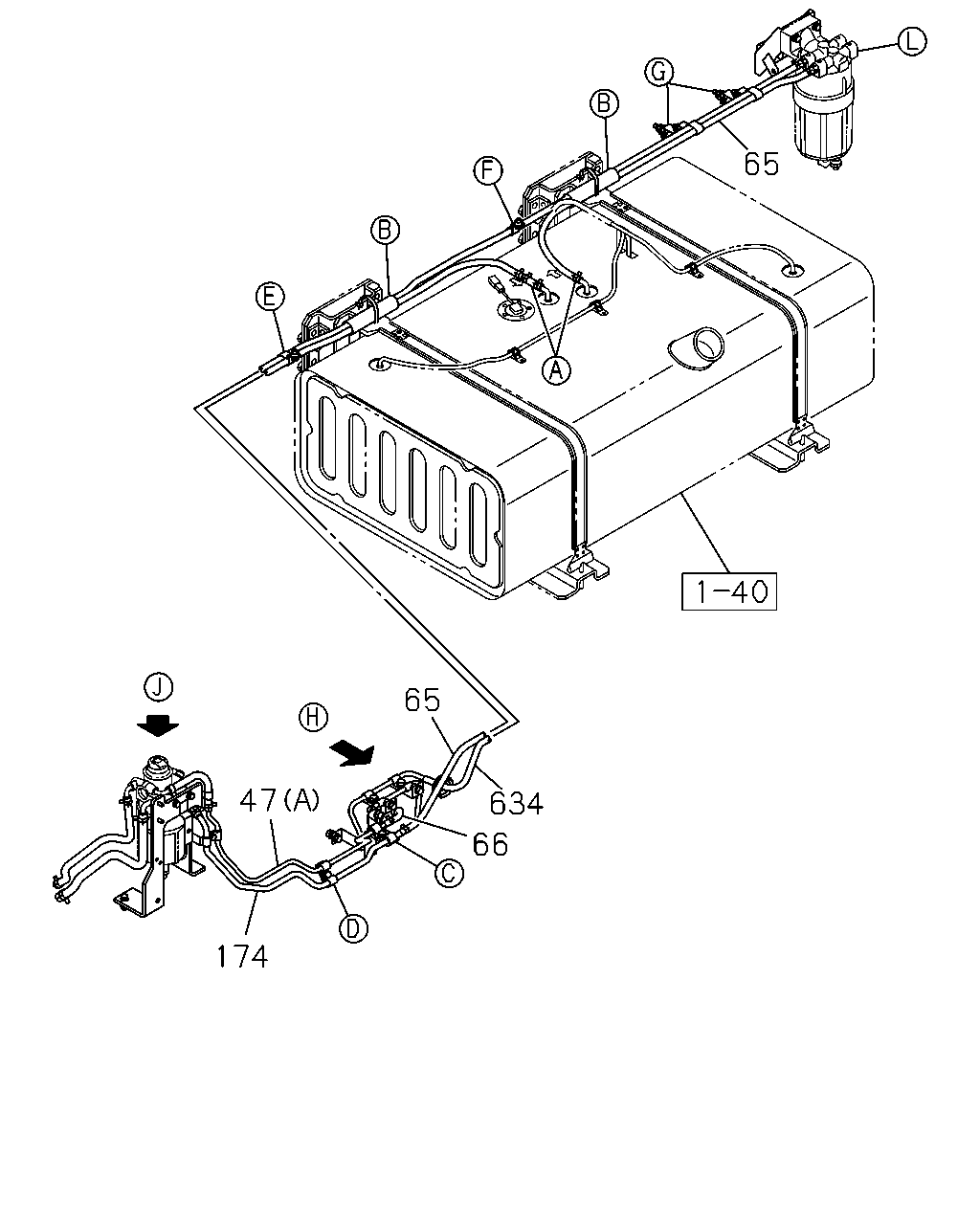

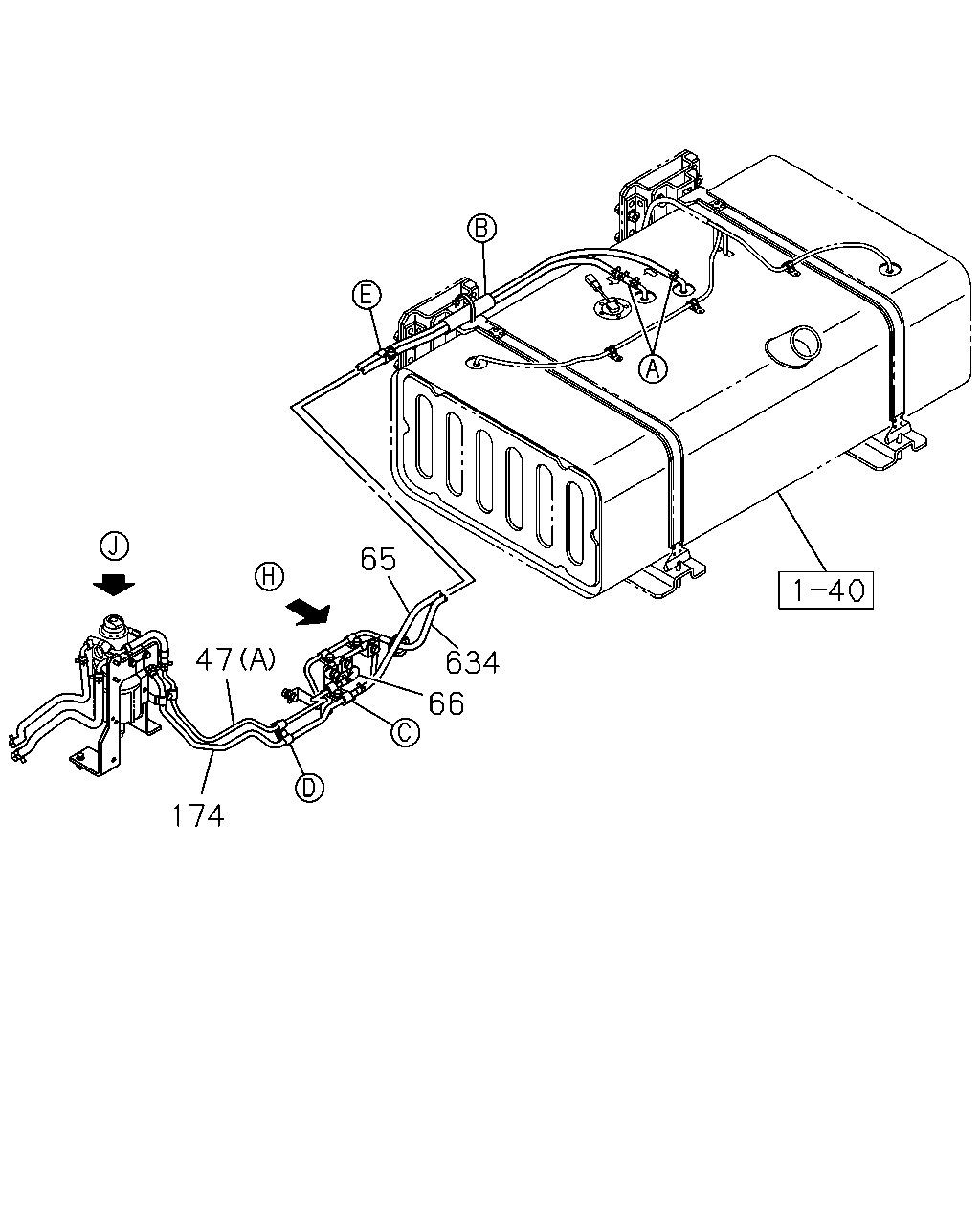

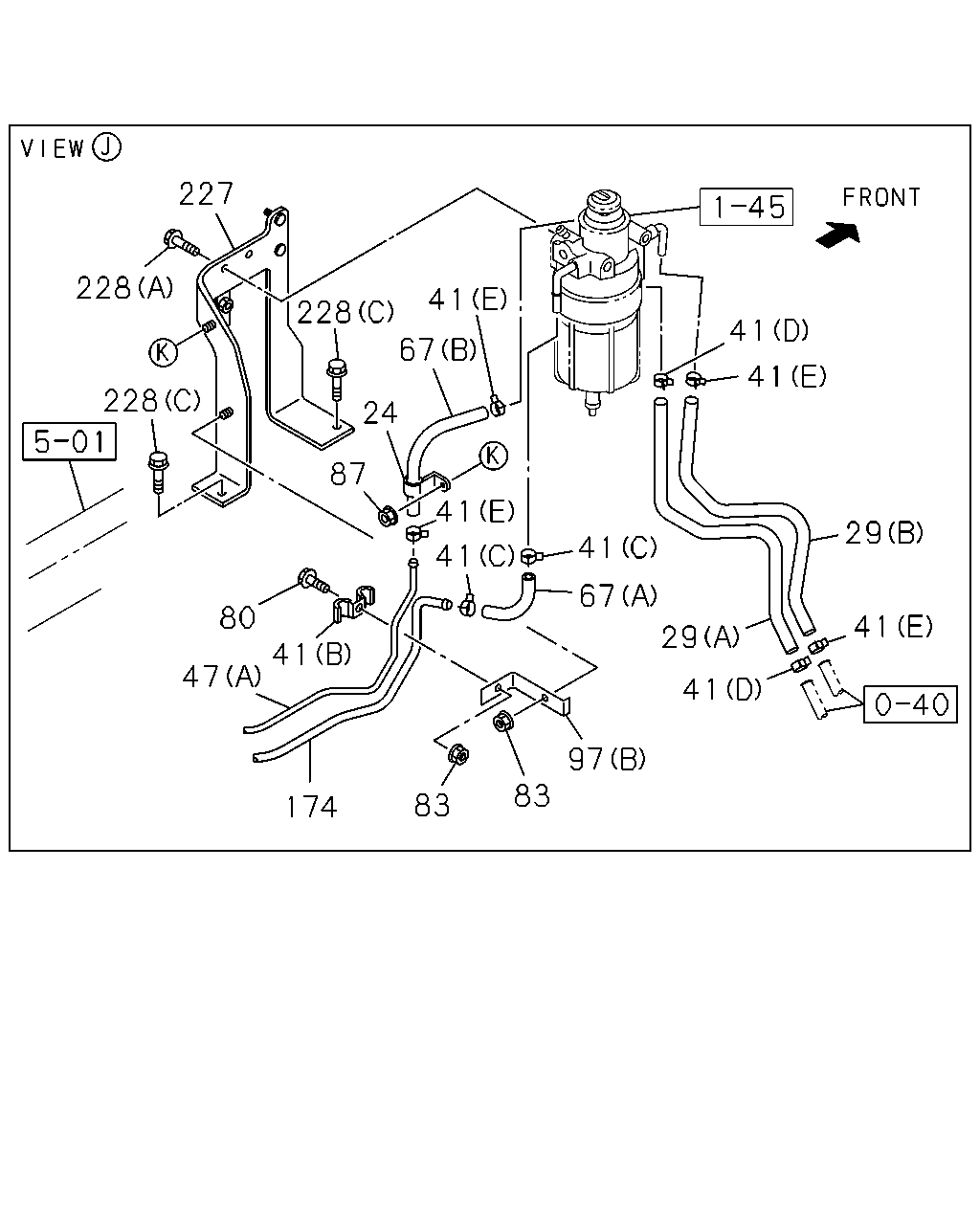

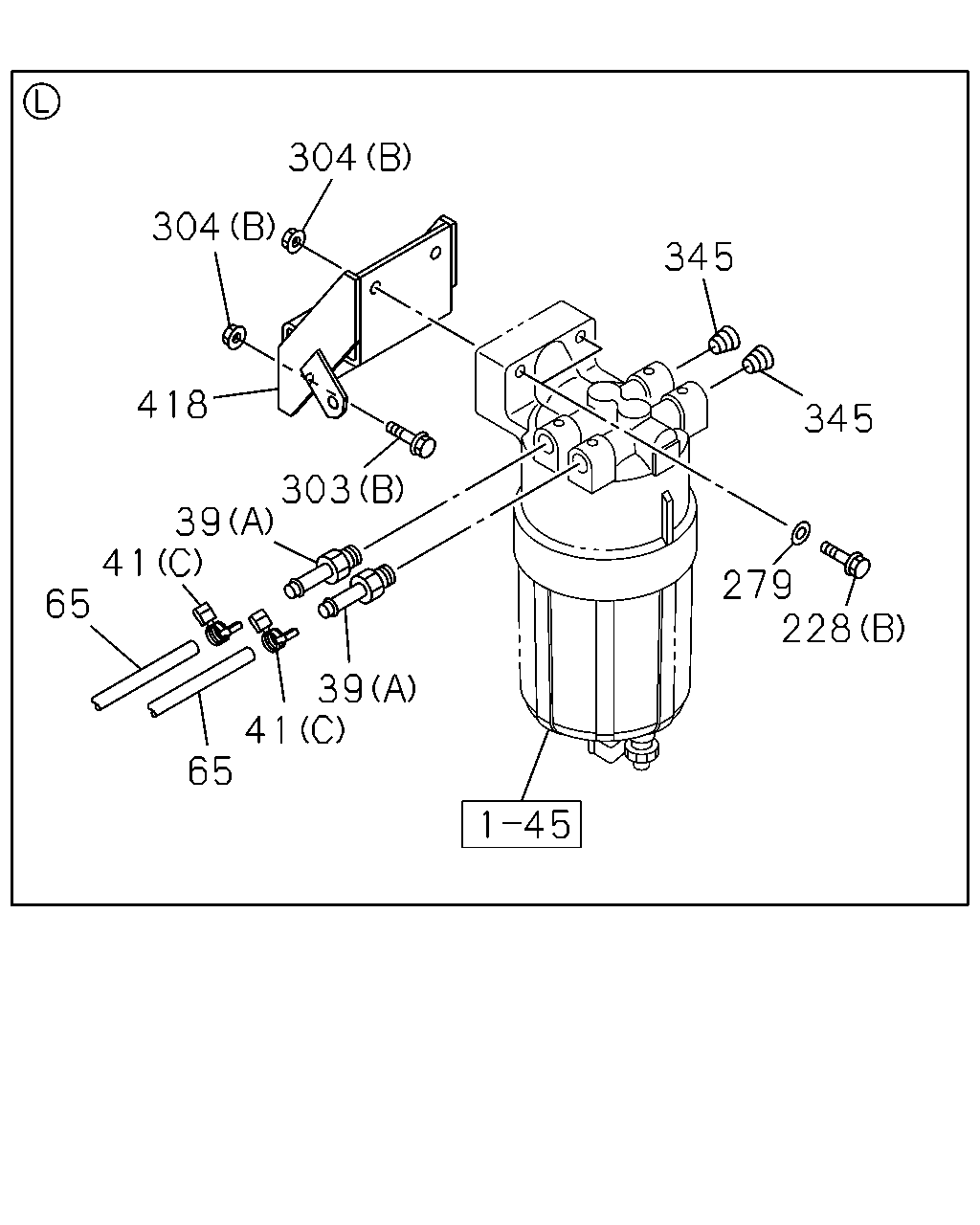

1-41 — FUEL PIPING; CHASSIS (#134111) — 129 parça

227 228 228 228 24 87 80 47 41 174 83 83 97 41 29 67 41 29 41 41 41 41 67 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
29	HOSE; FUEL (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13	8-94238-571-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (H) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (I) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	1402-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	1402-
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	04	1	1402-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1402-
87	NUT; CLIP,FUEL HOSE M8 FLANGE THA	0-91180-108-0	01	1	1402-
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1402-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	1402-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	02	1	1402-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	1402-
227	BRACKET; FUEL SEDIMENTER THA	8-97948-225-0	01	1	1402-
228	BOLT; BRKT,SEDIMENTER (C) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M10X50 FLANGE THA	0-28051-050-0	02	1	1402-

228 279 345 345 304 304 418 303 39 41 65 65 41 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1402-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13	8-94238-571-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (H) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (I) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
228	BOLT; BRKT,SEDIMENTER (C) M8X30 FLANGE THA	0-28050-830-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M10X50 FLANGE THA	0-28051-050-0	02	1	1402-
279	WASHER POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1402-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
345	PLUG POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1402-
418	BRACKET; PRE FUEL FILTER POOR QUALITY DIESEL FUEL<KF0> THA	8-97926-125-0	01	1	1402-

634 66 65 47 174 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	1402-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE L=160 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	1402-
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

41 65 41 41 29 39 41 634 66 41 83 41 65 304 41 303 97 174 47 634 66 95 41 41 95 47 80 41 98 308 83 103 41 55 80 41 83 97 83 80 41 83 41 80 97 304 41 303 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL (A) THA	8-97948-223-0	01	1	1402-
29	HOSE; FUEL (B) THA	8-97948-224-0	01	1	1402-
29	HOSE; FUEL (C) L=60	8-98009-718-0	01	1	1402-
39	PIPE; FUEL (B) OD=10 & OD=8 L=60 THA	8-97924-060-0	01	1	1402-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=10 THA	8-97948-254-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (G) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=13	8-94238-571-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (H) ID=15 H=24 L=20	1-09700-606-0	01	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (I) ID=14X29 H=30 L=25	1-09701-101-0	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	08	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	02	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (C) ID=14	1-09704-102-0	06	1	1402-
41	CLIP; FUEL PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (F) L=250	5-09707-030-1	01	1	1402-
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	1402-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	1402-
55	COVER; PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1402-
55	COVER; PIPE,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE L=160 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	04	1	1402-
80	BOLT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
83	NUT; CLIP,FUEL TANK M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	03	1	1402-
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE THA	0-91180-108-0	04	1	1402-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	02	1	1402-
97	BRACKET; CLIP (A) L=50	1-47475-299-2	01	1	1402-
97	BRACKET; CLIP (B)	8-98053-654-0	01	1	1402-
97	BRACKET; CLIP (C)	8-98076-024-0	01	1	1402-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D)	1-47476-200-0	02	1	1402-
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
103	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	1402-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
303	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X35 FLANGE THA	0-28651-035-0	02	1	1402-
304	NUT; BRKT (A) M8 FLANGE THA	0-91180-108-0	03	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
304	NUT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	1402-
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-

174 47 65 634 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN (B)	8-98079-273-0	01	1	1402-
47	PIPE; FUEL,RETURN (A) L=766 THA	8-98105-178-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE POOR QUALITY DIESEL FUEL<KF0> L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
65	HOSE; FUEL,DELIVERY PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> L=1100 SERVICED BY L=3000	0-01260-300-0	01	1	1402-
66	HOSE; FUEL,RETURN PIPE L=160 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
174	PIPE; FUEL,FEED,FRT THA	8-98105-179-0	01	1	1402-
634	HOSE; RUBBER RETURN L=1200 SERVICED BY L=3000	0-01558-300-0	01	1	1402-
