Isuzu WW
▶
TRUCKS
▶
GVR
▶
11580 - GVR(THAI)EURO3
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#134108) — 37 parça
◀

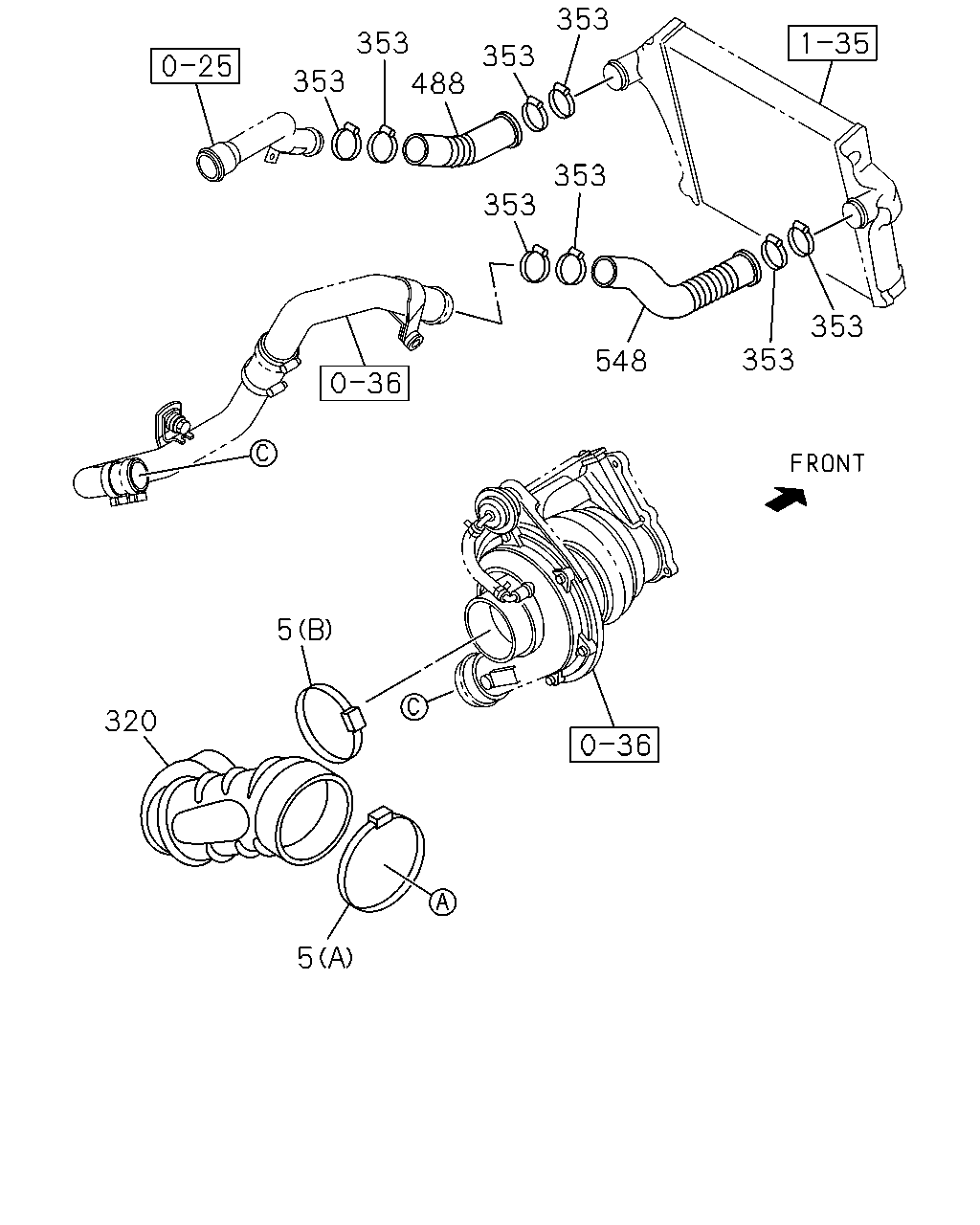

[131A] PIPING (6 parça)
[131A] DUCT FIXING (31 parça)
▶
353
353
353
353
353
353
353
353
548
488
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=130-150
8-98133-360-0
01
1
1402-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1402-
320
HOSE; CONN,ACL
THA
8-97948-680-0
01
1
1402-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1402-
488
HOSE; RUBBER,PIPE
8-97950-126-0
01
1
1402-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98181-974-1
01
1
1402-
296
209
210
379
357
357
543
543
564
480
368
558
316
71
252
49
26
560
450
61
58
242
58
56
242
245
58
48
49
56
56
58
49
242
49
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1402-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1402-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1402-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1402-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1402-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1402-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1402-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1402-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1402-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
1402-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1402-
209
BRACKET; ACL
THA
8-97948-148-0
01
1
1402-
210
BOLT; ACL BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
1402-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1402-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1402-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1402-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1402-
252
DUCT; AIR INT
8-98021-989-1
01
1
1402-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
1402-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1402-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1402-
368
SENSOR; TEMP
8-98065-377-0
01
1
1402-
379
HOSE; RUBBER
8-98077-470-0
01
1
1402-
450
CLAMP; HOSE
9-09915-504-1
01
1
1402-
480
ADAPTER
8-98086-417-0
01
1
1402-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1402-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1402-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1402-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1402-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1402-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1402-
