◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11580 - GVR(THAI)EURO3 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶
0-65 — STARTER (#134102) — 25 parça

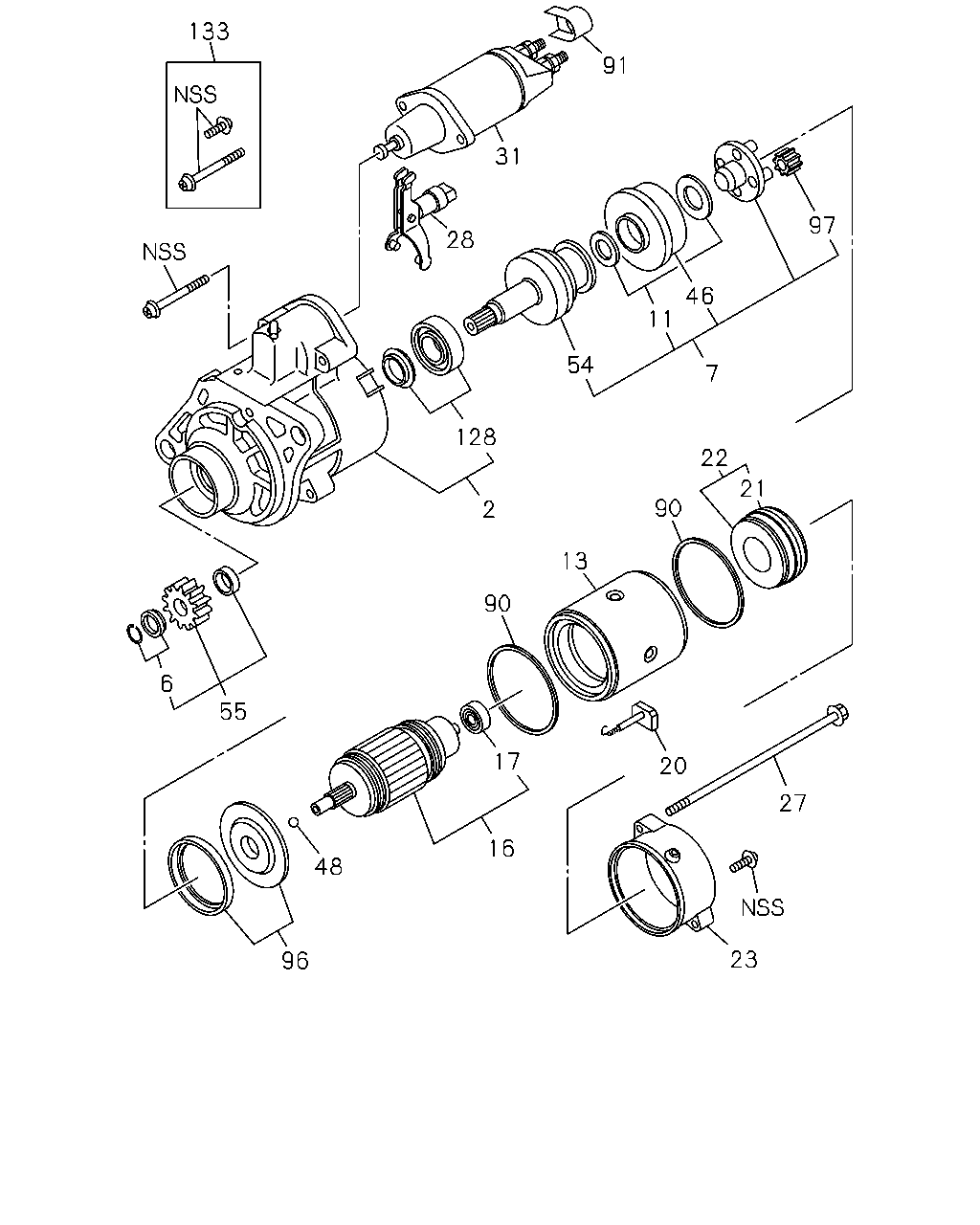

çizim 406366
16 17 90 90 13 22 20 21 27 23 96 48 55 6 128 2 54 11 46 7 97 31 91 28 133
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
ASM PART: A = 8-97948-123-1 		8-98261-349-0 01 1 -
6 STOPPER; PINION STARTER
THA ASM PART: A = 8-97948-123-1 		8-94475-688-0 01 1 -
7 CLUTCH ASM; PINION,STARTER
ASM PART: A = 8-97948-123-1 		8-98245-549-0 01 1 -
11 WASHER; GEAR SHAFT STARTER
THA ASM PART: A = 8-97948-123-1 		8-97116-484-0 01 1 -
13 YOKE; STARTER
ASM PART: A = 8-97948-123-1 		8-98245-552-0 01 1 -
16 ARMATURE; STARTER
ASM PART: A = 8-97948-123-1 		1-81121-075-0 01 1 -
17 BEARING; ARMATURE,STARTER
THA ASM PART: A = 8-97948-123-1 		1-81129-837-0 01 1 -
20 BRUSH; (+),STARTER
ASM PART: A = 8-97948-123-1 		1-81116-066-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
ASM PART: A = 8-97948-123-1 		1-81129-768-0 04 1 -
22 HOLDER; BRUSH STARTER
ASM PART: A = 8-97948-123-1 		8-98245-553-0 01 1 -
23 COVER; RR COVER STARTER
ASM PART: A = 8-97948-123-1 		8-98248-764-0 01 1 -
27 BOLT; THROUGH,STARTER
ASM PART: A = 8-97948-123-1 		1-81129-769-0 01 1 -
28 LEVER; SHIFT,STARTER
ASM PART: A = 8-97948-123-1 		1-81129-762-0 01 1 -
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97948-123-1 		8-98245-551-0 01 1 -1405
31 SWITCH; ENGAGE STARTER
ASM PART: A = 8-97948-123-1 		8-98281-701-0 01 1 1406-
46 GEAR; CLU STARTER
THA ASM PART: A = 8-97948-123-1 		8-97116-485-0 01 1 -
48 BALL; PINION,STARTER
THA ASM PART: A = 8-97948-123-1 		8-97116-515-0 01 1 -
54 CLUTCH; PINION,STARTER
ASM PART: A = 8-97948-123-1 		1-81129-761-0 01 1 -
55 PINION; CLU,STARTER
ASM PART: A = 8-97948-123-1 		8-98060-835-0 01 1 -
90 GASKET; ARMATURE
ASM PART: A = 8-97948-123-1 		1-81129-767-0 02 1 -
91 COVER; STARTER
ASM PART: A = 8-97948-123-1 		1-81129-764-0 01 1 -
96 GASKET; FRT CASE
ASM PART: A = 8-97948-123-1 		8-98248-761-0 01 1 -
97 GEAR; STARTER
THA ASM PART: A = 8-97948-123-1 		8-97116-490-0 04 1 -
128 BEARING; STARTER
ASM PART: A = 8-97948-123-1 		1-81129-758-0 01 1 -
133 SCREW SET; STARTER
ASM PART: A = 8-97948-123-1 		1-81129-765-0 01 1 -
