Sayfa 7-20 - Isuzu EPC

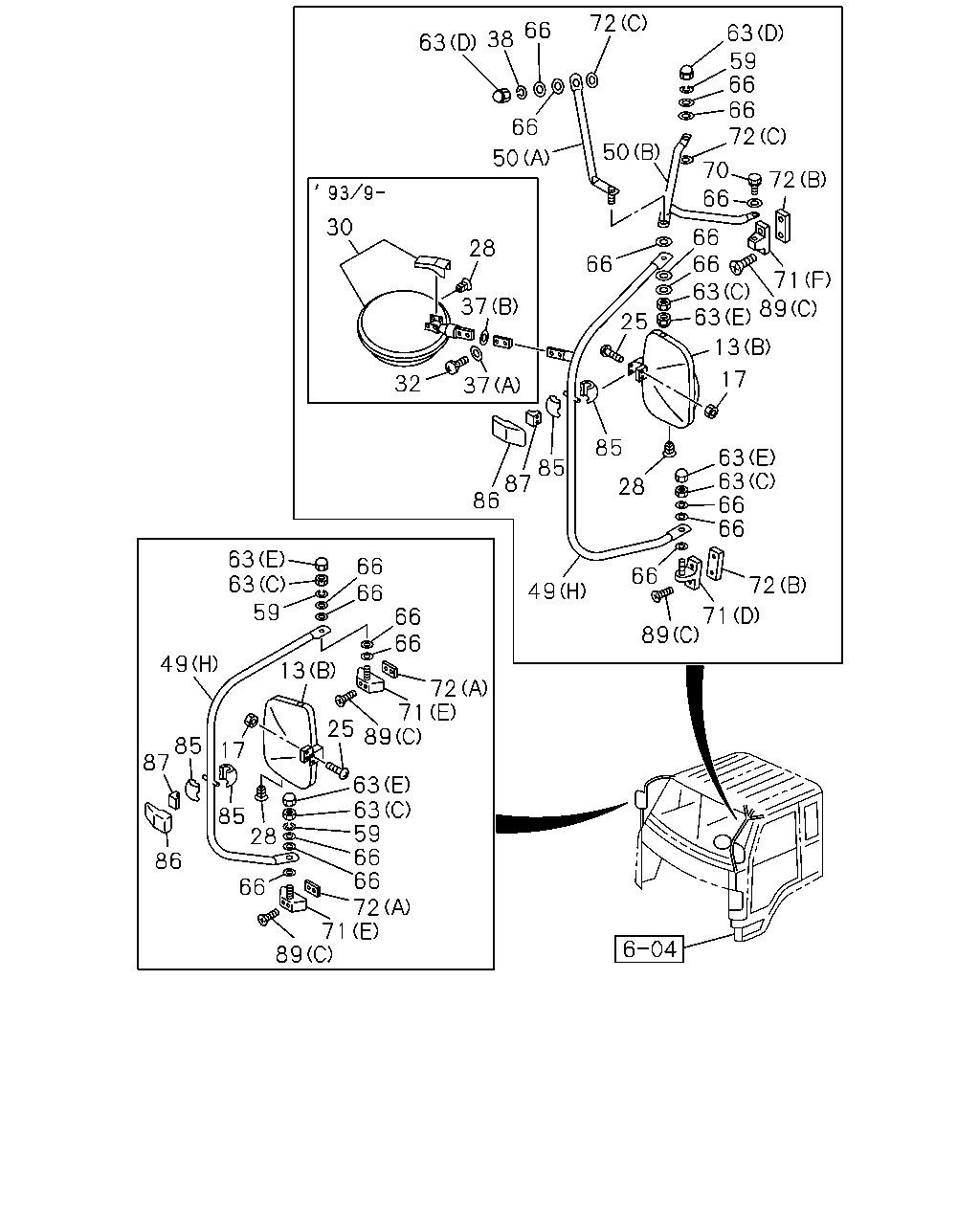

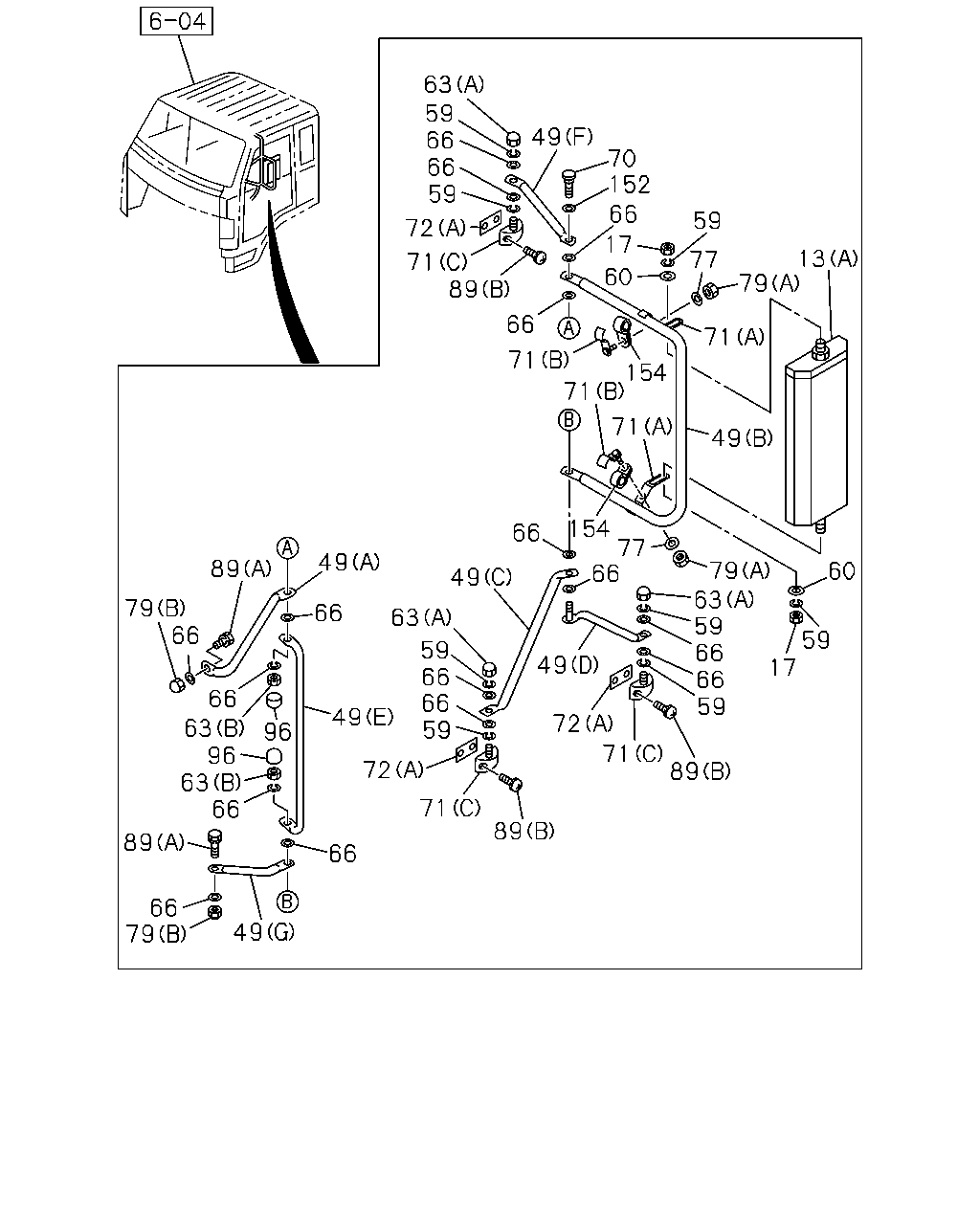

7-20 — MIRROR AND MIRROR STAY (#1341) — 210 parça

72 66 63 59 66 66 72 38 63 66 50 50 70 72 66 30 66 66 63 89 63 28 66 71 37 25 13 17 32 37 85 63 63 66 66 85 87 86 28 63 63 59 66 66 66 72 49 71 89 66 66 49 13 72 71 89 25 85 87 17 63 63 59 66 66 72 71 89 85 28 86 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9204-9311
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9312-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9204-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9204-9311
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> M8 FLANGE	1-09984-122-0	04	1	9312-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9204-
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	04	1	9204-
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	02	1	9204-9308
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9309-
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	01	1	9309-
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	01	1	9309-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> BLACK	1-71736-662-4	01	1	9309-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9309-
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	01	1	9309-
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-748-0	02	1	9309-
38	WASHER; LK,UNDER MIRROR EXC. DOOR MIRROR<D32> ID=8.2	1-09985-177-0	02	1	9204-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-562-1	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (E)	1-71736-562-1	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-564-0	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (F)	1-71736-564-0	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (G)	1-71736-624-0	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-561-2	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-566-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-566-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-568-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-568-1	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-658-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-658-1	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-560-2	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-563-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-563-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-565-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-565-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-567-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-567-1	01	1	9312-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-719-0	01	1	9204-9308
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9309-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H) BLACK	1-71798-001-0	01	1	9204-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9309-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71736-410-3	01	1	9204-
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B) BLACK	1-71736-414-0	01	1	9204-
59	WASHER; LK DOOR MIRROR<D32> ID=8.2	1-09985-177-0	04	1	9204-9311
59	WASHER; LK DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.2	1-09985-177-0	04	1	9312-
59	WASHER; LK DOOR MIRROR<D32> ID=10	1-09985-180-0	06	1	9204-9311
59	WASHER; LK DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10	1-09985-180-0	06	1	9312-
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	04	1	9204-9308
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	03	1	9309-
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	01	1	9309-
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9204-9311
63	NUT; STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M10	1-09984-134-0	06	1	9312-
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9204-9311
63	NUT; STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M10 H=8.3	1-09984-146-0	04	1	9312-
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	04	1	9204-9308
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	03	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9204-
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	04	1	9204-9308
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	03	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	01	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	01	1	9309-
66	WASHER; PL DOOR MIRROR<D32> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	04	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	04	1	9312-
66	WASHER; PL DOOR MIRROR<D32> ID=10.5 OD=18 T=2.0	1-09985-182-0	04	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10.5 OD=18 T=2.0	1-09985-182-0	04	1	9312-
66	WASHER; PL DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9312-
66	WASHER; PL DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9312-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	02	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=16 ID=8.5 T=1.0	1-09985-181-0	02	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9204-
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9204-9311
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> M10X52	1-71736-634-0	02	1	9312-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9204-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-224-3	04	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-224-3	04	1	9312-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-404-1	04	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-404-1	04	1	9312-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C) L=21.5	1-71737-441-4	06	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C) L=21.5	1-71737-441-4	06	1	9312-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (E)	1-71736-419-2	02	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (F) WHITE	1-71736-578-0	01	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) WHITE	1-71736-415-3	01	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) DARK GRAY	1-71736-655-2	01	1	9204-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	06	1	9204-9311
72	SHEET DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-428-0	06	1	9312-
72	SHEET EXC. DOOR MIRROR<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9204-
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71737-428-0	02	1	9204-
72	SHEET EXC. DOOR MIRROR<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9204-
85	PIVOT; MAIN MIRROR EXC. DOOR MIRROR<D32> ID=22.2	1-71736-489-2	04	1	9204-
86	COVER; STAY,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-760-0	02	1	9204-
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	02	1	9204-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9204-9207
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-9311
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9312-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (B) M6X20	1-09981-494-0	12	1	9204-9311
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M6X20	1-09981-494-0	12	1	9312-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) M6X20	1-09981-494-0	08	1	9204-

63 59 66 66 59 49 70 152 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 89 79 63 59 66 66 59 60 49 79 66 66 63 59 17 59 66 66 59 49 66 63 96 63 66 49 72 96 71 89 72 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9204-9311
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9312-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9204-
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9204-9311
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> M8 FLANGE	1-09984-122-0	04	1	9312-
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9204-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-562-1	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (E)	1-71736-562-1	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-564-0	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (F)	1-71736-564-0	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (G)	1-71736-624-0	02	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-561-2	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-566-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-566-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-568-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-568-1	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-658-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-658-1	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-560-2	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-563-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-563-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-565-0	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C)	1-71736-565-0	01	1	9312-
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-567-1	01	1	9204-9311
49	STAY; MIRROR SIDE DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (D)	1-71736-567-1	01	1	9312-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-719-0	01	1	9204-9308
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9309-
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H) BLACK	1-71798-001-0	01	1	9204-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-846-0	01	1	9309-
59	WASHER; LK DOOR MIRROR<D32> ID=8.2	1-09985-177-0	04	1	9204-9311
59	WASHER; LK DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.2	1-09985-177-0	04	1	9312-
59	WASHER; LK DOOR MIRROR<D32> ID=10	1-09985-180-0	06	1	9204-9311
59	WASHER; LK DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10	1-09985-180-0	06	1	9312-
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	04	1	9204-9308
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	03	1	9309-
59	WASHER; LK EXC. DOOR MIRROR<D32> ID=10	1-09985-180-0	01	1	9309-
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9204-9311
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9312-
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9204-9311
63	NUT; STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M10	1-09984-134-0	06	1	9312-
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9204-9311
63	NUT; STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M10 H=8.3	1-09984-146-0	04	1	9312-
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	04	1	9204-9308
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	03	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9204-
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	04	1	9204-9308
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	03	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (C) M10	1-09984-120-0	01	1	9309-
63	NUT; STAY EXC. DOOR MIRROR<D32> (E) M10	1-09984-145-0	01	1	9309-
66	WASHER; PL DOOR MIRROR<D32> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	04	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	04	1	9312-
66	WASHER; PL DOOR MIRROR<D32> ID=10.5 OD=18 T=2.0	1-09985-182-0	04	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=10.5 OD=18 T=2.0	1-09985-182-0	04	1	9312-
66	WASHER; PL DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9312-
66	WASHER; PL DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9204-9311
66	WASHER; PL DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9312-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=16 T=1.2 ID=8.4 OD=16	1-09985-174-0	02	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=16 ID=8.5 T=1.0	1-09985-181-0	02	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9204-
66	WASHER; PL EXC. DOOR MIRROR<D32> OD=26 ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9204-
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9204-9311
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> M10X52	1-71736-634-0	02	1	9312-
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9204-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-224-3	04	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B)	1-71736-224-3	04	1	9312-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-404-1	04	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71736-404-1	04	1	9312-
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C) L=21.5	1-71737-441-4	06	1	9204-9311
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (C) L=21.5	1-71737-441-4	06	1	9312-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (E)	1-71736-419-2	02	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (F) WHITE	1-71736-578-0	01	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) WHITE	1-71736-415-3	01	1	9204-
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (D) DARK GRAY	1-71736-655-2	01	1	9204-
72	SHEET DOOR MIRROR<D32> (A)	1-71737-428-0	06	1	9204-9311
72	SHEET DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-428-0	06	1	9312-
72	SHEET EXC. DOOR MIRROR<D32> (C) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9204-
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71737-428-0	02	1	9204-
72	SHEET EXC. DOOR MIRROR<D32> (B) D=8 2-HOLE	1-71737-444-0	02	1	9204-
77	WASHER; PL,BRKT,STAY DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9204-9311
77	WASHER; PL,BRKT,STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9312-
79	NUT; BRKT,STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9204-9311
79	NUT; BRKT,STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8 FLANGE	1-09984-122-0	04	1	9312-
79	NUT; BRKT,STAY DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	04	1	9204-9311
79	NUT; BRKT,STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M8 FLANGE	1-09984-126-0	04	1	9312-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9204-9207
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-9311
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A) M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9312-
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> (B) M6X20	1-09981-494-0	12	1	9204-9311
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (B) M6X20	1-09981-494-0	12	1	9312-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C) M6X20	1-09981-494-0	08	1	9204-
96	CAP; MIRROR STAY DOOR MIRROR<D32>	1-71736-199-0	04	1	9204-9311
96	CAP; MIRROR STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-199-0	04	1	9312-
152	SHEET; MIRROR STAY DOOR MIRROR<D32>	1-71736-357-0	02	1	9204-9311
152	SHEET; MIRROR STAY DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-357-0	02	1	9312-
154	SEAT; BRKT DOOR MIRROR<D32>	1-71736-479-0	04	1	9204-9311
154	SEAT; BRKT DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y>	1-71736-479-0	04	1	9312-

13 132 133 134 6 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-026-1	01	1	9204-
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9204-
6	BUSHING; RR VIEW MIRROR DELUXE CAB(W14)	1-73318-342-0	02	1	9204-
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9204-9311
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> EXC. AUSTRALIA PACKAGE<D2Y> (A)	1-71737-487-3	02	1	9312-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-918-0	02	1	9204-
132	RING; MIRROR EXC. DOOR MIRROR<D32>	1-71737-934-0	02	1	9204-
133	LENS; MIRROR,OUTSIDE EXC. DOOR MIRROR<D32>	1-71737-927-0	02	1	9204-
134	CLIP; MIRROR LENS EXC. DOOR MIRROR<D32>	1-71737-936-0	02	1	9204-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
