0-12 — CYLINDER BLOCK (#134076) — 44 parça

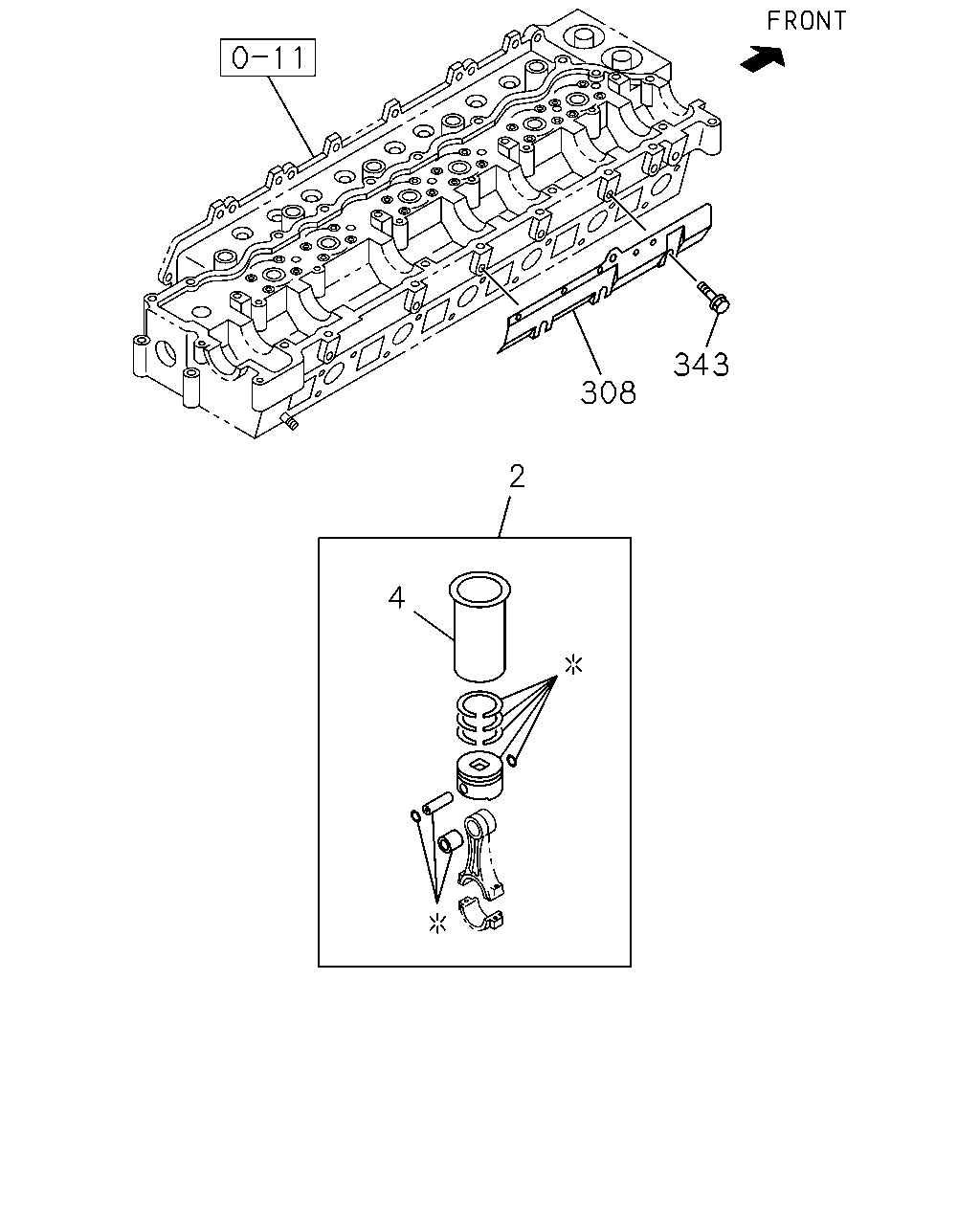

308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1402-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1402-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1402-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1402-
308	PROTECTOR; HEAT,HD COVER	8-94390-997-0	01	1	1402-
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	03	1	1402-

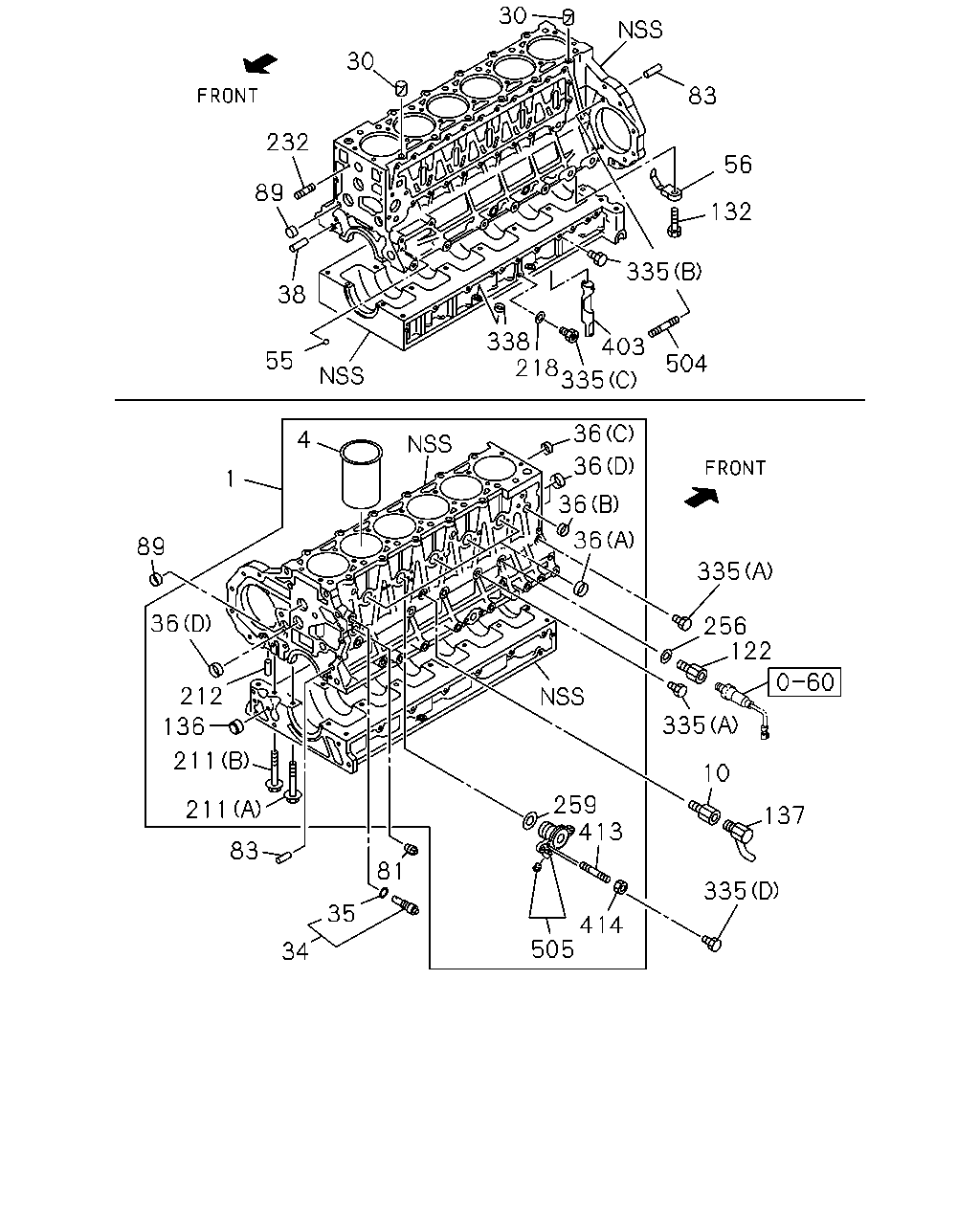

232 89 38 55 30 30 83 56 132 335 338 403 504 218 335 4 1 89 36 212 136 211 211 83 34 35 81 259 413 414 505 335 256 122 335 10 137 335 36 36 36 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL	8-98206-966-0	01	1	1402-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1402-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1402-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1402-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1402-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1402-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1402-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1402-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1402-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1402-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1402-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1402-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1402-
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1402-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1402-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1402-
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1402-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1402-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1402-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1402-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1402-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1402-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1402-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1402-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1402-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1402-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1402-
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1402-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1402-
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1402-
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1402-
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1402-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1402-
403	GUIDE; GALLERY	8-94395-351-1	01	1	1402-
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1402-
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	1402-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1402-
505	ADAPTER; WATER FEED	8-97611-854-0	01	1	1402-
