8-73 — BLOWER UNIT (#134067) — 19 parça

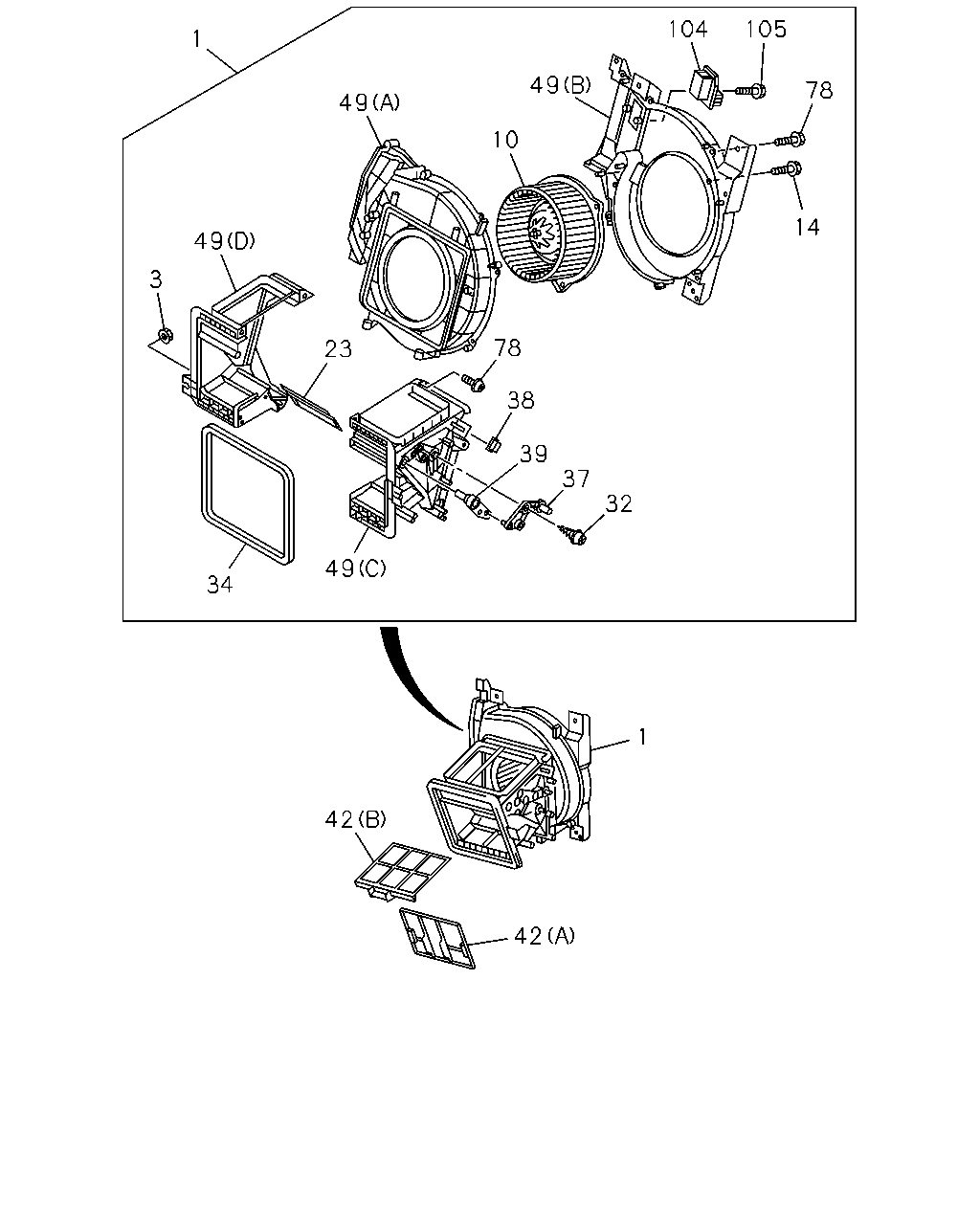

çizim 408277
1 49 49 104 105 78 14 10 49 3 23 78 38 39 32 49 34 1 42 42 37
BalonParca AdiParca NoAdetTipApplied Date
1 BLOWER ASM
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98171-720-0 01 1 1402-
3 NUT; CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 02 1 1402-
10 MOTOR ASM; FAN,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98183-924-0 01 1 1402-
14 SCREW; COVER TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X16 		8-98047-448-0 03 1 1402-
23 SHUTTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98171-863-0 01 1 1402-
32 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 01 1 1402-
34 LINING; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98096-453-0 01 1 1402-
37 LEVER; MODE LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-436-0 01 1 1402-
38 CLIP; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-417-0 01 1 1402-
39 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-435-0 01 1 1402-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98025-006-1 01 1 1402-
42 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98041-327-0 01 1 1402-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98047-440-0 01 1 1402-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98047-441-0 01 1 1402-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (D) 		8-98077-413-0 01 1 1402-
49 CASE; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) 		8-98077-414-0 01 1 1402-
78 SCREW; CASE TO CASE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 15 1 1402-
104 RESISTOR; BLOWER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-113-0 01 1 1402-
105 SCREW; RESISTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 02 1 1402-
