6-76 — FLOOR EQUIPMENT AND SEALING (#13406) — 75 parça

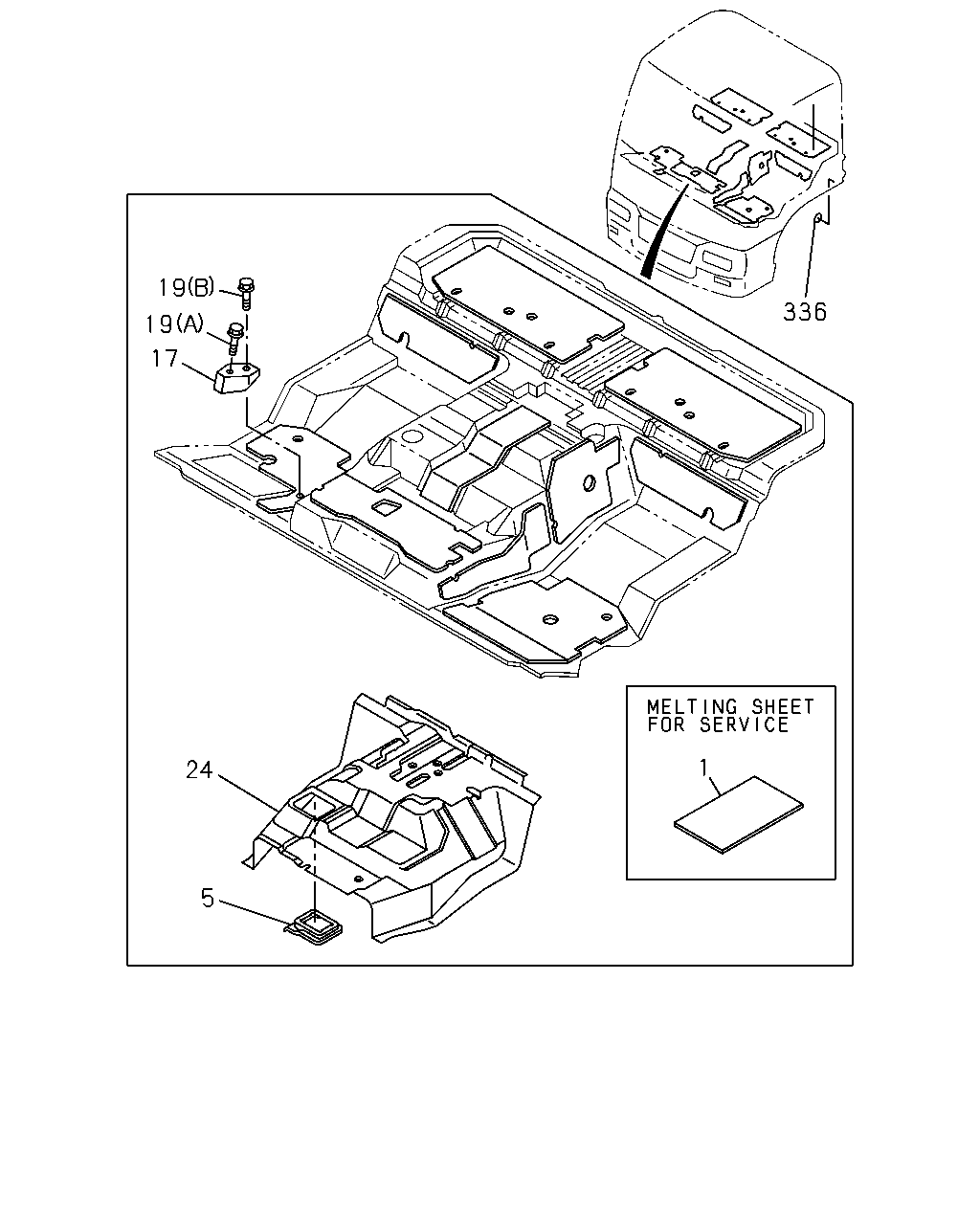

çizim 22518
5 24 1 17 19 19 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 0105- ● ●
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 0105- ● ●
17 REST; FOOT,DRIVER 1-73907-176-1 01 1 0105- ● ●
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0105- ● ●
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 0105- ● ●
24 INSULATOR; HEAT,FRT
PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-71907-538-5 01 1 0105- ● ●
24 INSULATOR; HEAT,FRT
EXC. PARKING BRAKE TRANSMISSION REAR<PJ8> 		1-71907-299-6 01 1 0105- ● ●
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 0105- ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 0105-0206 ● ●
336 SEAL; FLOOR SIDE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 01 1 0207-0404 ● ●
336 SEAL; FLOOR SIDE
EXC. SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 0405- ● ●

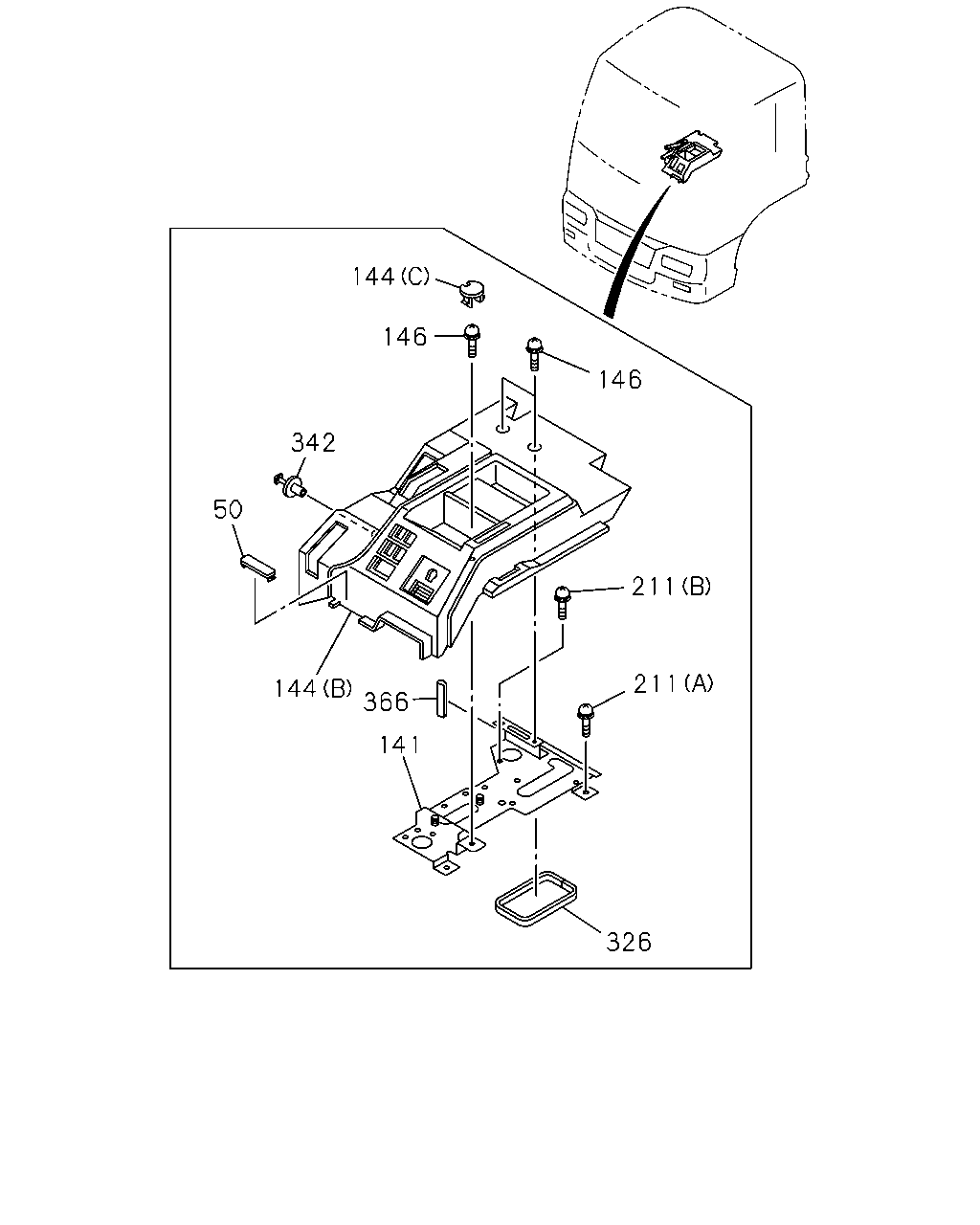

çizim 77685
326 211 211 146 144 146 342 50 144 141 366
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-124-0 01 1 0105-0208 ● ●
50 COVER ASM; SUPPORT,SIDE
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> 		1-72537-124-0 01 1 0105-0208 ● ●
50 COVER ASM; SUPPORT,SIDE
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-124-0 01 1 0209- ● ●
50 COVER ASM; SUPPORT,SIDE
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-72537-124-0 01 1 0209- ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79907-076-2 01 1 0105- ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (A) 		1-72417-348-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (A) 		1-72417-348-1 01 1 0107- ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (B) 		1-72417-379-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-72417-379-0 01 1 0107- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C) 		1-72537-106-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-338-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-338-1 01 1 0107- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (B) 		1-72417-382-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> (B) 		1-72417-382-0 01 1 0107- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (C) 		1-76337-461-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (C) 		1-76337-461-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) EXC. FULL TRACTOR TRUCK<RD6>,PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72417-383-1 01 1 0105- ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0105- ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0105- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0207- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0207- ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) 		1-79997-978-1 01 1 0105- ● ●
342 FASTENER
ANTI NOISE EQUIPMENT<SV9> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-270-0 01 1 0105-0208 ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> D8X13.5 		1-09987-270-0 01 1 0105-0208 ● ●
342 FASTENER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> D8X13.5 		1-09987-270-0 01 1 0209- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5 		1-09987-248-1 01 1 0105-0208 ● ●
342 FASTENER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5 		1-09987-248-1 01 1 0209- ● ●
366 FINISHER; COVER
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=50 		8-94270-377-1 01 1 0306- ● ●

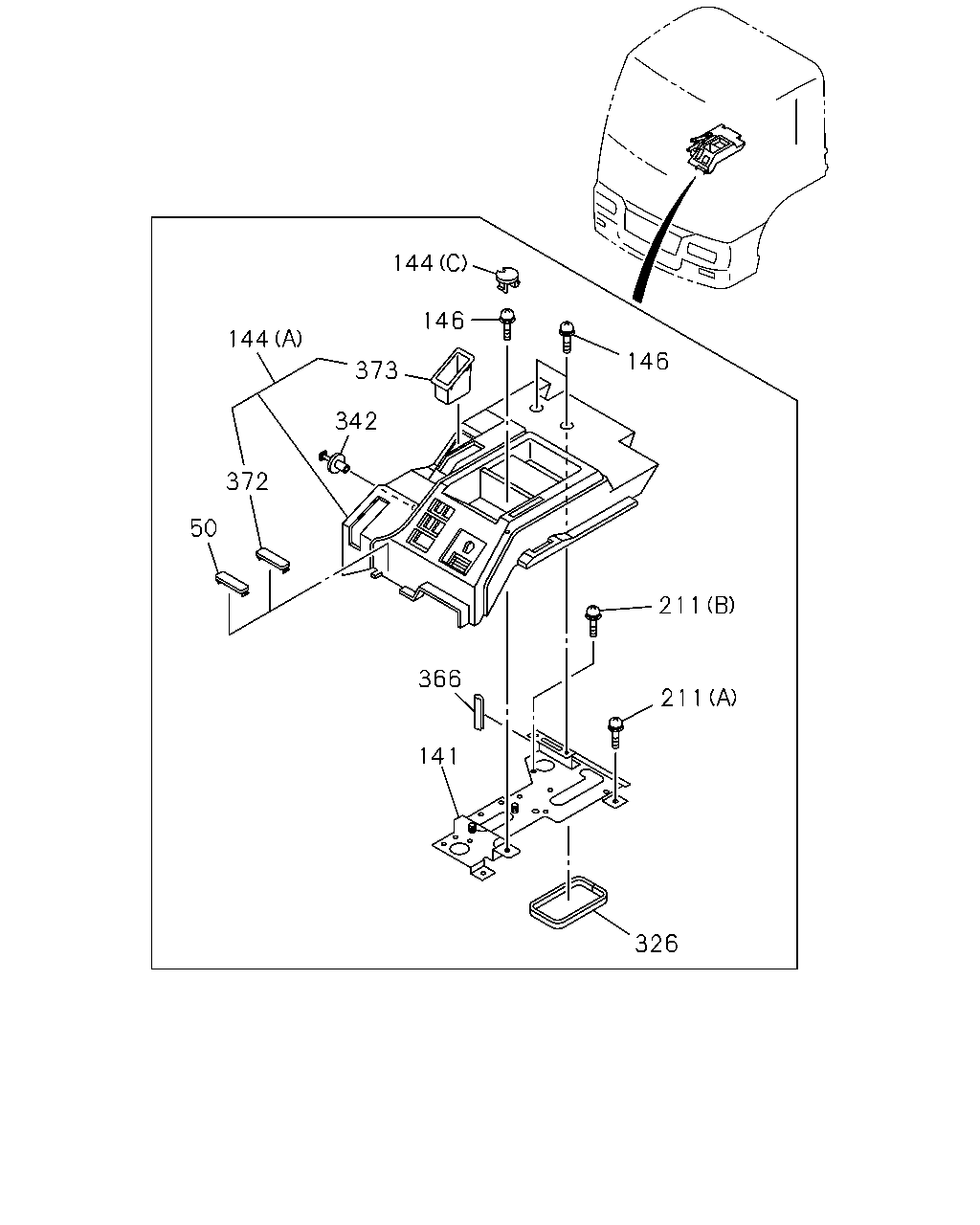

çizim 77759
326 211 211 366 141 146 144 146 373 144 342 372 50
BalonParca AdiParca NoAdetTipApplied Date A B
50 COVER ASM; SUPPORT,SIDE
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-124-0 01 1 0105-0208 ● ●
50 COVER ASM; SUPPORT,SIDE
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> 		1-72537-124-0 01 1 0105-0208 ● ●
50 COVER ASM; SUPPORT,SIDE
SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-72537-124-0 01 1 0209- ● ●
50 COVER ASM; SUPPORT,SIDE
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> 		1-72537-124-0 01 1 0209- ● ●
141 HOLDER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-79907-076-2 01 1 0105- ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (A) 		1-72417-348-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> (A) 		1-72417-348-1 01 1 0107- ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (B) 		1-72417-379-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-72417-379-0 01 1 0107- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> (C) 		1-72537-106-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-338-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> EXC. FULL TRACTOR TRUCK<RD6> (A) 		1-72417-338-1 01 1 0107- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> EXC. FULL TRACTOR TRUCK<RD6> (B) 		1-72417-382-0 01 1 0105-0106 ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL TRACTOR TRUCK<RD6> (B) 		1-72417-382-0 01 1 0107- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) (C) 		1-76337-461-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> (C) 		1-76337-461-0 01 1 0105- ● ●
144 COVER; HAND BRK VLV
SPRING BRAKE(SU9) EXC. FULL TRACTOR TRUCK<RD6>,PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-72417-383-1 01 1 0105- ● ●
146 BOLT; COVER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0105- ● ●
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 0105- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0207- ● ●
211 BOLT; COVER
SPRING BRAKE(SU9) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0105-0206 ● ●
211 BOLT; COVER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0207- ● ●
326 SEAL; COVER
SPRING BRAKE(SU9) 		1-79997-978-1 01 1 0105- ● ●
342 FASTENER
ANTI NOISE EQUIPMENT<SV9> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> D8X13.5 		1-09987-270-0 01 1 0105-0208 ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> ISUZU M/T<X9A> D8X13.5 		1-09987-270-0 01 1 0105-0208 ● ●
342 FASTENER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> D8X13.5 		1-09987-270-0 01 1 0209- ● ●
342 FASTENER
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5 		1-09987-248-1 01 1 0105-0208 ● ●
342 FASTENER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FULLER M/T<X9B>,ZF M/T<X9E> D8X13.5 		1-09987-248-1 01 1 0209- ● ●
366 FINISHER; COVER
FULL TRACTOR TRUCK<RD6> PARKING BRAKE VALVE LEVER TYPE<W48> L=50 		8-94270-377-1 01 1 0306- ● ●
372 COVER; CONSOLE
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> 		1-72537-124-0 01 1 0105-0106 ● ●
372 COVER; CONSOLE
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> 		1-72537-124-0 01 1 0107- ● ●
373 COVER; HOLE
PARKING BRAKE VALVE LEVER TYPE<W48> FULLER M/T<X9B>,ZF M/T<X9E> 		1-72537-194-0 01 1 0105-0106 ● ●
373 COVER; HOLE
PARKING BRAKE VALVE LEVER TYPE<W48> ZF M/T<X9E> 		1-72537-194-0 01 1 0107- ● ●
