◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11579 - FVZ(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#134059) — 18 parça

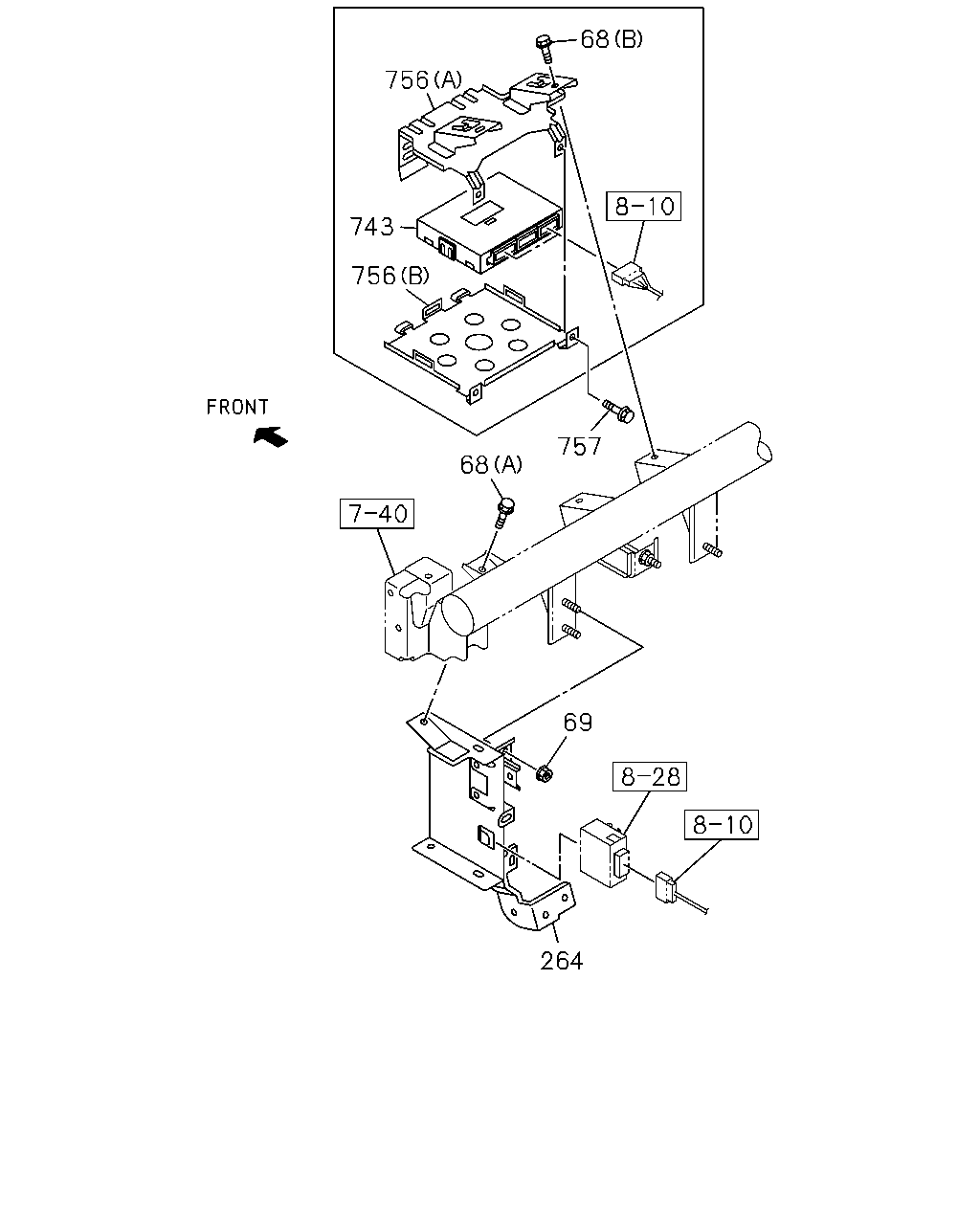

çizim 406722
68 756 743 756 757 68 69 264
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE THA 		0-28650-616-0 01 1 1402-
68 BOLT; BRKT
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1402-
69 NUT; BRKT
M6 FLANGE THA 		0-91180-106-0 01 1 1402-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1402-
743 CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-98182-026-3 01 1 1402-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A) 		8-98056-411-3 01 1 1402-
756 BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B) 		8-98111-836-1 01 1 1402-
757 BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-

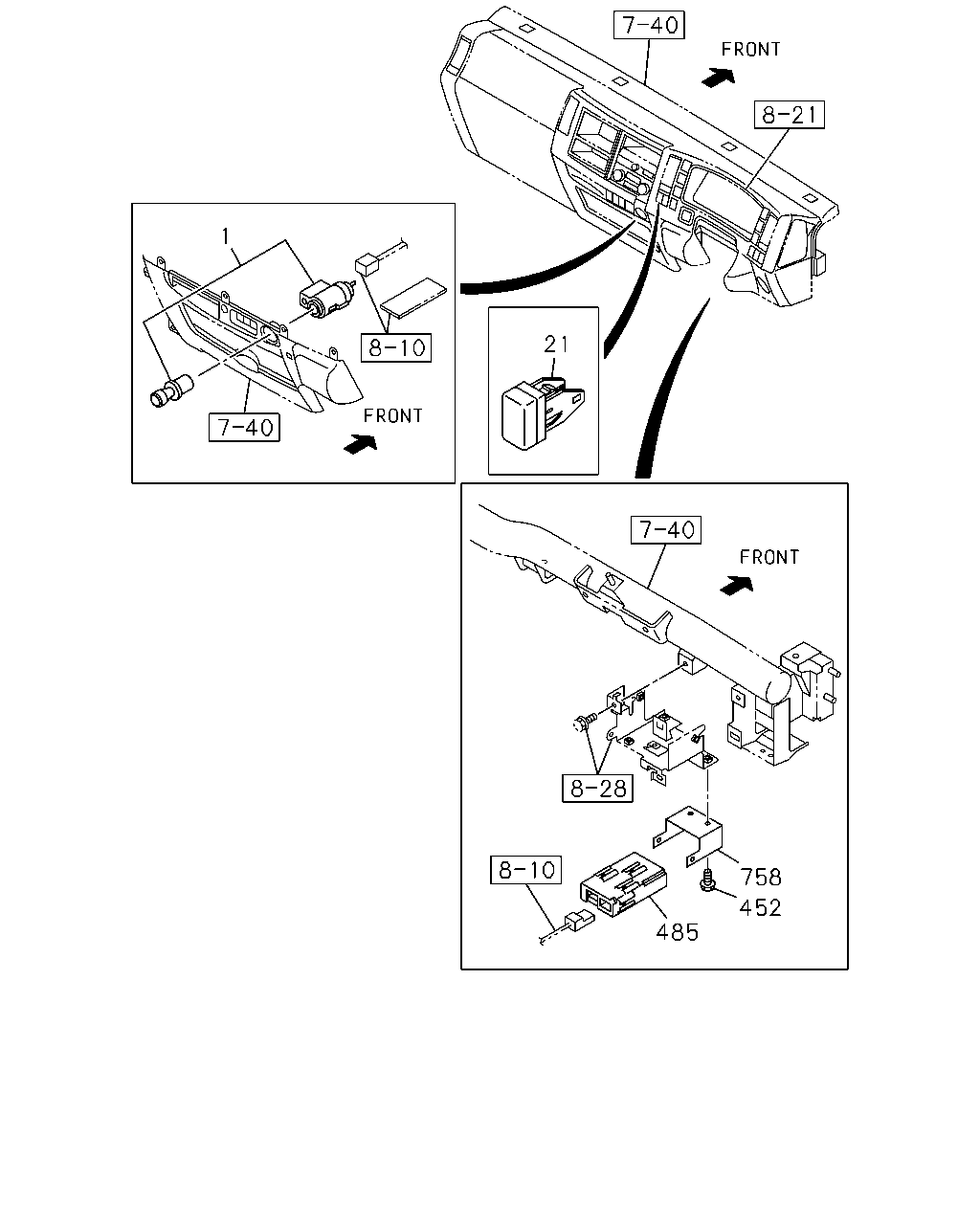

çizim 406886
21 485 758 452 1
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1402-
21 COVER; HOLE 8-98025-954-1 01 1 1402-
452 BOLT; BRKT
M6X16 FLANGE THA 		0-28650-616-0 02 1 1402-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1402-1410
485 CONTROL UNIT; SPEED SENSOR 8-98232-695-0 01 1 1411-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1402-

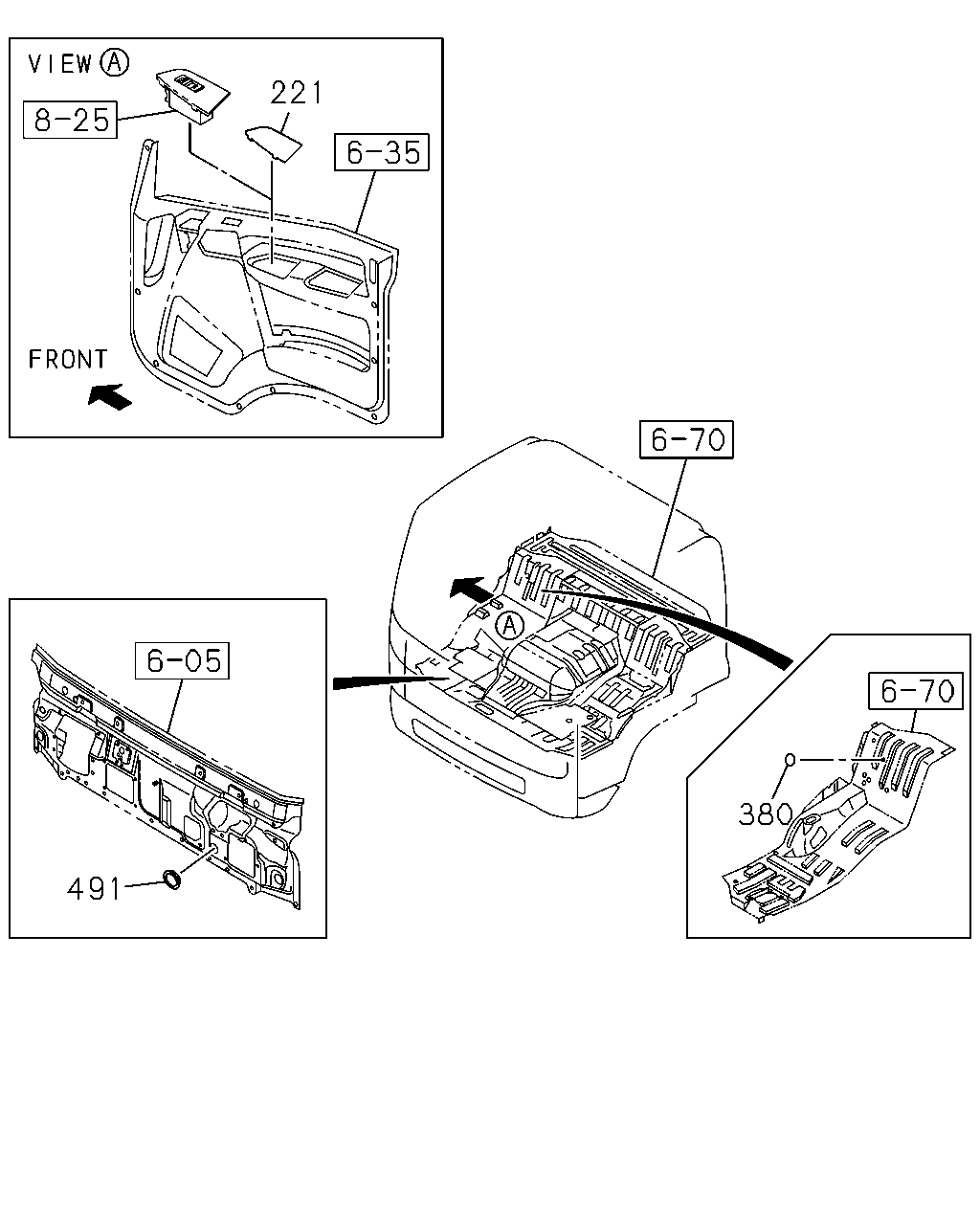

çizim 407337
491 221 380
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1402-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1402-
380 SEAL
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
