Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#134052) — 49 parça
◀

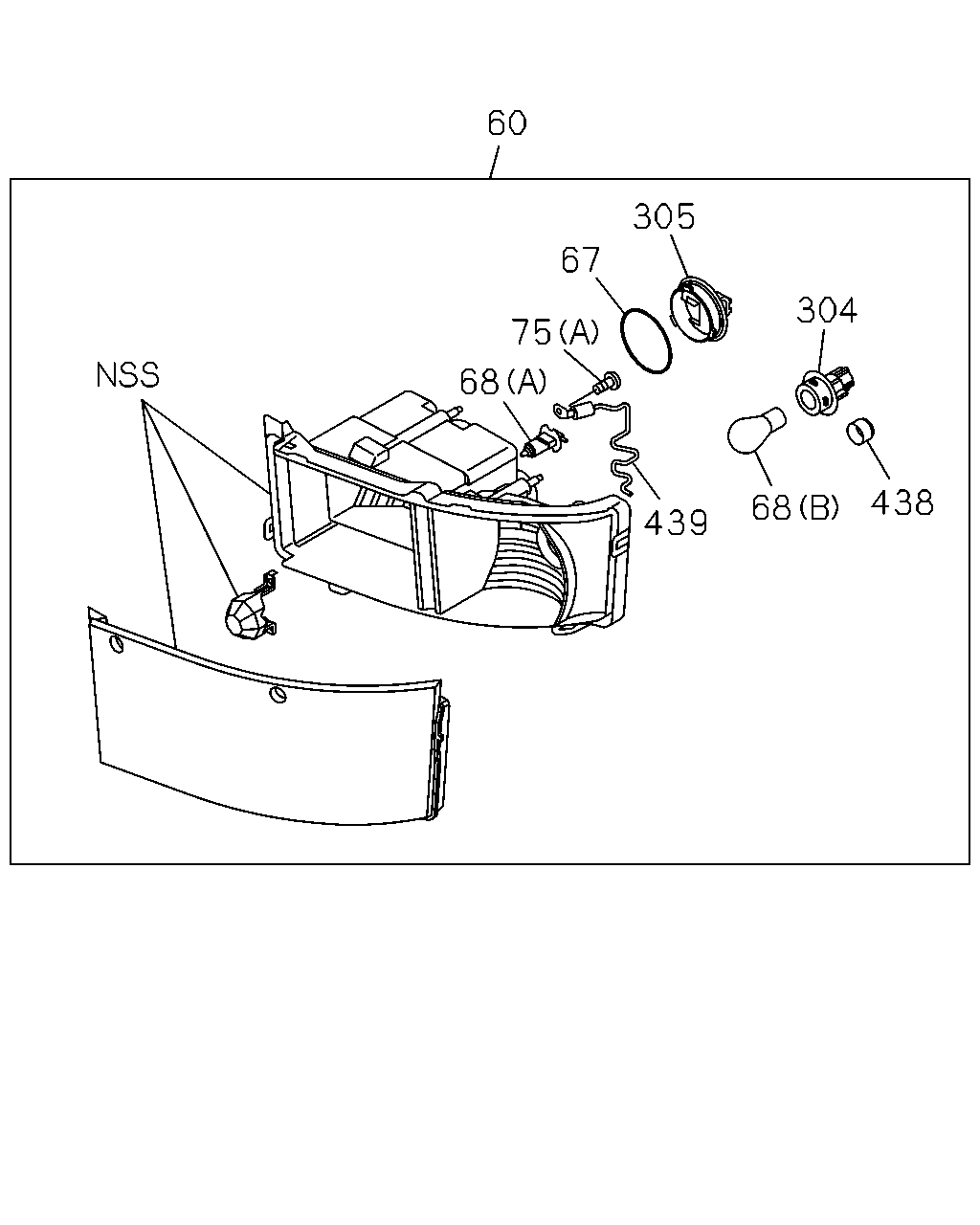

[801A] COMPONENT;FRT COMB LAMP (12 parça)

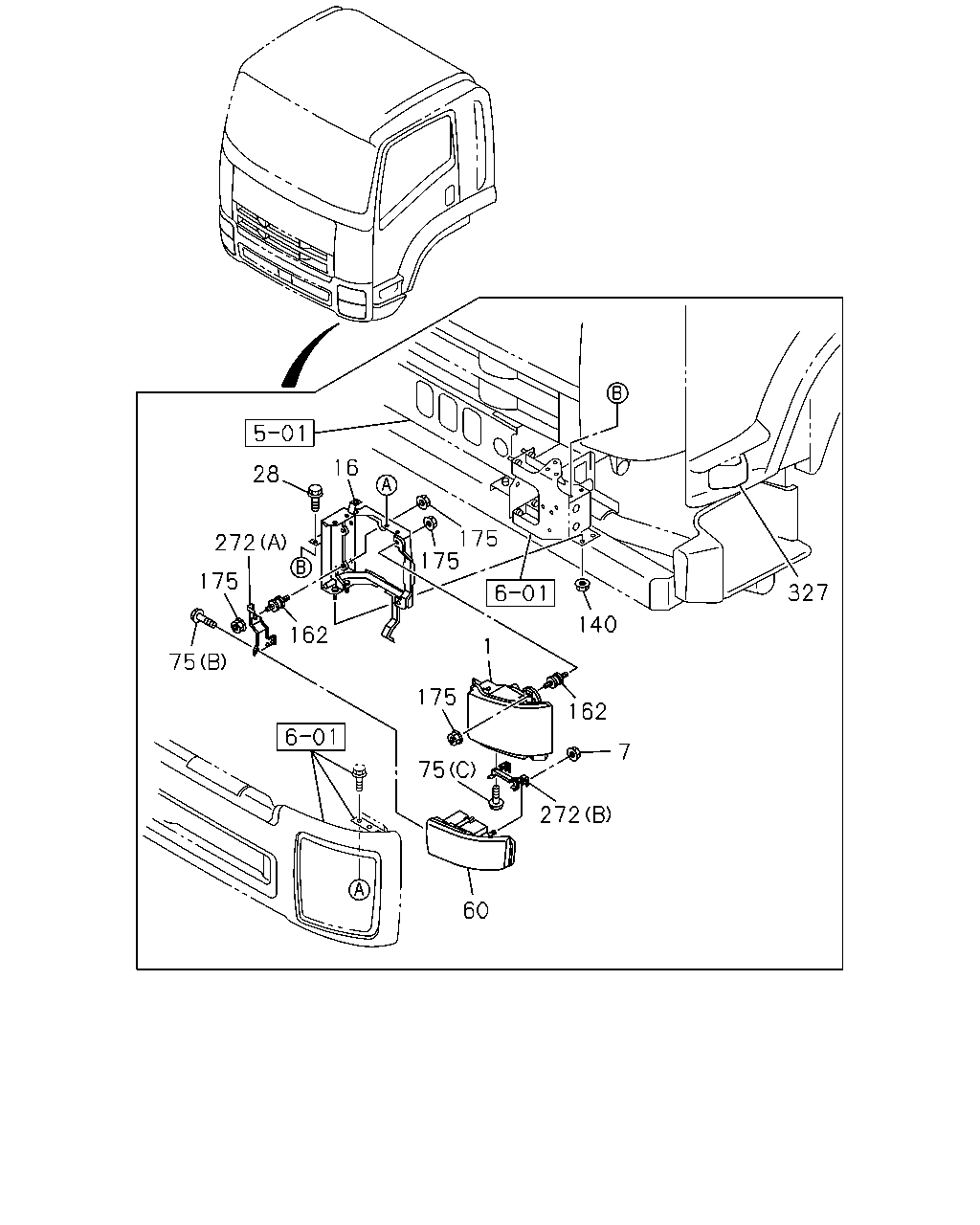

[801A] FIXING;FRONT LAMP (20 parça)
[801A] COMPONENT;HEAD,SIDE TURN SIGNAL LAMP (17 parça)
▶
439
438
304
305
67
75
68
60
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
LAMP ASM; FRT COMB
THA
8-97926-940-0
01
1
1402-
60
LAMP ASM; FRT COMB
THA
8-97926-939-0
01
1
1402-
67
GASKET; FRT COMB LAMP
THA
8-98238-656-0
02
1
1402-
68
BULB; FRT COMB LAMP
(B) 21W THA
8-97927-097-0
02
1
1402-
68
BULB; FRT COMB LAMP
(A) 70W THA
8-97927-098-0
02
1
1402-
75
SCREW; FRT COMB LAMP
(A) THA
8-98074-439-0
02
1
1402-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE THA
0-28650-616-0
04
1
1402-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1402-
304
PLUG; SOCKET,FRT COMB LAMP
THA
8-97927-100-0
02
1
1402-
305
COVER; FRT COMB LAMP
THA
8-97927-099-0
02
1
1402-
438
CAP; BREATHER,FRT COMB LAMP
THA
8-97378-874-0
02
1
1402-
439
SPRING SET; COMB LAMP
THA
8-98075-644-0
02
1
1402-
327
140
162
7
272
75
175
1
175
175
16
28
272
175
162
75
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-97948-523-0
01
1
1402-
1
LAMP ASM; HEAD
THA
8-97948-522-0
01
1
1402-
7
NUT; FRT COMB LAMP
M6 FLANGE THA
0-91180-106-0
04
1
1402-
16
BRACKET; HEADLAMP
THA
8-98013-015-2
01
1
1402-
16
BRACKET; HEADLAMP
THA
8-98013-016-2
01
1
1402-
28
BOLT; HEADLAMP
M10X25 FLANGE THA
0-28651-025-0
04
1
1402-
60
LAMP ASM; FRT COMB
THA
8-97926-940-0
01
1
1402-
60
LAMP ASM; FRT COMB
THA
8-97926-939-0
01
1
1402-
75
SCREW; FRT COMB LAMP
(A) THA
8-98074-439-0
02
1
1402-
75
SCREW; FRT COMB LAMP
(B) M6X16 FLANGE THA
0-28650-616-0
04
1
1402-
75
SCREW; FRT COMB LAMP
(C) M5X16 TAPPING W/PL WASHER
0-74360-516-0
06
1
1402-
140
NUT
M10 FLANGE THA
0-91180-210-0
04
1
1402-
162
RUBBER; CUSHION UPR
THA
8-97926-571-0
08
1
1402-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE THA
0-91180-108-0
16
1
1402-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-935-0
01
1
1402-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-938-0
01
1
1402-
272
BRACKET; FRT COMB LAMP
(A)
8-98051-934-0
01
1
1402-
272
BRACKET; FRT COMB LAMP
(B)
8-98051-937-0
01
1
1402-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-955-0
01
1
1402-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-954-0
01
1
1402-
1
4
408
420
20
5
5
382
457
23
427
327
437
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
THA
8-97948-523-0
01
1
1402-
1
LAMP ASM; HEAD
THA
8-97948-522-0
01
1
1402-
4
HEADLAMP UNIT
THA
8-97948-940-0
01
1
1402-
4
HEADLAMP UNIT
THA
8-97948-941-0
01
1
1402-
5
BULB; HEADLAMP
(B) 24V 5W THA
1-82194-042-0
02
1
1402-
5
BULB; HEADLAMP
(A) 24V 75/70W THA
1-82194-063-0
02
1
1402-
20
SCREW; HEADLAMP
THA
8-97378-871-0
06
1
1402-
23
COVER; BULB,HEADLAMP
THA
8-97232-491-0
02
1
1402-
91
BULB; SIDE TURN SIGNAL
24V 21W THA
8-98051-495-0
02
1
1402-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-955-0
01
1
1402-
327
LAMP ASM; SIDE TURN SIGNAL
THA
8-97926-954-0
01
1
1402-
382
PLUG; SOCKET,HEADLAMP
THA
8-98225-685-0
02
1
1402-
408
CAP; BREATHER,HEADLAMP
THA
8-97378-874-0
02
1
1402-
420
SPRING; BULB,HEADLAMP
THA
8-98218-601-0
02
1
1402-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE THA
0-91180-106-0
02
1
1402-
437
SOCKET; SIDE,TURN
THA
8-98051-390-0
02
1
1402-
457
GRIP; HEADLAMP
THA
8-98241-354-0
02
1
1402-
