◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#13405) — 62 parça

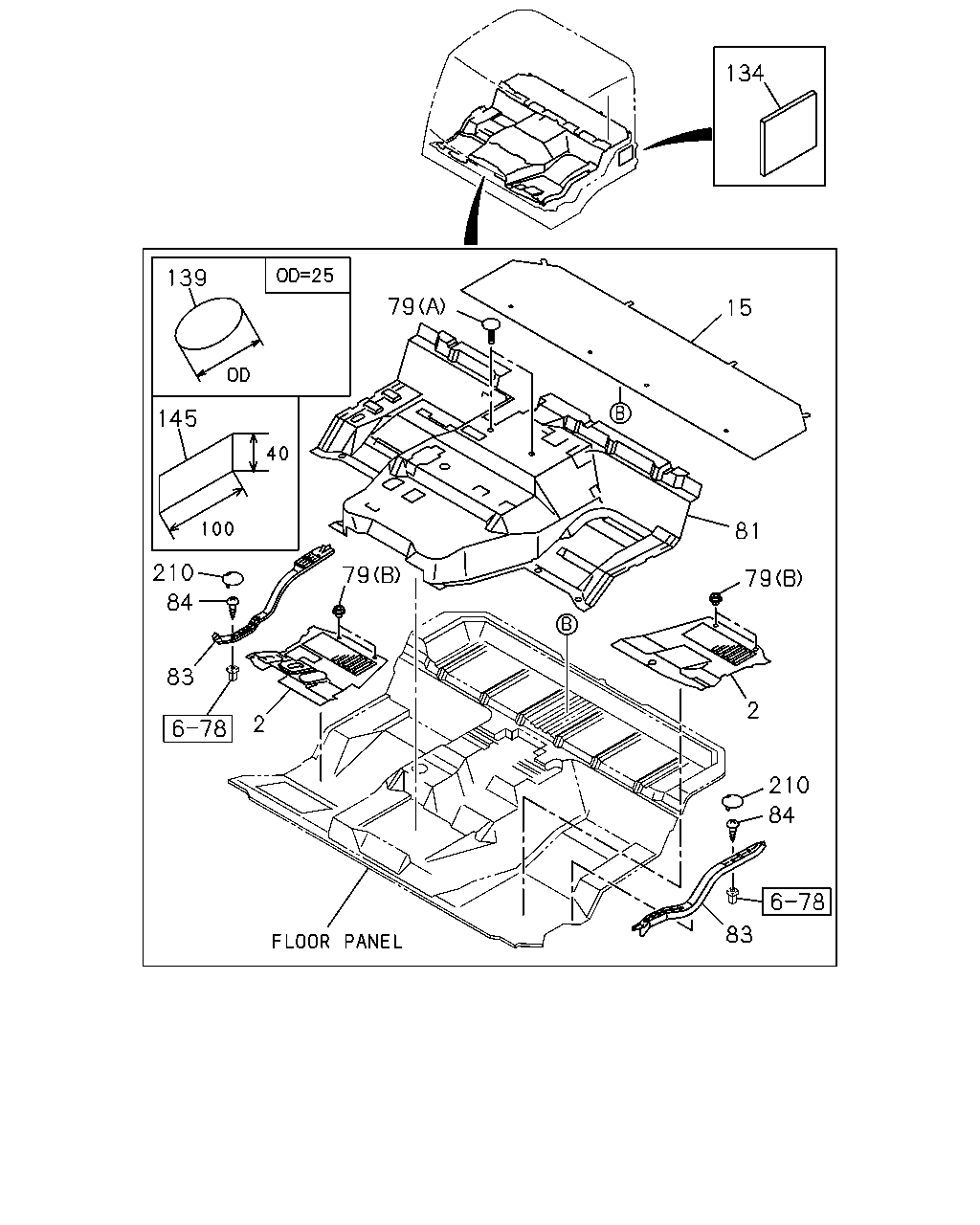

çizim 77758
83 84 210 2 79 81 15 134 139 145 210 84 83 79 2 79
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0105-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0201- ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0105-0112 ● ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0201- ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0105-0112 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-0 01 1 0201-0211 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, CENTER SEAT DELETE(SP9) 		1-73237-783-0 01 1 0212-0212 ● ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0301- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105- ● ●
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-745-0 01 1 0110-0112 ● ●
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-803-5 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-746-0 01 1 0110-0112 ● ●
81 MAT; FLOOR,CENTER
NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-818-2 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) 		1-73237-747-0 01 1 0110-0112 ● ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) 		1-73237-804-4 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) ,CENTER SEAT DELETE(SP9) 		1-73237-748-0 01 1 0110-0112 ● ●
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,NEW ZEALAND EQUIPMENT(PK5) ,CENTER SEAT DELETE(SP9) 		1-73237-819-1 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-754-0 01 1 0105-0112 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-806-4 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-722-0 01 1 0105-0112 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-73237-815-1 01 1 0201- ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73237-721-0 01 1 0105-0112 ● ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,DRIVER ISRINGHAUSEN SEAT(SJA) 		1-73237-800-4 01 1 0201- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 0105- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105- ● ●

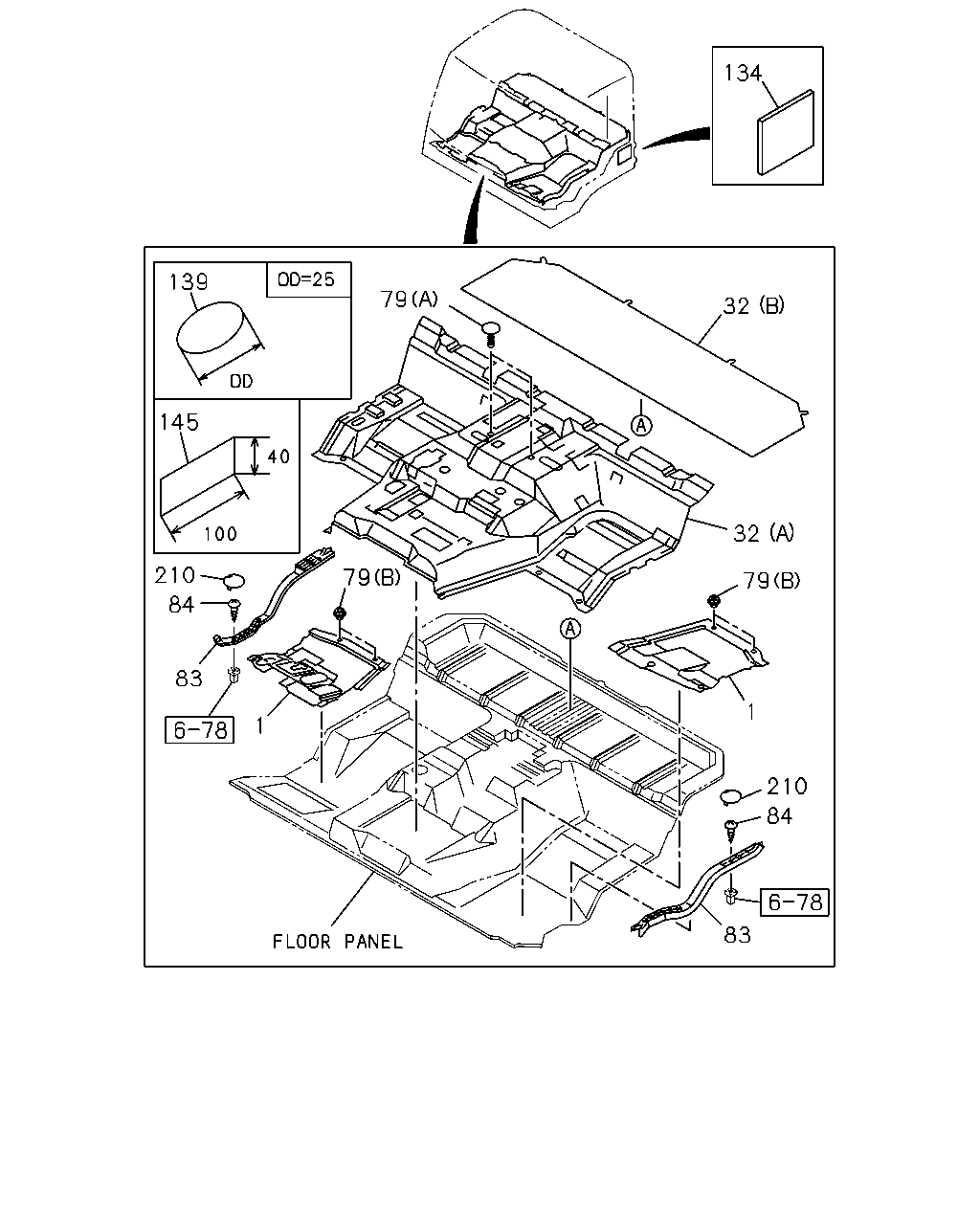

çizim 77764
83 84 210 79 32 32 79 139 145 210 84 83 79 1 134 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0105-0404 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-1 01 1 0405- ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0105-0404 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-1 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-741-2 01 1 0110-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-839-5 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-742-2 01 1 0110-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> NEW ZEALAND EQUIPMENT(PK5) DRIVER ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-840-5 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-73237-743-1 01 1 0110-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-73237-849-5 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) (A) 		1-73237-744-1 01 1 0110-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> DRIVER ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) (A) 		1-73237-850-5 01 1 0405- ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-752-1 01 1 0105-0404 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-852-5 01 1 0405- ● ●
32 CARPET; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-718-1 01 1 0105-0404 ● ●
32 CARPET; FLOOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DELUXE CARPET<BF2> EXC. DRIVER ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-846-5 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-717-1 01 1 0105-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-845-5 01 1 0405- ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0105-0211 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,CENTER SEAT DELETE(SP9) (B) 		1-73237-720-0 01 1 0212-0212 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0301-0404 ● ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-1 01 1 0405- ● ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0105- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0105- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0105- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105- ● ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0105- ● ●
145 SEAL; FLOOR PANEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40 		1-72498-022-0 01 1 0105- ● ●
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
