Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

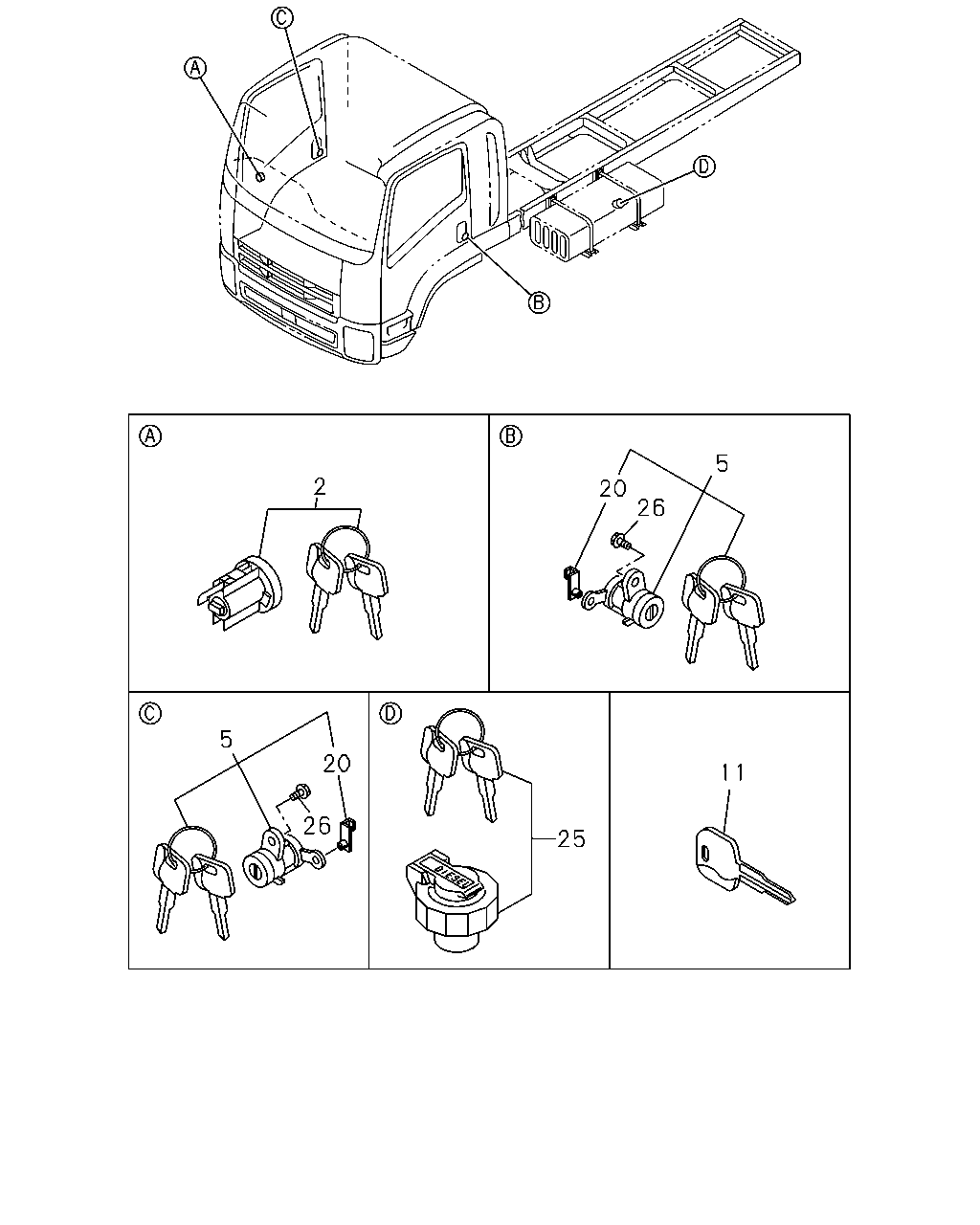

7-30 — LOCK CYLINDER SET
(#134044) — 10 parça
◀
[730A] NO.1 (2 parça)
[730A] NO.2 (8 parça)
▶
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 370L<8MH> (A) THA
8-97925-261-0
01
1
1402-
1
CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP KEY LOCK<N05>,FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 370L<8MH> (B) THA
8-98201-198-0
01
1
1402-
5
26
20
11
25
20
26
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
THA
8-98201-342-0
01
1
1402-
5
CYLINDER ASM; DOOR LOCK
THA
8-98055-149-0
01
1
1402-
5
CYLINDER ASM; DOOR LOCK
THA
8-98055-150-0
01
1
1402-
11
KEY; BLANK
THA
8-98055-170-0
AR
1
1402-
20
SNAP; DOOR LOCK CYL
THA
8-98055-181-0
01
1
1402-
20
SNAP; DOOR LOCK CYL
THA
8-98055-182-0
01
1
1402-
25
CAP; FUEL TANK,W/KEY
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 370L<8MH> THA
8-98146-010-0
01
1
1402-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1402-
