Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

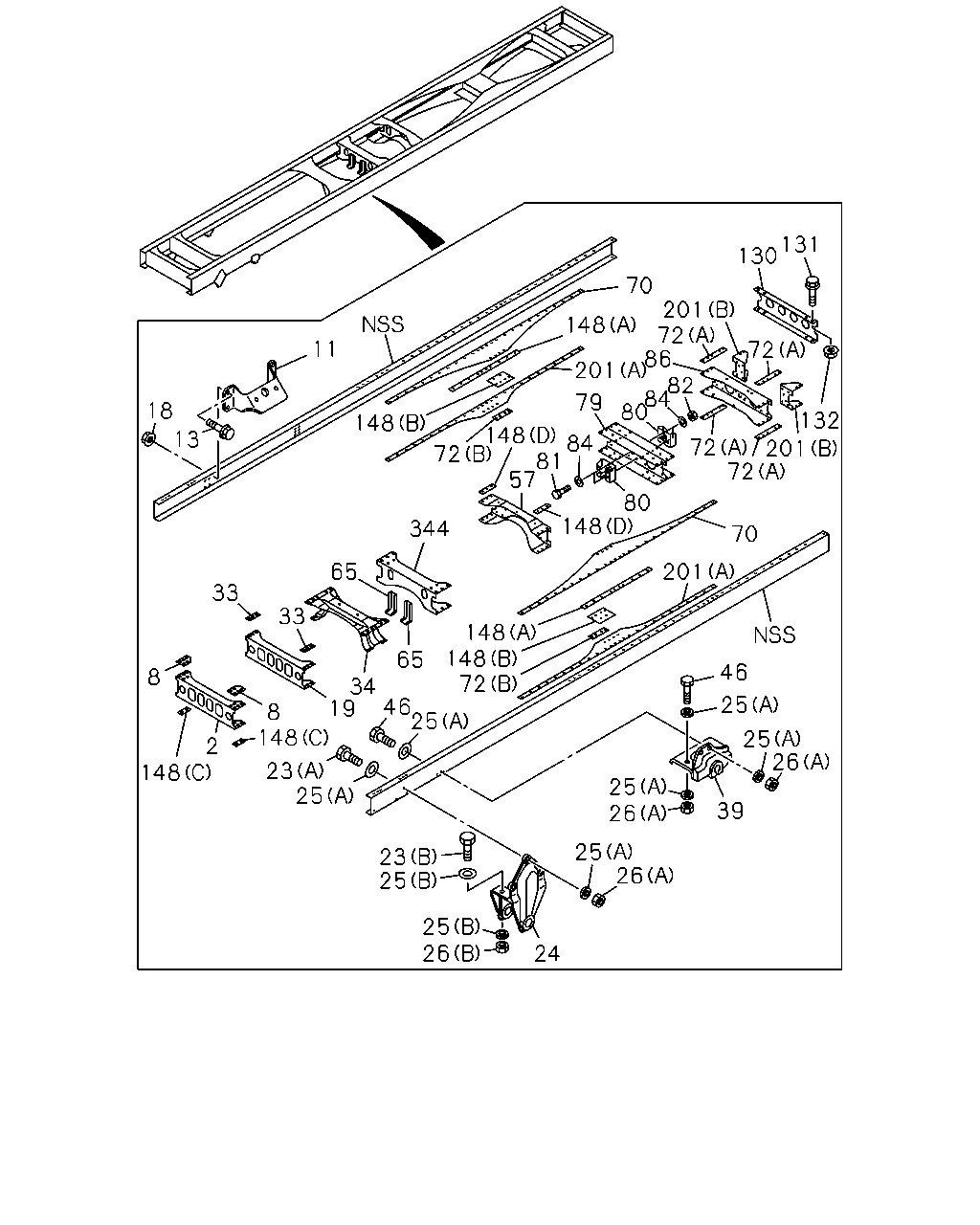

5-01 — FRAME AND OTHER PARTS
(#134015) — 40 parça
11
13
18
344
65
33
33
8
2
148
8
148
23
25
19
65
148
72
148
25
46
34
23
25
25
26
24
26
25
25
26
39
26
25
25
46
201
148
80
70
72
72
201
132
131
130
201
72
72
82
86
70
148
201
79
84
80
84
81
148
57
72
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1402-
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1402-
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1402-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1402-
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1402-
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1402-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1402-
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1402-
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1402-
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1402-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1402-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1402-
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1402-
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1402-
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1402-
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1402-
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1402-
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1402-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1402-
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
1402-
65
BRACKET; CENTER BRG
8-97614-126-0
02
1
1402-
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1402-
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
1402-
72
SPACER; TRUNNION
(A) THA
8-97948-182-0
04
1
1402-
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
1402-
80
BRACKET; C/MBR
THA
8-97948-138-0
02
1
1402-
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1402-
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
1402-
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1402-
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
1402-
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1402-
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1402-
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1402-
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
1402-
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1402-
148
SPACER; C/MBR
(C) THA
8-97948-168-0
02
1
1402-
148
SPACER; C/MBR
(A) THA
8-97948-889-0
02
1
1402-
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
1402-
201
GUSSET; C/MBR
(A)
8-97618-440-1
02
1
1402-
344
MEMBER; CROSS,4TH
THA
8-97948-180-0
01
1
1402-
