4-80 — ROAD WHEEL (#134014) — 49 parça

31 31 5 4 2 2 31 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT THA	8-98257-427-0	02	1	1402-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT	8-97520-624-0	02	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR THA	8-98257-427-0	08	1	1402-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR	8-97520-624-0	08	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE THA	8-98257-427-0	01	1	1402-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE	8-97520-624-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE THA	8-98257-428-0	01	1	1402-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	8-97520-623-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	8-97520-631-0	02	1	1402-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	8-97520-631-0	08	1	1402-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	8-97520-631-0	01	1	1402-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT THA	8-98257-428-0	02	1	1402-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT	8-97520-623-0	02	1	1408-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR THA	8-98257-428-0	08	1	1402-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR	8-97520-623-0	08	1	1408-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	1402-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	1402-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	16	1	1402-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	16	1	1402-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	16	1	1402-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	16	1	1402-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT	8-97520-654-0	02	1	1402-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR	8-97520-654-0	08	1	1402-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> SPARE	8-97520-654-0	01	1	1402-

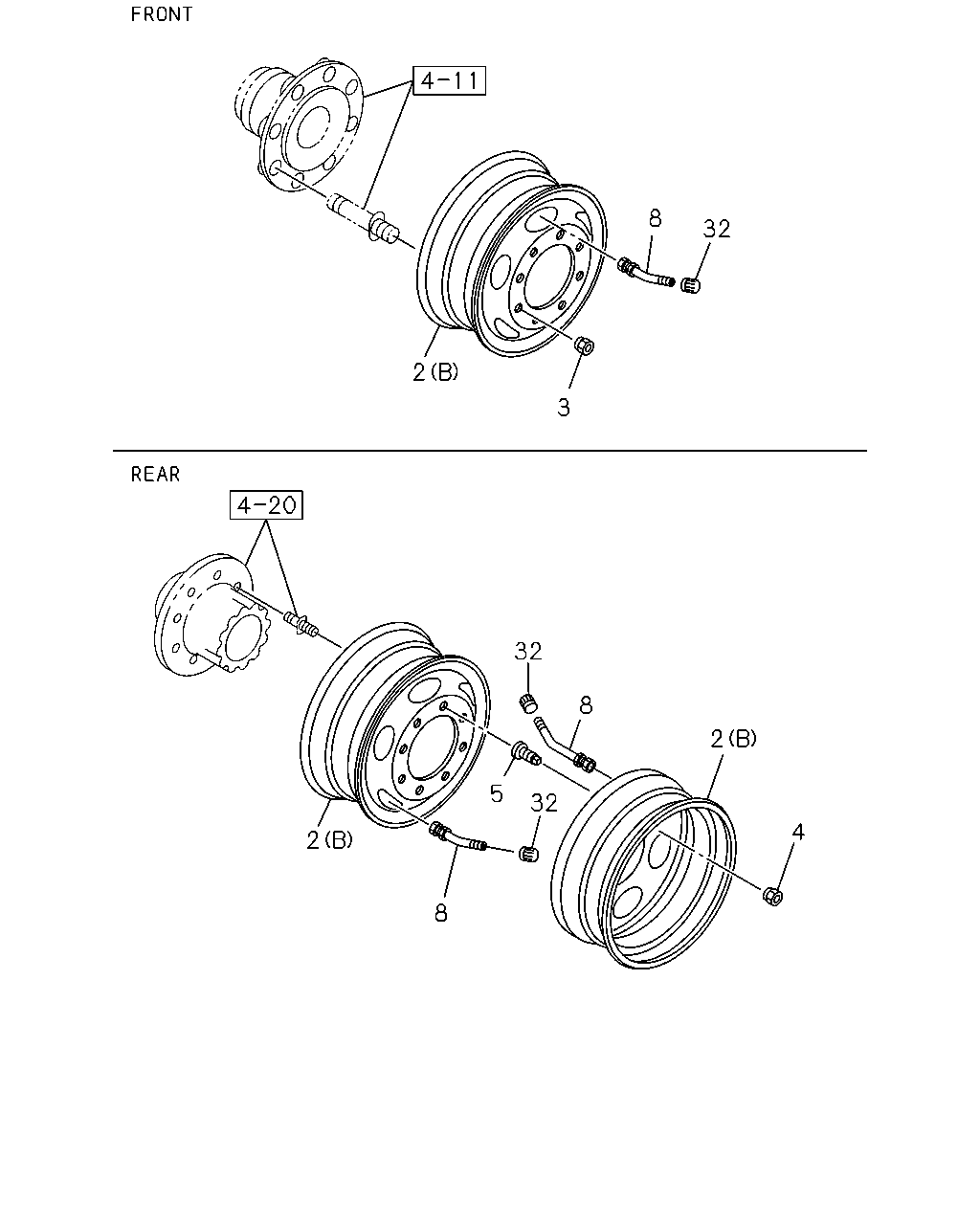

2 4 32 8 32 5 8 2 3 2 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT THA	8-98257-427-0	02	1	1402-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) FRONT	8-97520-624-0	02	1	1408-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR THA	8-98257-427-0	08	1	1402-1407
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) REAR	8-97520-624-0	08	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE THA	8-98257-427-0	01	1	1402-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU> (B) SPARE	8-97520-624-0	01	1	1408-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE THA	8-98257-428-0	01	1	1402-1407
2	WHEEL; DISC SPARE TIRE & DISC WHEEL REAR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) SPARE	8-97520-623-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) FRONT	8-97520-631-0	02	1	1402-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (A) REAR	8-97520-631-0	08	1	1402-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL REAR<R46> (A) SPARE	8-97520-631-0	01	1	1402-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT THA	8-98257-428-0	02	1	1402-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) FRONT	8-97520-623-0	02	1	1408-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR THA	8-98257-428-0	08	1	1402-1407
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) REAR	8-97520-623-0	08	1	1408-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	1402-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	1402-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	16	1	1402-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	16	1	1402-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	16	1	1402-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	16	1	1402-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	1402-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	1402-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	1402-
32	CAP; VALVE SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL 8STUD 7.50X22.5 162-13<SKU>,WHEEL 8STUD 8.25X22.5 165-13TC<SKV>	1-42374-001-0	11	1	1402-
