Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

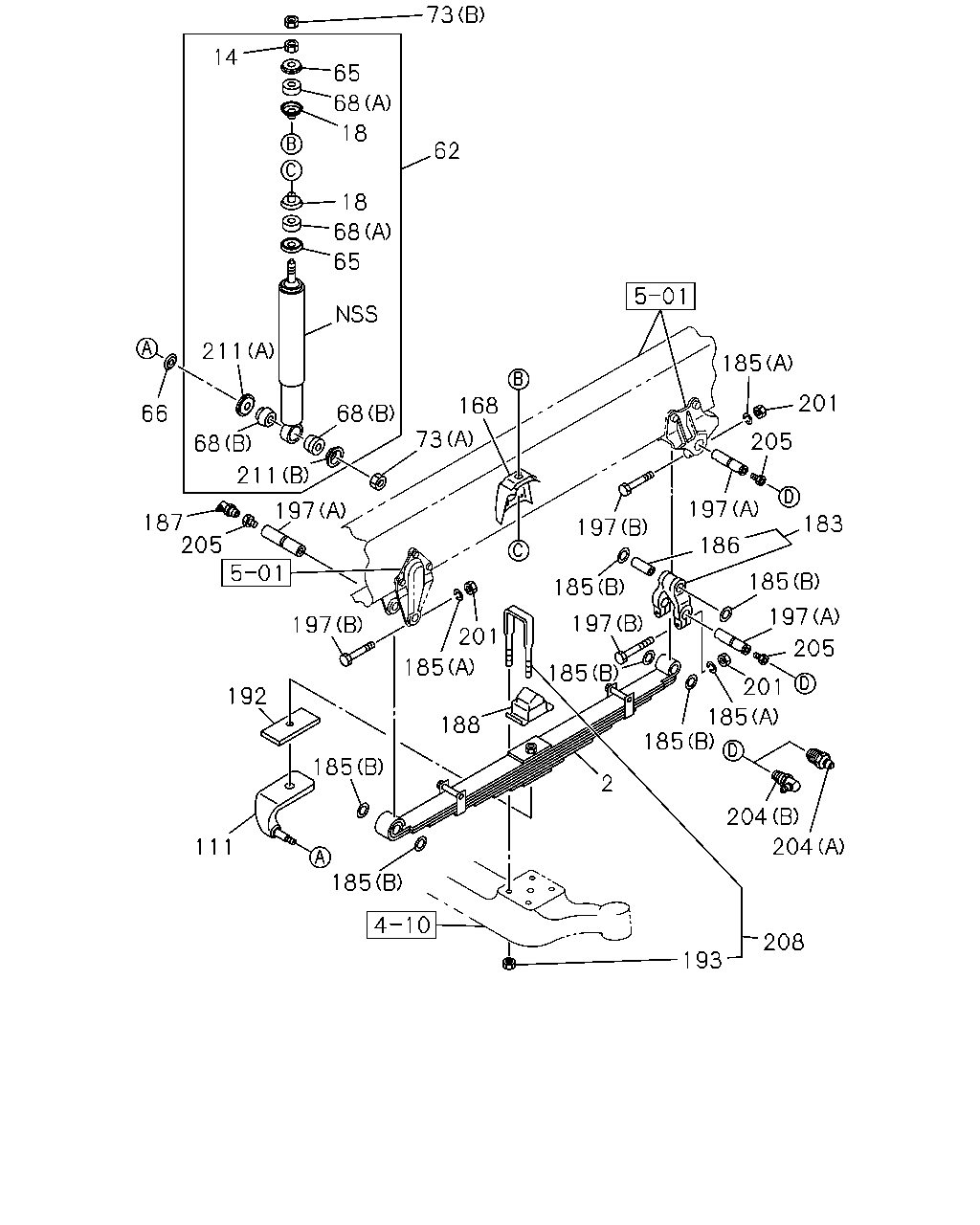

4-50 — FRONT SUSPENSION
(#134010) — 30 parça
73
62
65
68
185
14
18
18
68
65
211
201
205
183
197
186
197
185
197
205
201
185
197
168
73
68
68
66
187
211
197
205
197
201
185
188
185
192
111
185
2
185
185
185
204
204
193
208
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA
8-97948-186-0
02
1
1402-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1402-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1402-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-233-0
02
1
1402-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1402-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1402-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1402-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1402-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1402-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-498-0
01
1
1402-
111
SUPPORTER; S/ABS,FRT SUSP
THA
8-97948-497-0
01
1
1402-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1402-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1402-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1402-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1402-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1402-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1402-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-188-0
02
1
1402-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1402-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1402-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1402-
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1402-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1402-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1402-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1402-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1402-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1402-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1402-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1402-
