Sayfa 6-47 - Isuzu EPC

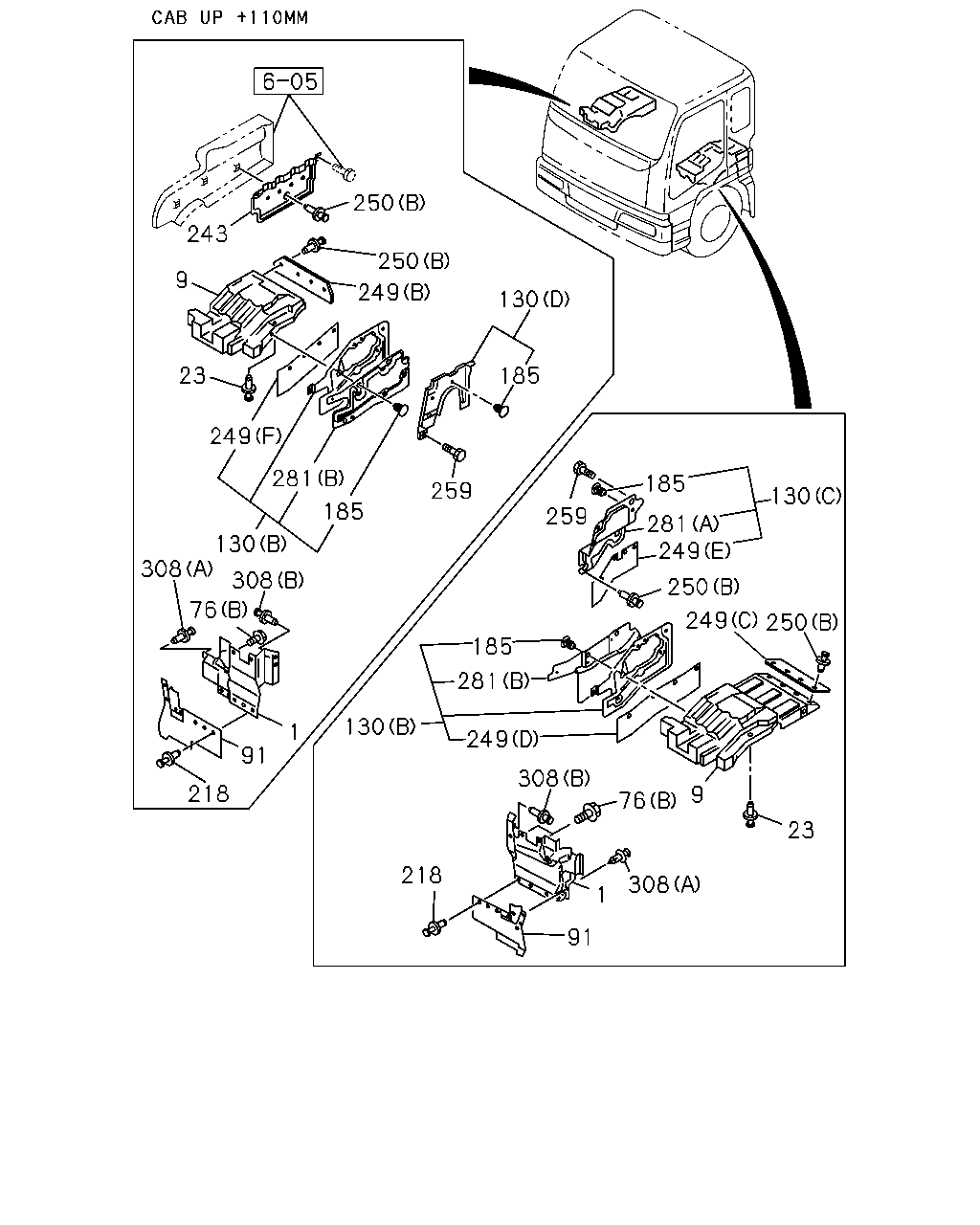

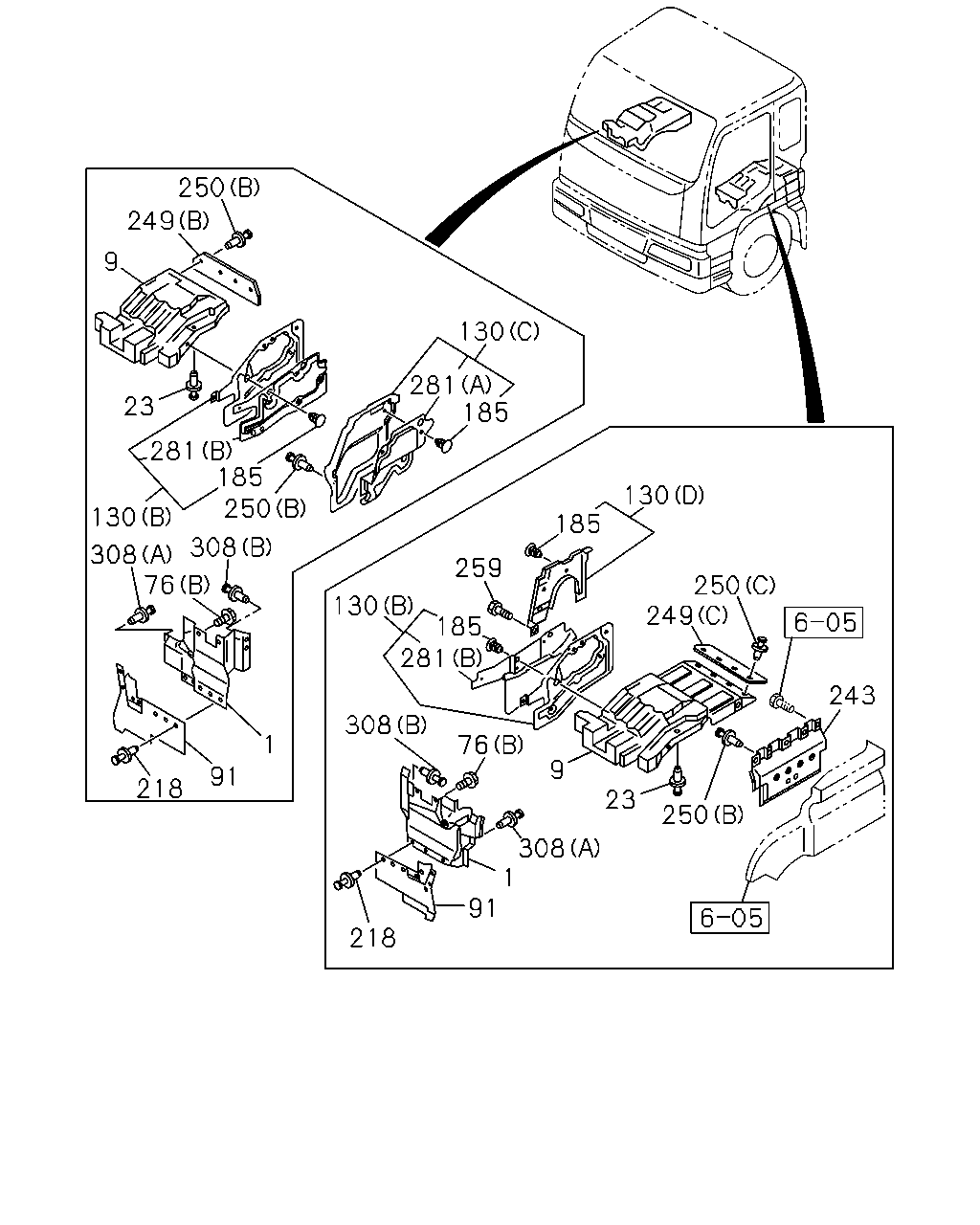

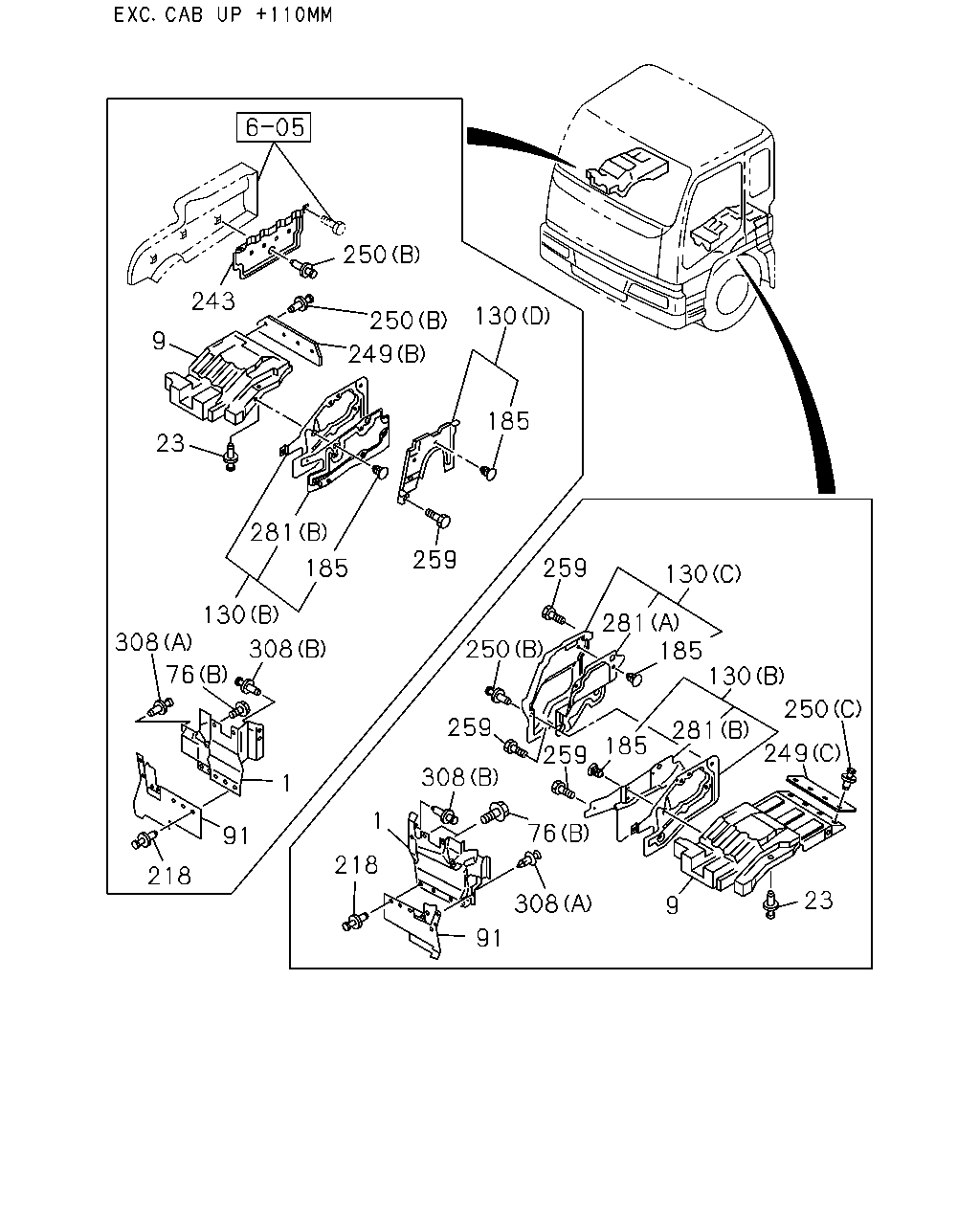

6-47 — MUD GUARD AND INSULATOR (#13401) — 485 parça

308 1 91 218 130 1 91 218 308 130 308 76 185 281 249 308 76 9 23 250 130 185 259 281 249 250 249 259 185 130 185 281 249 23 9 243 250 250 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0105-	●	●
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-893-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-892-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-908-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-907-4	01	1	0105-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0105-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (A)	1-53192-790-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-7	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-993-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-79937-920-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-918-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-969-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (D)	1-79937-972-0	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> (C)	1-79937-917-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> (D)	1-79937-919-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0203-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0105-0511	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0105-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> W-SERIES ENG<1A2> (E)	1-79937-967-1	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-71907-167-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-71907-455-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-	●	●
281	INSULATOR; NOISE PE-SERIES ENG<1A0> (A)	1-71907-166-0	01	1	0105-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0105-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0105-	●	●

130 250 249 185 259 130 185 281 308 9 76 23 250 243 308 1 91 218 1 91 218 76 308 130 308 250 185 281 23 9 249 250 130 281 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0105-	●	●
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-893-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-892-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-908-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-907-4	01	1	0105-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0105-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (A)	1-53192-790-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-7	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-993-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-79937-920-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-918-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-969-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (D)	1-79937-972-0	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> (C)	1-79937-917-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> (D)	1-79937-919-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0203-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0105-0511	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0105-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> W-SERIES ENG<1A2> (E)	1-79937-967-1	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-71907-167-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-71907-455-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-	●	●
281	INSULATOR; NOISE PE-SERIES ENG<1A0> (A)	1-71907-166-0	01	1	0105-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0105-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0105-	●	●

185 265 94 74 104 99 225 103 105 175 249 134 105 175 225 103 80 99 76 73 253 265 94 74 104 175 267 183 185 281 281 281 227 250 80 137 267 175 76 253 73 250 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

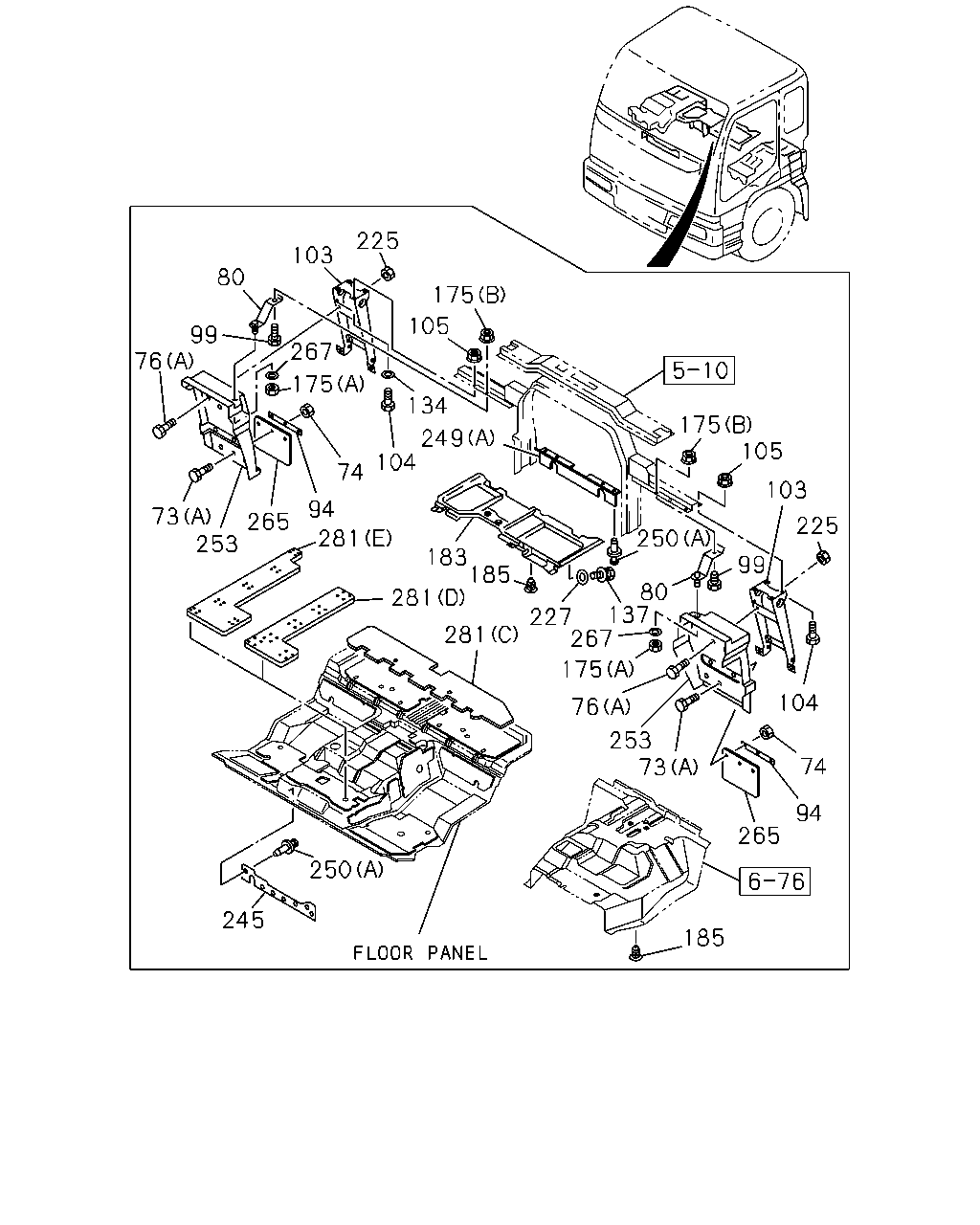

73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0105-	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28280-816-0	05	1	0105-0512	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28250-816-0	05	1	0601-	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X16 FLANGE	0-28280-816-0	03	1	0105-0512	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X16 FLANGE	0-28250-816-0	03	1	0601-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
74	NUT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
74	NUT W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-	●	●
80	BRACKET; MUD GUARD STAY	1-79931-159-1	02	1	0105-	●	●
94	RETAINER; FLAP RUBBER	1-79931-091-2	02	1	0105-	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28681-025-0	02	1	0105-0512	●	●
99	BOLT; STAY TO MUD GUARD M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
103	BRACKET ASM; RR MUD FLAP	1-79931-088-4	02	1	0105-	●	●
104	BOLT; BRKT PE-SERIES ENG<1A0> M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
104	BOLT; BRKT PE-SERIES ENG<1A0> M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
104	BOLT; BRKT W-SERIES ENG<1A2> M10X25 FLANGE	0-28681-025-0	08	1	0105-0512	●	●
104	BOLT; BRKT W-SERIES ENG<1A2> M10X25 FLANGE	0-28651-025-0	08	1	0601-	●	●
105	NUT; BRKT PE-SERIES ENG<1A0> M10 FLANGE	0-91150-210-0	07	1	0105-0602	●	●
105	NUT; BRKT PE-SERIES ENG<1A0> M10 FLANGE	0-91180-210-0	07	1	0603-	●	●
105	NUT; BRKT W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	08	1	0105-0602	●	●
105	NUT; BRKT W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
134	WASHER; PL ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●
137	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
175	NUT; STAY FIX (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
175	NUT; STAY FIX (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
183	INSULATOR; HEAT,BED PAN	1-71907-526-4	01	1	0105-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0203-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91150-108-0	08	1	0105-0602	●	●
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	08	1	0603-	●	●
227	SEAL; MUD GUARD T=2.0	8-94279-641-0	01	1	0105-	●	●
245	RUBBER; SHUTTER,RAD	1-79937-982-1	01	1	0105-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> W-SERIES ENG<1A2> (E)	1-79937-967-1	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-	●	●
253	GUARD; MUD PE-SERIES ENG<1A0>	1-79931-066-7	01	1	0105-	●	●
253	GUARD; MUD PE-SERIES ENG<1A0>	1-79931-064-7	01	1	0105-	●	●
253	GUARD; MUD W-SERIES ENG<1A2>	1-79931-067-7	01	1	0105-	●	●
253	GUARD; MUD W-SERIES ENG<1A2>	1-79931-065-7	01	1	0105-	●	●
265	RUBBER; FLAP,REAR	1-79930-978-0	02	1	0105-	●	●
267	WASHER; PL,STAY ID=8.4 OD=26	9-09164-808-0	02	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-71907-167-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-71907-455-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-	●	●
281	INSULATOR; NOISE PE-SERIES ENG<1A0> (A)	1-71907-166-0	01	1	0105-	●	●

250 243 9 23 250 249 130 185 259 185 281 130 308 308 76 130 259 250 281 185 130 250 281 185 259 259 308 1 91 218 218 1 249 23 9 76 308 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79937-895-5	01	1	0105-	●	●
1	GUARD; MUD,FRT	1-79937-894-6	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-893-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE PE-SERIES ENG<1A0>	1-79937-892-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-908-4	01	1	0105-	●	●
9	GUARD; SPLASH,WHEEL HOUSE W-SERIES ENG<1A2>	1-79937-907-4	01	1	0105-	●	●
23	FASTENER; MUD COVER D8X13.5	1-09987-248-1	21	1	0105-	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
76	BOLT; MUD GUARD (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0105-	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	8-94279-210-0	06	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-204-1	01	1	0105-	●	●
91	COVER; MUD,FRT CAB UP +110MM<TGG>	1-79931-203-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-200-1	01	1	0105-	●	●
91	COVER; MUD,FRT EXC. CAB UP +110MM<TGG>	1-79931-199-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (A)	1-53192-790-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-7	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-993-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-79937-920-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-918-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-969-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (D)	1-79937-972-0	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> (C)	1-79937-917-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> (D)	1-79937-919-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0203-	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	10	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR CAB UP +110MM<TGG> W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	09	1	0203-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	05	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0105-0202	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR ID=6.2 L=11.4	8-97808-623-0	06	1	0203-0312	●	●
185	CLIP; HEAT INSULATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR W-SERIES ENG<1A2> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
185	CLIP; HEAT INSULATOR EXC. CAB UP +110MM<TGG> ID=6.2 L=11.4	8-97808-623-0	06	1	0401-	●	●
218	FASTENER; RUBBER ID=6X6 OD=8	1-09987-194-0	08	1	0105-0511	●	●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0512-	●	●
243	PROTECTOR; NOISE SHUT PANEL	1-79937-906-2	01	1	0105-	●	●
249	RUBBER; SHUTTER (A)	1-79937-924-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (D)	1-79937-966-2	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (C)	1-79937-981-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (F)	1-79937-965-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> (B)	1-79937-979-1	01	1	0105-	●	●
249	RUBBER; SHUTTER CAB UP +110MM<TGG> W-SERIES ENG<1A2> (E)	1-79937-967-1	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (B)	1-79937-902-3	01	1	0105-	●	●
249	RUBBER; SHUTTER EXC. CAB UP +110MM<TGG> (C)	1-79937-975-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	0105-	●	●
250	FASTENER; SHUTTER (A) D6X16 PUSH RIVET	1-09983-105-0	07	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	01	1	0105-	●	●
250	FASTENER; SHUTTER (B) D8X13.5	1-09987-248-1	05	1	0105-	●	●
250	FASTENER; SHUTTER CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	04	1	0105-	●	●
250	FASTENER; SHUTTER EXC. CAB UP +110MM<TGG> (C) D6X20	8-94361-318-0	04	1	0105-	●	●
259	BOLT; NOISE PANEL M8X24.5 W/LK&PL WASHER	8-94279-208-0	12	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-171-2	01	1	0105-	●	●
281	INSULATOR; NOISE (B)	1-71907-170-1	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-71907-167-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-71907-455-0	01	1	0105-	●	●
281	INSULATOR; NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-71907-307-0	01	1	0105-	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (D)	1-73237-541-3	01	1	0105-0408	●	●
281	INSULATOR; NOISE EXC. CENTER SEAT DELETE(SP9) (E)	1-73237-895-2	01	1	0409-	●	●
281	INSULATOR; NOISE MATTRESS SLEEPER CAB<E40> (C)	1-73237-445-4	01	1	0105-	●	●
281	INSULATOR; NOISE PE-SERIES ENG<1A0> (A)	1-71907-166-0	01	1	0105-	●	●
308	FASTENER; MUD GUARD (A)	1-09470-007-0	08	1	0105-	●	●
308	FASTENER; MUD GUARD (B) ID=6X6 OD=8	1-09987-194-0	02	1	0105-	●	●

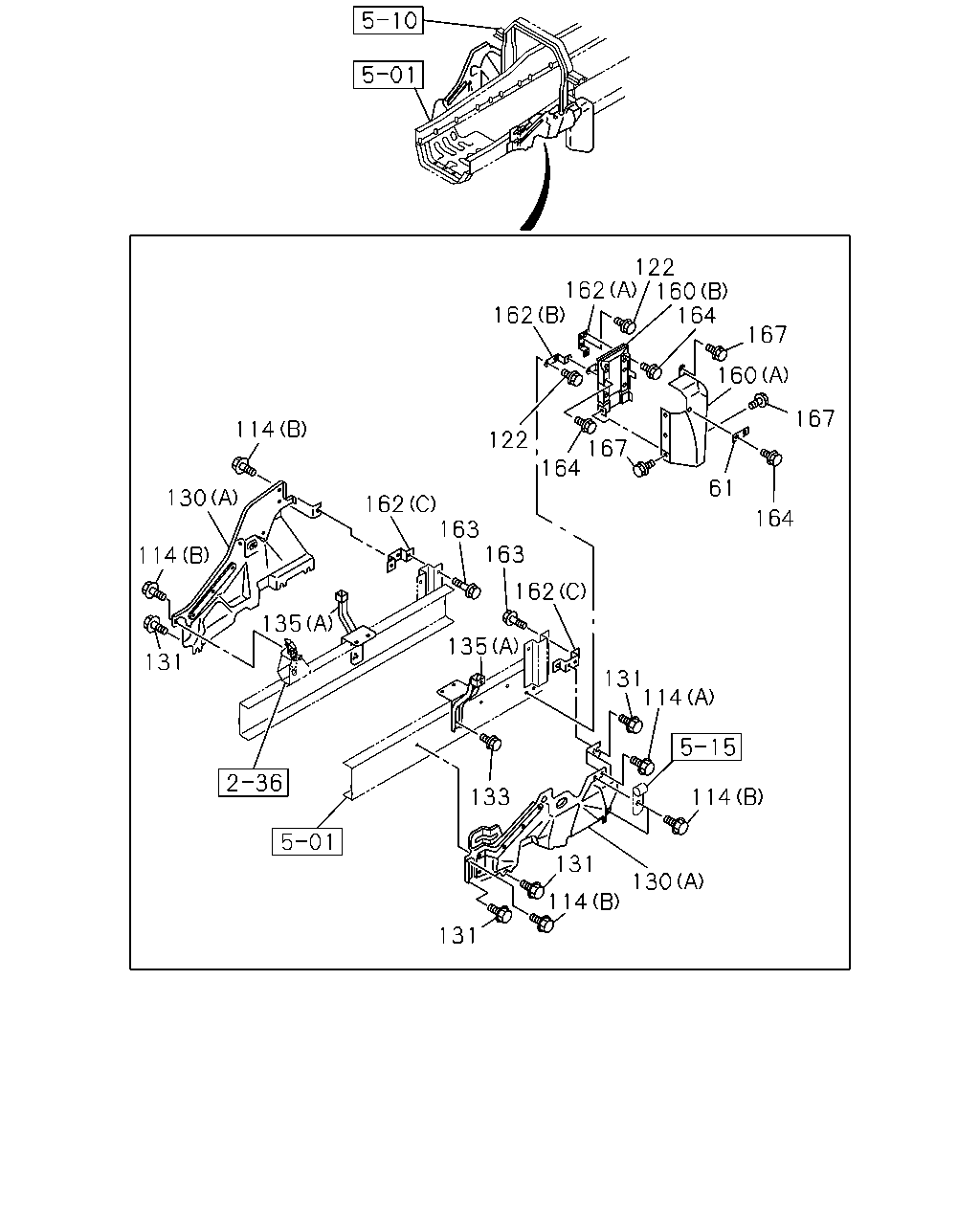

133 131 163 163 164 61 167 160 167 114 130 114 114 131 131 135 162 162 114 130 114 131 135 164 167 122 162 162 122 160 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS>	1-53441-536-1	02	1	0105-	●	●
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512	●	●
114	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
114	BOLT PE-SERIES ENG<1A0> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	0105-	●	●
114	BOLT W-SERIES ENG<1A2> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0105-	●	●
122	BOLT PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28680-825-0	06	1	0105-0512	●	●
122	BOLT PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (A)	1-53192-790-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-7	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-993-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-79937-920-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-918-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-969-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (D)	1-79937-972-0	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> (C)	1-79937-917-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> (D)	1-79937-919-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-	●	●
131	BOLT; PANEL PE-SERIES ENG<1A0> M8X25 W/LK&PL WASHER	1-09030-074-0	07	1	0105-	●	●
131	BOLT; PANEL W-SERIES ENG<1A2> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
133	BOLT; FRAME PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
133	BOLT; FRAME PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
133	BOLT; FRAME W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
133	BOLT; FRAME W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) W-SERIES ENG<1A2> (A)	1-53441-598-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> (A)	1-53441-598-1	01	1	0107-	●	●
135	BRACKET; SIDE PANEL PE-SERIES ENG<1A0> (A)	1-53441-508-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL PE-SERIES ENG<1A0> (B)	1-53441-508-1	01	1	0107-	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> (B)	1-53441-507-0	01	1	0105-	●	●
160	COVER ASM; EXH PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-79931-063-1	01	1	0105-	●	●
160	COVER ASM; EXH PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-79931-111-0	01	1	0105-	●	●
160	COVER ASM; EXH PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-79931-061-1	01	1	0105-	●	●
160	COVER ASM; EXH PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-79931-256-1	01	1	0105-	●	●
162	BRACKET (C)	1-53441-520-0	02	1	0105-	●	●
162	BRACKET PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-53441-521-2	02	1	0105-	●	●
162	BRACKET PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53441-522-0	02	1	0105-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
164	BOLT; FLEX COVER PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28680-820-0	10	1	0105-0512	●	●
164	BOLT; FLEX COVER PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28650-820-0	10	1	0601-	●	●
167	BOLT; EXH COVER PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28680-820-0	12	1	0105-0512	●	●
167	BOLT; EXH COVER PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> M8X20 FLANGE	0-28650-820-0	12	1	0601-	●	●

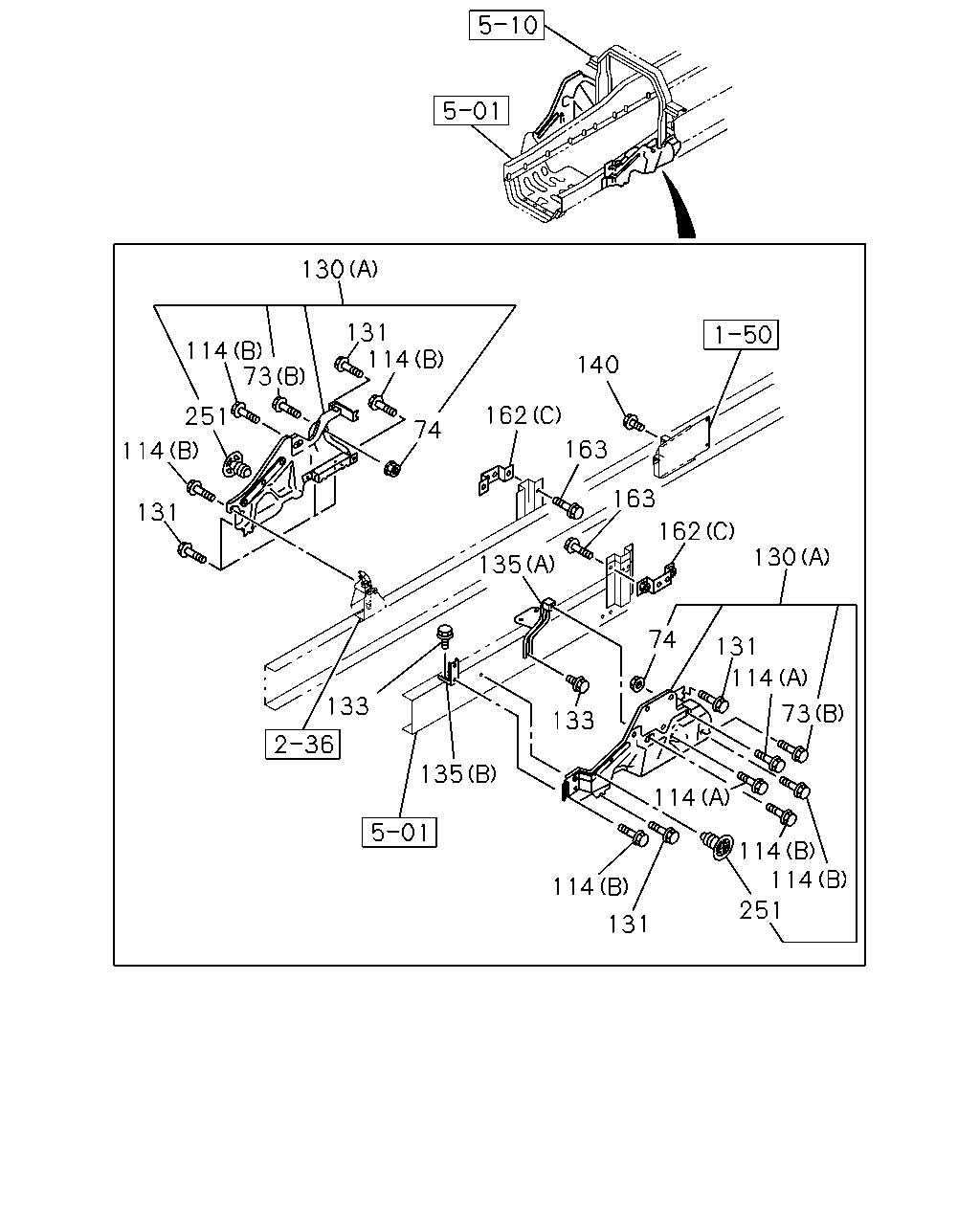

130 114 131 114 140 162 74 163 163 162 130 74 131 114 73 133 135 133 135 131 114 114 114 114 251 131 114 251 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	BOLT; MUD COVER BRKT (A) M8X25 W/LK&PL WASHER	1-09030-074-0	06	1	0105-	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28280-816-0	05	1	0105-0512	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> (B) M8X16 FLANGE	0-28250-816-0	05	1	0601-	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X16 FLANGE	0-28280-816-0	03	1	0105-0512	●	●
73	BOLT; MUD COVER BRKT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (B) M8X16 FLANGE	0-28250-816-0	03	1	0601-	●	●
74	NUT M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
74	NUT M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
74	NUT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
74	NUT ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
74	NUT W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
74	NUT W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
114	BOLT (A) M8X20 FLANGE	0-28680-820-0	05	1	0105-0512	●	●
114	BOLT (A) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
114	BOLT PE-SERIES ENG<1A0> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	04	1	0105-	●	●
114	BOLT W-SERIES ENG<1A2> (B) M8X22 W/LK&PL WASHER	1-09030-042-0	05	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (A)	1-53192-790-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-53192-782-7	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-993-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PE-SERIES ENG<1A0> (D)	1-79937-920-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-918-5	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB UP +110MM<TGG> W-SERIES ENG<1A2> (C)	1-79937-969-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (D)	1-79937-972-0	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C)	1-79937-928-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-960-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE CAB UP +110MM<TGG> (B)	1-79937-959-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-916-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE EXC. CAB UP +110MM<TGG> (B)	1-79937-915-3	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> (C)	1-79937-917-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-196-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-215-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE SILENCER SINGLE VERTICAL<N28> W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53192-774-4	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> (D)	1-79937-919-2	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-329-1	01	1	0105-	●	●
130	PANEL; SHUTTER NOISE W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>,ANTI NOISE EQUIPMENT<SV9> (A)	1-53193-328-1	01	1	0105-	●	●
131	BOLT; PANEL PE-SERIES ENG<1A0> M8X25 W/LK&PL WASHER	1-09030-074-0	07	1	0105-	●	●
131	BOLT; PANEL W-SERIES ENG<1A2> M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0105-	●	●
133	BOLT; FRAME PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
133	BOLT; FRAME PE-SERIES ENG<1A0> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
133	BOLT; FRAME W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
133	BOLT; FRAME W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
135	BRACKET; SIDE PANEL ELECTRONIC GOV RED3(KG5) W-SERIES ENG<1A2> (A)	1-53441-598-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> (A)	1-53441-598-1	01	1	0107-	●	●
135	BRACKET; SIDE PANEL PE-SERIES ENG<1A0> (A)	1-53441-508-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-53441-508-0	01	1	0105-0106	●	●
135	BRACKET; SIDE PANEL PE-SERIES ENG<1A0> (B)	1-53441-508-1	01	1	0107-	●	●
135	BRACKET; SIDE PANEL W-SERIES ENG<1A2> (B)	1-53441-507-0	01	1	0105-	●	●
140	BOLT; SIDE PANEL W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
140	BOLT; SIDE PANEL W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
140	BOLT; SIDE PANEL W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
140	BOLT; SIDE PANEL W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
162	BRACKET (C)	1-53441-520-0	02	1	0105-	●	●
162	BRACKET PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (B)	1-53441-521-2	02	1	0105-	●	●
162	BRACKET PE-SERIES ENG<1A0> EXC. MUFFLER TWIN VERTICAL<NBS> (A)	1-53441-522-0	02	1	0105-	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0105-0512	●	●
163	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2>	8-94279-048-0	10	1	0105-	●	●
251	CLIP; NOISE INSULATOR ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> EXC. SILENCER SINGLE VERTICAL<N28>	8-94279-048-0	04	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
