◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11579 - FVZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#133997) — 79 parça

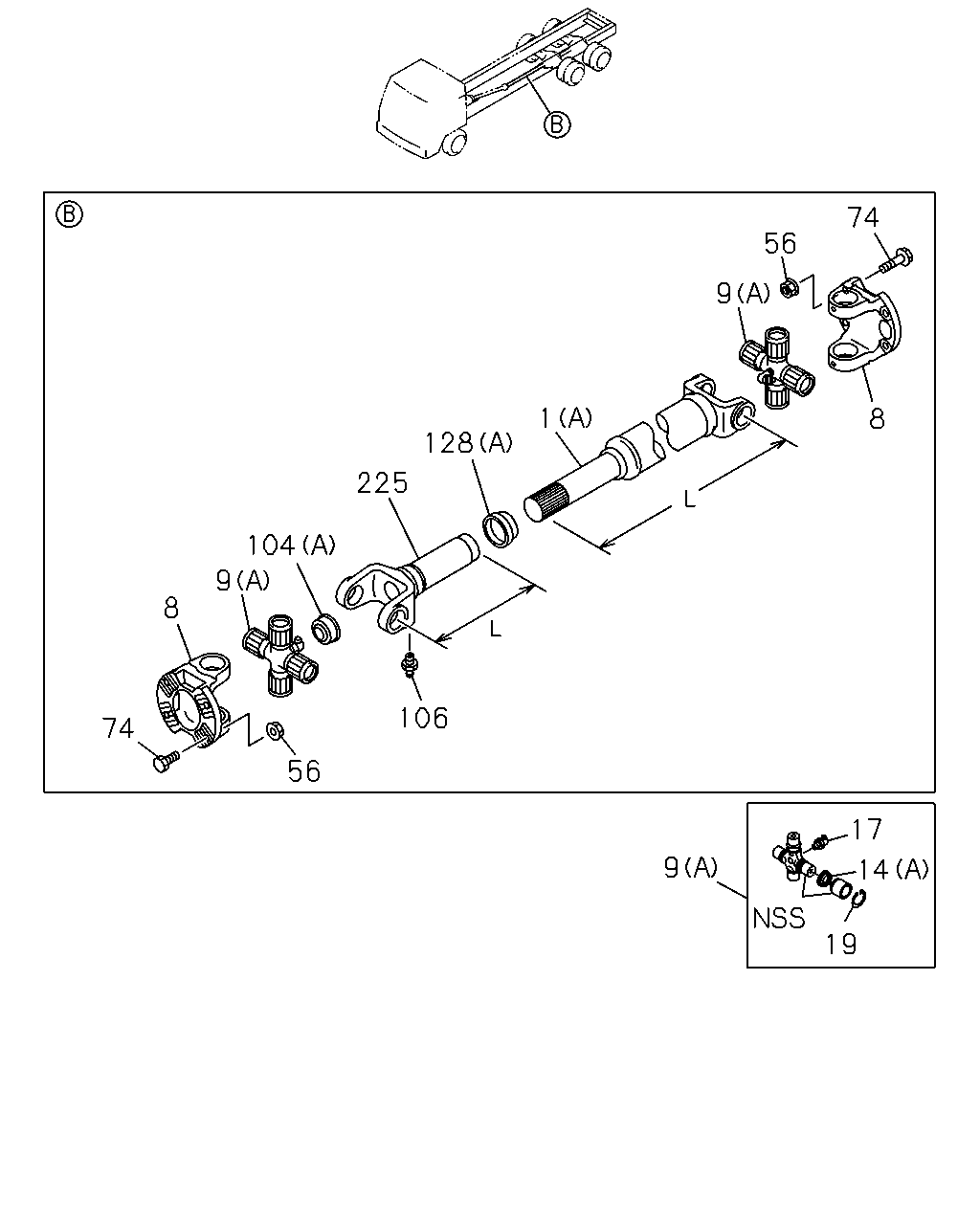

çizim 407523
14 17 19 9 106 56 74 8 9 104 225 128 1 9 56 74 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=905 THA 		8-98091-475-0 01 1 1402-
1 SHAFT; PROP
(A) L=479 THA 		8-98091-484-0 01 1 1402-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1402-
9 JOURNAL ASM; PROP SHAFT
(C) THA 		1-37300-100-1 01 1 1402-
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-110-0 02 1 1402-
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-111-0 01 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 04 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 08 1 1402-
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1402-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402-
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1402-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1402-
104 PLUG; SLEEVE YOKE
(B) THA 		1-09600-049-0 01 1 1402-
104 PLUG; SLEEVE YOKE
(A) THA 		1-09600-067-0 01 1 1402-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402-
128 SEAL; SLEEVE
(A) THA 		1-37247-019-0 01 1 1402-
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1402-
225 YOKE; SLEEVE,PROP SHAFT
L=330 THA 		1-37241-124-0 01 1 1402-

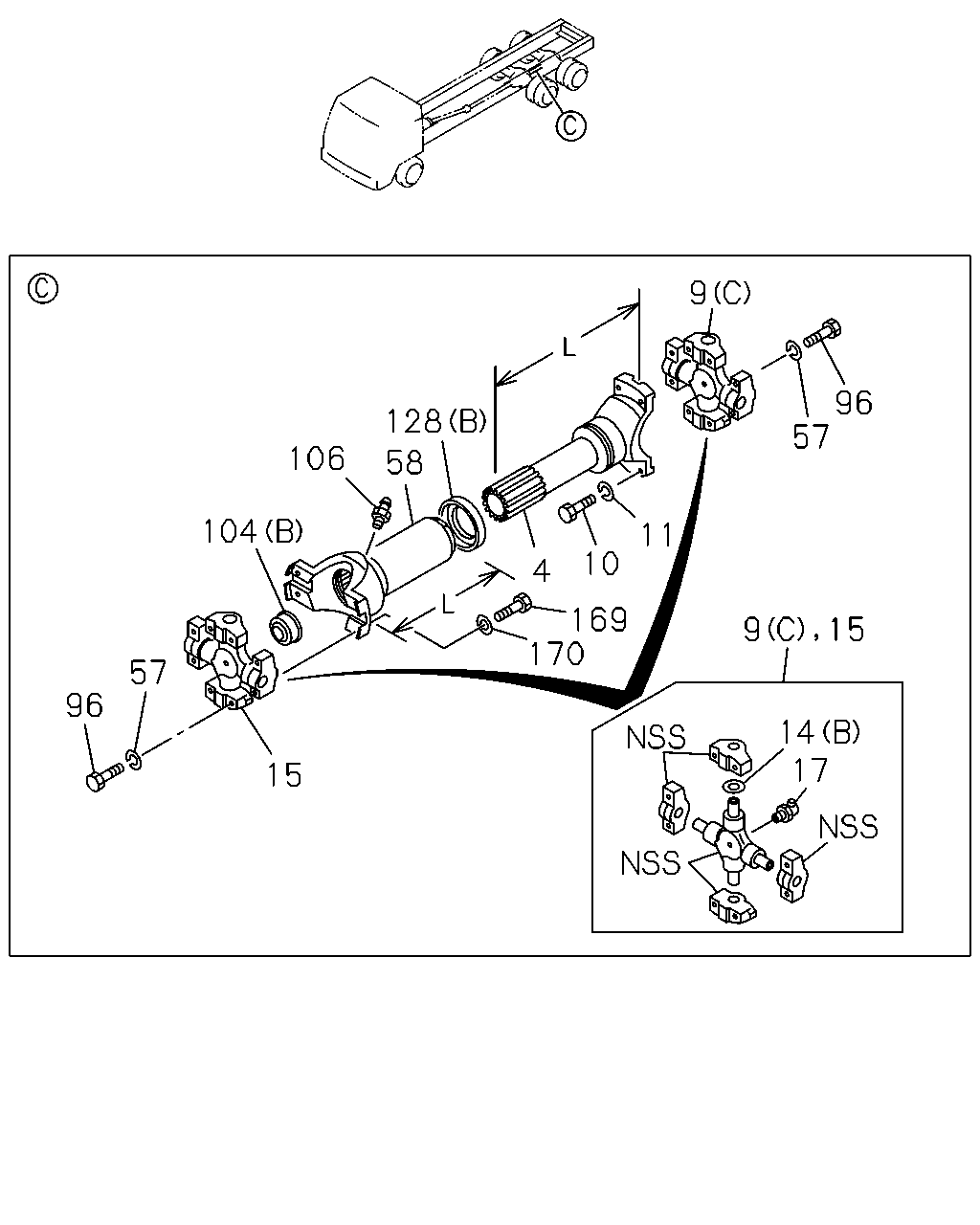

çizim 407545
17 14 9 15 57 96 9 11 10 4 169 170 15 57 104 106 58 128 96
BalonParca AdiParca NoAdetTipApplied Date
4 SHAFT; PROP
L=348 THA 		1-37171-127-2 01 1 1402-
9 JOURNAL ASM; PROP SHAFT
(C) THA 		1-37300-100-1 01 1 1402-
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-110-0 02 1 1402-
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-111-0 01 1 1402-
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1402-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 04 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 08 1 1402-
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1402-
15 UNIVERSAL CENTER
THA 		1-37300-100-1 01 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1402-
58 FLANGE; SPLINED
L=265 THA 		1-37245-317-0 01 1 1402-
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1402-
104 PLUG; SLEEVE YOKE
(B) THA 		1-09600-049-0 01 1 1402-
104 PLUG; SLEEVE YOKE
(A) THA 		1-09600-067-0 01 1 1402-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402-
128 SEAL; SLEEVE
(A) THA 		1-37247-019-0 01 1 1402-
128 SEAL; SLEEVE
(B) THA 		8-97603-618-0 01 1 1402-
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1402-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1402-

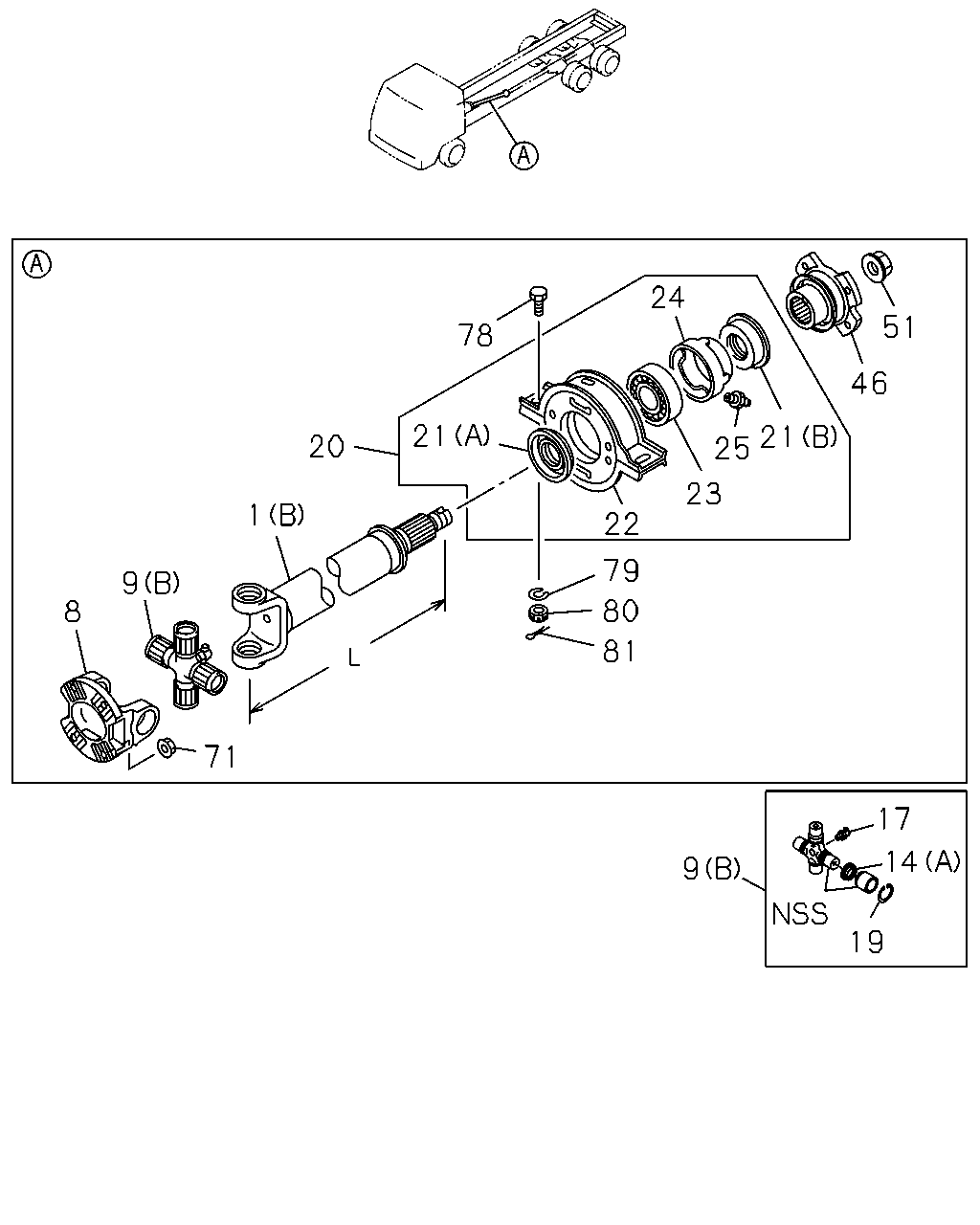

çizim 407915
51 46 21 25 23 22 79 80 81 9 19 14 17 24 78 21 20 1 71 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(B) L=905 THA 		8-98091-475-0 01 1 1402-
1 SHAFT; PROP
(A) L=479 THA 		8-98091-484-0 01 1 1402-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402-
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1402-
9 JOURNAL ASM; PROP SHAFT
(C) THA 		1-37300-100-1 01 1 1402-
9 JOURNAL ASM; PROP SHAFT
(A) THA 		1-37300-110-0 02 1 1402-
9 JOURNAL ASM; PROP SHAFT
(B) THA 		1-37300-111-0 01 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 04 1 1402-
14 COVER; DUST,SPIDER
(A) THA 		1-37249-131-0 08 1 1402-
14 COVER; DUST,SPIDER
(B) THA 		1-37319-004-0 08 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1402-
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1402-
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1402-
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1402-
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1402-
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1402-
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1402-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402-
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1402-
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1402-
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1402-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1402-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1402-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1402-
