Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#133989) — 17 parça
◀

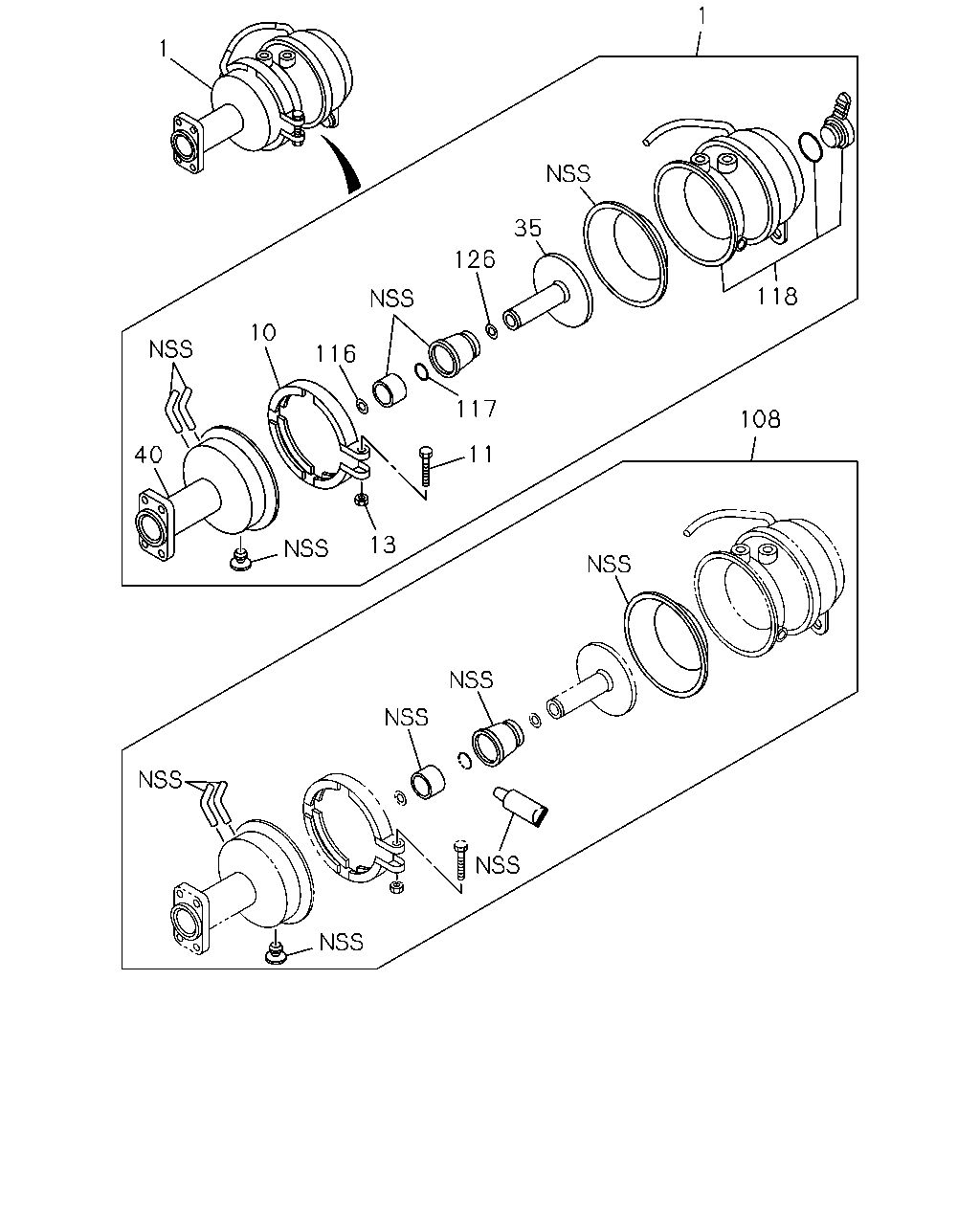

[341A] COMPONENT AND REPAIR KIT (14 parça)
[341A] CONNECTOR (3 parça)
▶
1
1
35
118
108
126
11
117
116
10
13
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-463-0
02
1
1402-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-464-0
02
1
1402-
10
RING; CLAMP,SPR CHAMBER
THA
1-48269-256-0
04
1
1402-
11
BOLT; CLAMP RING
THA
1-48269-257-0
04
1
1402-
13
NUT; CLAMP RING
THA
1-48269-147-0
04
1
1402-
35
PLATE; ROD END,SPR CHAMBER
THA
8-98146-974-0
04
1
1402-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH THA
1-48251-140-1
02
1
1402-
40
COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH THA
1-48251-141-1
02
1
1402-
108
REPAIR KIT; SPR CHAMBER
THA
8-98146-982-0
04
1
1402-
116
GUIDE; SPR CHAMBER
THA
8-98146-963-0
04
1
1402-
117
RING; SPR CHAMBER
THA
8-98146-966-0
04
1
1402-
118
CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH THA
1-87412-113-0
02
1
1402-
118
CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH THA
1-87412-114-0
02
1
1402-
126
SHIM
THA
8-98146-965-0
AR
1
1402-
1
1
32
1
1
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH THA
1-87412-463-0
02
1
1402-
1
CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH THA
1-87412-464-0
02
1
1402-
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
08
1
1402-
