Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶
3-01 — FRONT WHEEL BRAKE
(#133980) — 52 parça
◀

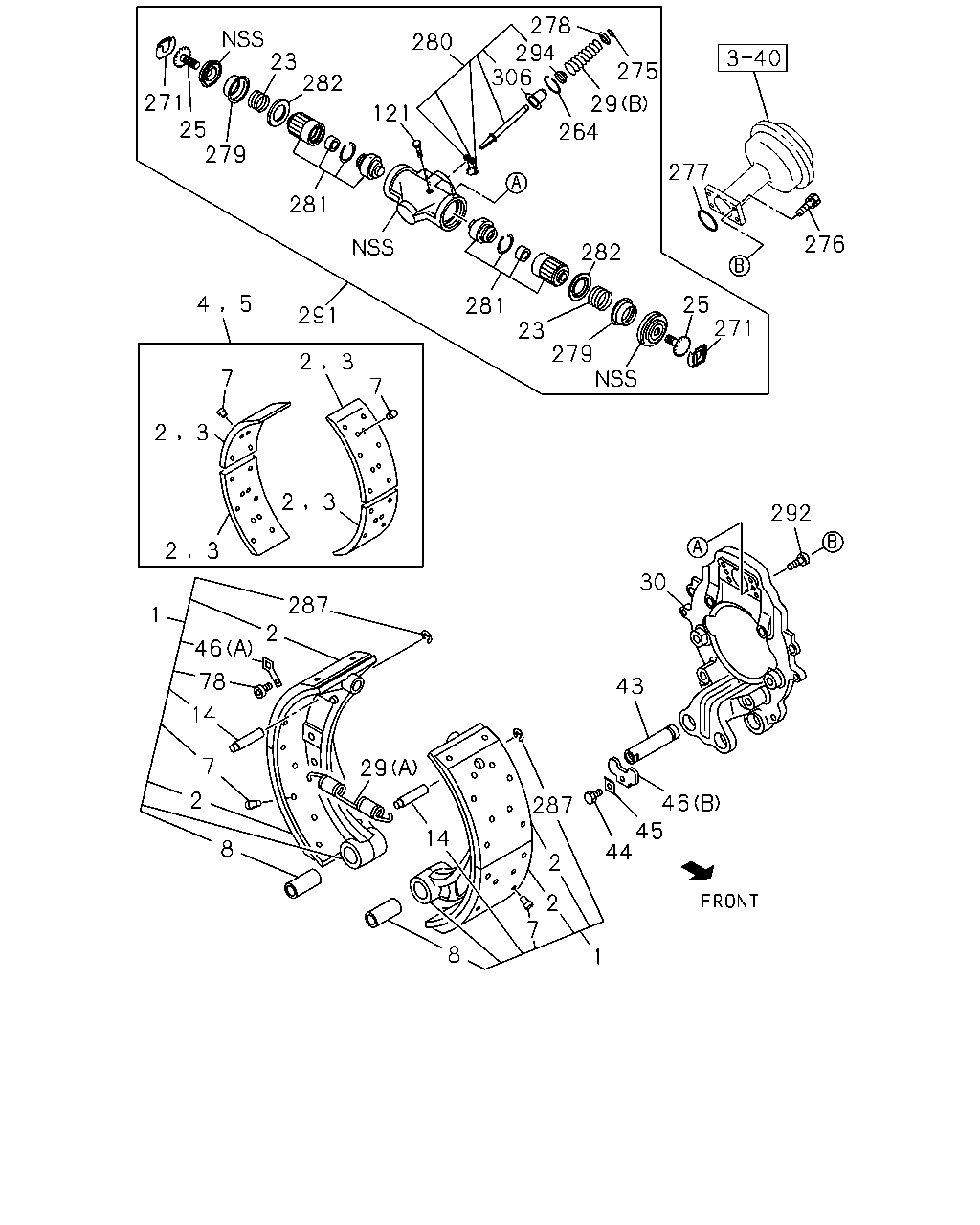

[301A] COMPONENT (38 parça)

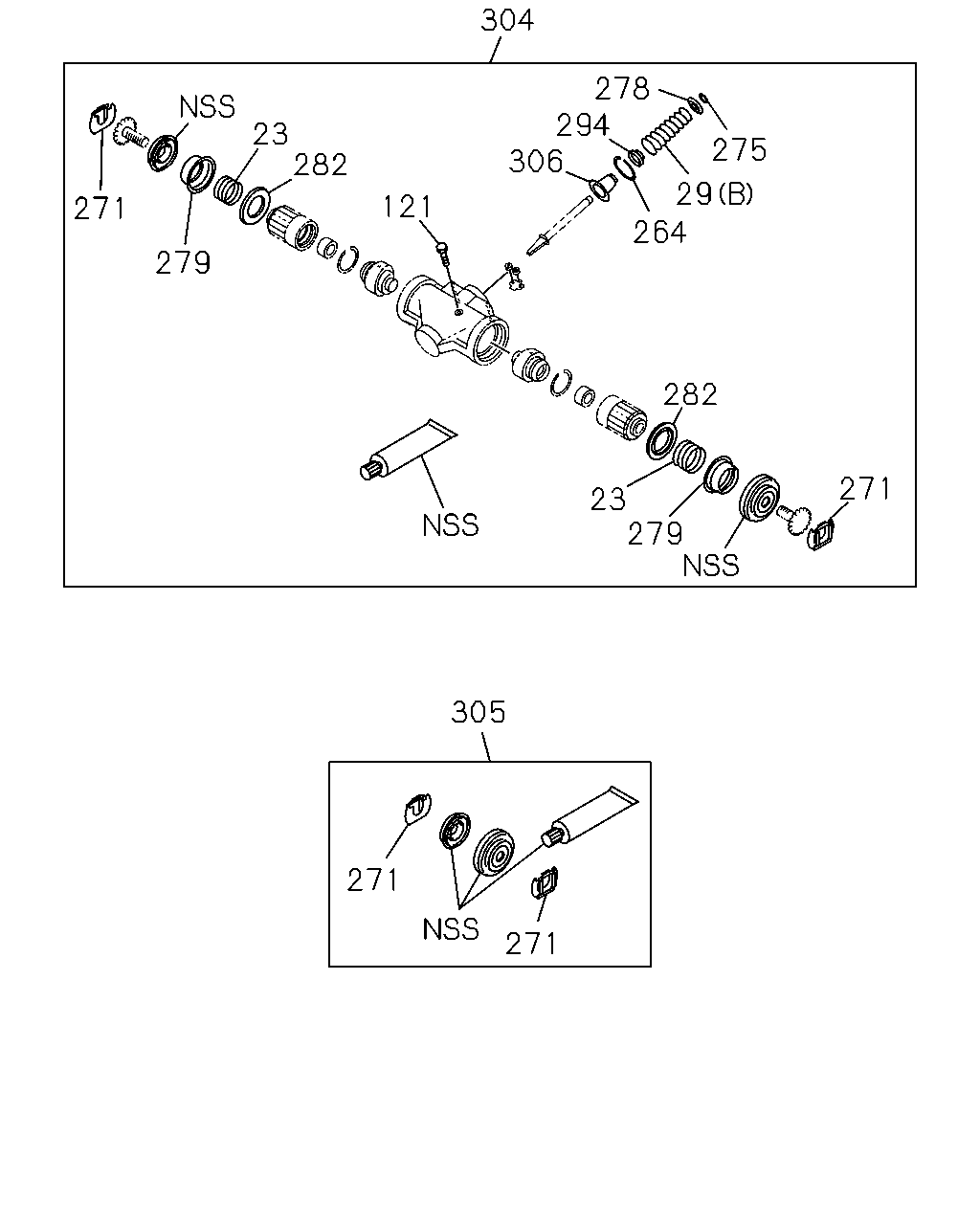

[301A] REPAIR KIT (14 parça)
▶
276
277
264
29
275
278
294
306
280
121
282
23
281
279
25
271
281
279
23
25
282
271
292
30
43
46
45
44
287
2
2
7
8
1
14
29
8
2
14
46
287
2
1
3
2
3
2
7
3
2
2
3
7
5
4
291
7
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
LEADING THA
1-47170-316-0
01
1
1402-
1
SHOE; BRK,FRT
TRAILING THA
1-47170-317-0
01
1
1402-
1
SHOE; BRK,FRT
LEADING THA
1-47170-318-0
01
1
1402-
1
SHOE; BRK,FRT
TRAILING THA
1-47170-319-0
01
1
1402-
2
LINING; FRT BRK SHOE,STANDARD
THA
1-47126-698-0
08
1
1402-
3
LINING; FRT BRK SHOE,OVER SIZE
THA
1-47126-699-0
08
1
1402-
4
LINING SET; FRT BRK,STANDARD
1-88311-314-0
02
1
1402-
5
LINING SET; FRT BRK,OVER SIZE
1-88311-315-0
02
1
1402-
7
RIVET; LINING,FRT BRK
L=15.5 THA
1-09732-053-0
80
1
1402-
8
BUSHING; BRK SHOE
THA
1-47112-020-0
04
1
1402-
14
PIN; SHOE RETURN SPR
THA
1-47119-177-1
04
1
1402-
23
SPRING; COIL
THA
1-47629-196-0
04
1
1402-
25
SCREW; ADJ,FRT WHEEL CYL
THA
1-47623-035-2
04
1
1402-
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
02
1
1402-
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1402-
30
BRACKET; ANCHOR,FRT
THA
8-98091-252-0
02
1
1402-
43
PIN; ANCHOR
L=115.5 THA
1-47131-044-0
04
1
1402-
44
BOLT; LOCK,ANCHOR PIN
M10X16 THA
1-47139-173-0
02
1
1402-
45
WASHER; LK
THA
1-47133-011-0
02
1
1402-
46
PLATE; LOCK
(A) THA
1-47119-152-0
04
1
1402-
46
PLATE; LOCK
(B) THA
1-47133-010-0
02
1
1402-
78
BOLT; LK,PLATE
THA
1-47119-153-0
04
1
1402-
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1402-
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1402-
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1402-
275
RING; RETAINER
THA
1-47649-031-0
02
1
1402-
276
BOLT; CHAMBER
M10X42.5 THA
1-47139-163-0
08
1
1402-
277
RING; CHAMBER
THA
1-48259-231-0
02
1
1402-
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1402-
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1402-
280
WEDGE; FRT WHEEL CYL
THA
1-47640-012-0
02
1
1402-
281
SLEEVE
THA
1-47629-247-1
04
1
1402-
282
RING; DRIVE
THA
1-47629-200-0
04
1
1402-
287
RING; SNAP
ID=10
0-91805-510-0
08
1
1402-
291
EXPANDER
THA
1-47601-087-0
02
1
1402-
292
BOLT; EXPANDER
THA
1-47634-008-0
04
1
1402-
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1402-
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1402-
304
306
294
278
264
29
275
282
23
271
279
305
271
271
279
271
23
121
282
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SPRING; COIL
THA
1-47629-196-0
04
1
1402-
29
SPRING; RETURN,FRT BRK SHOE
(A) THA
1-09583-365-1
02
1
1402-
29
SPRING; RETURN,FRT BRK SHOE
(B) THA
1-47649-041-0
02
1
1402-
121
SCREW; LK SPR FRT WHEEL CYL
THA
1-47619-149-1
04
1
1402-
264
RING; SNAP,SPR PIN
THA
1-47649-034-1
02
1
1402-
271
CLIP; ADJ
THA
1-47621-017-0
04
1
1402-
275
RING; RETAINER
THA
1-47649-031-0
02
1
1402-
278
RETAINER; SPRING
THA
1-47649-020-0
02
1
1402-
279
CAGE; SPRING
THA
1-47629-192-0
04
1
1402-
282
RING; DRIVE
THA
1-47629-200-0
04
1
1402-
294
BOOT; WEDGE
THA
1-47649-042-0
02
1
1402-
304
REPAIR KIT; EXPANDER
THA
1-85576-403-0
02
1
1402-
305
REPAIR KIT; BOOT,EXPANDER
THA
1-85576-404-0
02
1
1402-
306
CAP; EXPANDER
THA
1-47649-044-0
02
1
1402-
