Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11579 - FVZ(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

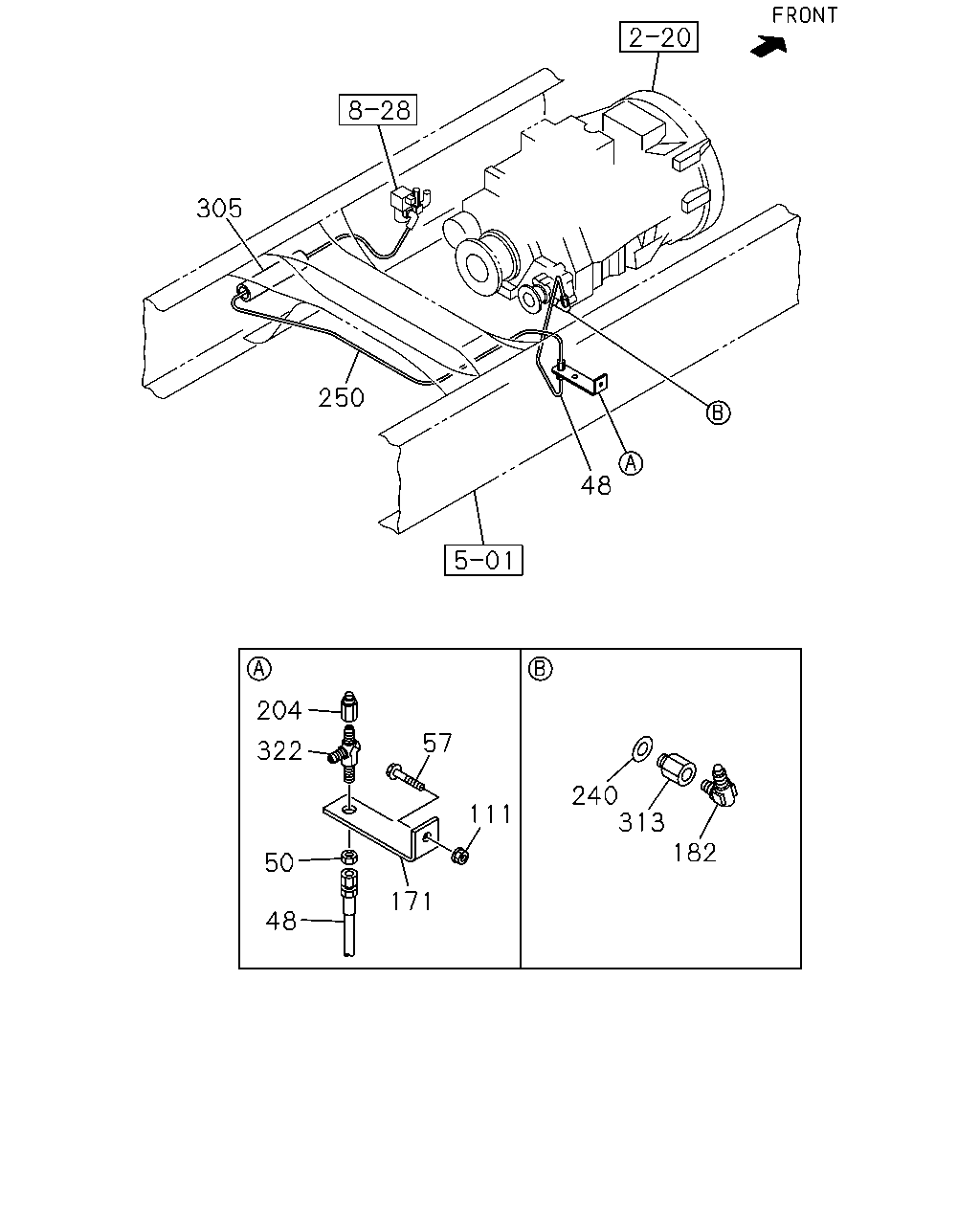

2-85 — POWER TAKE OFF CONTROL
(#133979) — 12 parça
48
250
305
240
313
182
57
111
171
48
50
322
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
HOSE; FLEX,PTO
L=320
1-09363-625-0
01
1
1402-
50
NUT; FLEX HOSE
M12
0-91111-512-0
01
1
1402-
57
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
01
1
1402-
111
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1402-
171
BRACKET; FLEX HOSE
8-98225-544-0
01
1
1402-
182
CONNECTOR; FLARE
PTO ZF TRANS RR<BDM> M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-
204
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1402-
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR<BDM> ID=12.2
8-98251-344-0
01
1
1402-
250
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1402-
305
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
01
1
1402-
313
ADAPTER
PTO ZF TRANS RR<BDM>
1-09654-396-0
01
1
1402-
322
UNION
M12 2WAY
1-09654-059-2
01
1
1402-
