2-30 — GEAR SHIFTER AND QUADRANT BOX (#133973) — 132 parça
çizim 406014
48 332 42 264 265 569 298 304 90 430 90 271 165 165 289 165
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX 1-33549-589-0 01 1 1402-
48 LEVER; 4TH,SHIFT 8-98085-725-0 01 1 1402-
90 RING; SNAP,SHIFT ROD 1-33549-494-0 02 1 1402-
165 LEVER; SHIFT
(C) 		1-33549-488-0 01 1 1402-
165 LEVER; SHIFT
(B) 		1-33549-489-0 01 1 1402-
165 LEVER; SHIFT
(A) 		1-33549-603-0 01 1 1402-
264 SEAL; DUST,SHAFT 1-33549-119-0 01 1 1402-
265 SEAL; OIL,SHIFT 1-33549-118-0 01 1 1402-
271 BUSHING; QUAD BOX 1-33549-124-0 01 1 1402-
289 SEAL; OIL,CONT SHAFT,QUAD BOX 1-33549-491-0 01 1 1402-
298 SHAFT; SHIFT LEVER 1-33522-205-0 01 1 1402-
304 BLOCK; SHIFT SHAFT 1-33549-492-0 01 1 1402-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE THA 		0-28650-840-0 01 1 1402-
430 PIN; SPR,SHIFT ROD 1-33549-493-0 01 1 1402-
569 PIN; QUADRANT BOX 1-33529-128-0 02 1 1402-

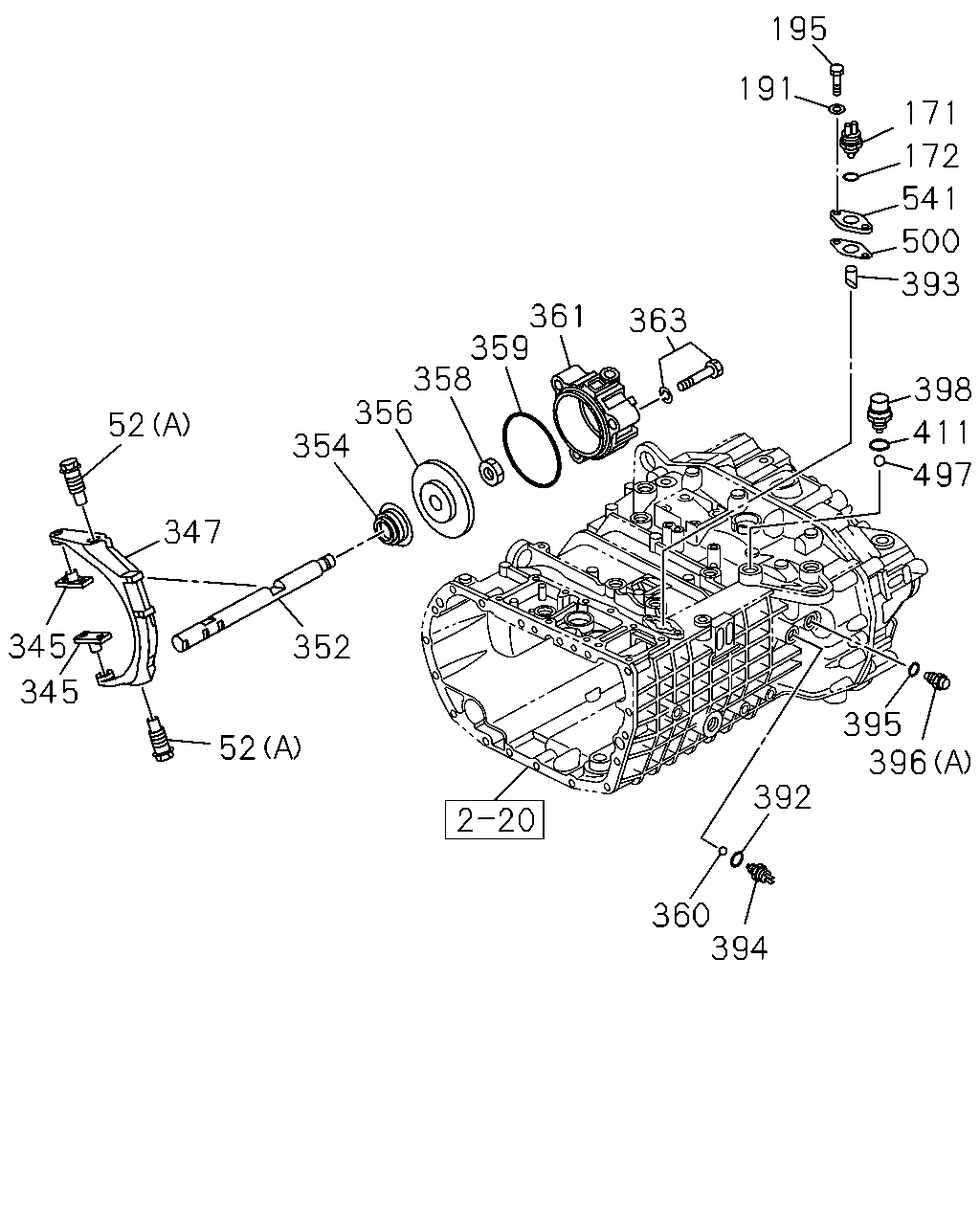

çizim 406024
396 395 497 411 398 393 500 541 172 171 195 191 363 361 359 358 356 354 352 392 394 360 52 347 52 345 345
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(B) 		1-33519-190-0 07 1 1402-
52 BOLT; SHIFT ARM
(A) 		1-33519-196-0 02 1 1402-
171 SWITCH; NEUTRAL 1-33119-627-0 01 1 1402-
172 GASKET; NEUTRAL SW 1-33119-249-0 01 1 1402-
191 WASHER; LK 1-33549-583-0 02 1 1402-
195 BOLT 1-33119-593-0 02 1 1402-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1402-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1402-
352 ROD; SHIFT,RANGE CHANGE
PTO ZF TRANS RR<BDM> 		1-33531-495-0 01 1 1402-
352 ROD; SHIFT,RANGE CHANGE
EXC. PTO ZF TRANS RR<BDM> 		1-33531-047-0 01 1 1402-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1402-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1402-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1402-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1402-
360 BALL; AIR CYL 1-33119-252-0 01 1 1402-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1402-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1402-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1402-
393 PIN; SW 1-33119-298-0 01 1 1402-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1402-
395 GASKET; PLUNGER 1-33519-171-0 01 1 1402-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1402-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1402-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1402-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1402-
497 BALL; SWITCH 1-33119-252-0 01 1 1402-
500 GASKET; SW 1-33119-299-0 01 1 1402-
541 PLATE; SWITCH 1-33119-300-0 01 1 1402-

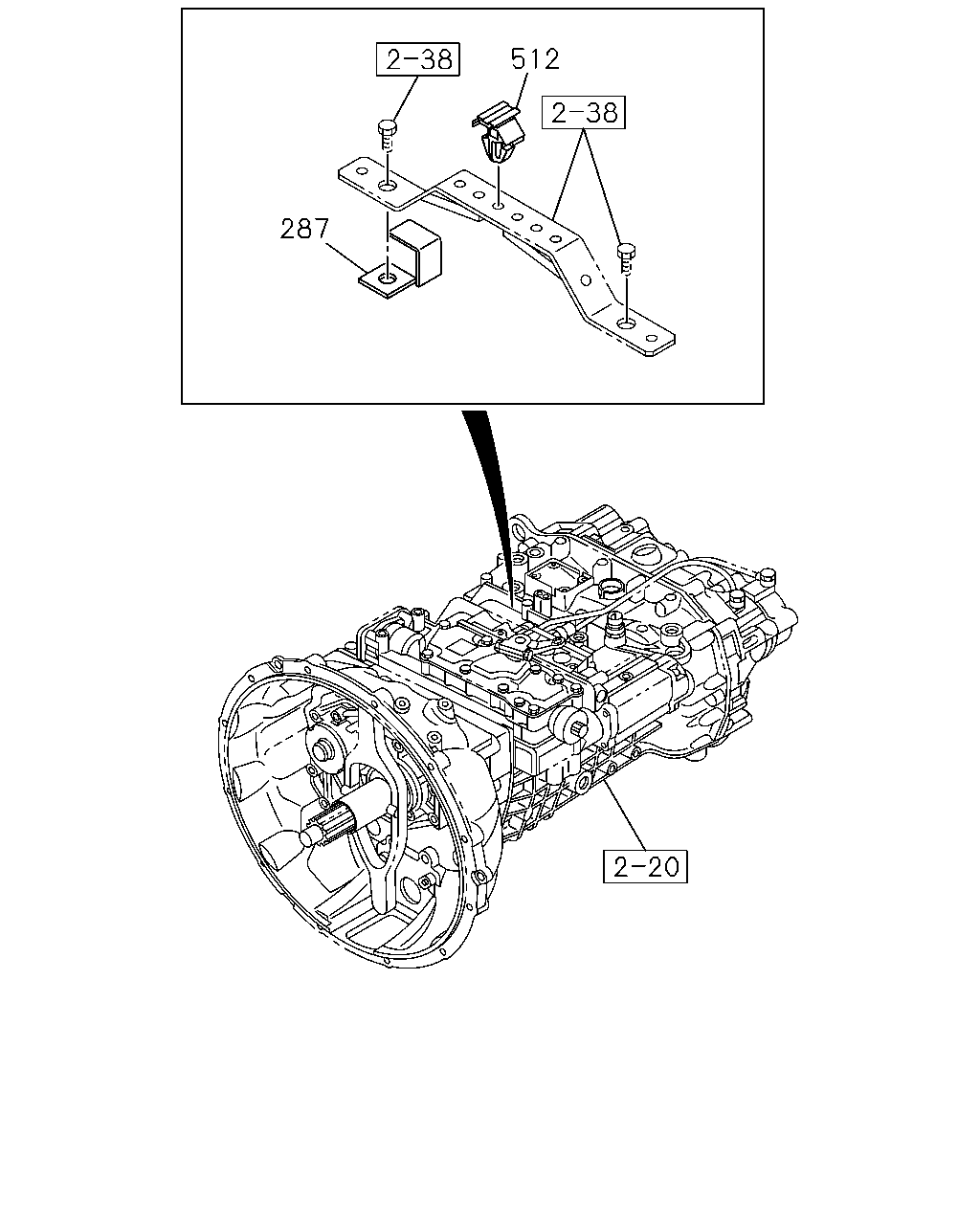

çizim 406430
512 287
BalonParca AdiParca NoAdetTipApplied Date
287 COVER; AIR BREATHER 1-34141-026-0 01 1 1402-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 04 1 1402-

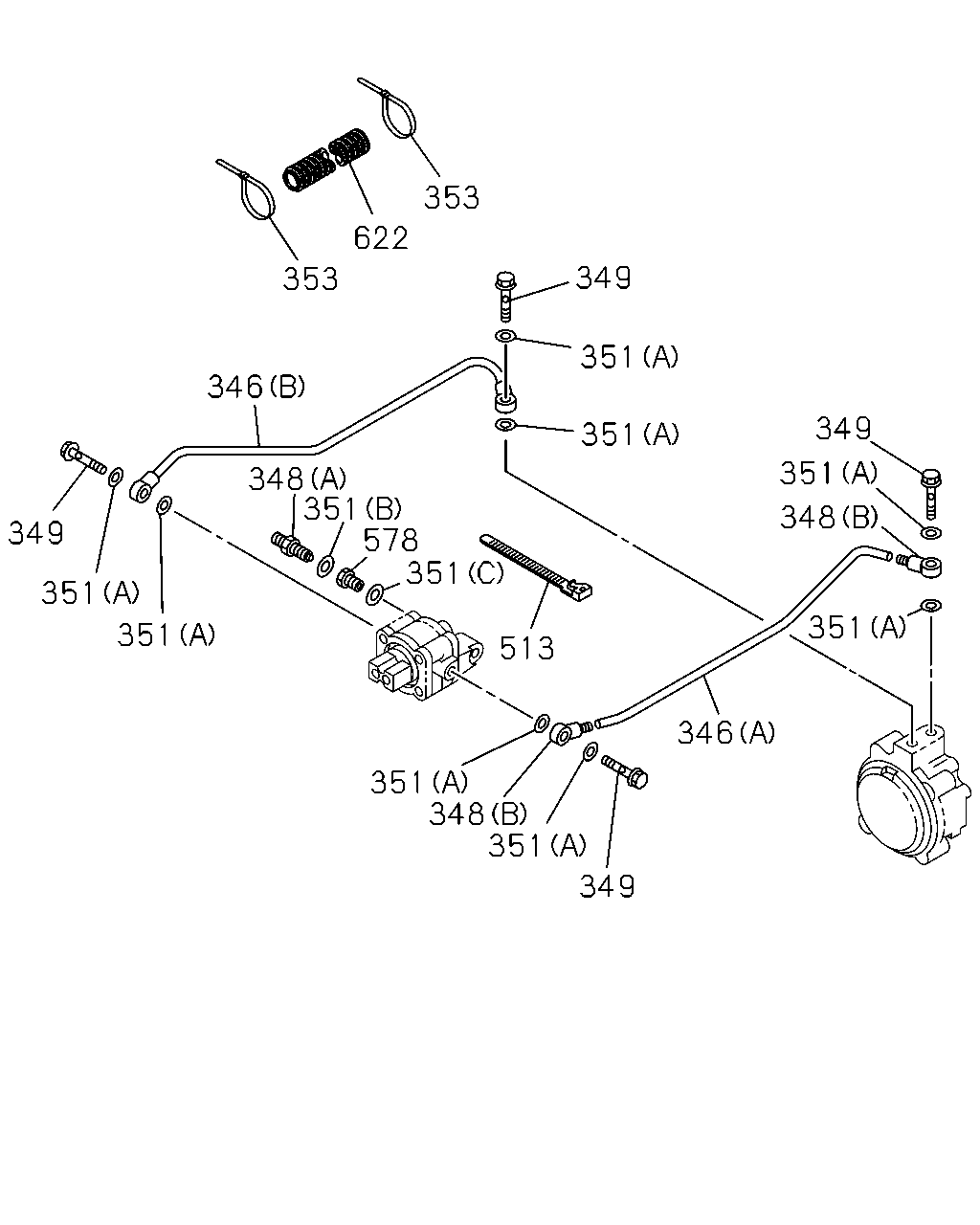

çizim 406434
351 348 351 349 351 351 349 346 349 351 348 351 513 351 578 351 348 346 353 622 353 351 351 349
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(B) 		1-33549-598-0 01 1 1402-
346 HOSE; AIR
(A) 		1-33549-618-0 01 1 1402-
348 CONNECTOR; AIR HOSE
(A) M12 STRAIGHT 		1-09654-246-0 01 1 1402-
348 CONNECTOR; AIR HOSE
(B) 		1-33549-593-0 04 1 1402-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 04 1 1402-
351 GASKET; CONNECTOR
(B) ID=12.2 		8-98251-344-0 01 1 1402-
351 GASKET; CONNECTOR
(C) 		1-33549-554-0 01 1 1402-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 08 1 1402-
353 CLIP; AIR HOSE 1-33549-475-0 02 1 1402-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1402-
578 CONNECTOR 1-33549-553-0 01 1 1402-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1402-

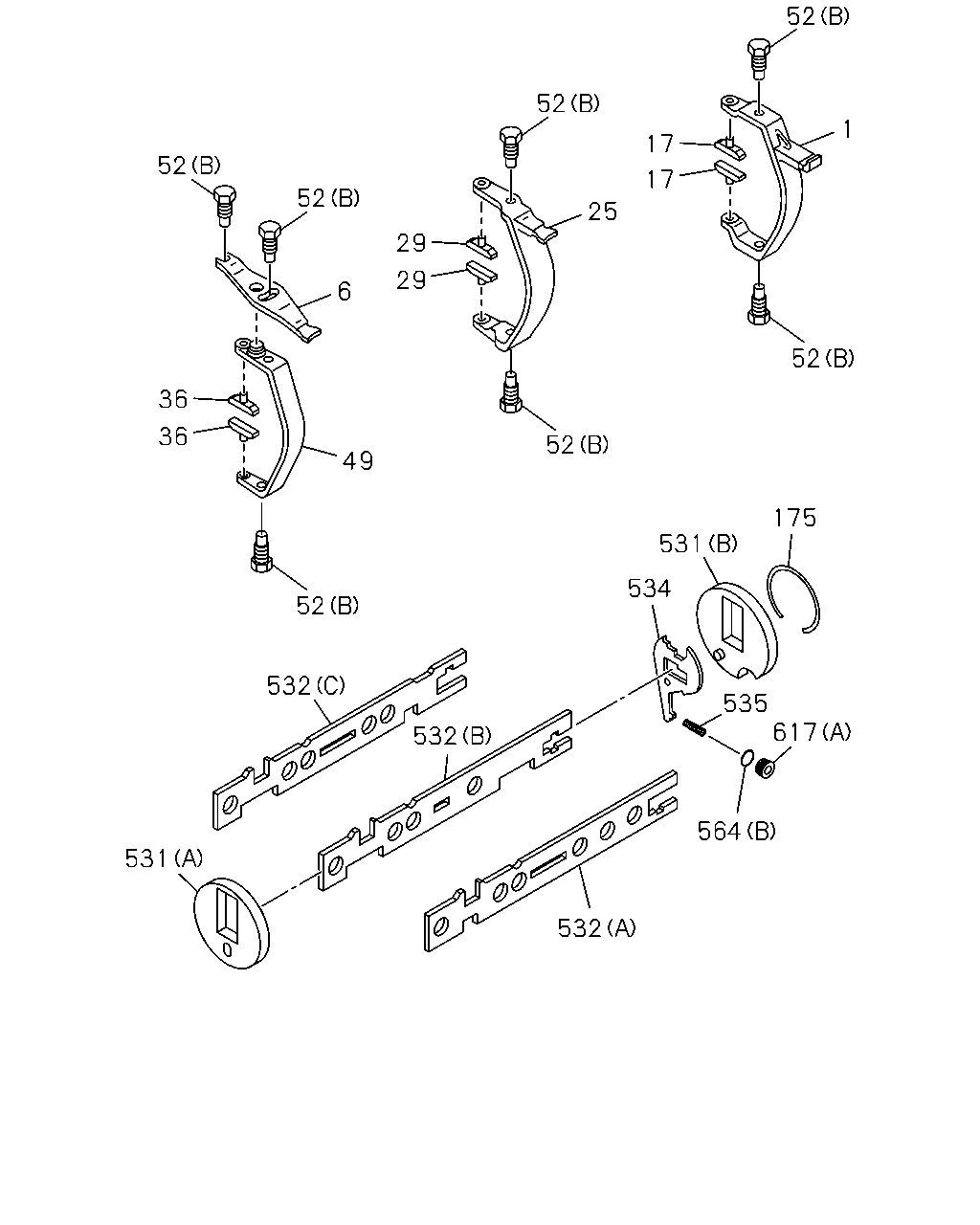

çizim 406441
532 564 535 617 175 531 534 532 532 531 52 49 52 52 1 52 17 17 25 52 29 52 29 6 52 36 36
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1402-
6 LEVER; RELAY 1-33511-658-0 01 1 1402-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1402-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1402-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1402-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1402-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1402-
52 BOLT; SHIFT ARM
(B) 		1-33519-190-0 07 1 1402-
52 BOLT; SHIFT ARM
(A) 		1-33519-196-0 02 1 1402-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1402-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1402-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1402-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1402-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1402-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1402-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1402-
535 SPRING; LEVER 1-33539-049-0 01 1 1402-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1402-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1402-
617 PLUG
(B) 		1-33119-619-0 02 1 1402-
617 PLUG
(A) 		1-33539-109-0 01 1 1402-

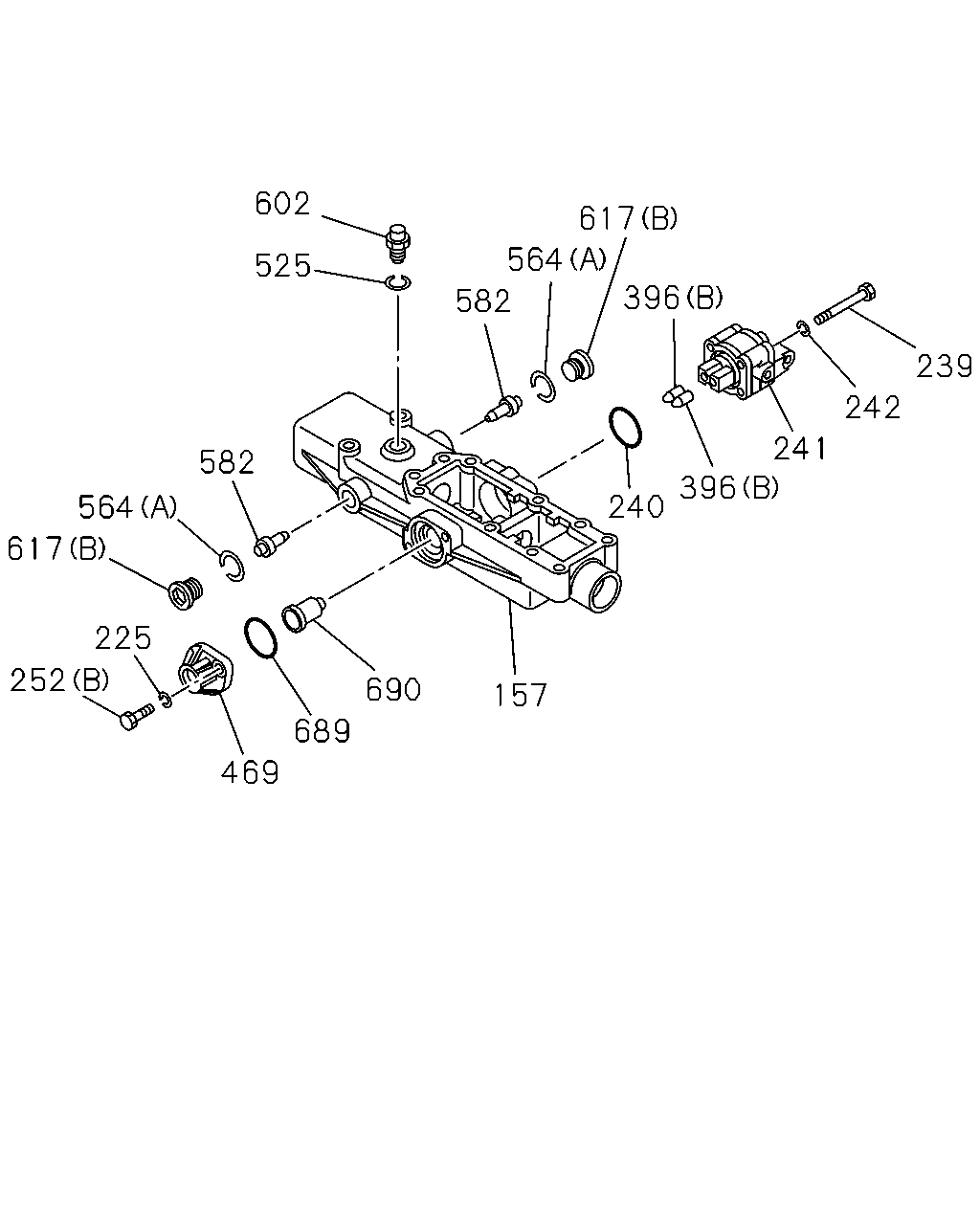

çizim 406447
239 242 241 396 240 396 617 564 582 602 525 582 564 617 225 690 157 689 469 252
BalonParca AdiParca NoAdetTipApplied Date
157 BOX; QUAD,TRANS 1-33549-570-0 01 1 1402-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1402-
239 BOLT; CUT OFF VALVE 1-33549-585-0 04 1 1402-
240 GASKET; CUT OFF VALVE 1-33549-198-0 01 1 1402-
241 VALVE; CUT OFF 1-33549-495-0 01 1 1402-
242 WASHER; CUT OFF VALVE 1-33549-583-0 04 1 1402-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1402-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1402-
396 PLUNGER; SHIFT ROD
(A) 		1-33519-189-0 01 1 1402-
396 PLUNGER; SHIFT ROD
(B) 		1-33529-085-0 02 1 1402-
469 COVER; SPRING,QUAD BOX 1-33549-216-0 01 1 1402-
525 RING; DETENT 1-33119-286-0 01 1 1402-
564 SEAL; RING
(A) 		1-33119-249-0 02 1 1402-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1402-
582 BOLT; SPRING GUIDE 1-33549-487-0 02 1 1402-
602 PLUNGER; DETENT 1-33119-618-0 01 1 1402-
617 PLUG
(B) 		1-33119-619-0 02 1 1402-
617 PLUG
(A) 		1-33539-109-0 01 1 1402-
689 GASKET; COVER 1-33542-063-0 01 1 1402-
690 PIN; STOP 1-33549-496-0 01 1 1402-

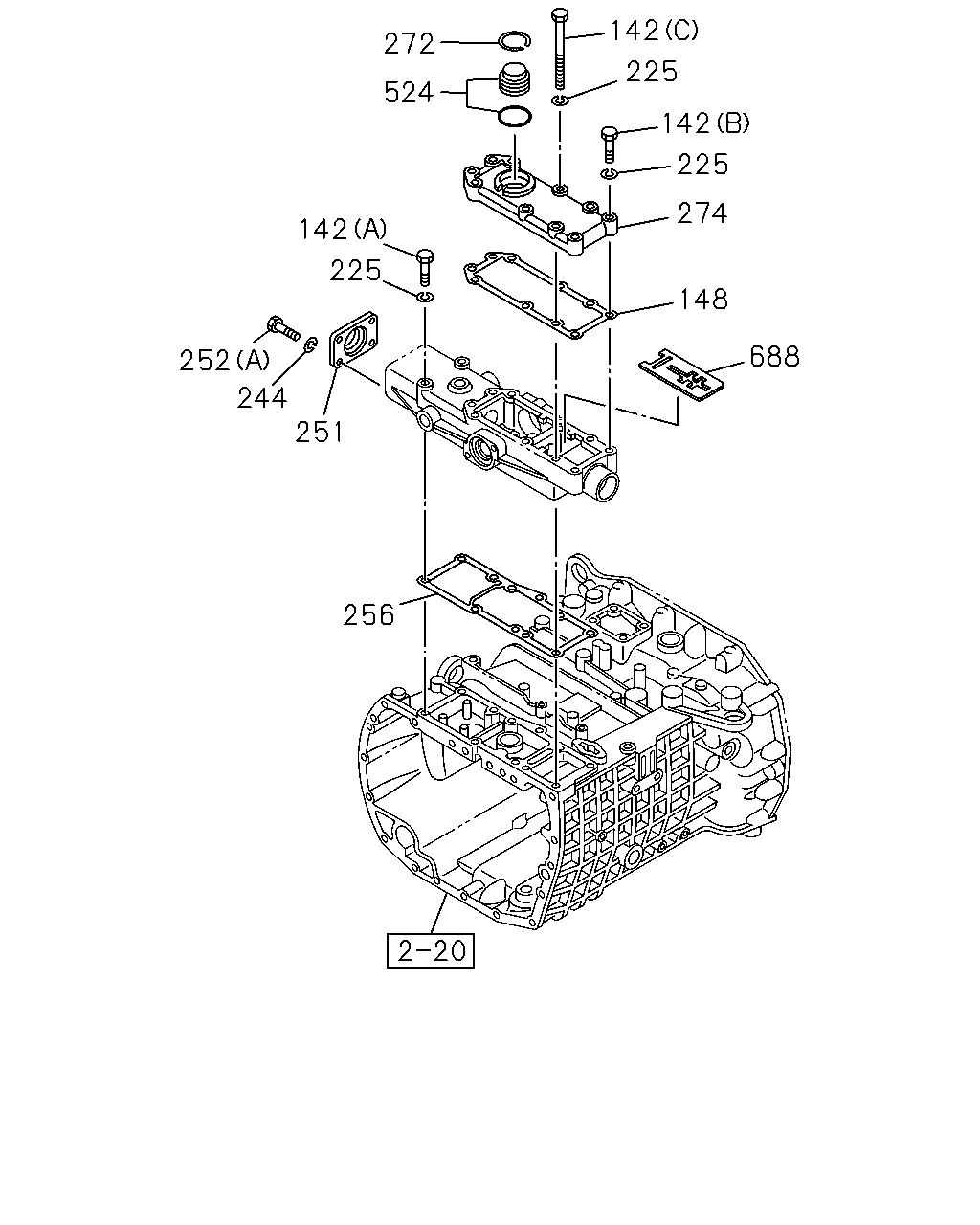

çizim 406478
142 272 142 148 688 252 251 256 524 225 225 225 142 244 274
BalonParca AdiParca NoAdetTipApplied Date
142 BOLT; QUAD BOX
(C) M8X100 		1-33549-582-0 06 1 1402-
142 BOLT; QUAD BOX
(A) M8X75 		1-33549-584-0 02 1 1402-
142 BOLT; QUAD BOX
(B) M8X40 		1-33549-587-0 04 1 1402-
148 GASKET; QUAD BOX 1-33542-064-0 01 1 1402-
225 WASHER; LK,QUAD BOX 1-33549-583-0 14 1 1402-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1402-
251 COVER; SIDE 1-33549-590-0 01 1 1402-
252 BOLT; SIDE COVER
(B) M8X30 		1-33549-581-0 02 1 1402-
252 BOLT; SIDE COVER
(A) M8X20 		1-33549-591-0 04 1 1402-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-065-0 01 1 1402-
272 RING; SNAP,QUAD BOX 1-44519-217-0 01 1 1402-
274 COVER; SHAFT,QUAD BOX 1-33549-579-0 01 1 1402-
524 DETENT; QUAD BOX 1-33549-501-0 01 1 1402-
688 SHIFT; INTERLOCK 1-33549-572-0 01 1 1402-

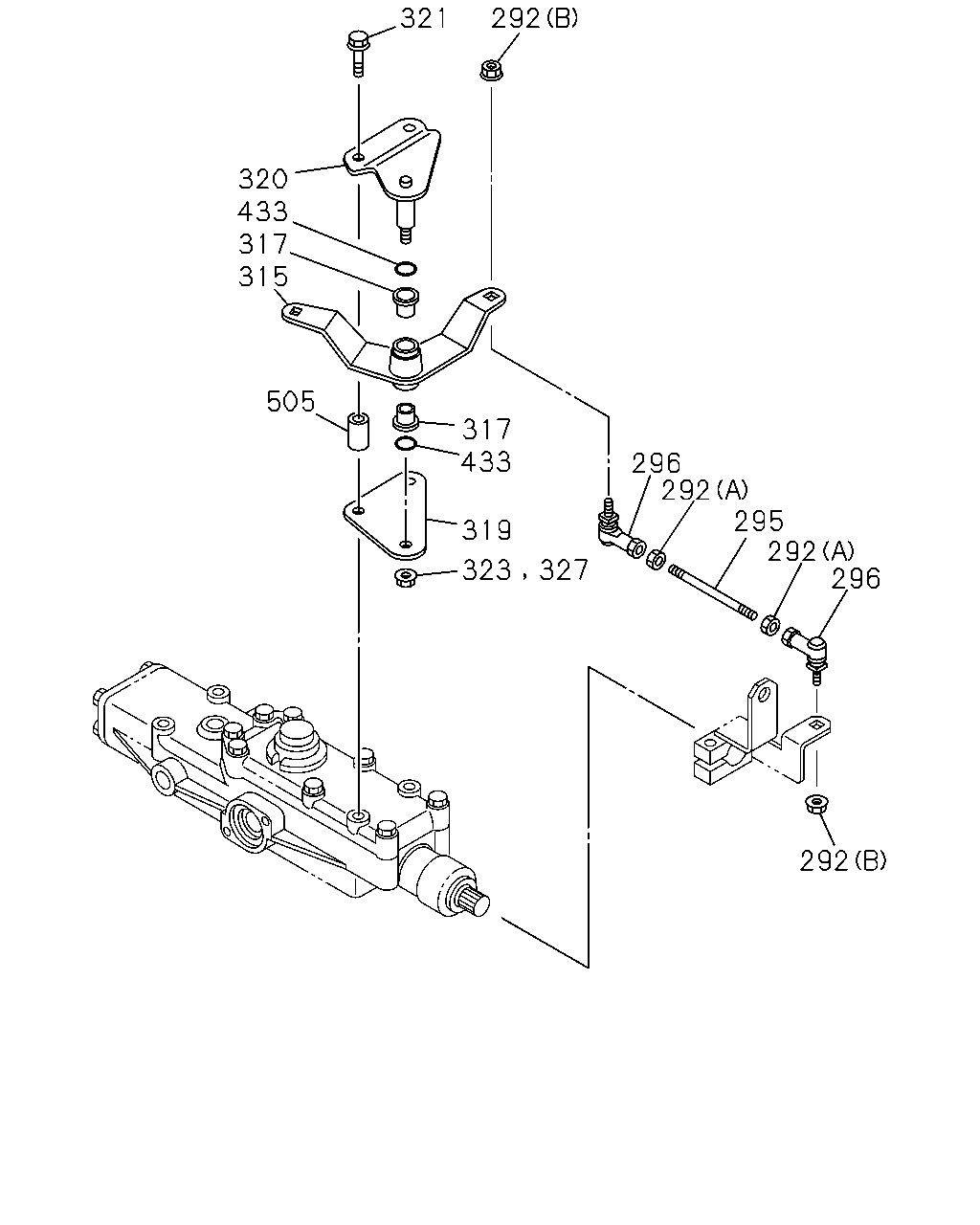

çizim 406499
321 320 292 433 317 315 505 317 433 319 296 323 327 292 292 296 292 295
BalonParca AdiParca NoAdetTipApplied Date
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1402-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1402-
295 ROD; LINK,RELAY LEVER
M8 L=50 		9-08400-805-0 01 1 1402-
296 ROD END 1-09760-108-0 02 1 1402-
315 LEVER; SELECT 8-98085-738-0 01 1 1402-
317 BUSHING; LEVER 1-09330-119-0 02 1 1402-
319 BRACKET; SELECT LEVER 8-98085-740-0 01 1 1402-
320 SHAFT; LEVER 8-98085-739-0 01 1 1402-
321 BOLT; BRKT,RELAY LEVER
M8X130 FLANGE 		0-28065-813-0 02 1 1402-
323 NUT; LK,SELECT LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1402-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE THA 		0-91180-110-0 01 1 1402-
433 GASKET; BUSHING 1-09623-594-0 02 1 1402-
505 SPACER; BRKT
L=24.5 		1-33659-186-1 02 1 1402-

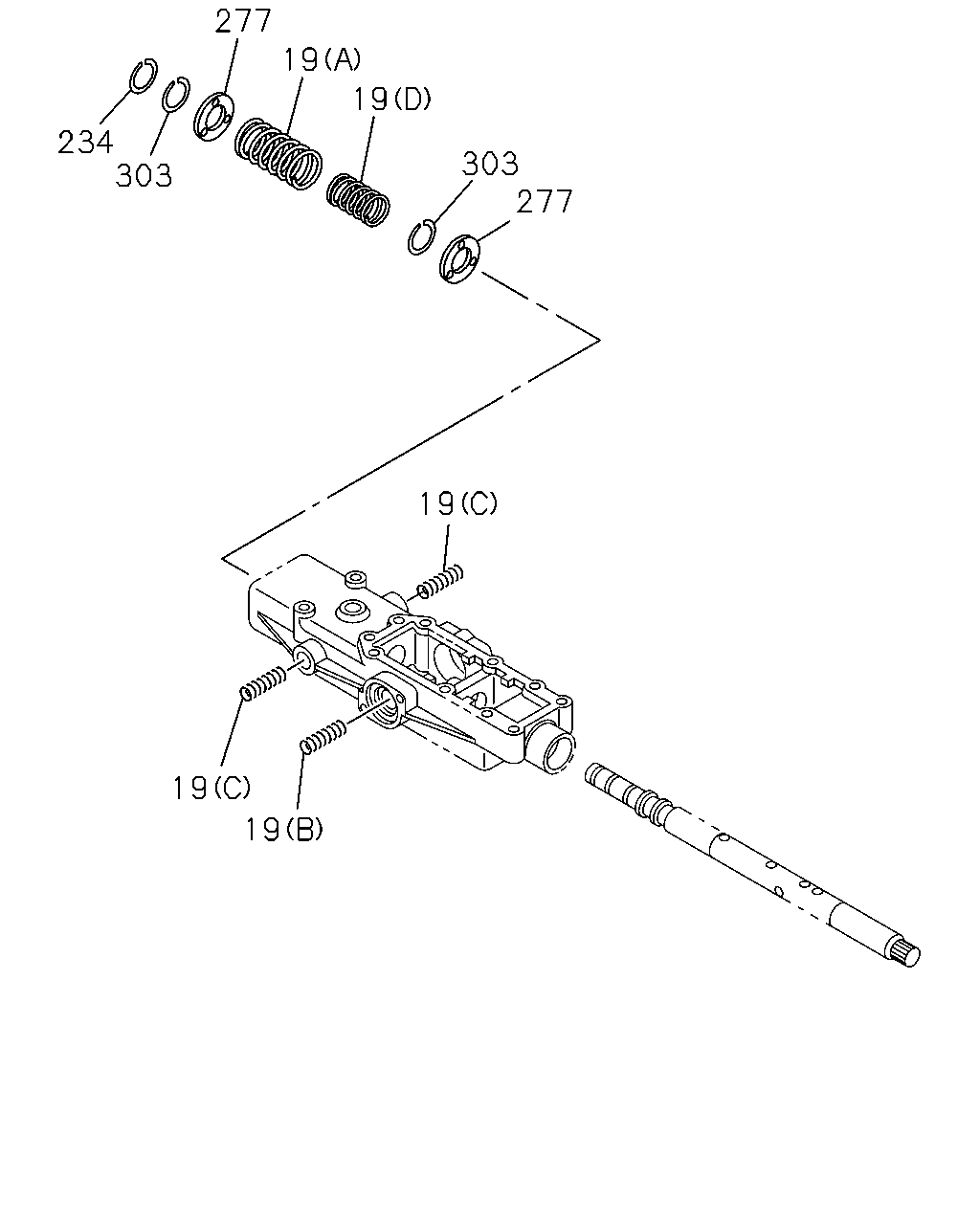

çizim 406757
234 277 19 303 19 277 19 19 19 303
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-027-0 01 1 1402-
19 SPRING; COIL COMP
(C) 		1-33539-030-0 02 1 1402-
19 SPRING; COIL COMP
(D) 		1-33539-104-0 01 1 1402-
19 SPRING; COIL COMP
(B) 		1-33549-221-0 01 1 1402-
234 RING; SNAP 1-44519-224-0 01 1 1402-
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1402-
303 RING; SNAP,SHAFT 1-33539-040-0 02 1 1402-
