6-32 — FRONT DOOR LOCK AND HANDLE (#13397) — 36 parça

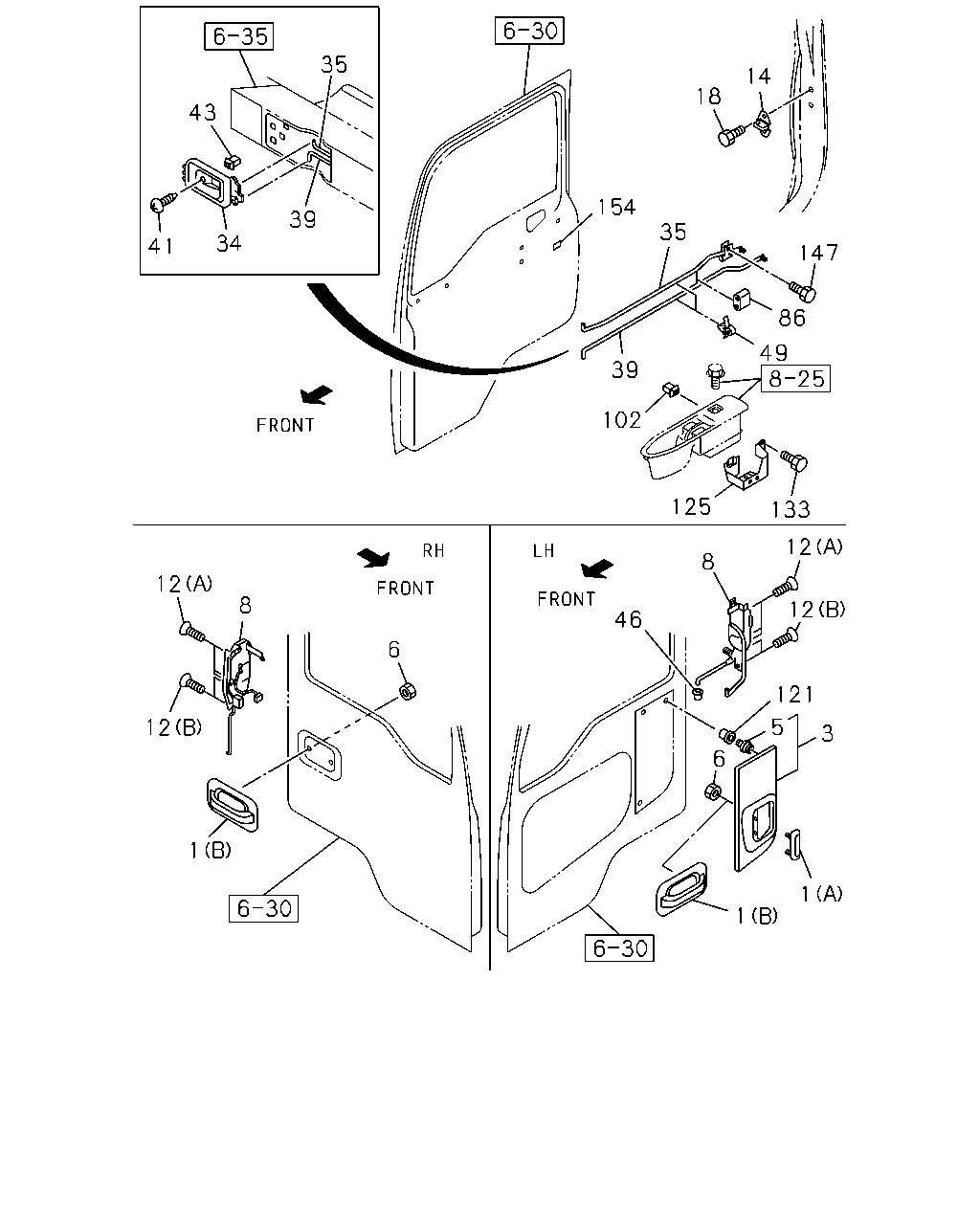

çizim 76798
39 35 154 18 14 35 43 39 34 41 102 125 133 8 12 12 46 121 5 3 6 1 1 1 12 8 12 6 147 86 49
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74618-032-0 01 1 0105- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74618-024-4 01 1 0105- ● ●
1 HANDLE; OUTSIDE,FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74618-024-4 02 1 0105- ● ●
3 BASE; HANDLE,DOOR OUTSIDE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74618-039-1 01 1 0105- ● ●
5 CLIP; BASE
DOOR WITH UNDER VIEW WINDOW<YD8> D5.4X8 		1-09983-174-0 03 1 0105- ● ●
6 NUT; OUTSIDE HANDLE
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0105- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> 		1-74518-091-7 01 1 0105- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-092-7 01 1 0105- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74518-115-3 01 1 0105- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-119-2 01 1 0105- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-74518-118-2 01 1 0105- ● ●
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0105- ● ●
12 SCREW; DOOR LK
(B) M6X14 		1-09981-512-1 04 1 0105- ● ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0105- ● ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0105- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-023-4 01 1 0105- ● ●
34 HANDLE; INSIDE,FRT DOOR 1-74718-022-4 01 1 0105- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-094-3 01 1 0105- ● ●
35 LINK; DOOR LOCK,INSIDE 1-74518-093-3 01 1 0105- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-022-2 01 1 0105- ● ●
39 LINK; INSIDE HANDLE,FRT DOOR 1-74758-021-2 01 1 0105- ● ●
41 SCREW; INSIDE HANDLE
M5X14 		8-94152-495-0 02 1 0105- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0105- ● ●
46 BUSHING; DOOR LOCK TO OUTSIDE HANDLE
DOOR WITH UNDER VIEW WINDOW<YD8> 		5-74617-009-0 01 1 0105- ● ●
49 CLAMP; DOOR LOCK LINK ROD
ID=3.8 WHITE 		8-94217-699-0 04 1 0105- ● ●
86 SEAL; DOOR LOCK LINK 1-76778-044-1 02 1 0105- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 0105- ● ●
121 FASTENER; COVER
DOOR WITH UNDER VIEW WINDOW<YD8> ID=5.4 OD=6.8 		1-09989-019-0 03 1 0105- ● ●
125 BRACKET; DOOR PULL 1-74718-011-4 01 1 0105- ● ●
125 BRACKET; DOOR PULL 1-74718-010-4 01 1 0105- ● ●
133 SCREW; DOOR PULL STAY
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 04 1 0105- ● ●
147 BOLT; ROD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105- ● ●
154 SEAL; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 15X30 		1-74998-069-0 01 1 0105-0210 ● ●
154 SEAL; DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-0 01 1 0211- ● ●
154 SEAL; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 15X30 		1-74998-069-0 02 1 0105-0210 ● ●
154 SEAL; DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 30X30 		1-74998-128-0 02 1 0211- ● ●
