Sayfa 6-31 - Isuzu EPC

6-31 — FRONT DOOR GLASS AND REGULATOR (#13396) — 283 parça

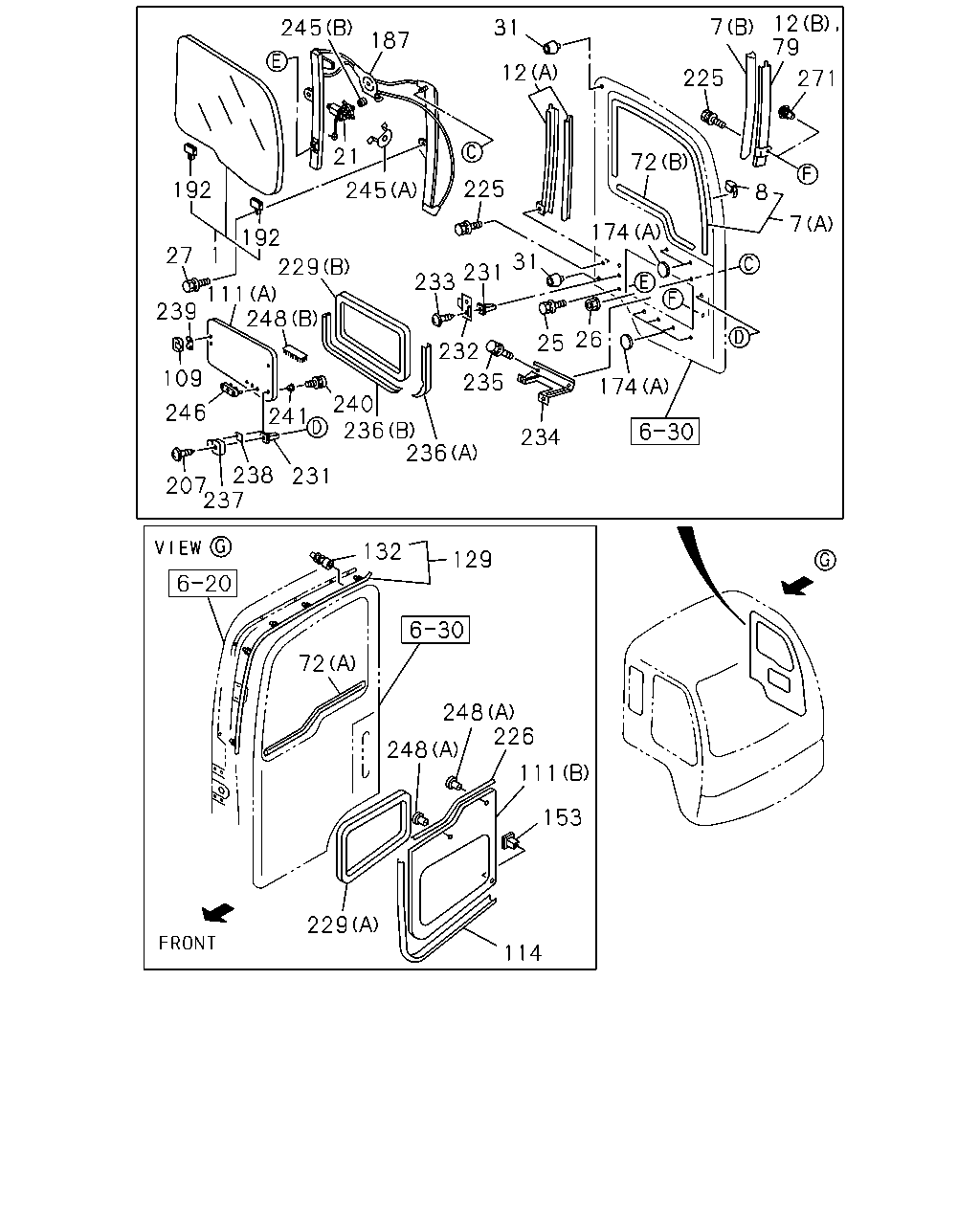

31 225 245 21 192 229 192 27 1 239 111 248 109 246 241 240 236 234 235 232 233 231 25 26 174 72 225 7 12 79 31 12 187 245 8 7 271 174 236 231 238 207 237 129 132 72 248 248 226 111 153 114 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0105-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0105-0306	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0105-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0105-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0105-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0105-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0105-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0105-	●	●
109	LOCK ASM; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-052-0	01	1	0105-	●	●
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76167-155-0	01	1	0105-	●	●
111	GLASS; FRT DOOR,LWR DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76167-176-0	01	1	0105-	●	●
114	MOLDING; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-71538-038-1	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0105-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0105-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0105-	●	●
153	GROMMET; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	01	1	0105-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0105-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52 BLACK	1-76798-041-0	02	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-	●	●
207	SCREW; DOOR GLASS DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-	●	●
226	FINISHER; OK WINDOW,LWR DOOR WITH UNDER VIEW WINDOW<YD8>	1-76738-093-6	01	1	0105-	●	●
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-76738-096-5	01	1	0105-	●	●
229	SEAL; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-76738-097-4	01	1	0105-	●	●
231	GROMMET; SCREW DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0105-	●	●
232	STRIKER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-055-1	01	1	0105-	●	●
233	SCREW; STRIKER DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING	8-94279-123-0	02	1	0105-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-73338-363-5	01	1	0105-	●	●
236	COVER; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-73338-364-5	01	1	0105-	●	●
237	HINGE; DOOR WINDOW GLASS DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-050-1	02	1	0105-	●	●
238	SHEET; HINGE DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-051-0	02	1	0105-	●	●
239	SHEET; LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-053-0	01	1	0105-	●	●
240	SCREW; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8> M6X12	8-94279-346-0	04	1	0105-	●	●
241	GASKET; HINGE & LOCK DOOR WITH UNDER VIEW WINDOW<YD8>	1-74998-054-0	04	1	0105-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0105-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0105-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0105-	●	●
246	GRILLE; OK WINDOW DOOR WITH UNDER VIEW WINDOW<YD8>	1-74298-002-1	01	1	0105-	●	●
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74998-072-0	01	1	0105-	●	●
248	FASTENER DOOR WITH UNDER VIEW WINDOW<YD8> (A) ID=5.4 OD=6.8	1-09989-019-0	02	1	0105-	●	●
271	PLUG; HOLE DOOR WITH UNDER VIEW WINDOW<YD8> OD=16 L=11	1-76378-155-0	01	1	0307-	●	●

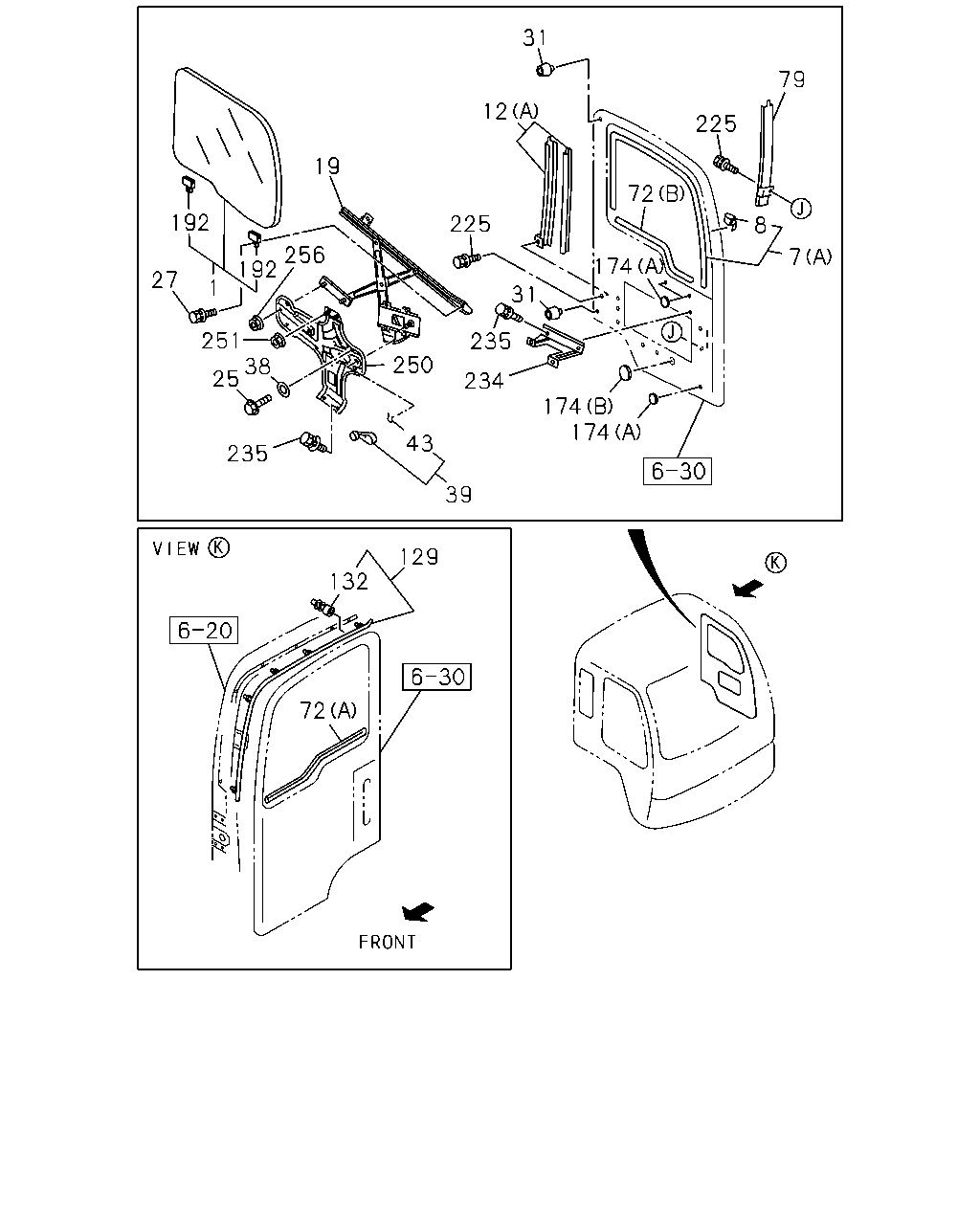

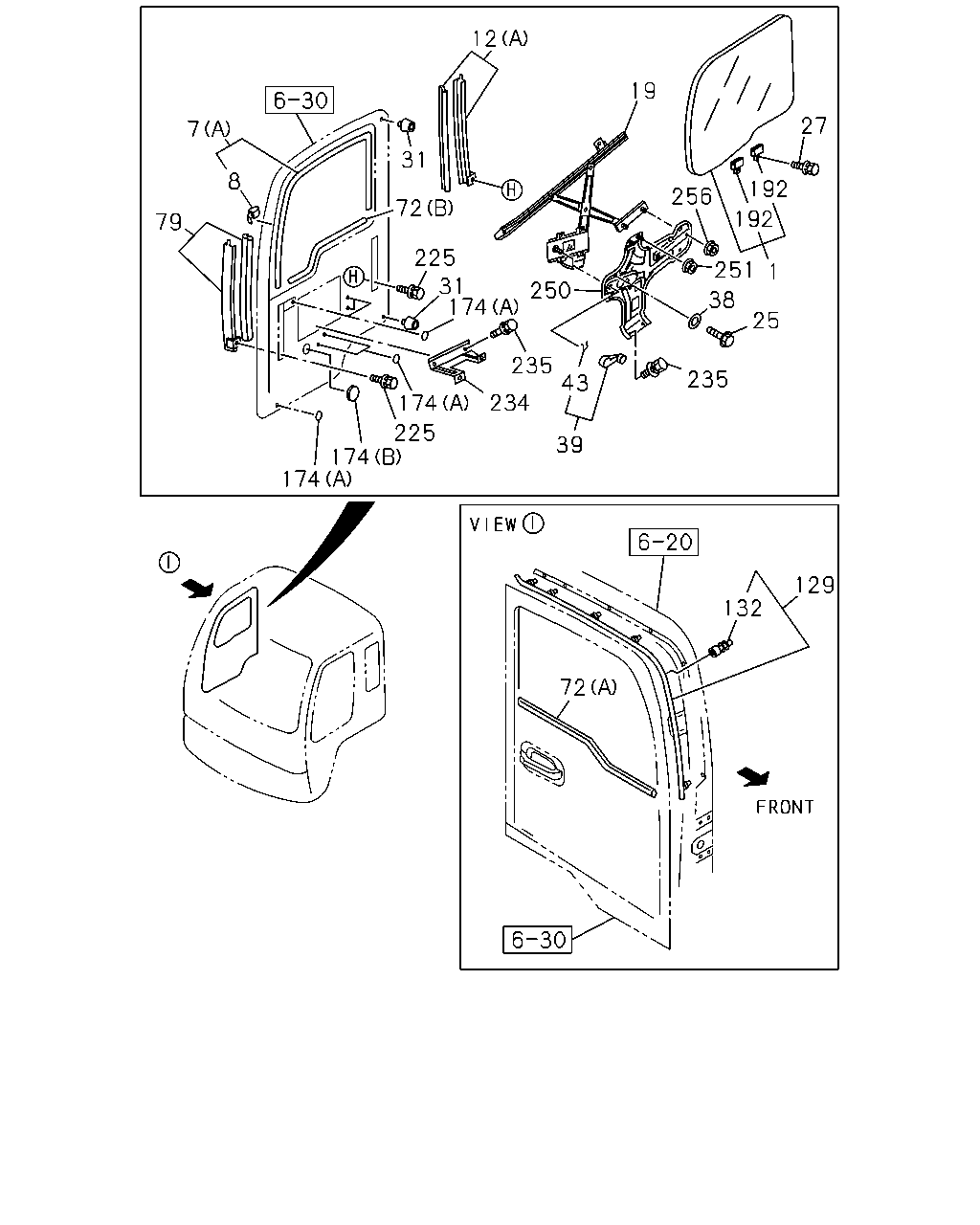

12 19 27 192 256 192 251 38 25 1 235 43 235 250 174 31 225 72 31 7 79 8 174 174 225 174 39 234 72 132 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0105-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0105-0306	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0105-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0105-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-	●	●
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0105-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0105-	●	●
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0105-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0105-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0105-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0105-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52 BLACK	1-76798-041-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0105-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0105-	●	●
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0105-	●	●
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-	●	●

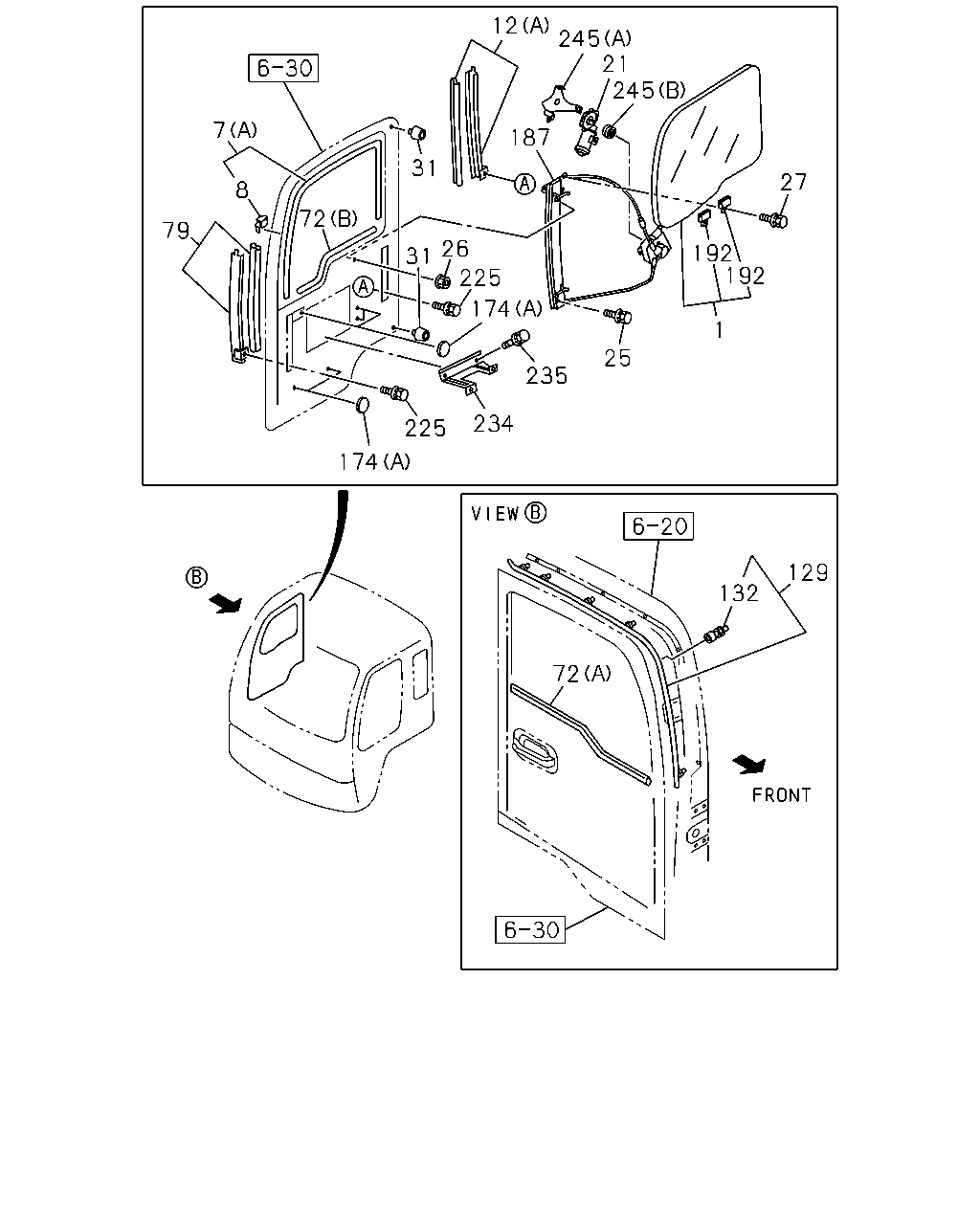

72 8 7 31 187 12 245 21 245 27 192 192 1 25 235 174 225 26 31 174 225 234 72 132 129 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0105-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0105-0306	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0105-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-162-0	01	1	0105-	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-177-0	01	1	0105-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	08	1	0105-	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE	1-09984-141-0	06	1	0105-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0105-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0105-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0105-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0105-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52 BLACK	1-76798-041-0	02	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-3	01	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-166-3	01	1	0105-	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74418-179-3	01	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74417-074-0	01	1	0106-0209	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	01	1	0210-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0105-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-147-1	01	1	0105-	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A)	1-74418-181-0	01	1	0105-	●	●

174 174 39 43 250 225 12 31 79 225 72 174 31 235 234 38 251 25 27 192 19 256 192 132 129 72 7 8 235 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8>	1-76167-173-2	01	1	0105-	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-76148-095-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76148-094-2	01	1	0105-	●	●
1	GLASS; FRT DOOR EXC. POWER WINDOW<A30>	1-76167-174-2	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-022-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR (A)	1-74318-021-8	01	1	0105-	●	●
7	GLASS RUN; FRT DOOR DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74318-039-0	01	1	0105-0306	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-071-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT (A)	1-74338-070-3	01	1	0105-	●	●
12	CHANNEL; GLASS RUN,FRT DOOR WITH UNDER VIEW WINDOW<YD8> (B)	1-74338-047-0	01	1	0105-0306	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-134-4	01	1	0105-	●	●
19	REGULATOR; WINDOW,FRT DOOR EXC. POWER WINDOW<A30>	1-74418-144-4	01	1	0105-	●	●
25	BOLT; WINDOW REG EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0105-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	07	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	07	1	0601-	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0105-0405	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X16 FLANGE	0-28050-616-0	10	1	0601-	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0105-	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0105-	●	●
38	WASHER; PL,WINDOW REG EXC. POWER WINDOW<A30> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0105-	●	●
39	HANDLE; WINDOW REG,FRT DOOR EXC. POWER WINDOW<A30> BLACK	8-94371-427-0	02	1	0105-	●	●
43	CLIP; REG HANDLE,FRT DOOR EXC. POWER WINDOW<A30>	8-94220-591-0	02	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0105-	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0105-	●	●
79	CHANNEL; DOOR GLASS,FRT EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-74338-069-3	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0105-	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0105-	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0105-	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0105-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	11	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	13	1	0301-	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	14	1	0105-0212	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	20	1	0105-0212	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (A) OD=25 BLACK	1-76798-019-0	22	1	0301-	●	●
174	SEAL; LOCATION HOLE EXC. POWER WINDOW<A30> (B) OD=52 BLACK	1-76798-041-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS POWER WINDOW<A30>	1-74427-170-0	02	1	0105-	●	●
192	HOLDER; DOOR GLASS EXC. POWER WINDOW<A30>	1-74427-170-0	04	1	0105-	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	04	1	0307-0512	●	●
225	BOLT; FRT CHANNEL EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0105-0306	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28080-610-0	03	1	0307-0512	●	●
225	BOLT; FRT CHANNEL DOOR WITH UNDER VIEW WINDOW<YD8> M6X10 FLANGE	0-28050-610-0	03	1	0601-	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0105-	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0105-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28080-616-0	08	1	0406-0512	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●
235	BOLT; BRKT EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0105-0405	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0406-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-148-0	01	1	0105-	●	●
250	BRACKET; REGULATOR EXC. POWER WINDOW<A30>	1-74418-149-0	01	1	0105-	●	●
251	NUT; BRKT EXC. POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	04	1	0105-	●	●
256	NUT EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
