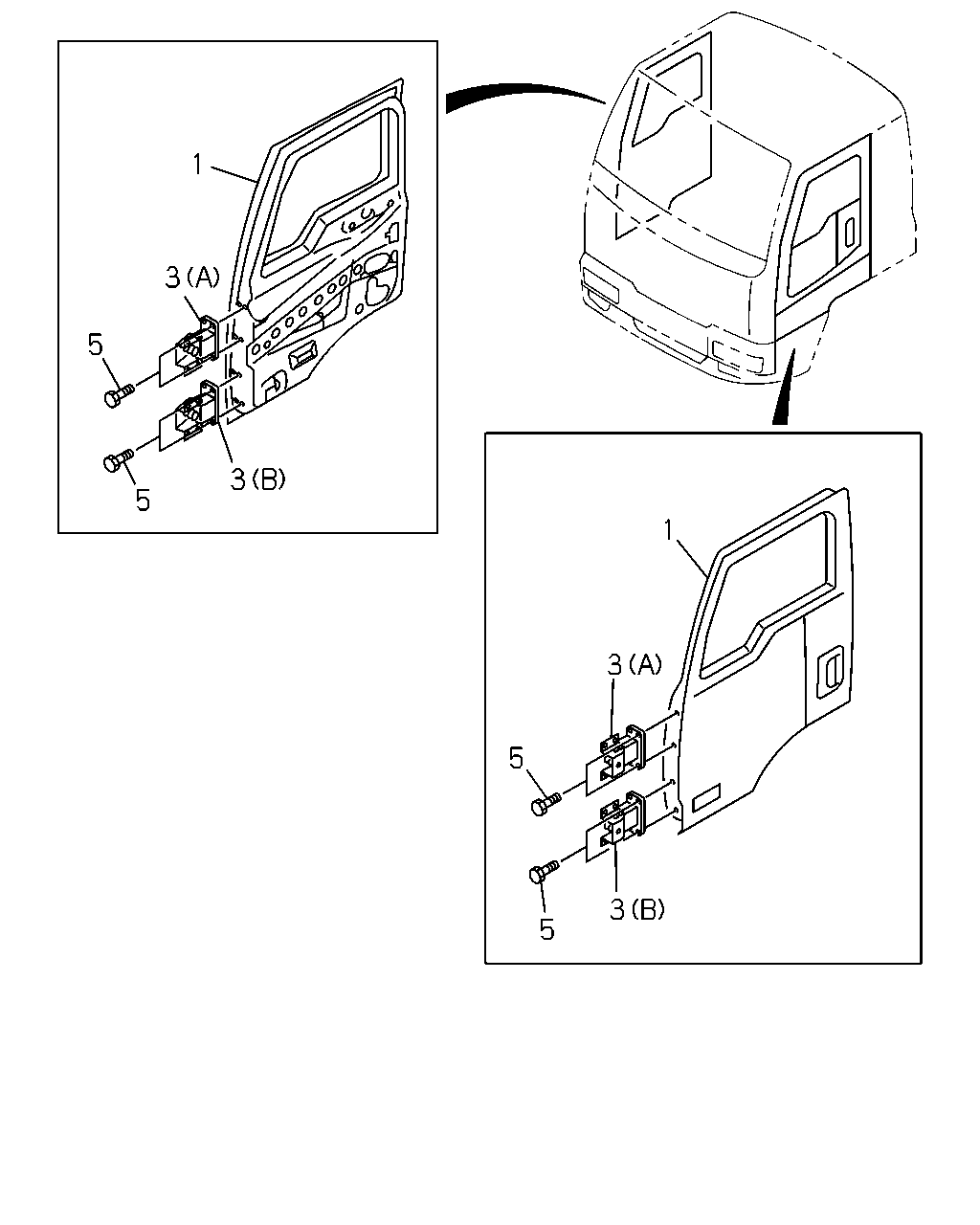

6-30 — FRONT DOOR AND HINGE (#13395) — 49 parça

3 1 5 5 3 3 1 5 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-392-2	01	1	0105-	●
1	DOOR ASM; FRT,WO/TRIM OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-64080-392-2	01	1	0105-	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEWWINDOW<YD8>	1-64080-392-2	01	1	0105-		●
1	DOOR ASM; FRT,WO/TRIM OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2)	1-64080-392-2	01	1	0105-		●
1	DOOR ASM; FRT,WO/TRIM KENYA EQUIPMENT(PQ2)	1-64080-392-2	01	1	0105-		●
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-394-0	01	1	0105-0109	●
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-394-2	01	1	0110-	●	●
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-395-0	01	1	0105-0109	●
1	DOOR ASM; FRT,WO/TRIM NEW ZEALAND EQUIPMENT(PK5)	1-64080-395-2	01	1	0110-	●	●
1	DOOR ASM; FRT,WO/TRIM DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-64080-389-2	01	1	0105-	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEW WINDOW<YD8>	1-64080-391-2	01	1	0105-	●	●
1	DOOR ASM; FRT,WO/TRIM MIR O/S RR VIEW LONG ARM<DH2> OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-64080-388-2	01	1	0105-	●	●
1	DOOR ASM; FRT,WO/TRIM EXC. MIR O/S RR VIEW LONG ARM<DH2>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2)	1-64080-390-2	01	1	0105-	●	●
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-090-2	02	1	0105-0109	●
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-090-2	02	1	0110-	●	●
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-091-2	02	1	0105-0109	●
3	HINGE; DOOR FRT NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-091-2	02	1	0110-	●	●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-090-2	01	1	0105-	●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-090-2	01	1	0105-	●
3	HINGE; DOOR FRT KENYA EQUIPMENT(PQ2) (B) LOWER	1-64780-090-2	01	1	0105-		●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (B) LOWER	1-64780-090-2	01	1	0105-		●
3	HINGE; DOOR FRT KENYA EQUIPMENT(PQ2) (B) LOWER	1-64780-090-2	01	1	0105-		●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (B) LOWER	1-64780-090-2	01	1	0105-		●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-091-2	01	1	0105-	●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-091-2	01	1	0105-	●
3	HINGE; DOOR FRT KENYA EQUIPMENT(PQ2) (A) UPPER	1-64780-091-2	01	1	0105-		●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (A) UPPER	1-64780-091-2	01	1	0105-		●
3	HINGE; DOOR FRT KENYA EQUIPMENT(PQ2) (A) UPPER	1-64780-091-2	01	1	0105-		●
3	HINGE; DOOR FRT OPENABLE ANGLE DOOR NARROW<NGJ> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (A) UPPER	1-64780-091-2	01	1	0105-		●
3	HINGE; DOOR FRT DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) UPPER	1-64780-088-3	01	1	0105-	●	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (A) UPPER	1-64780-088-3	01	1	0105-	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER	1-64780-088-3	01	1	0105-	●
3	HINGE; DOOR FRT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER	1-64780-088-3	01	1	0105-	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (A) UPPER	1-64780-088-3	01	1	0105-		●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEWWINDOW<YD8> (A) UPPER	1-64780-088-3	01	1	0105-		●
3	HINGE; DOOR FRT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEW WINDOW<YD8> (A) UPPER	1-64780-088-3	01	1	0105-		●
3	HINGE; DOOR FRT DOOR WITH UNDER VIEW WINDOW<YD8> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) LOWER	1-64780-089-3	01	1	0105-	●	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5) (B) LOWER	1-64780-089-3	01	1	0105-	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER	1-64780-089-3	01	1	0105-	●
3	HINGE; DOOR FRT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER	1-64780-089-3	01	1	0105-	●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW LONG ARM<DH2>,OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2) (B) LOWER	1-64780-089-3	01	1	0105-		●
3	HINGE; DOOR FRT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, OPENABLE ANGLE DOOR NARROW<NGJ>,NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEWWINDOW<YD8> (B) LOWER	1-64780-089-3	01	1	0105-		●
3	HINGE; DOOR FRT MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. NEW ZEALAND EQUIPMENT(PK5),KENYA EQUIPMENT(PQ2),DOOR WITH UNDER VIEW WINDOW<YD8> (B) LOWER	1-64780-089-3	01	1	0105-		●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0105-0109	●	●
5	BOLT; HINGE NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0105-0109	●
5	BOLT; HINGE NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0110-	●	●
5	BOLT; HINGE M8X29.5 W/LK+PL WASHER	8-94279-209-0	16	1	0110-	●	●
5	BOLT; HINGE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-	●	●
5	BOLT; HINGE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	0105-	●	●
