◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11578 - FVM CNG(THAILAND) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#133905) — 190 parça

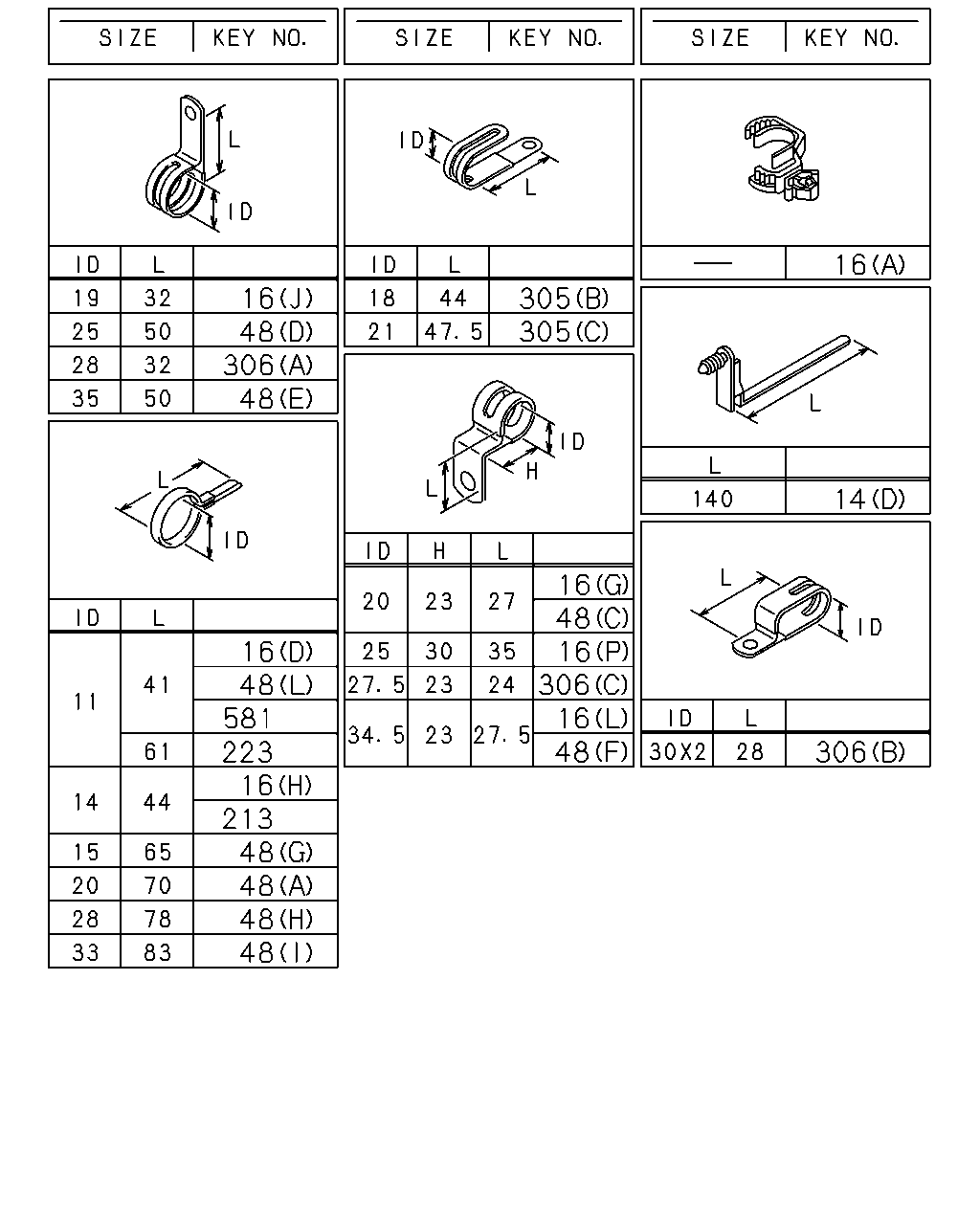

çizim 407953
16 48 306 48 305 305 16 14 306 16 48 16 306 16 48 16 48 581 223 16 213 48 48 48 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1402-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1402-
14 CLIP; BAND,HARNESS
(D) L=140 		8-97122-360-0 01 1 1402-
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1402-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1402-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1402-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1402-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1402-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1402-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1402-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1402-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 		1-09700-466-0 07 1 1402-
48 CLIP; FRAME HARNESS
(L) ID=11 L=41 		1-09700-403-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 23 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1402-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1402-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1402-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1402-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1402-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1402-
48 CLIP; FRAME HARNESS
(K) L=300 		1-09707-001-1 01 1 1402-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(J) L=140 THA 		8-97920-656-0 02 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1402-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1402-
223 CLIP; AIR TANK HARNESS
ID=11 L=61 		1-09700-484-0 01 1 1402-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1402-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1402-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1402-
306 CLIP; HARNESS,ELEC GOV
(B) ID=30X2 L=28 		1-09701-266-0 01 1 1402-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 1402-

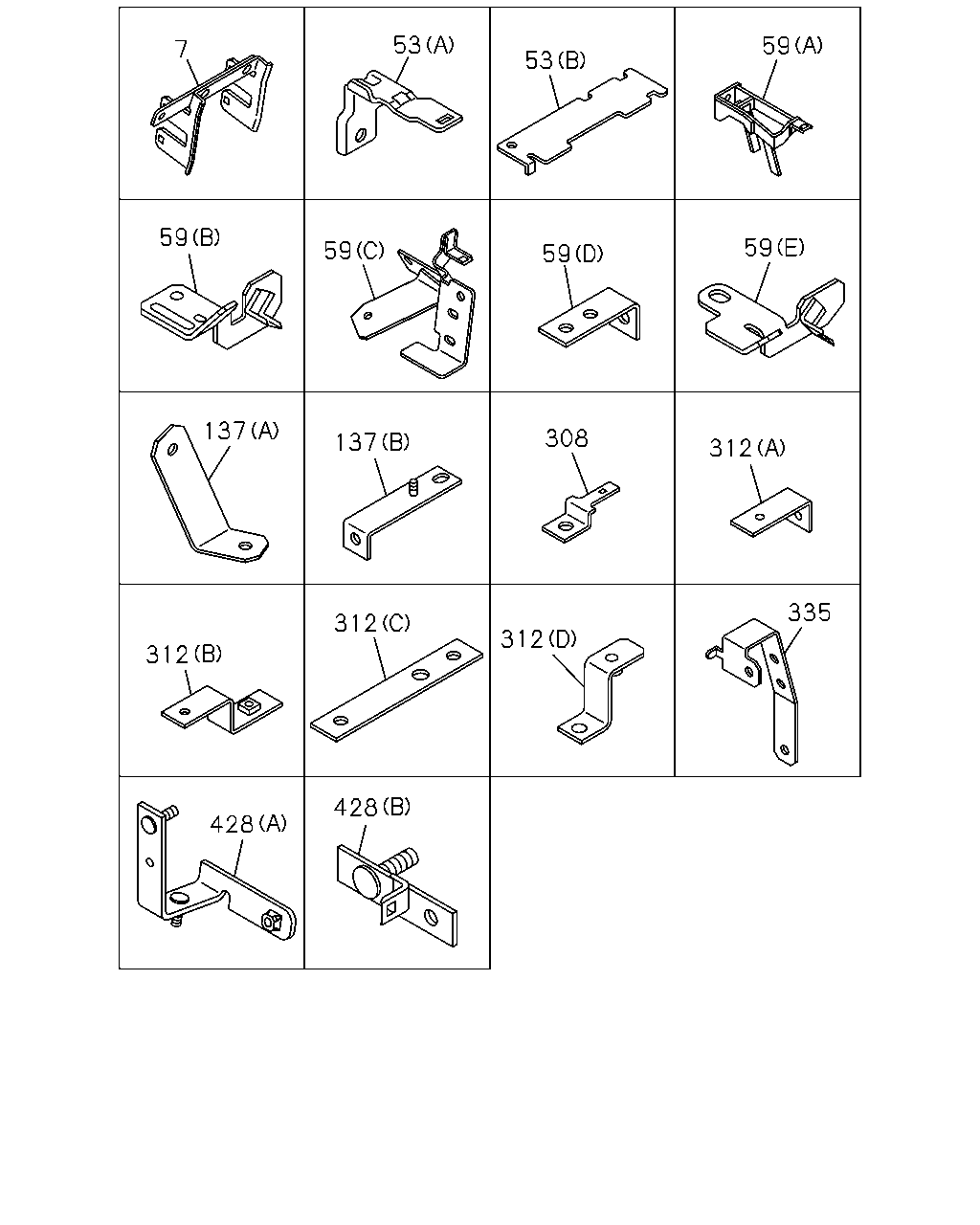

çizim 407956
7 53 53 59 59 59 59 59 137 137 308 312 335 312 312 312 428 428
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1402-
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 1402-
53 BRACKET; HARNESS
(B) 		8-98127-093-0 01 1 1402-
59 BRACKET; FRAME HARNESS
(D) 		1-21464-170-2 01 1 1402-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1402-
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 1402-1502
59 BRACKET; FRAME HARNESS
(E) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1402-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1402-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1402-
308 BRACKET; CLIP,ENG HARNESS 8-97602-870-1 01 1 1402-
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1402-
312 BRACKET; CLIP HARNESS
(C) L=100 		1-47477-620-1 01 1 1402-
312 BRACKET; CLIP HARNESS
(B) 		8-97609-110-1 01 1 1402-
312 BRACKET; CLIP HARNESS
(D) THA 		8-98133-253-0 01 1 1402-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1402-
428 BRACKET
(A) 		8-98220-123-0 01 1 1402-
428 BRACKET
(B) 		8-98220-124-0 01 1 1402-

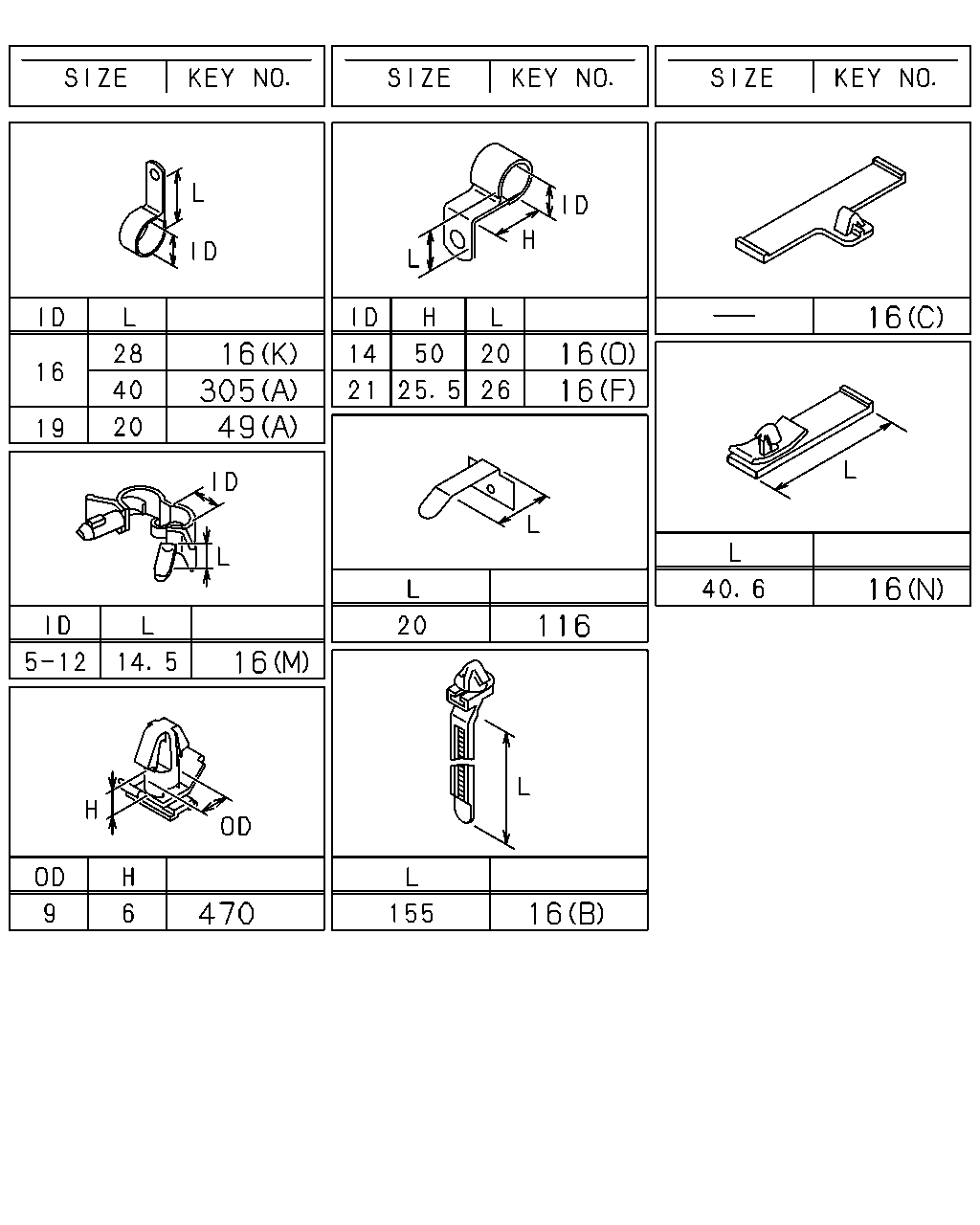

çizim 408014
16 49 305 16 470 16 116 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1402-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1402-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1402-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1402-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1402-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1402-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1402-
49 CLIP; GEN HARNESS
(B) L=250 		5-09707-030-1 01 1 1402-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1402-
305 CLIP; ENG HARNESS
(A) ID=16 L=40 		0-95235-576-0 01 1 1402-
305 CLIP; ENG HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 01 1 1402-1402
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1402-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1402-

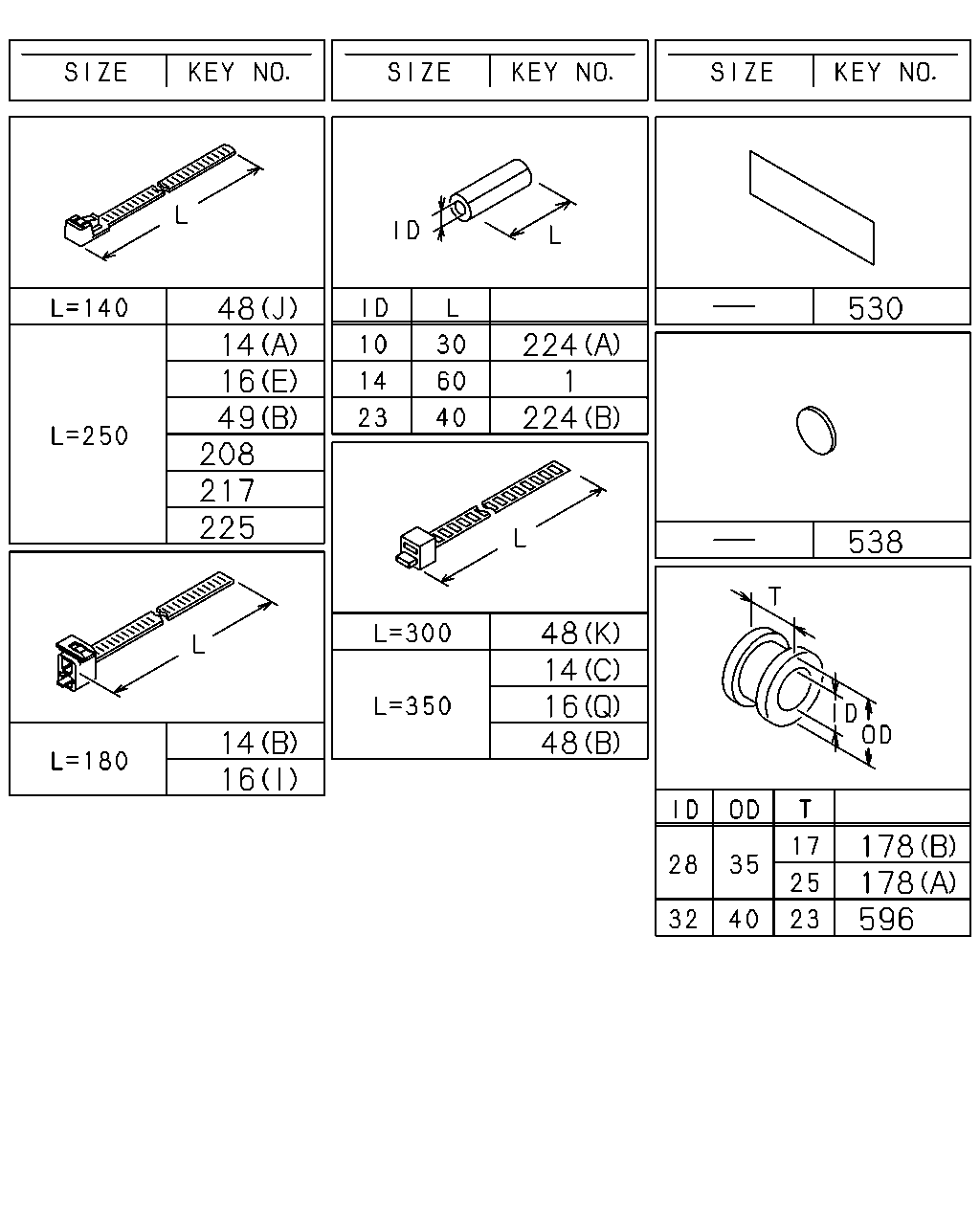

çizim 408242
48 14 208 225 217 49 16 16 14 48 16 14 48 224 1 224 530 538 178 596 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
ID=14 OD=18 L=60 		1-09337-030-0 03 1 1402-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1402-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 1402-
14 CLIP; BAND,HARNESS
(D) L=140 		8-97122-360-0 01 1 1402-
14 CLIP; BAND,HARNESS
(B) L=180 		8-98216-427-0 08 1 1402-
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 09 1 1402-
16 CLIP; HARNESS
(K) ID=16 L=28 		0-95235-556-0 02 1 1402-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 04 1 1402-
16 CLIP; HARNESS
(O) ID=14 H=50 L=20 		1-09700-843-0 02 1 1402-
16 CLIP; HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1402-
16 CLIP; HARNESS
(P) ID=25 H=30 L=35 		1-09700-944-0 01 1 1402-
16 CLIP; HARNESS
(J) ID=19 L=32 		1-09701-235-0 04 1 1402-
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 1402-
16 CLIP; HARNESS
(Q) L=350 		1-09707-183-0 02 1 1402-
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 1402-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 1402-
16 CLIP; HARNESS
(F) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1402-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1402-
16 CLIP; HARNESS
(B) L=155 THA 		8-97173-307-0 18 1 1402-
16 CLIP; HARNESS
(N) L=40.6 THA 		8-97229-357-0 02 1 1402-
16 CLIP; HARNESS
(C) THA 		8-98052-679-0 02 1 1402-
16 CLIP; HARNESS
(H) ID=14 L=44 		9-09917-427-0 03 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1402-
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM<71W> (G) ID=15 L=65 		1-09700-466-0 07 1 1402-
48 CLIP; FRAME HARNESS
(L) ID=11 L=41 		1-09700-403-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 02 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 23 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 01 1 1402-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 1402-
48 CLIP; FRAME HARNESS
(H) ID=28 L=78 		1-09700-858-0 02 1 1402-
48 CLIP; FRAME HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1402-
48 CLIP; FRAME HARNESS
(F) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1402-
48 CLIP; FRAME HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 1402-
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 1402-
48 CLIP; FRAME HARNESS
(I) ID=33 L=83 		1-09701-291-0 05 1 1402-
48 CLIP; FRAME HARNESS
(K) L=300 		1-09707-001-1 01 1 1402-
48 CLIP; FRAME HARNESS
(B) L=350 		1-09707-183-0 01 1 1402-
48 CLIP; FRAME HARNESS
(J) L=140 THA 		8-97920-656-0 02 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1402-
48 CLIP; FRAME HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 1402-
49 CLIP; GEN HARNESS
(A) ID=19 L=20 		0-95235-836-0 04 1 1402-
49 CLIP; GEN HARNESS
(B) L=250 		5-09707-030-1 01 1 1402-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1402-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 02 1 1402-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1402-
224 SLEEVE; RUBBER,HARNESS
(B) ID=23 OD=27 L=40 		1-09337-015-0 01 1 1402-
224 SLEEVE; RUBBER,HARNESS
(A) ID=10 OD=14 L=30 		9-09956-682-0 01 1 1402-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1402-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 1402-
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1402-
596 GROMMET
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1402-

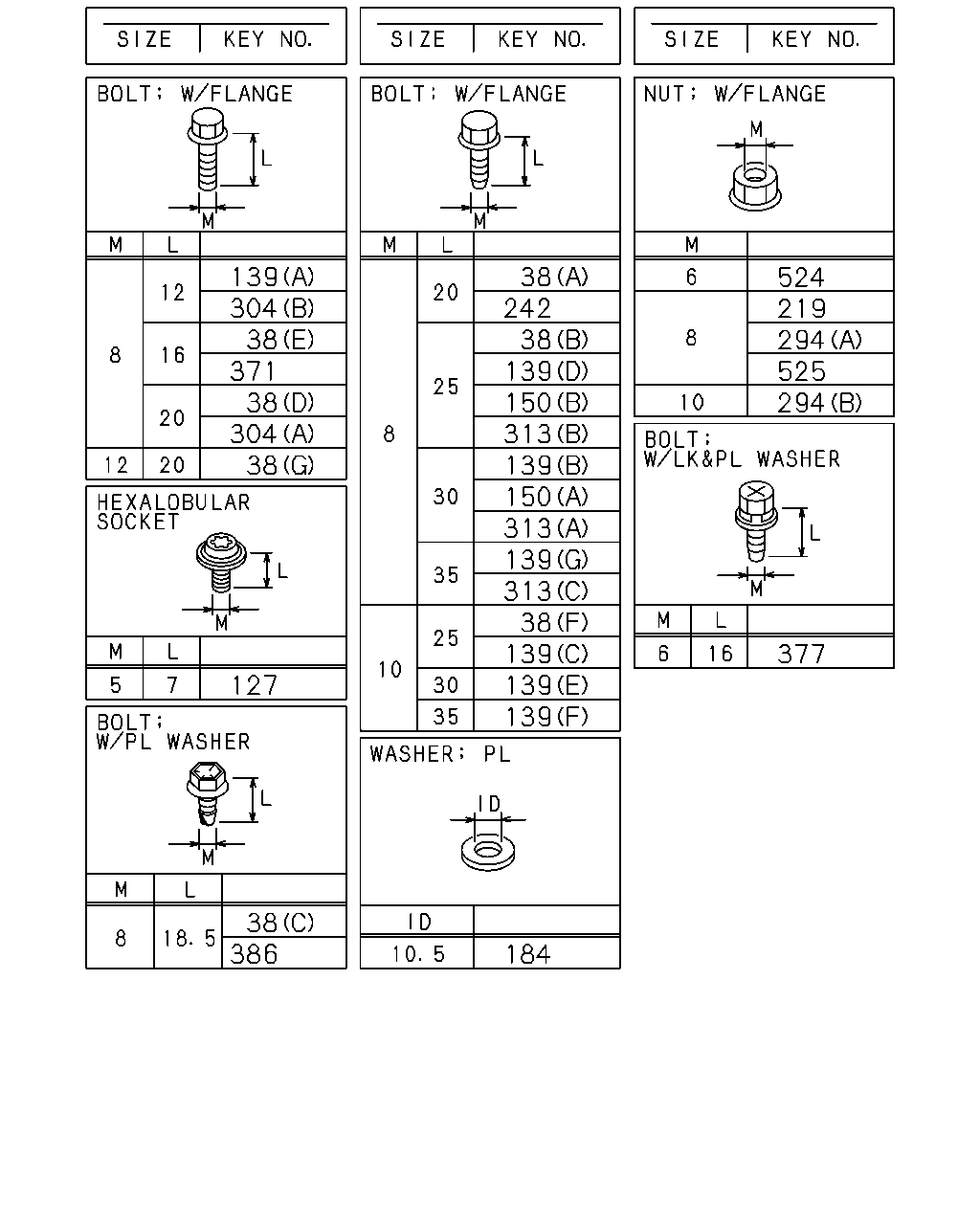

çizim 408244
139 304 38 371 38 304 38 127 184 38 386 377 294 525 294 219 524 38 242 38 139 150 313 139 150 313 139 313 38 139 139 139
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402-
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE THA 		0-28050-816-0 06 1 1402-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE THA 		0-28050-820-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(F) M10X25 FLANGE THA 		0-28151-025-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(G) M12X20 FLANGE 		0-28151-220-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
38 BOLT; CLIP,HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 04 1 1402-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1402-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE THA 		0-28650-825-0 03 1 1402-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1402-
139 BOLT; BRKT
(A) M8X12 FLANGE THA 		0-28050-812-0 01 1 1402-
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
139 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
139 BOLT; BRKT
(G) M8X35 FLANGE THA 		0-28650-835-0 01 1 1402-
139 BOLT; BRKT
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1402-
139 BOLT; BRKT
(E) M10X30 FLANGE THA 		0-28651-030-0 01 1 1402-
139 BOLT; BRKT
(F) M10X35 FLANGE THA 		0-28651-035-0 01 1 1402-
150 BOLT; CLIP
(B) M8X25 FLANGE THA 		0-28650-825-0 02 1 1402-
150 BOLT; CLIP
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1402-
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
219 NUT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
242 BOLT; BRKT,HARNESS
M8X20 FLANGE THA 		0-28650-820-0 01 1 1402-
294 NUT
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
294 NUT
(A) M8 FLANGE THA 		0-91180-108-0 02 1 1402-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE THA 		0-28050-812-0 02 1 1402-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE THA 		0-28050-820-0 01 1 1402-
313 BOLT; BRKT
(B) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
313 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1402-
313 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 1402-
371 BOLT; GEN HARNESS
M8X16 FLANGE THA 		0-28050-816-0 04 1 1402-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1402-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1402-
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
