Sayfa 6-01 - Isuzu EPC

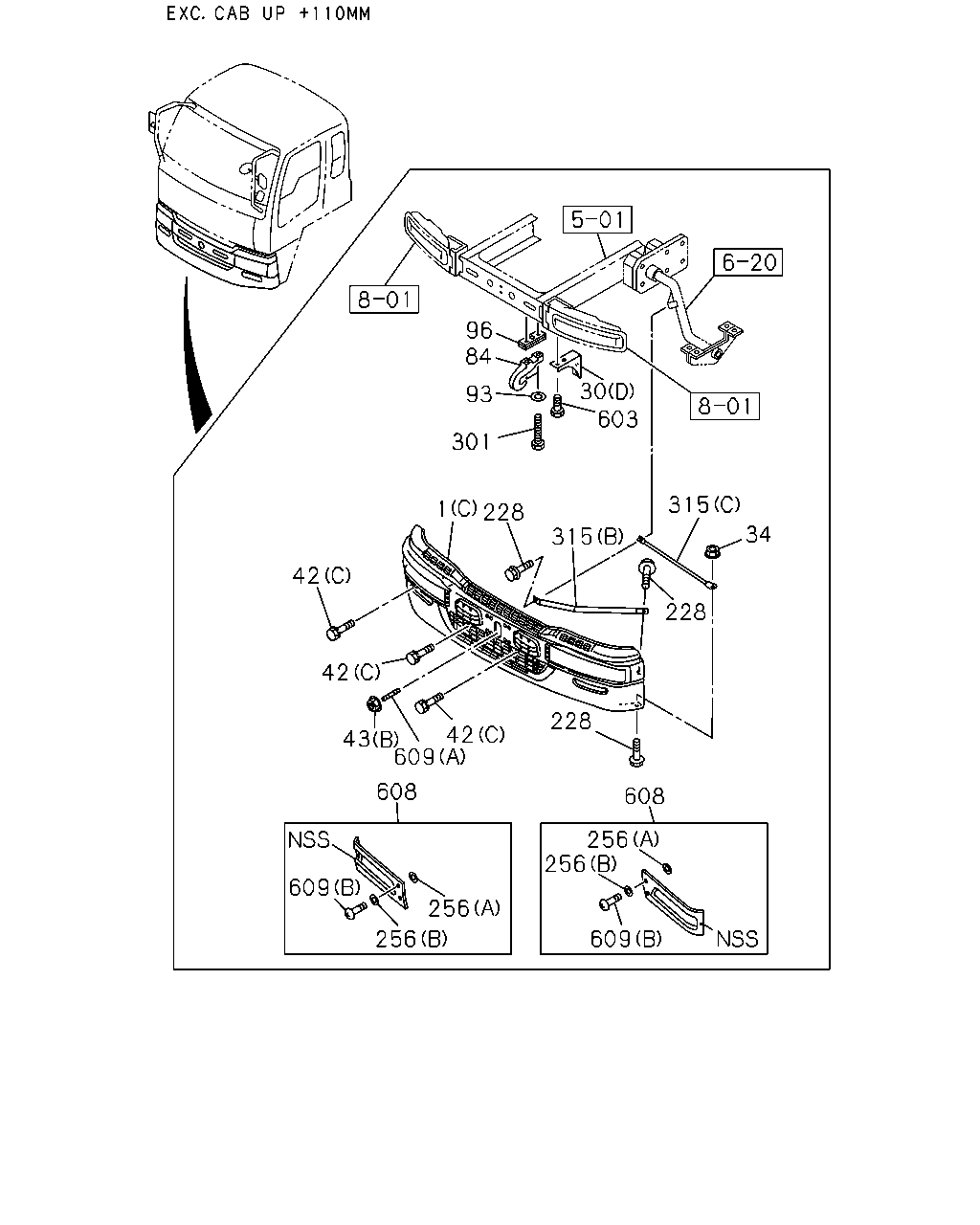

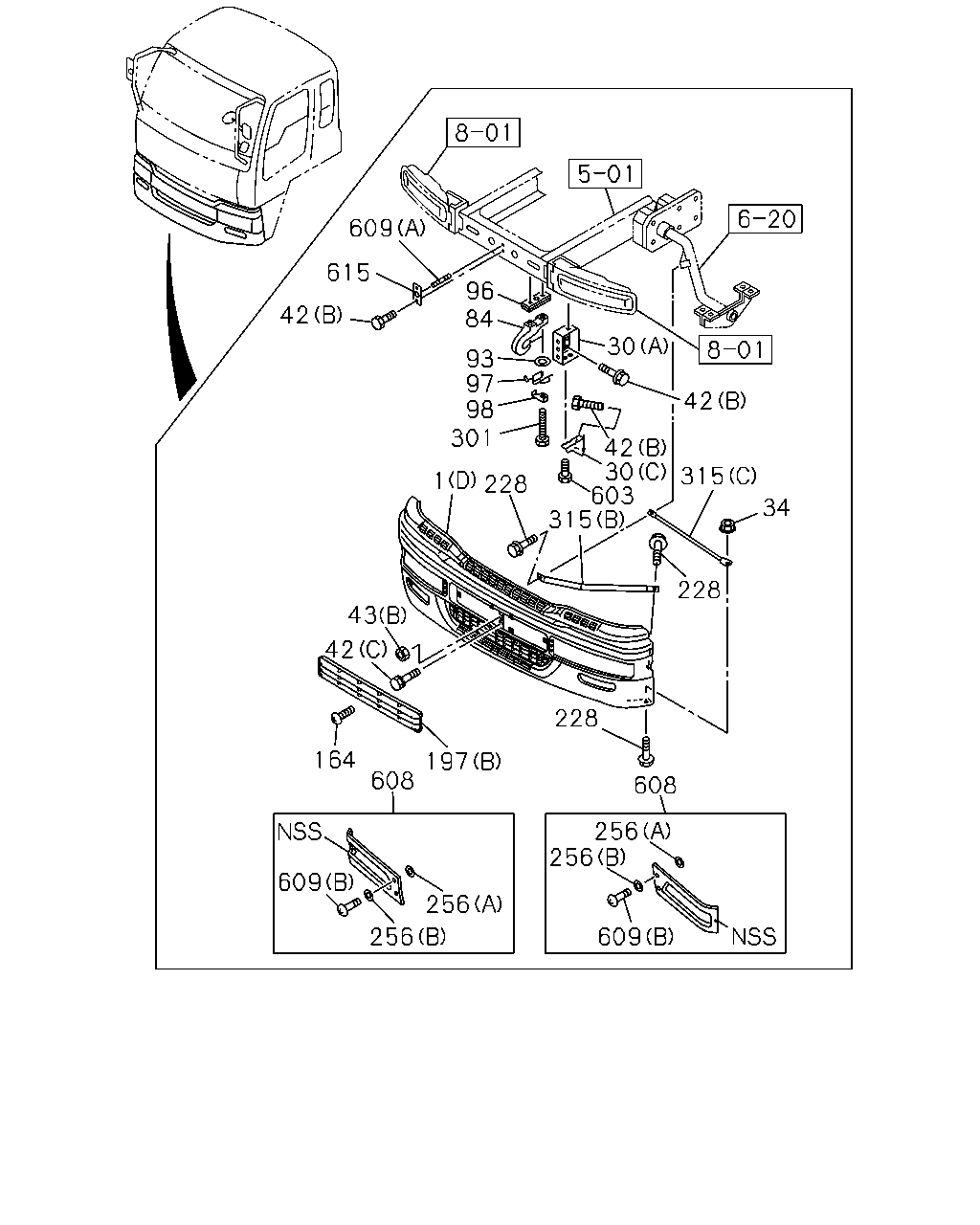

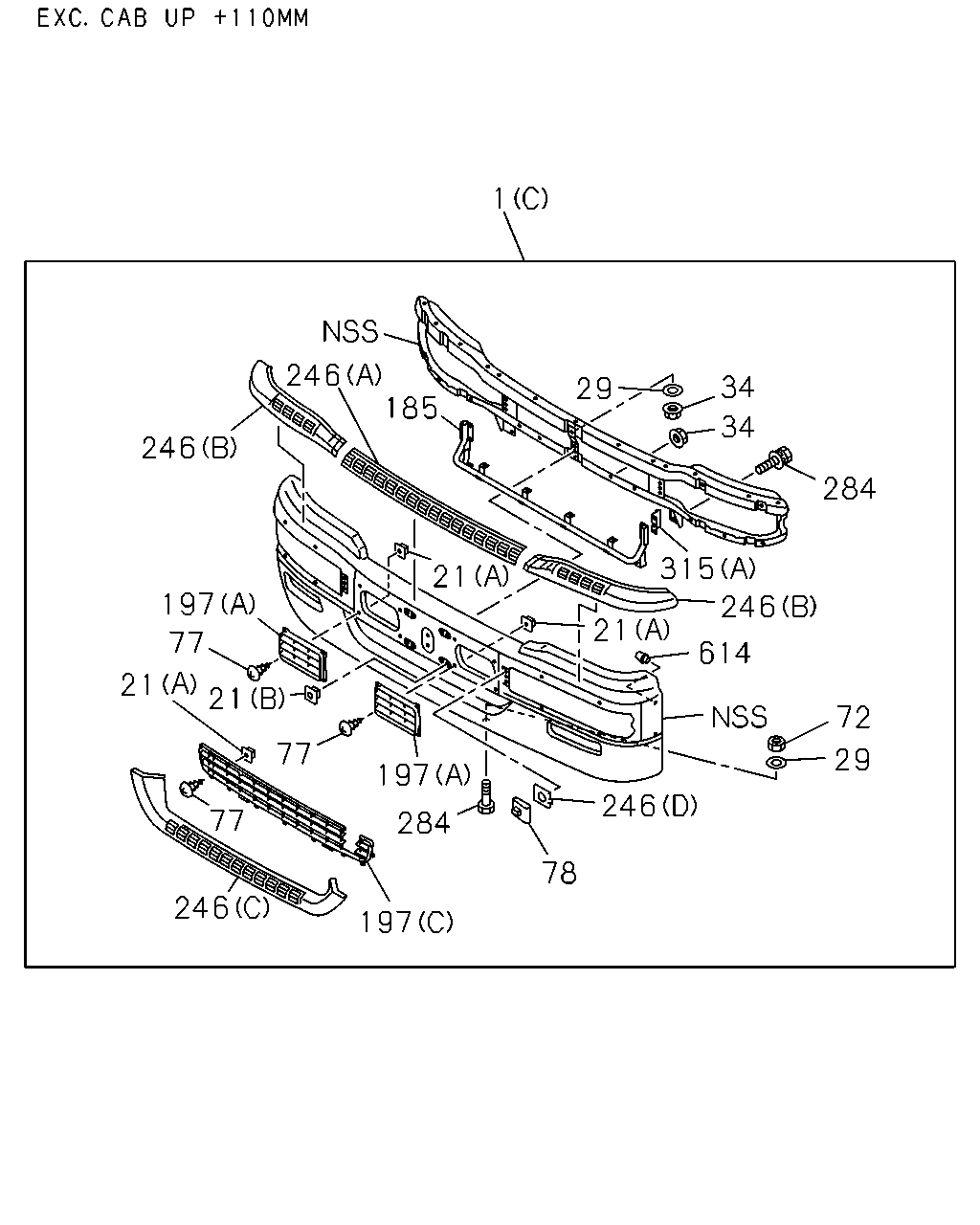

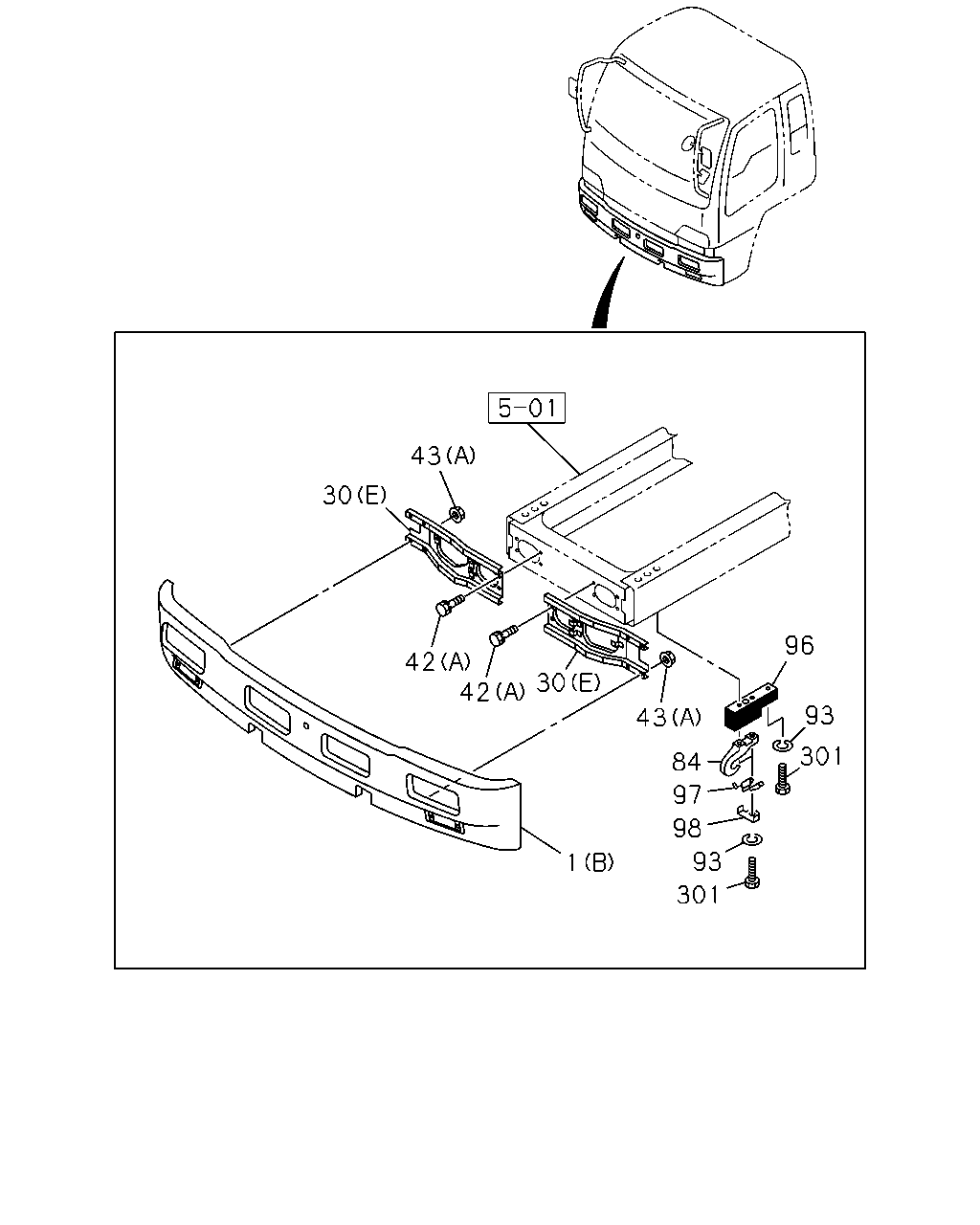

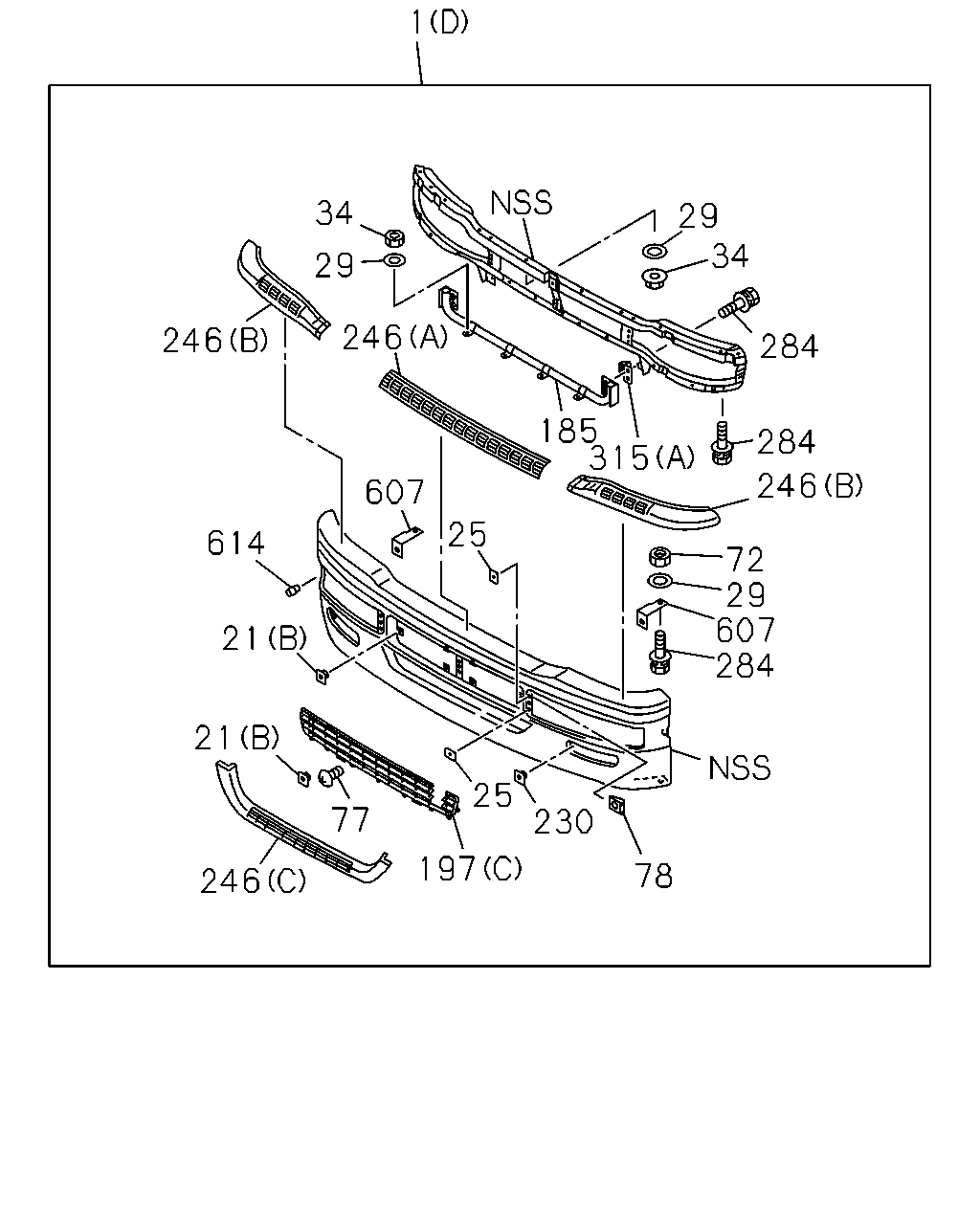

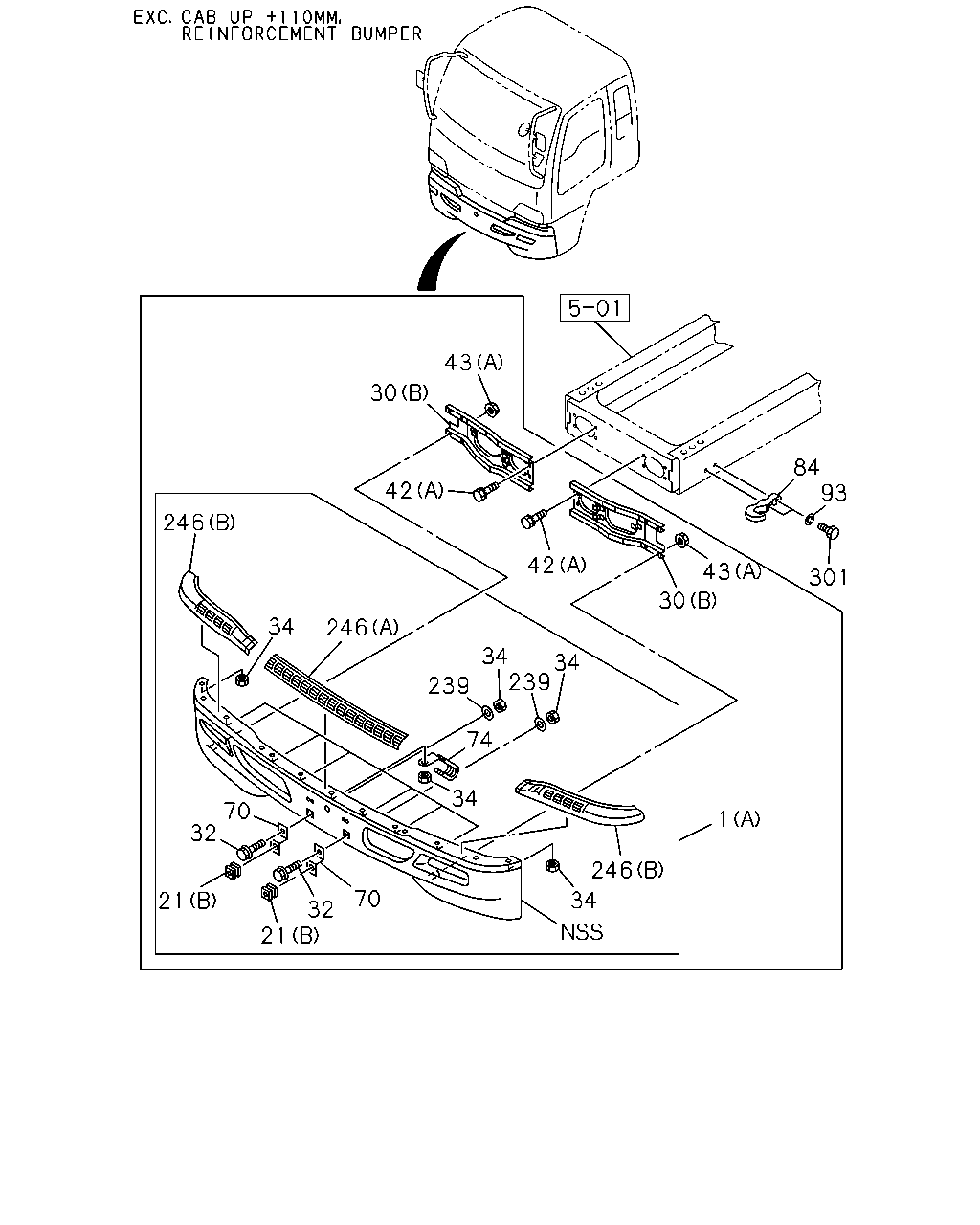

6-01 — FRONT BUMPER (#13390) — 526 parça

43 30 96 42 42 30 43 93 301 84 97 98 93 301 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-455-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-456-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-421-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-420-0	01	1	0105-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-0512	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE	0-28081-035-0	08	1	0105-0106	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28681-030-0	08	1	0107-0512	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28051-030-0	04	1	0601-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	0105-	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
84	HOOK	1-57181-027-1	01	1	0105-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-0206	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-57189-203-1	01	1	0207-	●	●
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	0105-	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-	●	●
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0105-	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0105-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	0-10961-680-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10861-680-0	01	1	0601-	●	●

96 84 93 301 30 603 315 1 228 315 228 34 42 42 43 609 608 42 228 608 256 256 609 256 256 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-455-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-456-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-421-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-420-0	01	1	0105-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-0512	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE	0-28081-035-0	08	1	0105-0106	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28681-030-0	08	1	0107-0512	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28051-030-0	04	1	0601-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	0105-	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
84	HOOK	1-57181-027-1	01	1	0105-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-0206	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-57189-203-1	01	1	0207-	●	●
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	0105-	●	●
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	0105-0512	●	●
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	0105-	●	●
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	0105-	●	●
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-	●	●
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	0-10961-680-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10861-680-0	01	1	0601-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-503-0	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-502-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-	●	●
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	0105-	●	●
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	0105-	●	●
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	0105-	●	●
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	0105-	●	●
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	0105-	●	●
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	0105-	●	●
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	0105-	●	●
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	0105-	●	●
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	0105-	●	●

96 615 42 315 34 228 228 608 197 608 164 42 43 256 256 609 256 256 609 1 228 301 98 97 93 84 42 30 42 315 603 30 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-455-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-456-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-421-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-420-0	01	1	0105-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-0512	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE	0-28081-035-0	08	1	0105-0106	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28681-030-0	08	1	0107-0512	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28051-030-0	04	1	0601-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	0105-	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
84	HOOK	1-57181-027-1	01	1	0105-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-0206	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	0207-	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	0105-0206	●	●
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1>	1-57189-203-1	01	1	0207-	●	●
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	0105-	●	●
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	0105-	●	●
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	0105-	●	●
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	0105-	●	●
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	0105-	●	●
164	SCREW; AIR INT GRILLE CAB UP +110MM<TGG> FRONT SPOILER<VP1> M6X20	1-71260-141-0	06	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-116-1	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-157-2	01	1	0105-	●	●
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	0105-0512	●	●
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	0105-	●	●
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	0105-	●	●
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	0105-	●	●
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-	●	●
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0105-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	0-10961-680-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10861-680-0	01	1	0601-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-503-0	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-502-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-	●	●
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	0105-	●	●
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	0105-	●	●
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	0105-	●	●
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	0105-	●	●
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	0105-	●	●
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	0105-	●	●
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	0105-	●	●
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	0105-	●	●
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	0105-	●	●
615	BRACKET; BUMPER CENTER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-407-0	01	1	0105-	●	●

43 30 246 42 42 43 301 93 84 30 34 34 239 239 34 246 70 32 21 21 32 70 34 74 1 246 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	10	1	0212-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-283-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-282-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-455-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71230-456-1	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-421-0	01	1	0105-	●	●
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (E)	1-71230-420-0	01	1	0105-	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0512	●	●
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	0105-0512	●	●
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	08	1	0601-	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X35 FLANGE	0-28081-035-0	08	1	0105-0106	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28681-030-0	08	1	0107-0512	●	●
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	0105-0512	●	●
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28651-025-0	07	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28081-030-0	04	1	0105-0512	●	●
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X30 FLANGE	0-28051-030-0	04	1	0601-	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	0105-	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	0105-	●	●
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	0105-	●	●
84	HOOK	1-57181-027-1	01	1	0105-	●	●
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0105-0603	●	●
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0105-0206	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	0207-0603	●	●
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> ID=16.2	0-91510-516-0	01	1	0604-	●	●
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X70	0-10861-670-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10861-690-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> EXC. FRONT SPOILER<VP1> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10861-660-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X158	1-09040-077-0	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X147	5-51361-003-3	01	1	0207-	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0105-0206	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	0207-0512	●	●
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. CAB UP +110MM<TGG>,FRONT SPOILER<VP1> M16X80	0-10961-680-0	01	1	0601-	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	0105-0512	●	●
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10861-680-0	01	1	0601-	●	●

1 246 246 185 29 34 34 284 315 21 197 77 21 21 77 77 246 284 197 197 78 246 72 29 614 21 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	10	1	0212-	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	0105-0211	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	17	1	0212-	●	●
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	0105-0211	●	●
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	19	1	0212-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	0105-0211	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	0105-0211	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	02	1	0212-0512	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	0-91110-508-0	02	1	0601-	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	0105-0211	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X16 TAPPING	9-07076-516-0	22	1	0212-0603	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X16 TAPPING	0-71240-516-0	22	1	0604-	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	0105-0211	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X16 TAPPING	9-07076-516-0	14	1	0212-0603	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X16 TAPPING	0-71240-516-0	14	1	0604-	●	●
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	0105-0211	●	●
78	NUT; SPIRE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	0105-0211	●	●
78	NUT; SPIRE BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1>	1-71260-152-0	06	1	0212-	●	●
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	0105-0211	●	●
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	0105-0211	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-116-1	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-157-2	01	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0211	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0512	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0512	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0105-0211	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0212-0512	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-503-0	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-502-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-	●	●
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	0105-	●	●
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	0105-	●	●

34 1 29 34 284 284 246 72 29 607 284 78 230 25 197 77 21 21 614 246 607 25 246 29 246 315 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1> (D)	1-71210-870-4	01	1	0105-	●	●
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71210-769-6	01	1	0105-	●	●
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	0105-	●	●
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96> (D) WHITE	1-71210-746-5	01	1	0105-	●	●
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9X9 L=7 M5	8-94163-979-0	14	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	22	1	0212-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	0105-0211	●	●
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	10	1	0212-	●	●
25	SPACER; PLATFORM CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-162-0	06	1	0105-	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	0105-0211	●	●
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	17	1	0212-	●	●
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	0105-0211	●	●
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4 OD=22	9-09160-708-0	19	1	0212-	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	0105-0602	●	●
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	17	1	0603-	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	0105-0602	●	●
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91180-108-0	15	1	0603-	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	0105-0211	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	0105-0211	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	02	1	0212-0512	●	●
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	0-91110-508-0	02	1	0601-	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	0105-0211	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X16 TAPPING	9-07076-516-0	22	1	0212-0603	●	●
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X16 TAPPING	0-71240-516-0	22	1	0604-	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	0105-0211	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X16 TAPPING	9-07076-516-0	14	1	0212-0603	●	●
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X16 TAPPING	0-71240-516-0	14	1	0604-	●	●
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	0105-0211	●	●
78	NUT; SPIRE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. FOG LAMP<T96>	1-71260-174-0	06	1	0212-	●	●
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	0105-0211	●	●
78	NUT; SPIRE BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> CAB UP +110MM<TGG> FOG LAMP<T96> FRONT SPOILER<VP1>	1-71260-152-0	06	1	0212-	●	●
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	0105-0211	●	●
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	0105-0211	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	0105-	●	●
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-116-1	01	1	0105-	●	●
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-157-2	01	1	0105-	●	●
230	NUT; BRK,HD LAMP,LWR CAB UP +110MM<TGG> FRONT SPOILER<VP1> D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	0105-	●	●
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	0105-	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0105-0211	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0512	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0105-0512	●	●
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	0105-0211	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0212-0512	●	●
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-503-0	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	0105-	●	●
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-502-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-505-0	01	1	0105-	●	●
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-504-0	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-381-1	01	1	0105-	●	●
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-380-0	01	1	0105-	●	●
607	BRACKET CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-454-0	02	1	0105-	●	●
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	0105-	●	●
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
