Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶

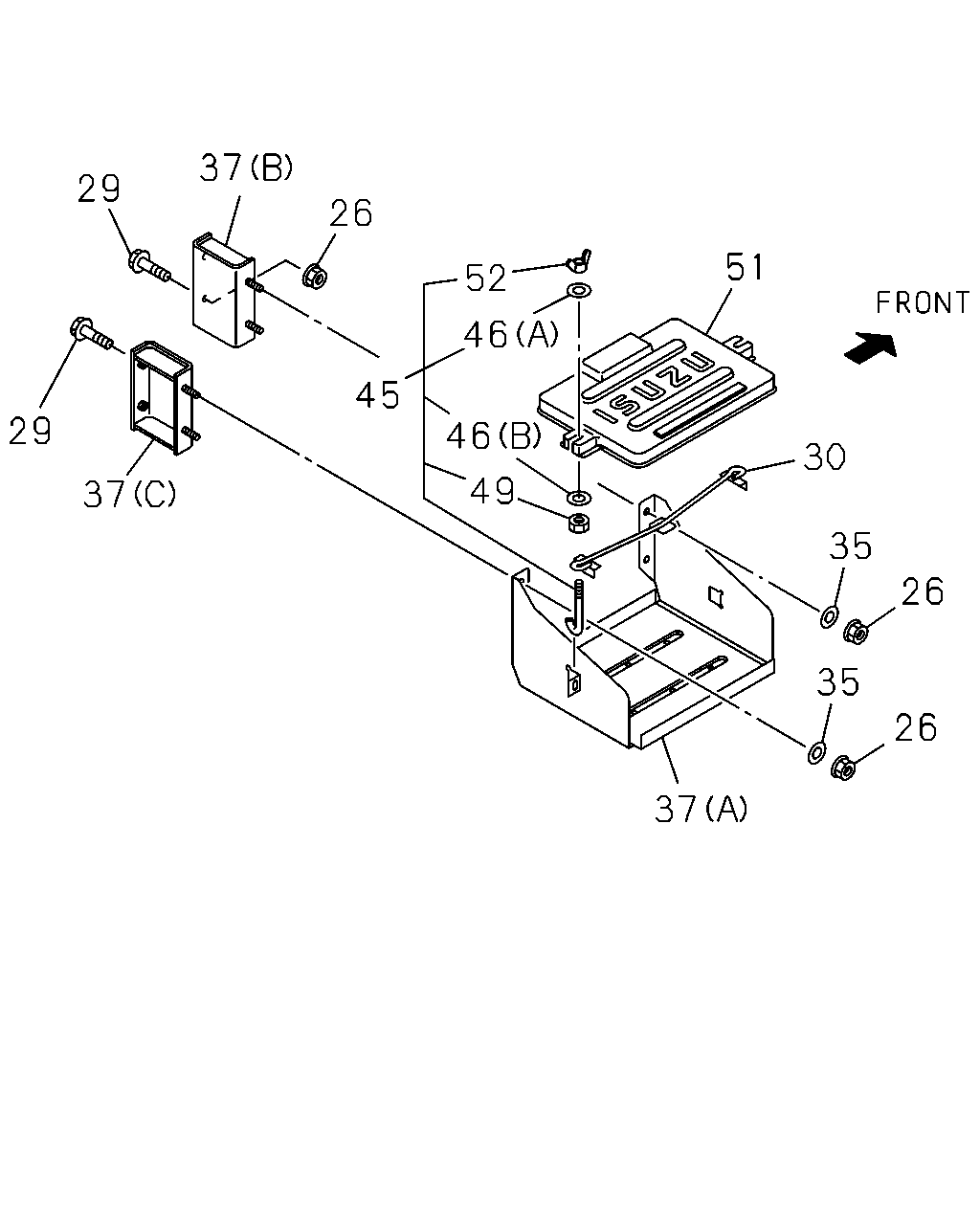

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#133867) — 14 parça
37
26
35
26
35
30
51
52
46
46
49
45
26
37
29
29
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
02
1
1402-
26
NUT; BRKT
M10 FLANGE THA
0-91180-210-0
04
1
1402-
29
BOLT; BRKT TO FRAME
M10X40 FLANGE THA
0-28651-040-0
04
1
1402-
30
PLATE; BATTERY
THA
8-97910-232-0
01
1
1402-
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1402-
37
BRACKET; BATTERY
(A) THA
8-97923-653-1
01
1
1402-
37
BRACKET; BATTERY
(B) THA
8-97948-024-0
01
1
1402-
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
1402-
45
ROD; TENSION,BATTERY
THA
8-97926-647-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18
0-91614-608-0
02
1
1402-
46
WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA
0-91614-708-0
02
1
1402-
49
NUT; ROD,BATTERY
M8
0-91110-508-0
02
1
1402-
51
COVER; BATTERY
THA
8-97915-940-0
01
1
1402-
52
NUT; WING,COVER FIX
M8 WING NUT THA
0-91118-408-0
02
1
1402-
