Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

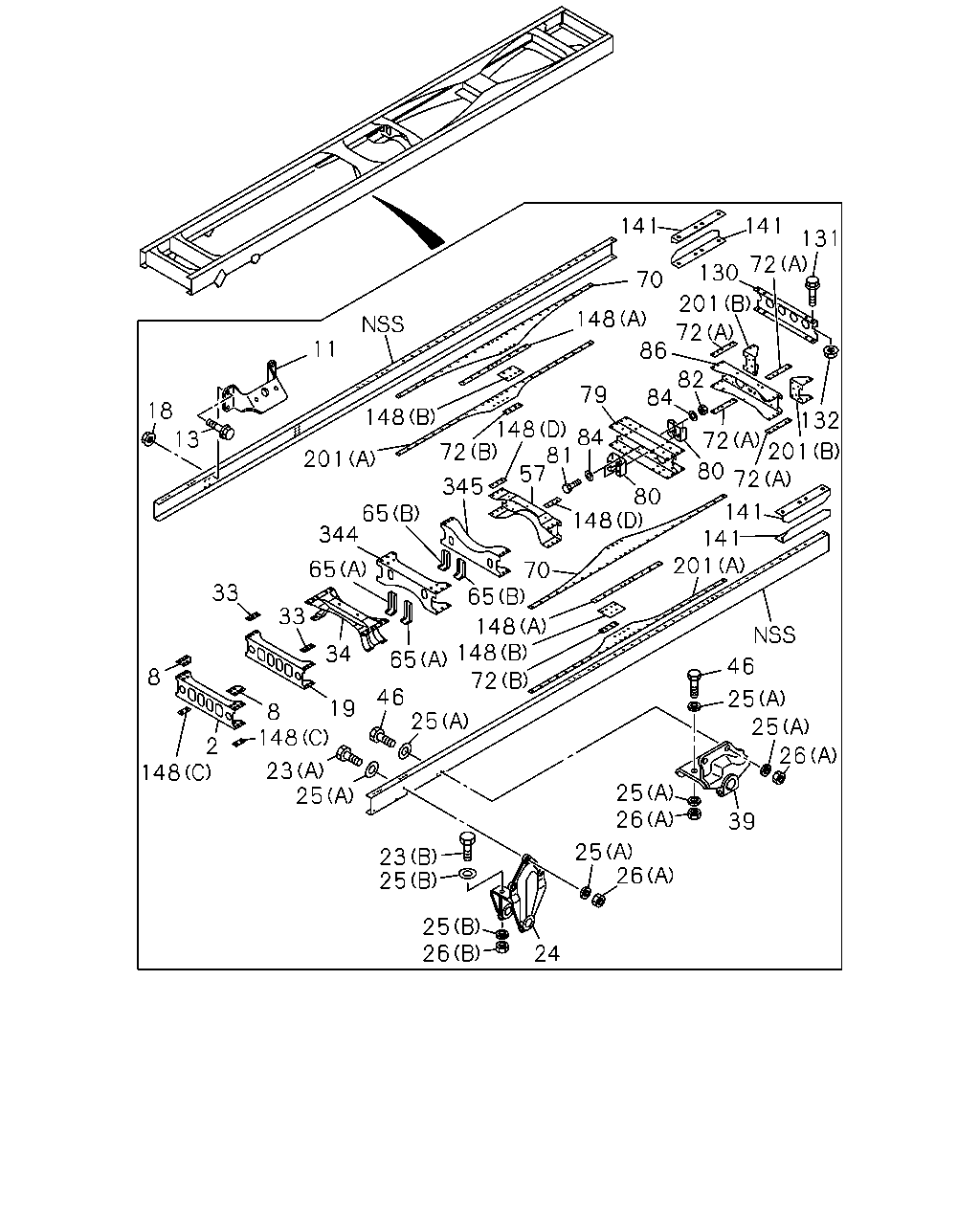

5-01 — FRAME AND OTHER PARTS
(#133864) — 46 parça
Tümü
A - WHEEL BASE 6300MM
B - WHEEL BASE 7100MM
11
13
18
201
148
65
344
65
33
33
34
46
19
8
8
148
2
148
23
25
24
26
25
25
23
26
25
26
25
39
26
25
25
46
72
25
65
148
148
65
70
345
72
148
79
148
70
141
141
130
72
131
201
86
72
82
84
84
81
57
72
132
201
80
80
148
72
141
141
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
THA
8-97948-166-0
01
1
1402-
●
●
8
GUSSET; 1ST C/MBR
THA
8-97948-167-0
02
1
1402-
●
●
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1402-
●
●
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
1402-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE THA
0-91180-212-0
08
1
1402-
●
●
19
MEMBER; CROSS,2ND
THA
8-97948-169-0
01
1
1402-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1402-
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1402-
●
●
24
BRACKET; FRT SPR,FRT
THA
8-97948-158-0
01
1
1402-
●
●
24
BRACKET; FRT SPR,FRT
THA
8-97948-160-0
01
1
1402-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1402-
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1402-
●
●
26
NUT; BRKT,SPR
(A) M14 THA
0-91110-514-0
14
1
1402-
●
●
26
NUT; BRKT,SPR
(B) M16 THA
0-91110-516-0
04
1
1402-
●
●
33
SPACER; 2ND C/MBR,UPR
THA
8-97948-140-0
02
1
1402-
●
●
34
MEMBER; CROSS,3RD
THA
8-97948-172-0
01
1
1402-
●
●
39
BRACKET; FRT SPR,RR
THA
8-97924-625-0
01
1
1402-
●
●
39
BRACKET; FRT SPR,RR
THA
8-97924-626-0
01
1
1402-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1402-
●
●
57
MEMBER; CROSS,RR SUSP FRT
THA
8-97612-103-1
01
1
1402-
●
●
65
BRACKET; CENTER BRG
(A)
8-97612-486-0
02
1
1402-
●
65
BRACKET; CENTER BRG
(B)
8-97614-125-0
02
1
1402-
●
65
BRACKET; CENTER BRG
(B)
8-97614-127-0
02
1
1402-
●
65
BRACKET; CENTER BRG
(A)
8-97614-134-0
02
1
1402-
●
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1402-
●
●
72
SPACER; TRUNNION
(B) THA
8-97922-399-0
02
1
1402-
●
●
72
SPACER; TRUNNION
(A) THA
8-97948-182-0
04
1
1402-
●
●
79
MEMBER; CROSS,TRUNNION ASM
THA
8-97612-104-0
01
1
1402-
●
●
80
BRACKET; C/MBR
THA
8-97948-138-0
02
1
1402-
●
●
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1402-
●
●
82
NUT; BRKT
M14 THA
0-91110-514-0
02
1
1402-
●
●
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1402-
●
●
86
MEMBER; CROSS,RR SUSP RR
THA
8-97924-655-0
01
1
1402-
●
●
130
MEMBER; CROSS,END
THA
8-97916-031-0
01
1
1402-
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER THA
0-50541-230-0
04
1
1402-
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1402-
●
●
141
STIFFENER
THA
8-97926-003-1
04
1
1402-
●
148
SPACER; C/MBR
(D) THA
8-97612-109-0
02
1
1402-
●
●
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1402-
●
●
148
SPACER; C/MBR
(C) THA
8-97948-168-0
02
1
1402-
●
●
148
SPACER; C/MBR
(A) THA
8-97948-889-0
02
1
1402-
●
●
201
GUSSET; C/MBR
(A)
8-97612-107-3
02
1
1402-
●
201
GUSSET; C/MBR
(A)
8-98200-450-0
02
1
1402-
●
201
GUSSET; C/MBR
(B) THA
8-97612-108-2
02
1
1402-
●
●
344
MEMBER; CROSS,4TH
THA
8-97948-180-0
01
1
1402-
●
●
345
MEMBER; CROSS,5TH
THA
8-97948-180-0
01
1
1402-
●
●
