Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

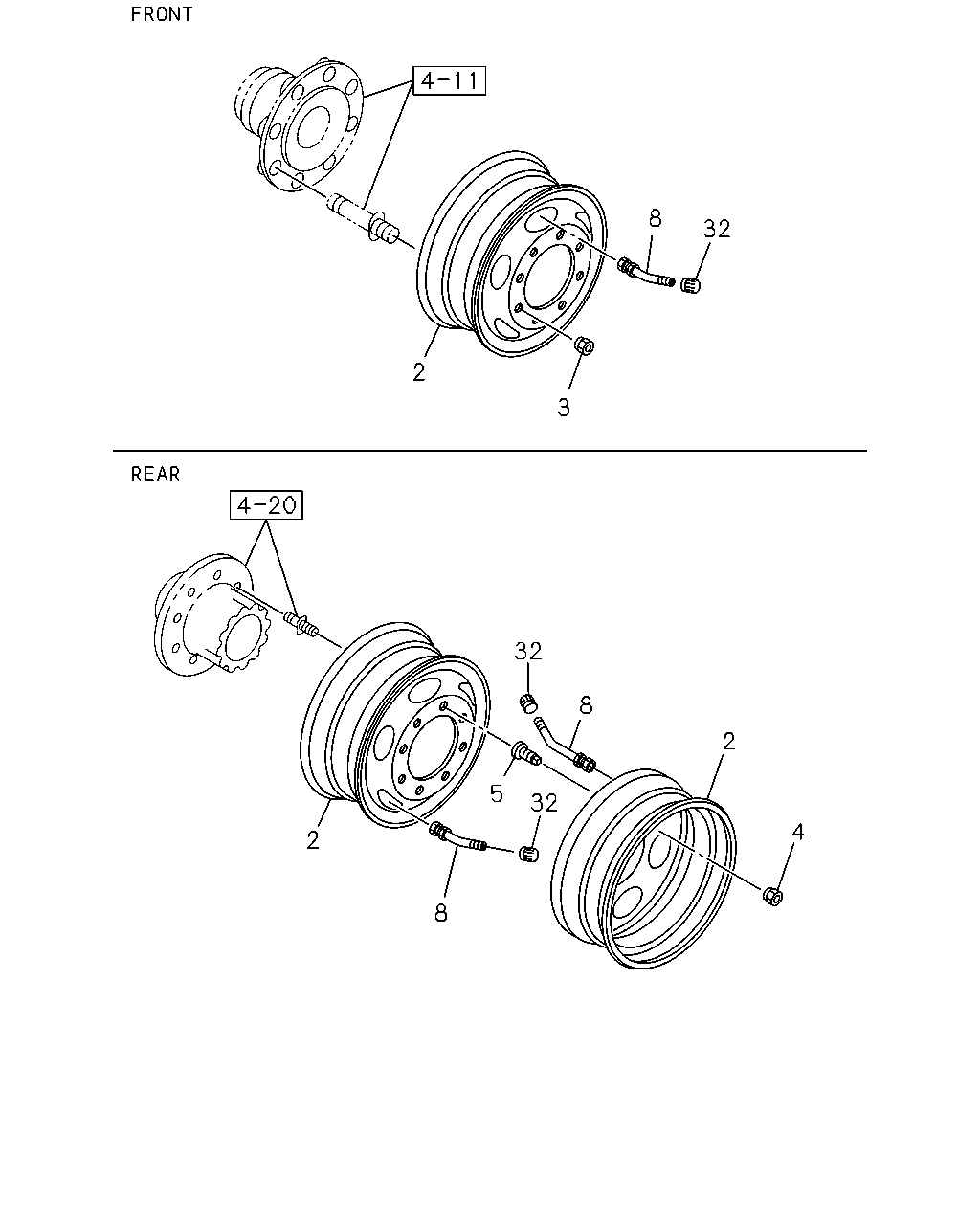

4-80 — ROAD WHEEL
(#133863) — 16 parça
4
2
8
32
5
32
8
2
2
3
8
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> SPARE THA
8-98257-428-0
01
1
1402-1407
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> SPARE
8-97520-623-0
01
1
1408-
2
WHEEL; DISC
FRONT THA
8-98257-428-0
02
1
1402-1407
2
WHEEL; DISC
FRONT
8-97520-623-0
02
1
1408-
2
WHEEL; DISC
REAR THA
8-98257-428-0
08
1
1402-1407
2
WHEEL; DISC
REAR
8-97520-623-0
08
1
1408-
3
NUT; WHEEL,FRT AXLE
M24 THA
8-97916-063-0
08
1
1402-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD THA
8-97916-064-0
08
1
1402-
4
NUT; WHEEL,RR AXLE
M30 THA
8-97916-066-0
16
1
1402-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD THA
8-97916-121-0
16
1
1402-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA
8-97916-065-0
16
1
1402-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA
8-97916-676-0
16
1
1402-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> SPARE
1-42370-020-3
01
1
1402-
8
VALVE; TIRE
FRONT
1-42370-020-3
02
1
1402-
8
VALVE; TIRE
REAR
1-42370-020-3
08
1
1402-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
11
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
