◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11578 - FVM CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#133857) — 54 parça

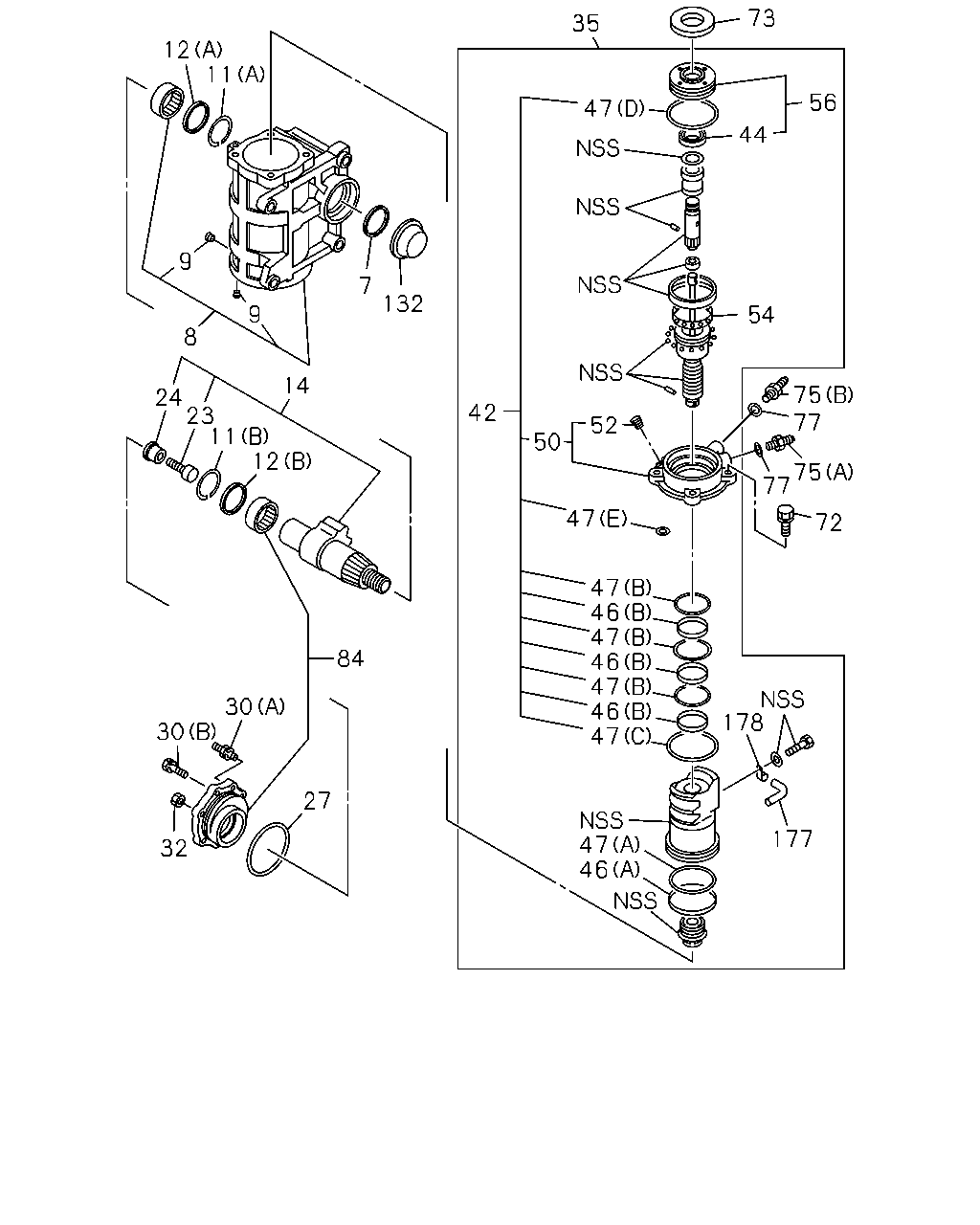

çizim 407366
35 73 56 44 47 54 75 77 77 75 72 47 47 50 52 178 177 47 46 27 30 30 32 84 12 14 11 23 24 8 9 9 7 132 42 11 12 46 47 46 47 46 47
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-840-1 01 1 -
9 PLUG; FILLER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-861-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-859-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-858-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-850-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-851-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-880-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-835-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-834-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
50 HOUSING ASM; VALVE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-831-0 01 1 -
52 PLUG; HSG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 01 1 -
54 CASE; BEARING STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-823-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-825-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-852-0 04 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-843-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-845-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-844-0 02 1 -
84 COVER ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-856-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-822-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-821-0 01 1 -

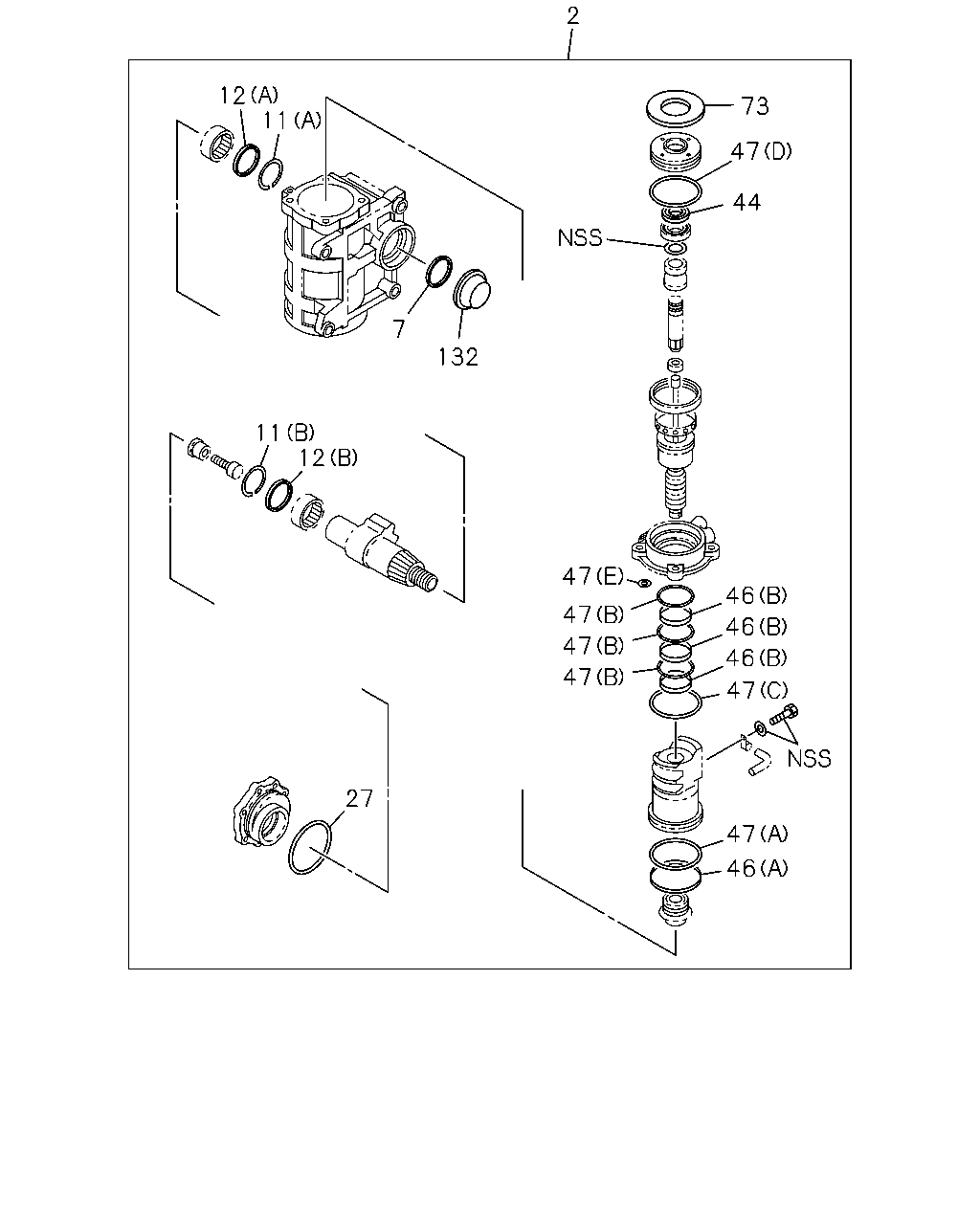

çizim 407637
2 73 47 44 132 7 11 12 11 12 27 47 47 47 47 47 47 46 46 46 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
THA ASM PART: A = 8-97948-359-1 		8-97948-842-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
