4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#133855) — 54 parça

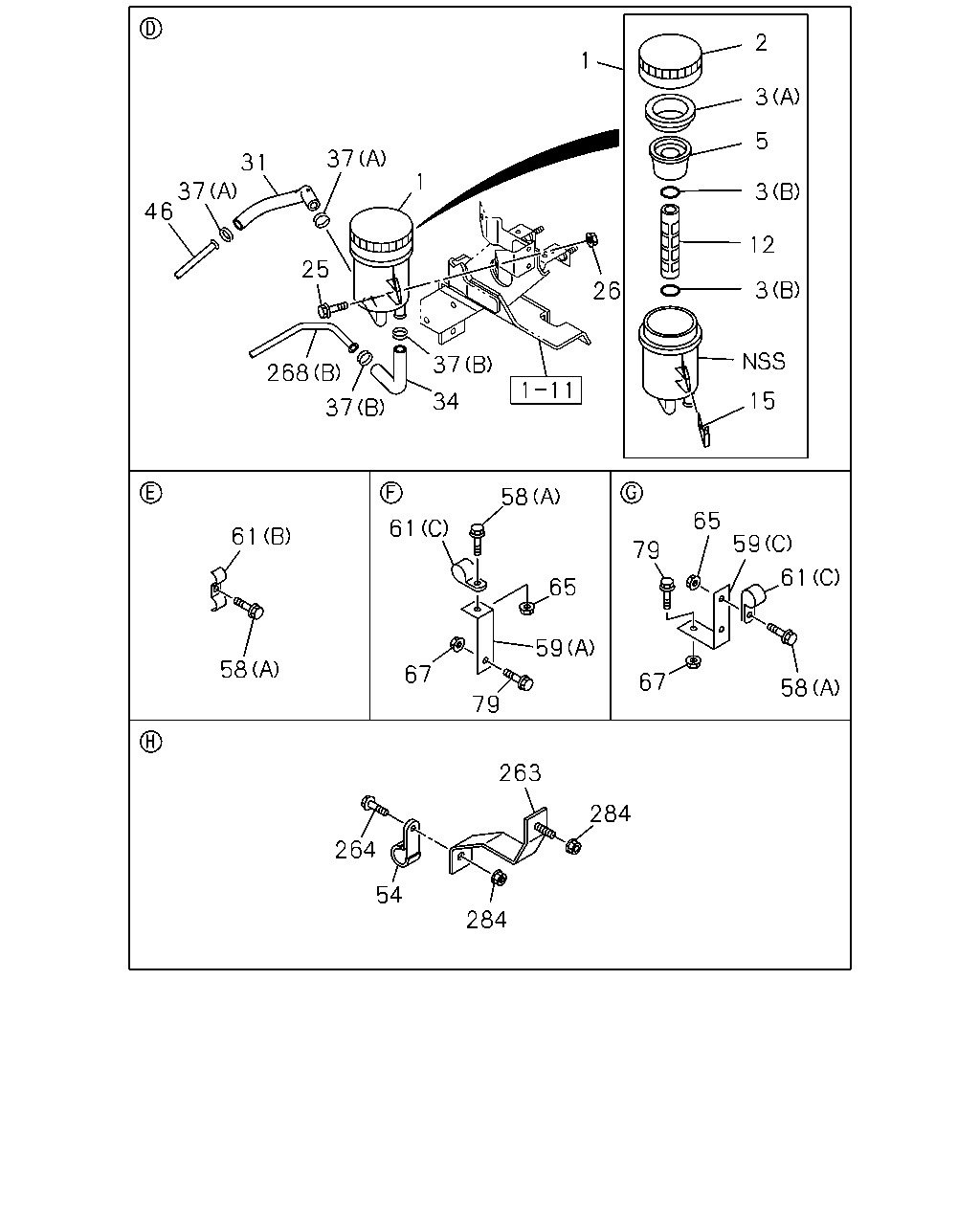

264 54 284 263 284 61 58 61 58 67 79 59 65 79 67 65 59 61 58 37 268 25 34 37 26 46 37 31 37 1 1 2 3 5 3 12 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1402-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1402-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1402-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1402-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1402-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1402-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1402-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1402-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1402-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1402-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
67	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	1402-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1402-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1402-

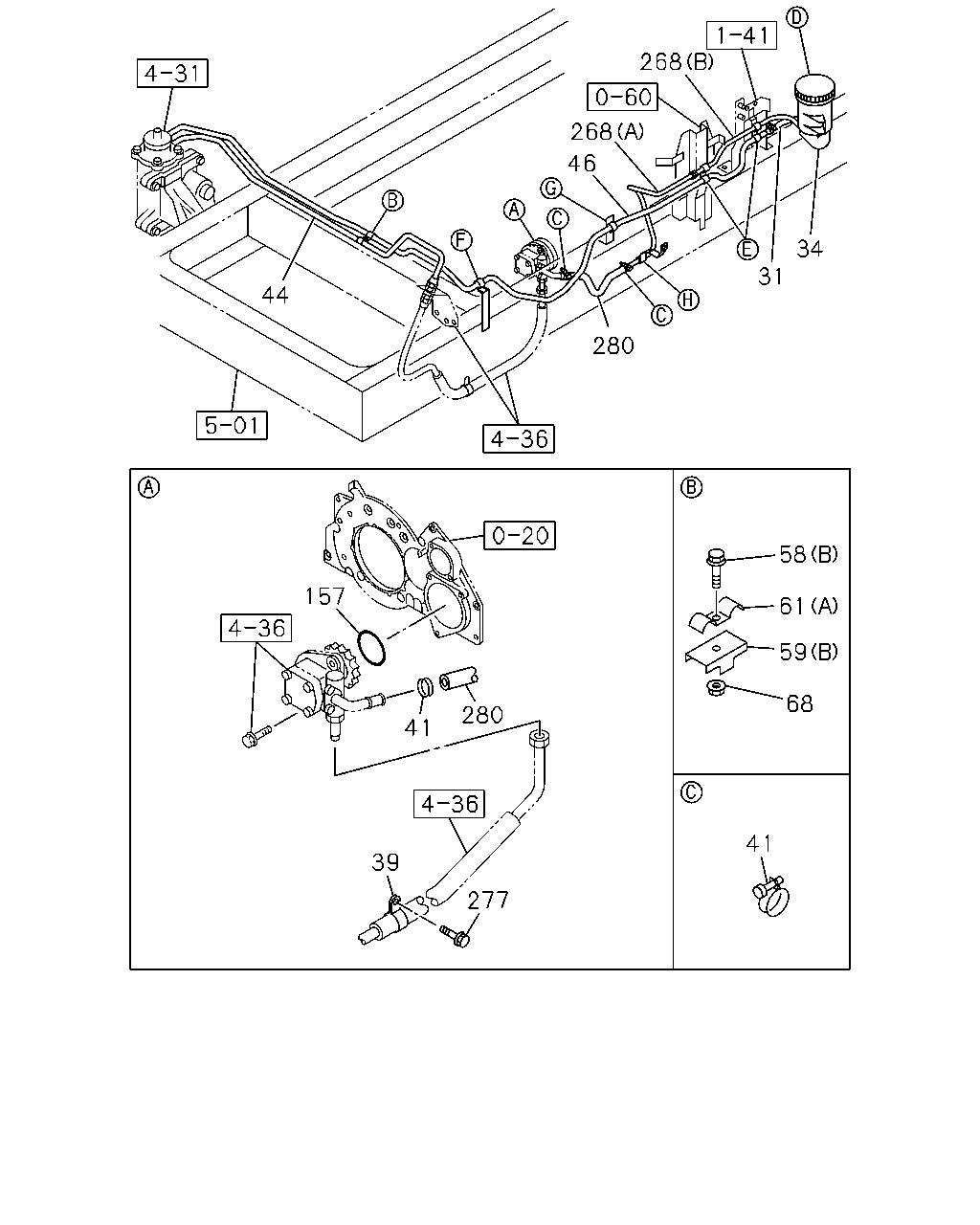

44 268 46 268 34 31 280 58 61 59 68 157 41 280 39 277 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1402-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1402-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1402-
44	PIPE; OIL,P/S UNIT TO NIPPLE THA	8-97948-229-0	01	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1402-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1402-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1402-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	1402-
