Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#13385) — 181 parça

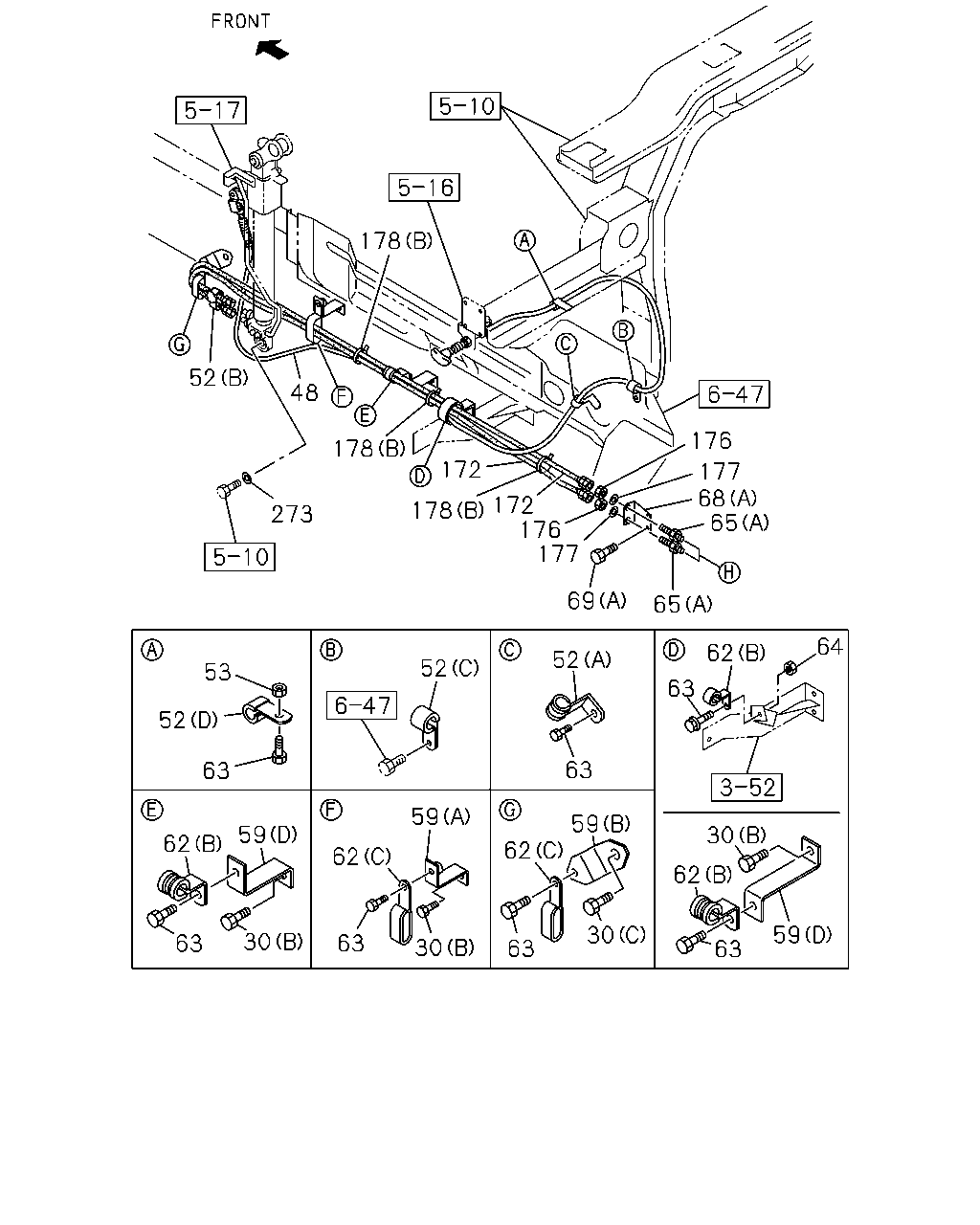

178 48 52 178 172 178 273 172 176 177 69 65 176 177 68 65 64 62 52 52 53 52 63 62 59 30 63 62 59 30 63 62 63 59 63 30 63 62 30 63 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0105-	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	0105-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	0105-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	0105-	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
53	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=90	1-82699-856-0	02	1	0105-	●	●
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-0	03	1	0105-	●	●
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	0105-0512	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0105-	●	●
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0105-	●	●
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0105-	●	●
68	BRACKET; UNION (A)	1-47478-383-0	01	1	0105-	●	●
68	BRACKET; UNION MANUAL CAB TILT<SHK> (B)	1-53458-935-0	01	1	0105-	●	●
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	0105-	●	●
176	NUT; UNION MANUAL CAB TILT<SHK> M12	9-09840-280-0	02	1	0105-	●	●
176	NUT; UNION M12	9-09840-280-0	02	1	0105-	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	0105-0603	●	●
177	WASHER; LK,UNION ID=12.2	0-91510-512-0	02	1	0604-	●	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	01	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=140	5-09707-031-1	03	1	0105-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	0105-	●	●

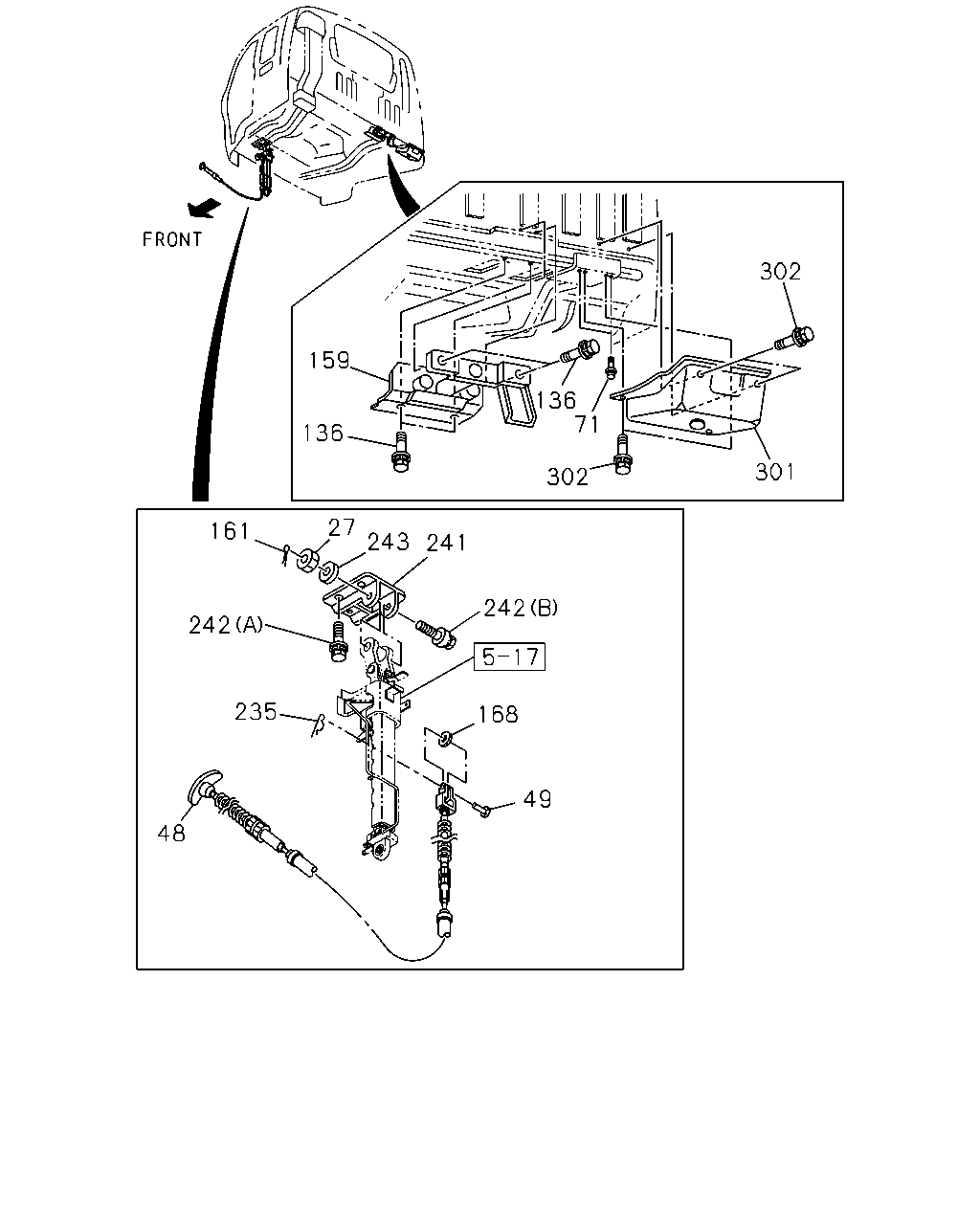

159 136 71 136 302 301 302 241 243 27 161 242 235 168 242 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14	9-99116-414-0	01	1	0105-0604	●	●
27	NUT; OIL CYL M14 SLOTTED	0-91116-514-0	01	1	0605-	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	0105-	●	●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	0105-	●	●
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	0105-0204	●	●
71	BOLT M10X25 W/LK&PL WASHER	1-09980-488-0	02	1	0205-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0105-	●	●
159	PIN	1-79717-627-1	01	1	0105-	●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	0105-	●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	0105-	●	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	0105-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-1	01	1	0105-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30 W/SP WASHER	1-09980-546-0	05	1	0105-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	0105-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	0-91510-514-0	01	1	0604-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	0105-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	0105-0204	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	1-09980-488-0	08	1	0205-	●	●

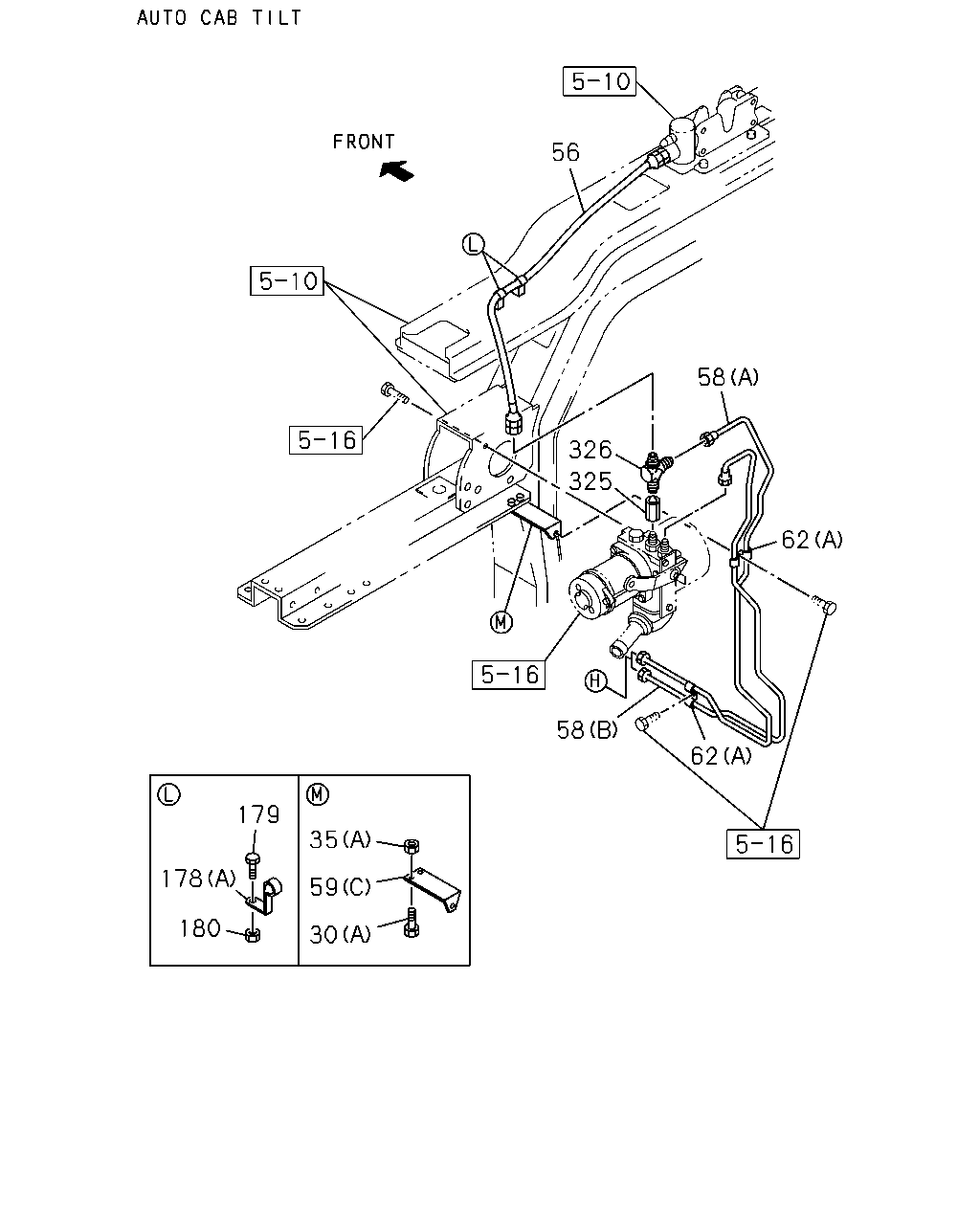

56 58 326 325 62 62 58 35 179 178 180 30 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	0105-	●	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=650	1-09365-053-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG> (A)	1-49163-336-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG> (B)	1-49163-342-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> AUTO CAB TILT<WV2> (A)	1-49163-338-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> AUTO CAB TILT<WV2> (B)	1-49163-344-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (A)	1-49163-288-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (B)	1-49163-289-0	01	1	0105-	●	●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=90	1-82699-856-0	02	1	0105-	●	●
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-0	03	1	0105-	●	●
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	01	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=140	5-09707-031-1	03	1	0105-	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
325	ADAPTER; PUMP AUTO CAB TILT<WV2> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0105-	●	●
326	UNION; PUMP AUTO CAB TILT<WV2> M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0105-	●	●

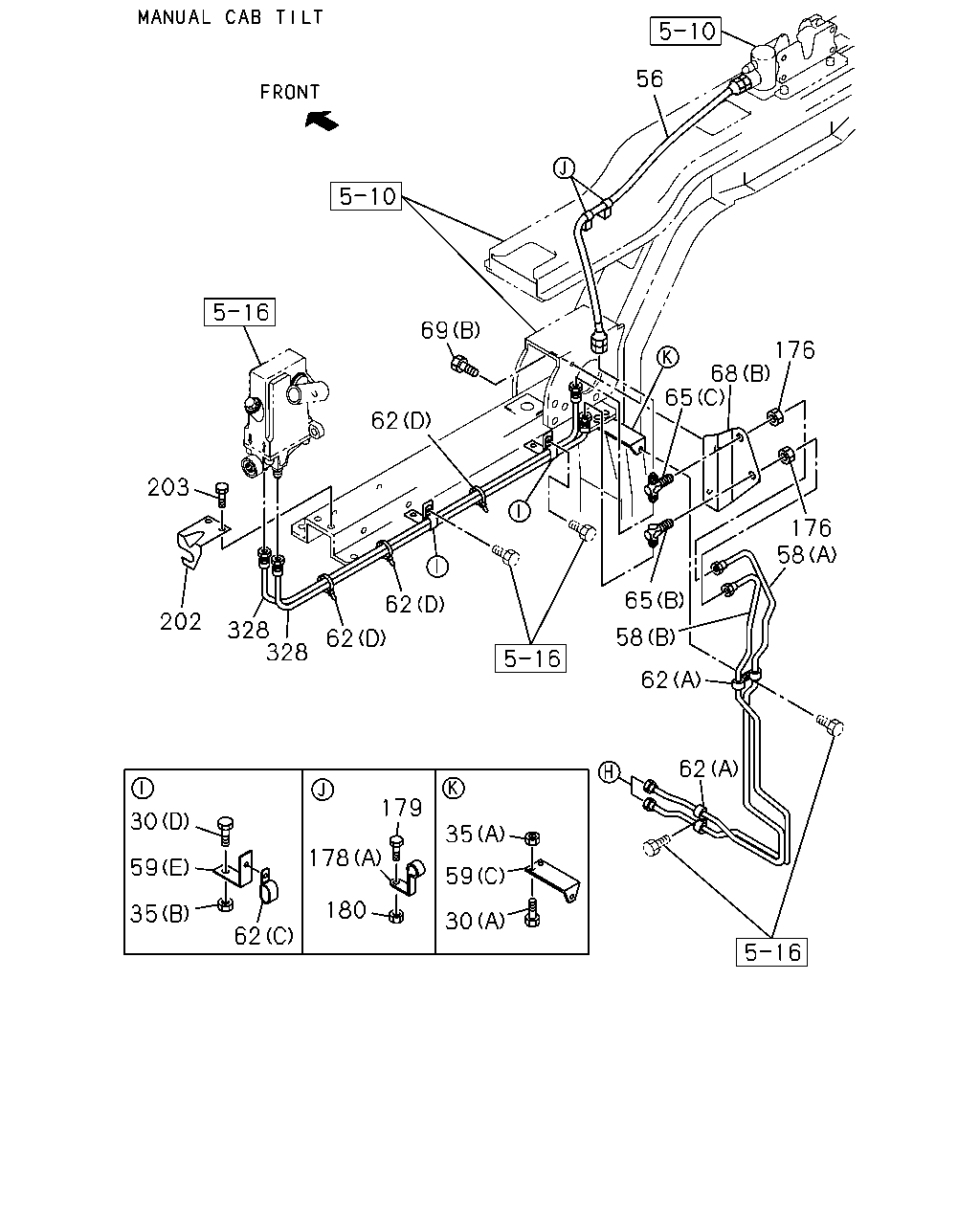

69 62 203 202 328 328 62 62 65 68 176 176 58 65 58 62 62 35 59 30 180 178 179 35 59 30 62 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	0105-0512	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28651-225-0	01	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28681-020-0	02	1	0105-0512	●	●
30	BOLT; BRKT FIX MANUAL CAB TILT<SHK> (D) M10X20 FLANGE	0-28651-020-0	02	1	0601-	●	●
35	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
35	NUT; BRKT MANUAL CAB TILT<SHK> (B) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> L=750	1-09365-058-0	01	1	0105-	●	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> L=650	1-09365-053-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG> (A)	1-49163-336-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT AUTO CAB TILT<WV2> EXC. CAB UP +110MM<TGG> (B)	1-49163-342-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> AUTO CAB TILT<WV2> (A)	1-49163-338-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> AUTO CAB TILT<WV2> (B)	1-49163-344-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (A)	1-49163-288-0	01	1	0105-	●	●
58	PIPE; OIL,POWER UNIT MANUAL CAB TILT<SHK> (B)	1-49163-289-0	01	1	0105-	●	●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	0105-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	0105-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90	1-82699-856-0	01	1	0105-	●	●
59	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=90	1-82699-856-0	02	1	0105-	●	●
59	BRACKET; CLIP MANUAL CAB TILT<SHK> (E)	1-53458-915-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (D) L=140	5-09707-031-0	03	1	0105-	●	●
62	CLIP; OIL PIPE MANUAL CAB TILT<SHK> (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	0105-	●	●
65	UNION; OIL PIPE (A) M12 L=66.5	9-09223-306-1	02	1	0105-	●	●
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (B) M12 ELBOW	9-09225-206-1	01	1	0105-	●	●
65	UNION; OIL PIPE MANUAL CAB TILT<SHK> (C) M12 3WAY	9-09228-606-1	01	1	0105-	●	●
68	BRACKET; UNION (A)	1-47478-383-0	01	1	0105-	●	●
68	BRACKET; UNION MANUAL CAB TILT<SHK> (B)	1-53458-935-0	01	1	0105-	●	●
69	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
69	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
69	BOLT; BRKT MANUAL CAB TILT<SHK> (B) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
176	NUT; UNION MANUAL CAB TILT<SHK> M12	9-09840-280-0	02	1	0105-	●	●
176	NUT; UNION M12	9-09840-280-0	02	1	0105-	●	●
178	CLIP; FLEX HOSE (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	01	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	02	1	0109-	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI NOISE EQUIPMENT<SV9> W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PE-SERIES ENG<1A0> (B) L=140	5-09707-031-1	02	1	0105-0108	●	●
178	CLIP; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) W-SERIES ENG<1A2> EXC. ANTI NOISE EQUIPMENT<SV9> (B) L=140	5-09707-031-1	03	1	0105-	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
202	BRACKET; CABLE END MANUAL CAB TILT<SHK>	1-53458-911-0	01	1	0105-	●	●
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
203	BOLT; BRKT,CABLE END MANUAL CAB TILT<SHK> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
328	HOSE; OIL MANUAL CAB TILT<SHK>	1-09365-112-0	02	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
