4-01 — PROPELLER SHAFT (#133846) — 103 parça

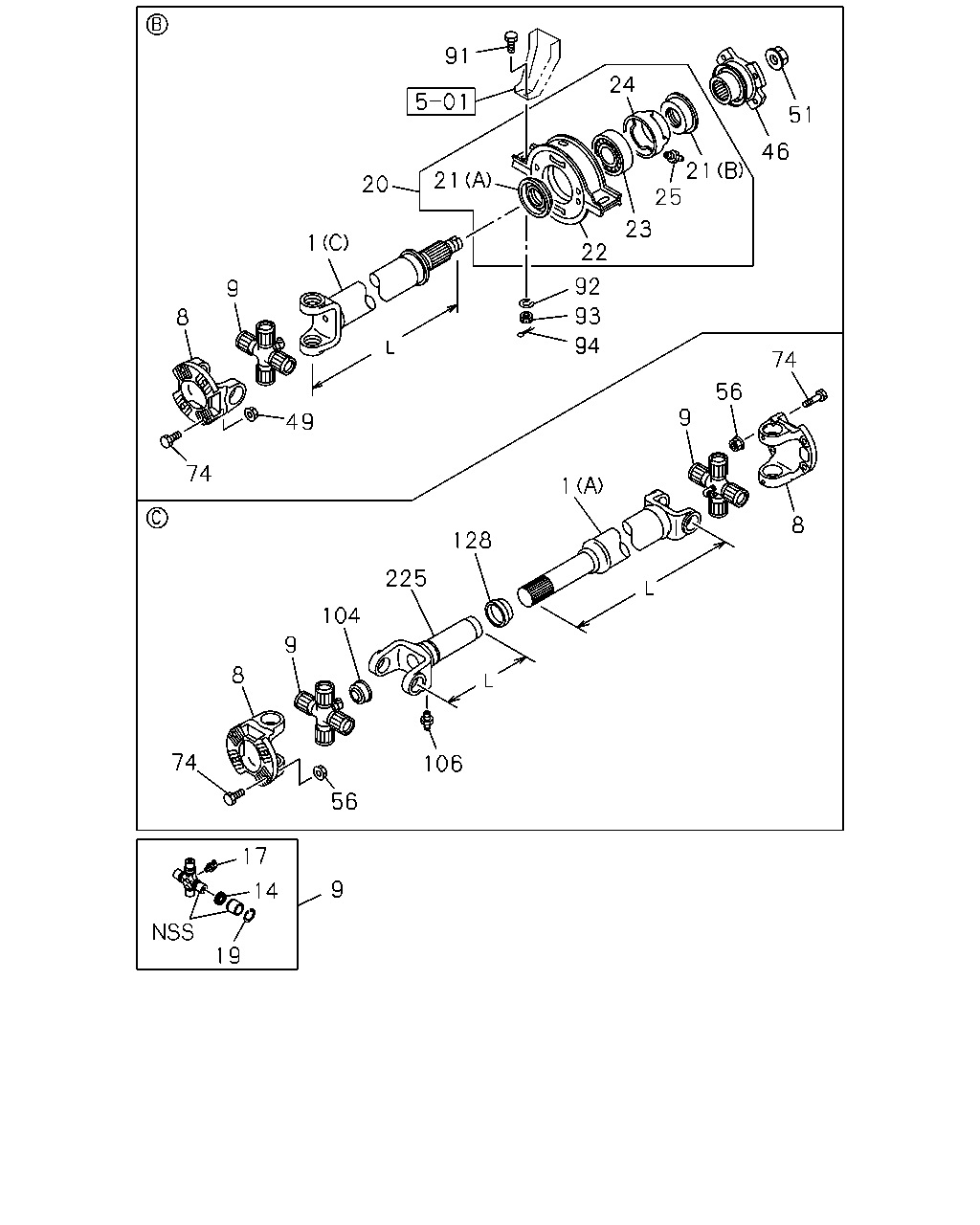

çizim 406613
106 225 128 1 9 56 74 8 104 9 8 74 17 14 19 9 56 94 93 92 22 23 25 21 46 51 24 21 20 91 1 49 74 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=820 THA 		8-98091-468-0 01 1 1402- ●
1 SHAFT; PROP
(B) L=725 THA 		8-98091-479-0 01 1 1402- ●
1 SHAFT; PROP
(B) L=1103 		1-37152-927-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1215 		8-98200-760-0 01 1 1402- ●
1 SHAFT; PROP
(A) L=1039 THA 		1-37124-615-0 01 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST THA 		1-37300-110-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
END THA 		1-37300-110-0 02 1 1402- ● ●
9 JOURNAL ASM; PROP SHAFT
2ND THA 		1-37300-111-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND THA 		1-37300-111-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND THA 		1-37300-111-0 01 1 1402- ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 08 1 1402- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1402- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 		0-90301-610-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1402- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1402- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1402- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1402- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1402- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1402- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1402- ● ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1402- ● ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1402- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1402- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1402- ● ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1402- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1402- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1402- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1402- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1402- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1402- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1402- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1402- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1402- ● ●
104 PLUG; SLEEVE YOKE
THA 		1-09600-067-0 01 1 1402- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1402- ● ●
128 SEAL; SLEEVE
THA 		1-37247-019-0 01 1 1402- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=330 THA 		1-37241-124-0 01 1 1402- ● ●
çizim 407914
9 8 1 20 78 23 24 21 51 46 25 22 21 79 80 81 9 17 14 19 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(C) L=820 THA 		8-98091-468-0 01 1 1402- ●
1 SHAFT; PROP
(B) L=725 THA 		8-98091-479-0 01 1 1402- ●
1 SHAFT; PROP
(B) L=1103 		1-37152-927-0 01 1 1402- ●
1 SHAFT; PROP
(C) L=1215 		8-98200-760-0 01 1 1402- ●
1 SHAFT; PROP
(A) L=1039 THA 		1-37124-615-0 01 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 02 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402- ● ●
8 YOKE; FLANGE,PROP SHAFT
THA 		1-37211-079-1 01 1 1402- ● ●
9 JOURNAL ASM; PROP SHAFT
1ST THA 		1-37300-110-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
END THA 		1-37300-110-0 02 1 1402- ● ●
9 JOURNAL ASM; PROP SHAFT
2ND THA 		1-37300-111-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND THA 		1-37300-111-0 01 1 1402- ●
9 JOURNAL ASM; PROP SHAFT
1ST,2ND THA 		1-37300-111-0 01 1 1402- ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 08 1 1402- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1402- ● ●
14 COVER; DUST,SPIDER
THA 		1-37249-131-0 04 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 		0-90301-610-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
END PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1402- ● ●
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
17 NIPPLE; GREASE,PROP SHAFT
1ST,2ND PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1402- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 08 1 1402- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 THA 		1-09587-102-1 04 1 1402- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1402- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 THA 		1-37510-115-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 THA 		1-09625-127-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1402- ● ●
21 SEAL; OIL,CENTER BRG
(B) THA 		1-09625-621-0 01 1 1402- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1402- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
THA 		1-37516-048-2 01 1 1402- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1402- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1402- ● ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1402- ● ●
24 RETAINER; CENTER BRG,1ST
THA 		1-37529-109-0 01 1 1402- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT THA 		1-09380-006-0 01 1 1402- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1402- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
THA 		1-37245-348-0 01 1 1402- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1402- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE THA 		1-09440-046-0 01 1 1402- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1402- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1402- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1402- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1402- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1402- ● ●
