3-26 — TRAILER CONTROL
(#133836) — 32 parça
◀

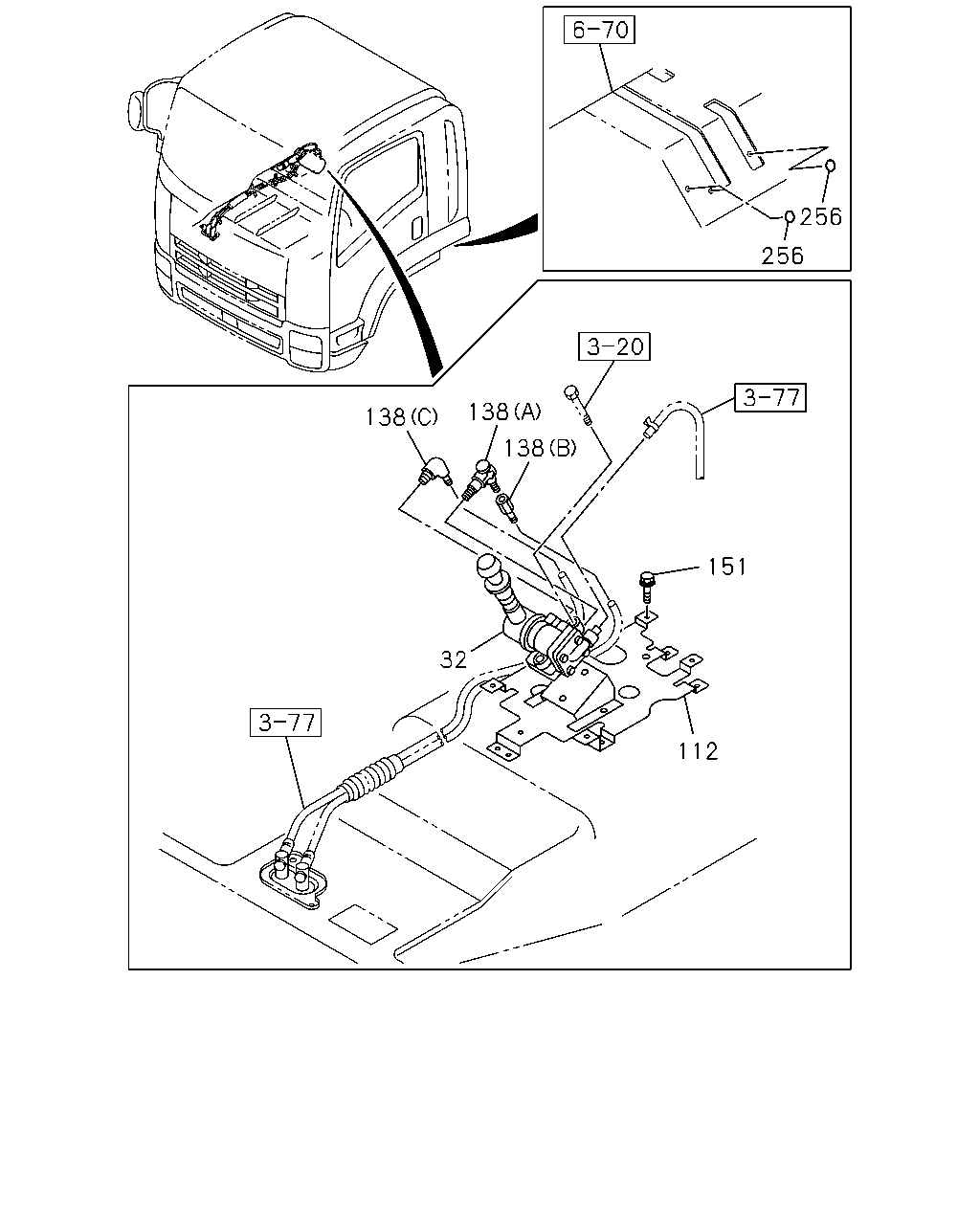

[326A] FIXING (7 parça)
[326A] COMPONENT AND REPAIR KIT (25 parça)
▶
112
151
138
138
138
32
256
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1402-
112
BRACKET; CONT VLV
1-73908-054-7
01
1
1402-
138
CONNECTOR; DELIVERY
(A)
1-09650-240-1
01
1
1402-
138
CONNECTOR; DELIVERY
(B) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
1402-
138
CONNECTOR; DELIVERY
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1402-
151
BOLT; VLV BRKT
M6X16 THA
0-52000-616-0
04
1
1402-
256
SEAL
OD=25 BLACK THA
1-76798-019-0
08
1
1402-
164
47
45
46
44
50
48
49
43
42
41
40
39
38
37
36
53
52
51
32
54
34
54
55
35
164
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
1402-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
1402-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
1402-
35
HOLDER; CAM
1-48469-054-0
01
1
1402-
36
RING; CAM
1-48469-056-0
01
1
1402-
37
GUIDE; CAM RING
1-48469-058-0
01
1
1402-
38
SEAT; EXH VLV
1-48469-057-0
01
1
1402-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
1402-
40
RING; SNAP
1-48469-067-0
01
1
1402-
41
SEAT; FEED VLV
1-48469-066-0
01
1
1402-
42
VALVE; FEED
1-48469-065-0
01
1
1402-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
1402-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
1402-
45
SPRING; FEED VLV
1-48469-070-0
01
1
1402-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
1402-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
1402-
48
WASHER; COVER
1-48469-091-0
04
1
1402-
49
SCREW; COVER
1-48469-092-0
04
1
1402-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
1402-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
1402-
52
SCREW; HANDLE
1-48469-062-0
01
1
1402-
53
WASHER; HANDLE
1-48469-061-0
01
1
1402-
54
SEAT; SPRING
1-48469-082-0
02
1
1402-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
1402-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
1402-
