◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#13383) — 252 parça

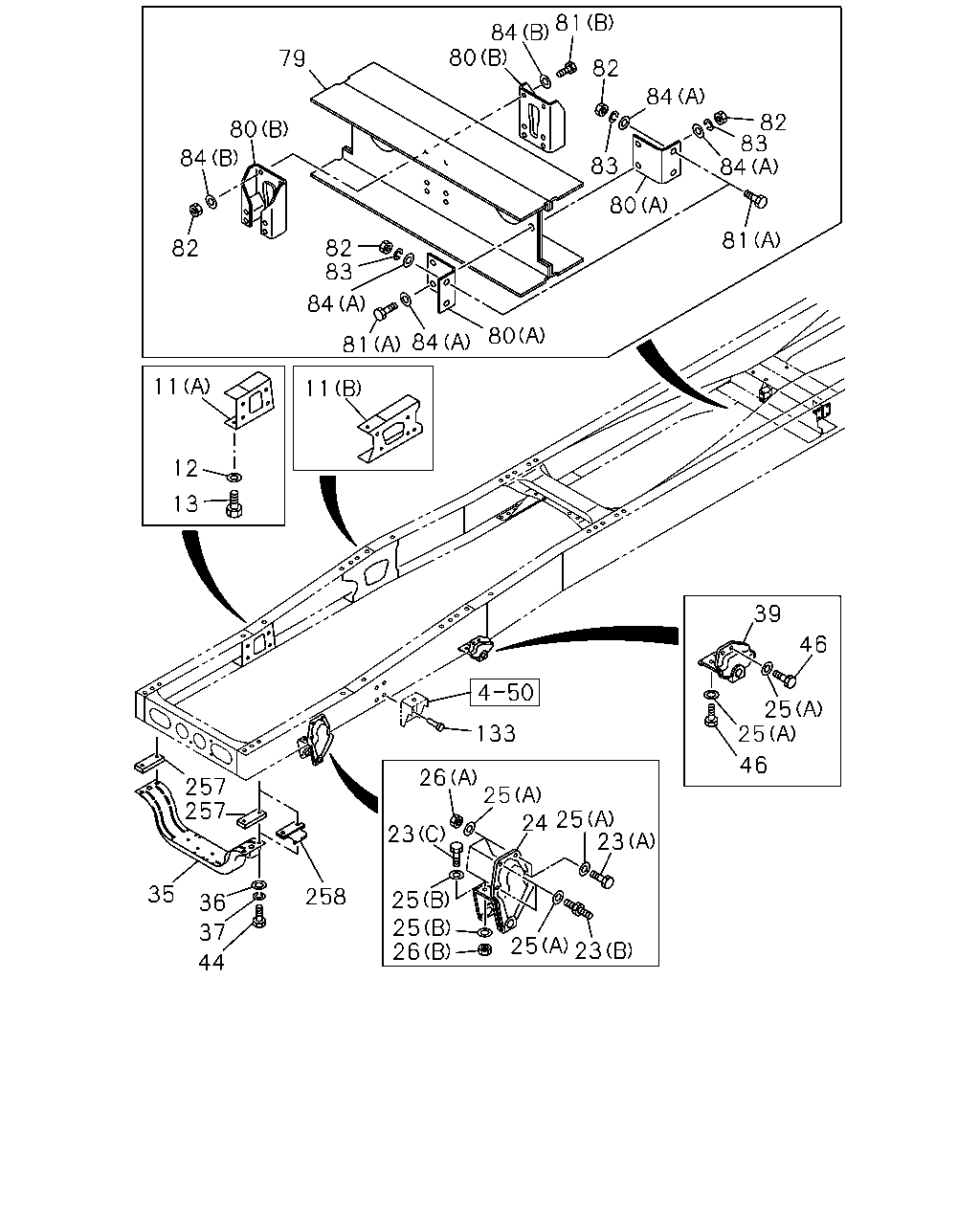

çizim 24406
84 80 79 82 82 84 83 81 84 80 80 83 81 84 80 82 84 82 83 84 81 39 46 25 25 46 23 25 24 25 26 23 133 258 257 257 35 36 37 44 25 25 26 25 23 11 11 12 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-746-1 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (B) 		1-53239-088-0 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-745-1 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (B) 		1-53239-087-0 01 1 0105- ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> (A) 		1-53219-583-0 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> (A) 		1-53219-582-0 01 1 0105- ● ● ● ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> (B) 		1-53219-728-1 01 1 0105- ● ● ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-728-1 01 1 0105- ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> (B) 		1-53219-727-1 01 1 0105- ● ● ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-727-1 01 1 0105- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-778-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-778-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-778-0 01 1 0106-0109 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-778-1 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-778-1 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-778-1 01 1 0110- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-778-1 01 1 0110- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-777-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-777-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-777-0 01 1 0106-0109 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> (A) 		1-53219-777-1 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> (A) 		1-53219-777-1 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (A) 		1-53219-777-1 01 1 0110- ● ●
11 BRACKET; ENG MTG
(A) 		1-53219-777-1 01 1 0110- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2> (B) 		1-53219-990-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-53219-990-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-990-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2> (B) 		1-53219-990-1 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-53219-990-1 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-990-1 01 1 0106- ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2> (B) 		1-53219-988-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-53219-988-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-988-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2> (B) 		1-53219-988-0 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) 		1-53219-988-0 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-988-0 01 1 0106- ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-986-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-986-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (B) 		1-53219-986-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-986-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-986-0 01 1 0106-0109 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-986-1 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-986-1 01 1 0110- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-986-1 01 1 0110- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-985-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-985-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> (B) 		1-53219-985-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-985-0 01 1 0106-0109 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-985-0 01 1 0106-0109 ● ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,MIXER TRUCK<RA2> (B) 		1-53219-985-0 01 1 0110- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-985-0 01 1 0110- ● ●
11 BRACKET; ENG MTG
(B) 		1-53219-985-0 01 1 0110- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> MIXER TRUCK<RA2> (B) 		1-53239-082-0 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> (B) 		1-53239-082-0 01 1 0105- ●
11 BRACKET; ENG MTG
CAB UP +110MM<TGG> MIXER TRUCK<RA2> (B) 		1-53239-081-0 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> MIXER TRUCK<RA2> (B) 		1-53239-081-0 01 1 0105- ●
11 BRACKET; ENG MTG
EXC. CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
EXC. CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-53219-472-1 01 1 0106- ● ●
11 BRACKET; ENG MTG
EXC. CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0105-0105 ● ●
11 BRACKET; ENG MTG
EXC. CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) 		1-53219-471-0 01 1 0106- ● ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-742-0 01 1 0106- ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0105-0105 ●
11 BRACKET; ENG MTG
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0106- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> EXC. CAB UP +110MM<TGG> (B) 		1-53219-741-0 01 1 0106- ●
11 BRACKET; ENG MTG
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>, MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-652-2 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CAB UP +110MM<TGG> (B) 		1-53219-652-2 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CAB UP +110MM<TGG> (B) 		1-53219-652-2 01 1 0105- ●
11 BRACKET; ENG MTG
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>, MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) 		1-53219-651-2 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CAB UP +110MM<TGG> (B) 		1-53219-651-2 01 1 0105- ●
11 BRACKET; ENG MTG
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03>,CAB UP +110MM<TGG> (B) 		1-53219-651-2 01 1 0105- ●
11 BRACKET; ENG MTG
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) 		1-53219-789-1 01 1 0105- ●
11 BRACKET; ENG MTG
MIXER TRUCK<RA2> EXC. CAB UP +110MM<TGG> (B) 		1-53219-788-1 01 1 0105- ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-597-2 01 1 0105- ●
11 BRACKET; ENG MTG
PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53219-596-1 01 1 0105- ●
12 WASHER; PL,BRKT,ENG MTG
ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0105-0109 ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M12X35,M14X45 L=100 		1-09029-075-0 AR 1 0110- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ● ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		9-92061-650-0 AR 1 0105-0512 ● ● ● ● ●
23 BOLT; BRKT,SPR
(C) M16X50 		0-20951-650-0 AR 1 0601- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0105-0109 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0110- ● ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0105-0109 ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0110- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 AR 1 0105- ● ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 AR 1 0105-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 AR 1 0601- ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 AR 1 0105-0512 ● ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 AR 1 0601- ● ● ● ● ● ●
35 MEMBER; UNDER 1-53174-214-2 01 1 0105- ● ● ● ● ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 AR 1 0105- ● ● ● ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 AR 1 0105-0603 ● ● ● ● ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		0-91510-816-0 AR 1 0604- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 0105-0109 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-153-0 01 1 0110- ● ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 0105-0109 ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-152-0 01 1 0110- ● ● ● ● ● ●
44 BOLT; UNDER MBR
6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) M16X45 		9-92061-645-0 AR 1 0105- ● ● ● ● ●
44 BOLT; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L) M16X65 		9-91061-665-0 AR 1 0105-0106 ● ● ● ● ●
44 BOLT; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L),6WF1 TC(84L) M16X65 		9-91061-665-0 AR 1 0107- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 AR 1 0105-0512 ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 AR 1 0601- ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 AR 1 0105-0512 ● ● ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 AR 1 0601- ● ● ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0105-0111 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0112- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> MUFFLER TWIN VERTICAL<NBS> 		1-53181-374-0 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-0 01 1 0105-0109 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-2 01 1 0110- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-685-2 01 1 0110- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-504-1 01 1 0105-0111 ●
79 MEMBER; CROSS,TRUNNION ASM
W-SERIES ENG<1A2> 		1-53181-504-1 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53181-504-1 01 1 0112- ●
80 BRACKET; C/MBR
(B) 		1-53363-031-2 02 1 0105-0109 ● ● ● ● ●
80 BRACKET; C/MBR
(B) 		1-53363-031-2 02 1 0110- ● ● ● ● ● ●
80 BRACKET; C/MBR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53167-288-1 04 1 0105- ● ● ● ● ● ●
81 BOLT; BRKT
(B) M14X205 		1-09000-147-0 AR 1 0105- ● ● ● ● ● ●
81 BOLT; BRKT
(B) M14X50 		9-92061-450-0 AR 1 0105-0512 ● ● ● ● ●
81 BOLT; BRKT
(B) M14X50 		0-20951-450-0 AR 1 0601- ● ● ● ● ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X55 		9-91066-455-0 AR 1 0105- ● ● ● ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M14X45 		9-92061-445-0 AR 1 0105- ● ● ● ● ●
82 NUT; BRKT
M14 		9-99110-514-0 AR 1 0105-0512 ● ● ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 AR 1 0601- ● ● ● ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 AR 1 0105-0603 ● ● ● ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 AR 1 0604- ● ● ● ● ● ●
84 WASHER; PL,BRKT
(B) ID=15 		9-09651-069-0 AR 1 0105- ● ● ● ● ●
84 WASHER; PL,BRKT
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) ID=15 OD=26 		9-09164-514-0 AR 1 0105- ● ● ● ● ●
133 RIVET; BRKT
D13X34 PLATED TAPER END 		9-06771-334-0 AR 1 0105- ● ● ● ● ● ●
133 RIVET; BRKT
D13X40 PLATED TAPER END 		9-06771-340-0 AR 1 0105- ● ● ● ● ● ●
133 RIVET; BRKT
D13X42 PLATED TAPER END 		9-06771-342-0 AR 1 0105- ● ● ● ● ● ●
257 SPACER; UNDER MBR
ISUZU M/T<X9A> TRANSMISSION OIL COOLER<C2C> 		1-53168-319-0 01 1 0105- ● ● ● ● ●
257 SPACER; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L) ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> 		1-53168-319-0 02 1 0105-0106 ● ● ● ● ● ●
257 SPACER; UNDER MBR
FULLER M/T<X9B> 		1-53168-319-0 02 1 0105-0106 ● ● ● ● ● ●
257 SPACER; UNDER MBR
6WF1 TC-C(1B8),6WG1 TC-C(72L),6WF1 TC(84L) ISUZU M/T<X9A> EXC. TRANSMISSION OIL COOLER<C2C> 		1-53168-319-0 02 1 0107- ● ● ● ● ● ●
257 SPACER; UNDER MBR
FULLER M/T<X9B> 		1-53168-319-0 02 1 0107- ● ● ● ● ● ●
258 BRACKET; UNDER MBR
ISUZU M/T<X9A> TRANSMISSION OIL COOLER<C2C> 		1-47479-231-0 01 1 0105- ● ● ● ● ●

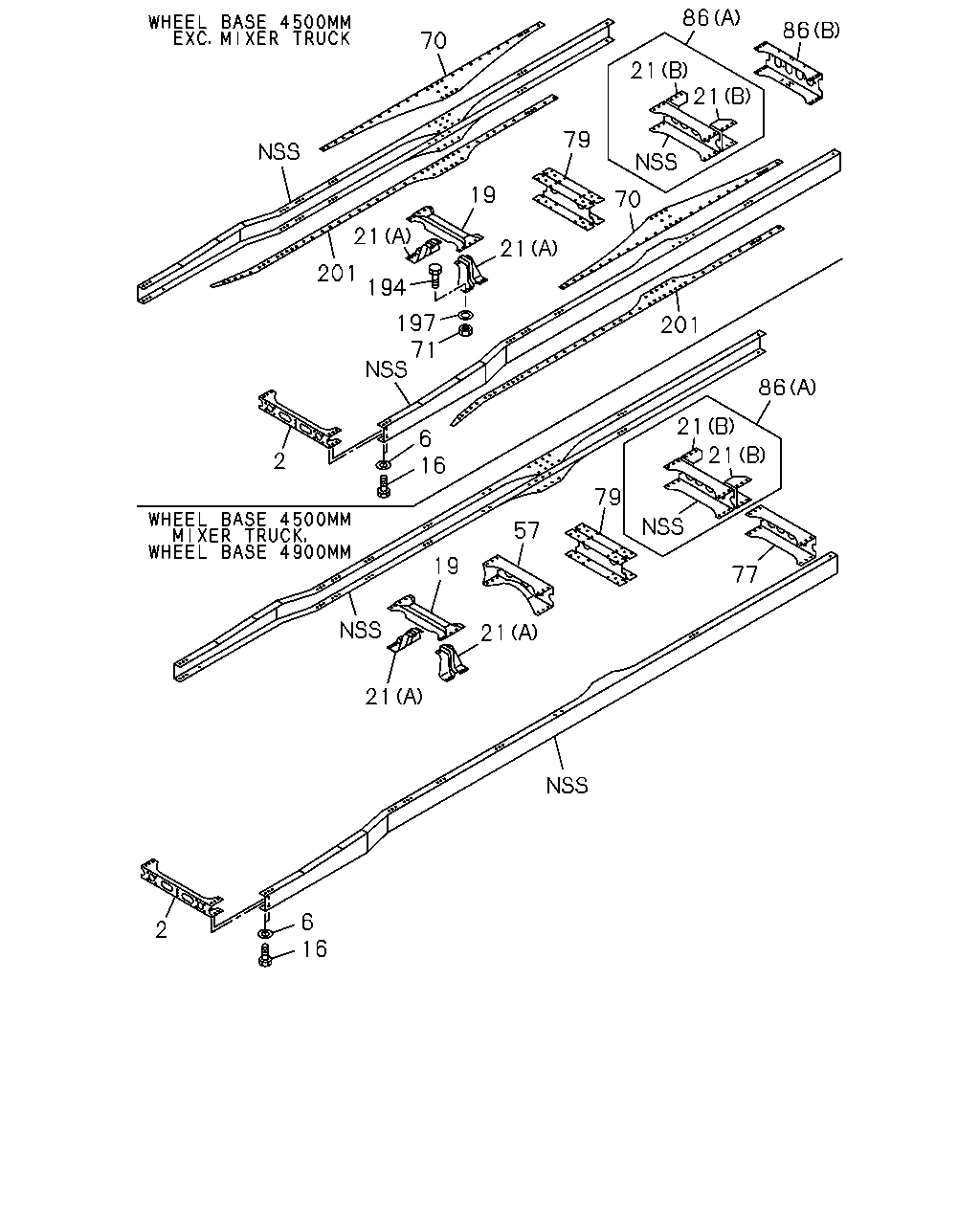

çizim 77218
201 194 19 70 79 21 86 86 21 70 21 21 197 71 2 6 16 201 21 79 21 77 57 19 21 21 2 16 6 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 0105-0109 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 0110- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-516-0 AR 1 0105-0603 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2 		0-91510-516-0 AR 1 0604- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 AR 1 0105-0512 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40 		0-20851-640-0 AR 1 0601- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0105-0109 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0110- ● ● ● ● ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53167-287-2 02 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-2 02 1 0105- ●
21 GUSSET; 2ND CROSS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-207-0 02 1 0105-0109 ● ● ● ●
21 GUSSET; 2ND CROSS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-207-0 02 1 0110- ● ● ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-207-0 02 1 0110- ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-208-0 02 1 0105- ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-208-0 02 1 0105- ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0105- ●
57 MEMBER; CROSS,RR SUSP FRT
MIXER TRUCK<RA2> 		1-53171-685-2 01 1 0105-0109 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-2 01 1 0105-0109 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
MIXER TRUCK<RA2> 		1-53171-685-3 01 1 0110- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0110- ● ● ● ● ●
70 GUSSET; TRUNNION,UPR
W-SERIES ENG<1A2> 		1-53161-476-0 02 1 0105- ●
71 NUT; 2ND C/MBR
W-SERIES ENG<1A2> M14 		9-99110-514-0 AR 1 0105-0512 ●
71 NUT; 2ND C/MBR
W-SERIES ENG<1A2> M14 		0-91110-514-0 AR 1 0601- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-689-0 01 1 0105-0109 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-689-1 01 1 0110- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 1-53181-689-1 01 1 0110- ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0105-0111 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0112- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> MUFFLER TWIN VERTICAL<NBS> 		1-53181-374-0 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-0 01 1 0105-0109 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-2 01 1 0110- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-685-2 01 1 0110- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-504-1 01 1 0105-0111 ●
79 MEMBER; CROSS,TRUNNION ASM
W-SERIES ENG<1A2> 		1-53181-504-1 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53181-504-1 01 1 0112- ●
86 MEMBER; CROSS,RR SUSP RR
W-SERIES ENG<1A2> (B) 		1-53181-609-3 01 1 0105- ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53181-134-0 01 1 0105- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
(A) 		1-53181-134-0 01 1 0105- ●
194 BOLT; 2ND C/MBR
W-SERIES ENG<1A2> M14X50 		9-92061-450-0 AR 1 0105-0512 ●
194 BOLT; 2ND C/MBR
W-SERIES ENG<1A2> M14X50 		0-20951-450-0 AR 1 0601- ●
197 WASHER; PL,2ND C/MBR
W-SERIES ENG<1A2> ID=15 		9-09651-069-0 AR 1 0105- ●
201 GUSSET; C/MBR
W-SERIES ENG<1A2> 		1-53161-736-1 02 1 0105- ●

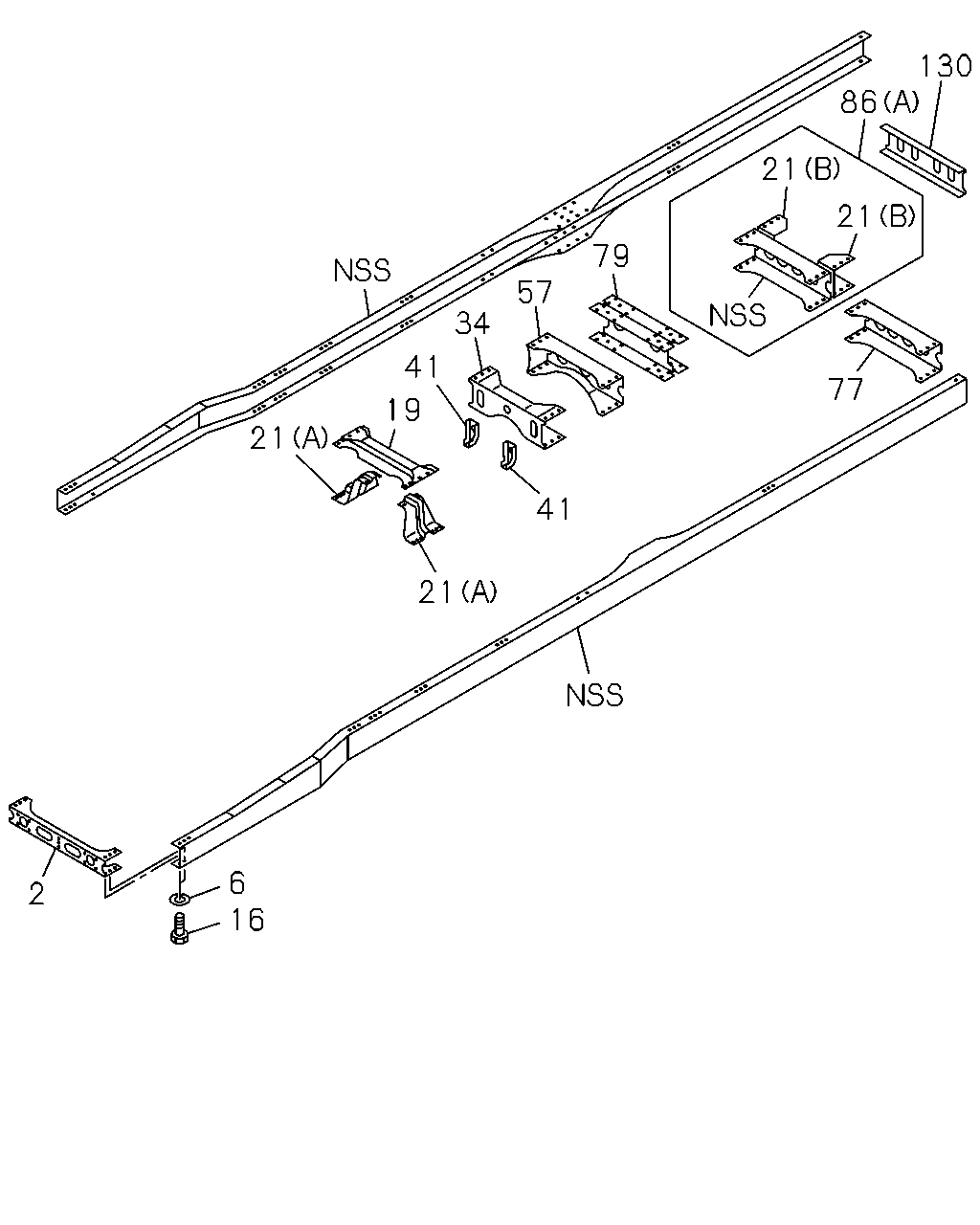

çizim 81654
34 57 79 21 86 130 21 77 41 21 21 19 41 6 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 0105-0109 ● ● ● ● ●
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 0110- ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-516-0 AR 1 0105-0603 ● ● ● ● ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> ID=16.2 		0-91510-516-0 AR 1 0604- ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 AR 1 0105-0512 ● ● ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>,REINFORCEMENT BUMPER<VG7> M16X40 		0-20851-640-0 AR 1 0601- ● ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0105-0109 ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53174-221-0 01 1 0110- ● ● ● ● ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B) 		1-53167-287-2 02 1 0105- ● ● ● ●
21 GUSSET; 2ND CROSS
(B) 		1-53167-287-2 02 1 0105- ●
21 GUSSET; 2ND CROSS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-207-0 02 1 0105-0109 ● ● ● ●
21 GUSSET; 2ND CROSS
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-207-0 02 1 0110- ● ● ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-207-0 02 1 0110- ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-208-0 02 1 0105- ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53164-208-0 02 1 0105- ● ●
21 GUSSET; 2ND CROSS
(A) 		1-53164-208-0 02 1 0105- ●
34 MEMBER; CROSS,3RD 1-53181-645-1 01 1 0105- ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-645-1 01 1 0105- ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-645-1 01 1 0105- ●
34 MEMBER; CROSS,3RD
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-640-1 01 1 0105-0109 ● ●
34 MEMBER; CROSS,3RD
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-640-3 01 1 0110- ● ●
34 MEMBER; CROSS,3RD 1-53181-640-3 01 1 0110- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=310 		1-53271-305-1 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
PE-SERIES ENG<1A0> L=305 		1-53271-262-2 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=305 		1-53271-262-2 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
W-SERIES ENG<1A2> FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=290 		1-53271-322-1 02 1 0105- ●
41 BRACKET; CENTER BRG,FRAME SIDE
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=285 		1-53271-261-2 02 1 0105-0109 ●
41 BRACKET; CENTER BRG,FRAME SIDE
W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=285 		1-53271-261-2 02 1 0110- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L=285 		1-53271-261-2 02 1 0110- ●
41 BRACKET; CENTER BRG,FRAME SIDE
EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>, FRAME EQUIPMENT HEAVY DUTY VAR1<F03> L=295 		1-53271-304-1 02 1 0105- ●
57 MEMBER; CROSS,RR SUSP FRT
MIXER TRUCK<RA2> 		1-53171-685-2 01 1 0105-0109 ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-2 01 1 0105-0109 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
MIXER TRUCK<RA2> 		1-53171-685-3 01 1 0110- ●
57 MEMBER; CROSS,RR SUSP FRT 1-53171-685-3 01 1 0110- ● ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-689-0 01 1 0105-0109 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-689-1 01 1 0110- ● ● ●
77 MEMBER; CROSS,TRUNNION RR 1-53181-689-1 01 1 0110- ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0105-0111 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-374-0 01 1 0112- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> MUFFLER TWIN VERTICAL<NBS> 		1-53181-374-0 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-0 01 1 0105-0109 ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-685-2 01 1 0110- ● ● ● ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-685-2 01 1 0110- ●
79 MEMBER; CROSS,TRUNNION ASM 1-53181-504-1 01 1 0105-0111 ●
79 MEMBER; CROSS,TRUNNION ASM
W-SERIES ENG<1A2> 		1-53181-504-1 01 1 0112- ●
79 MEMBER; CROSS,TRUNNION ASM
PE-SERIES ENG<1A0> TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53181-504-1 01 1 0112- ●
86 MEMBER; CROSS,RR SUSP RR
W-SERIES ENG<1A2> (B) 		1-53181-609-3 01 1 0105- ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) 		1-53181-134-0 01 1 0105- ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR
(A) 		1-53181-134-0 01 1 0105- ●
130 MEMBER; CROSS,END 1-53171-876-3 01 1 0105- ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53171-876-3 01 1 0105- ● ●
130 MEMBER; CROSS,END
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-537-0 01 1 0105-0109 ● ●
130 MEMBER; CROSS,END
EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> 		1-53181-537-1 01 1 0110- ● ●
130 MEMBER; CROSS,END 1-53181-537-1 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
