Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶
2-20 — MANUAL TRANSMISSION ASM AND CASE
(#133822) — 74 parça
◀
[220A] NYLON TUBE,CLIP AND HARNESS BRACKET (5 parça)
[220A] ASM (1 parça)
[220A] CASE AND OTHER PARTS (18 parça)
[220A] COVER (15 parça)
[220A] HOUSING (35 parça)
▶

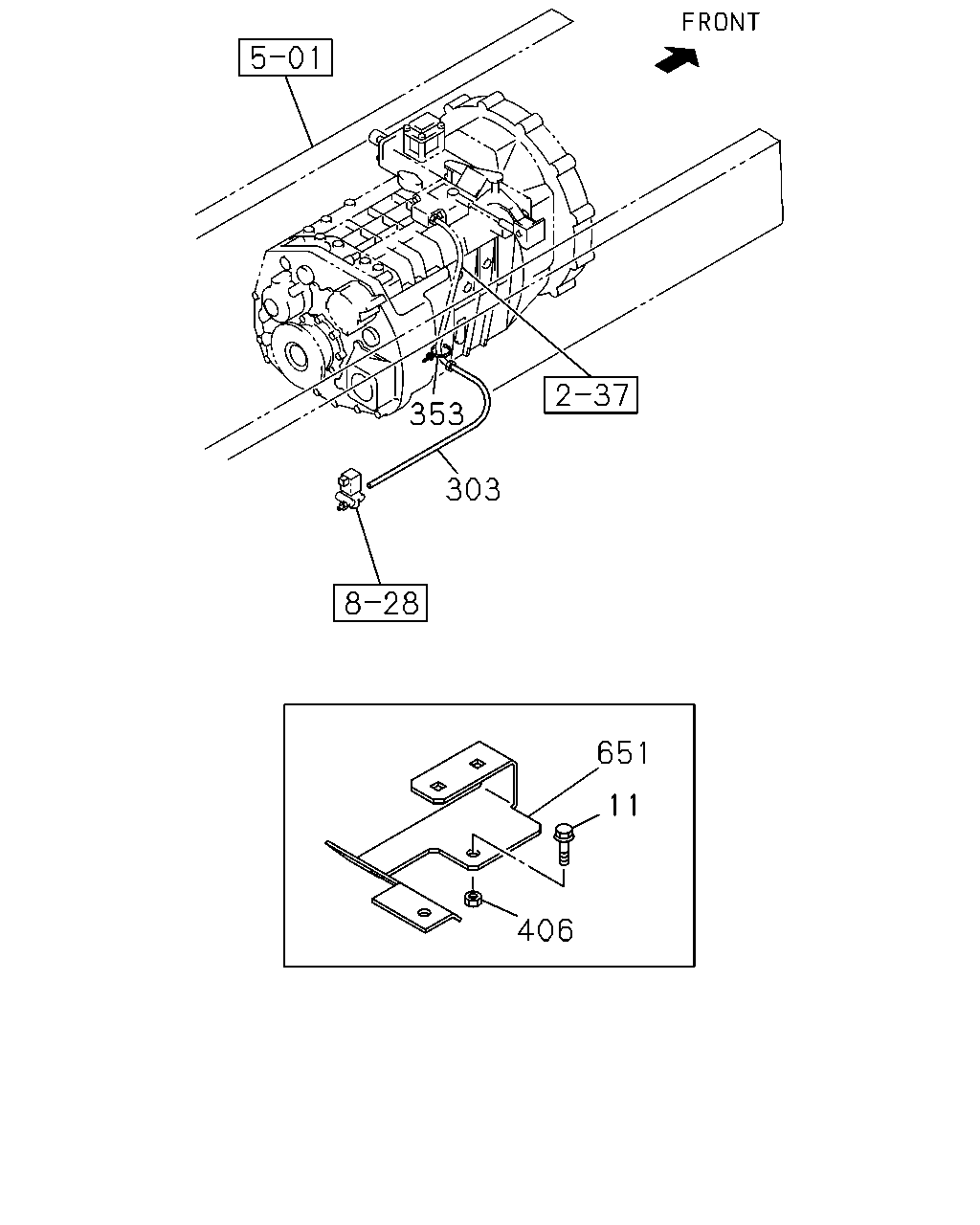

353
303
651
11
406
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
303
TUBE; NYLON
SERVICED BY L=2000 OD=8 THA
1-87411-006-0
01
1
1402-
353
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
1402-
406
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1402-
651
BRACKET; T/M HARNESS
THA
8-98141-227-1
01
1
1402-

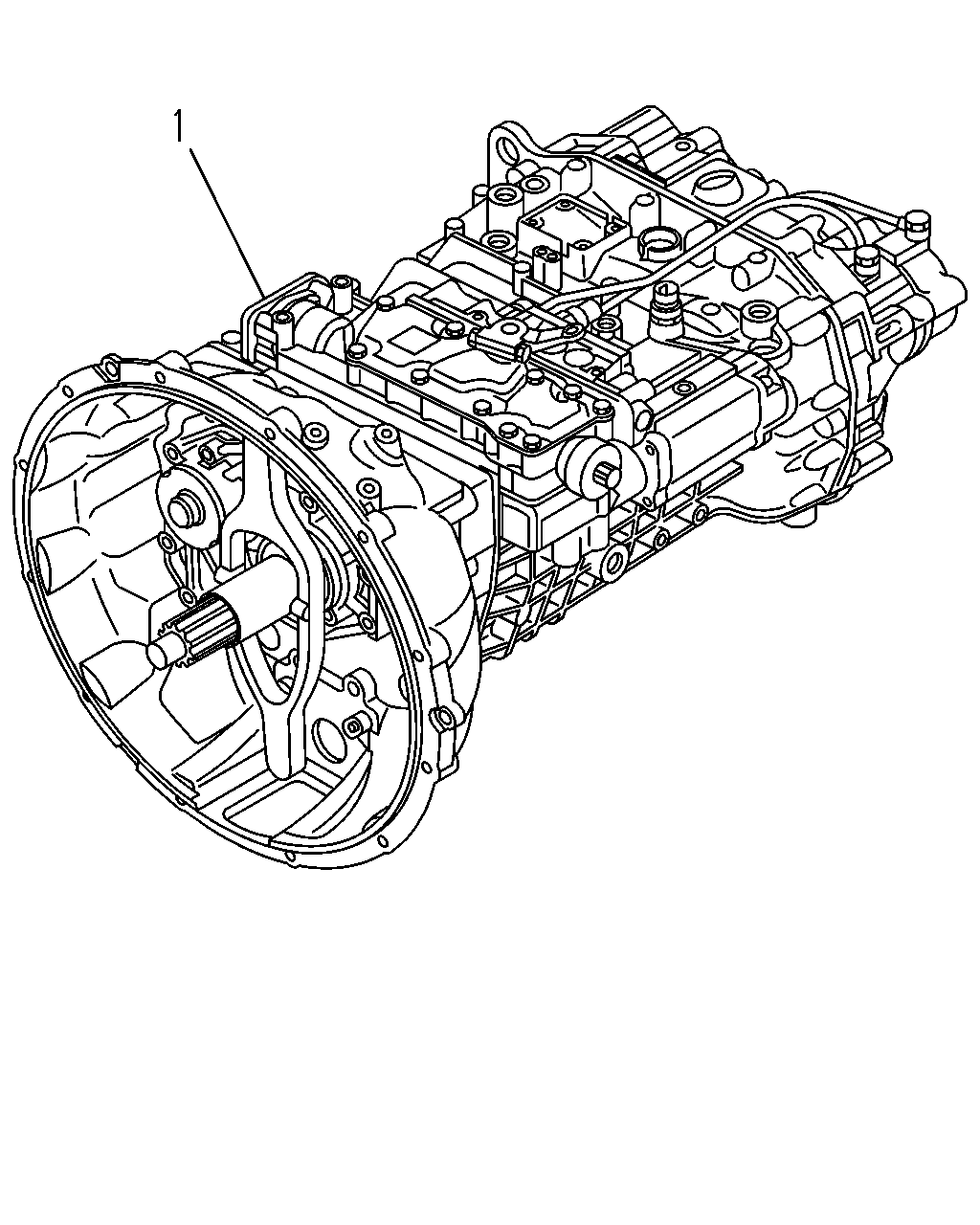

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
8-98083-334-2
01
1
1402-

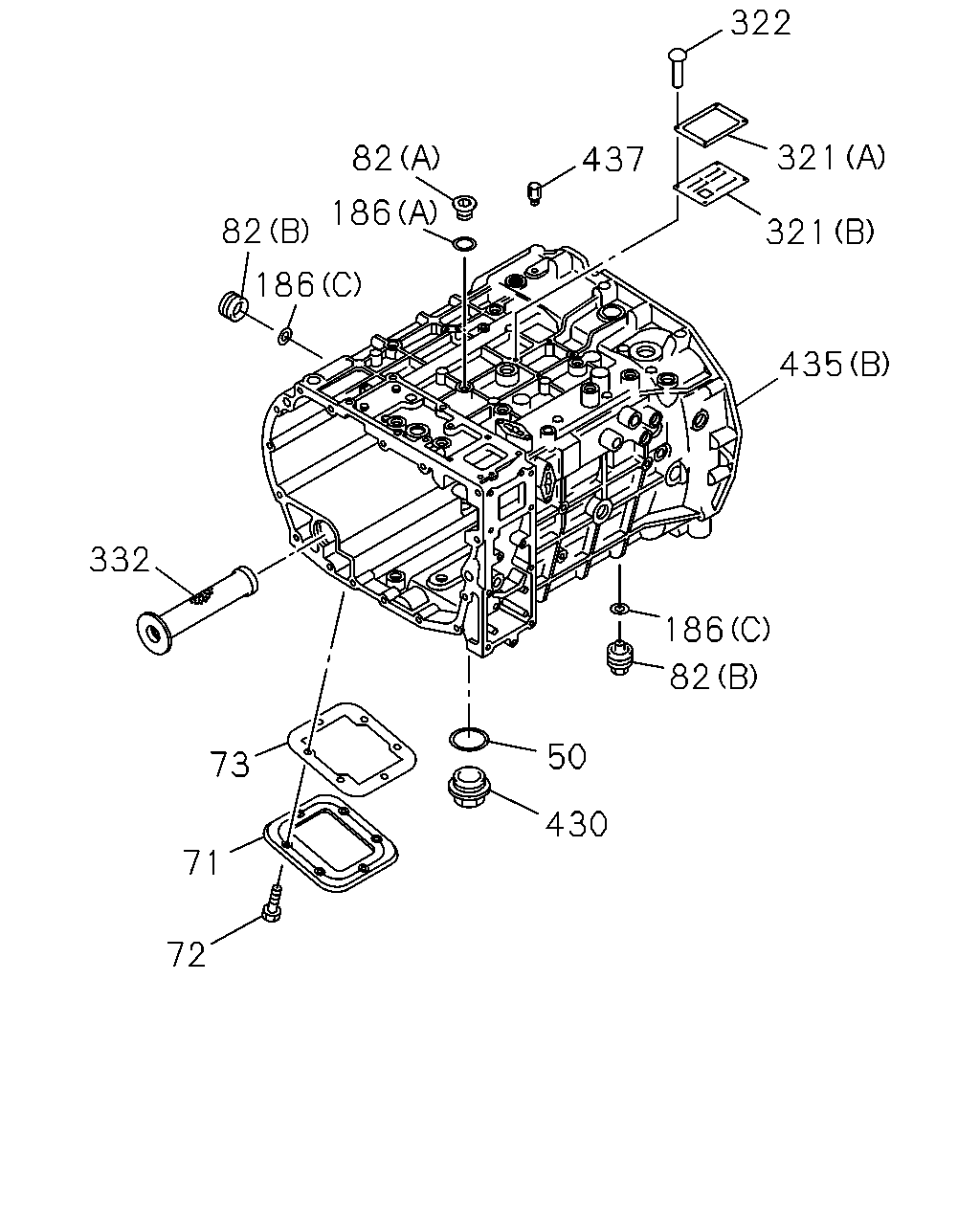

322
321
321
435
186
82
50
430
73
71
72
332
186
437
82
186
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
GASKET; DRAIN PLUG
1-33119-293-0
01
1
1402-
71
COVER; SIDE,TRANS CASE
1-33119-622-0
01
1
1402-
72
BOLT; SIDE COVER
M10X22
1-33119-592-0
06
1
1402-
73
GASKET; SIDE COVER TO TRANS CASE
1-33119-237-0
01
1
1402-
82
PLUG; SCREW,CASE
(C)
1-33119-618-0
02
1
1402-
82
PLUG; SCREW,CASE
(A)
1-33119-619-0
01
1
1402-
82
PLUG; SCREW,CASE
(B)
1-33119-620-0
02
1
1402-
186
RING; SEAL
(A)
1-33119-249-0
01
1
1402-
186
RING; SEAL
(B)
1-33119-286-0
02
1
1402-
186
RING; SEAL
(C)
1-33119-435-0
02
1
1402-
321
PLATE; NAME
(A)
1-33119-519-0
01
1
1402-
321
PLATE; NAME
(B)
1-33119-520-0
01
1
1402-
322
RIVET; NAME PLATE
1-33119-617-0
04
1
1402-
332
FILTER; OIL
1-33119-437-0
01
1
1402-
430
PLUG; OIL DRAIN
1-33119-621-0
01
1
1402-
435
CASE; TRANS
(B)
1-33111-372-0
01
1
1402-
435
CASE; TRANS
(A)
1-33111-380-0
01
1
1402-
437
BREATHER; TRANS
1-36122-006-0
01
1
1402-

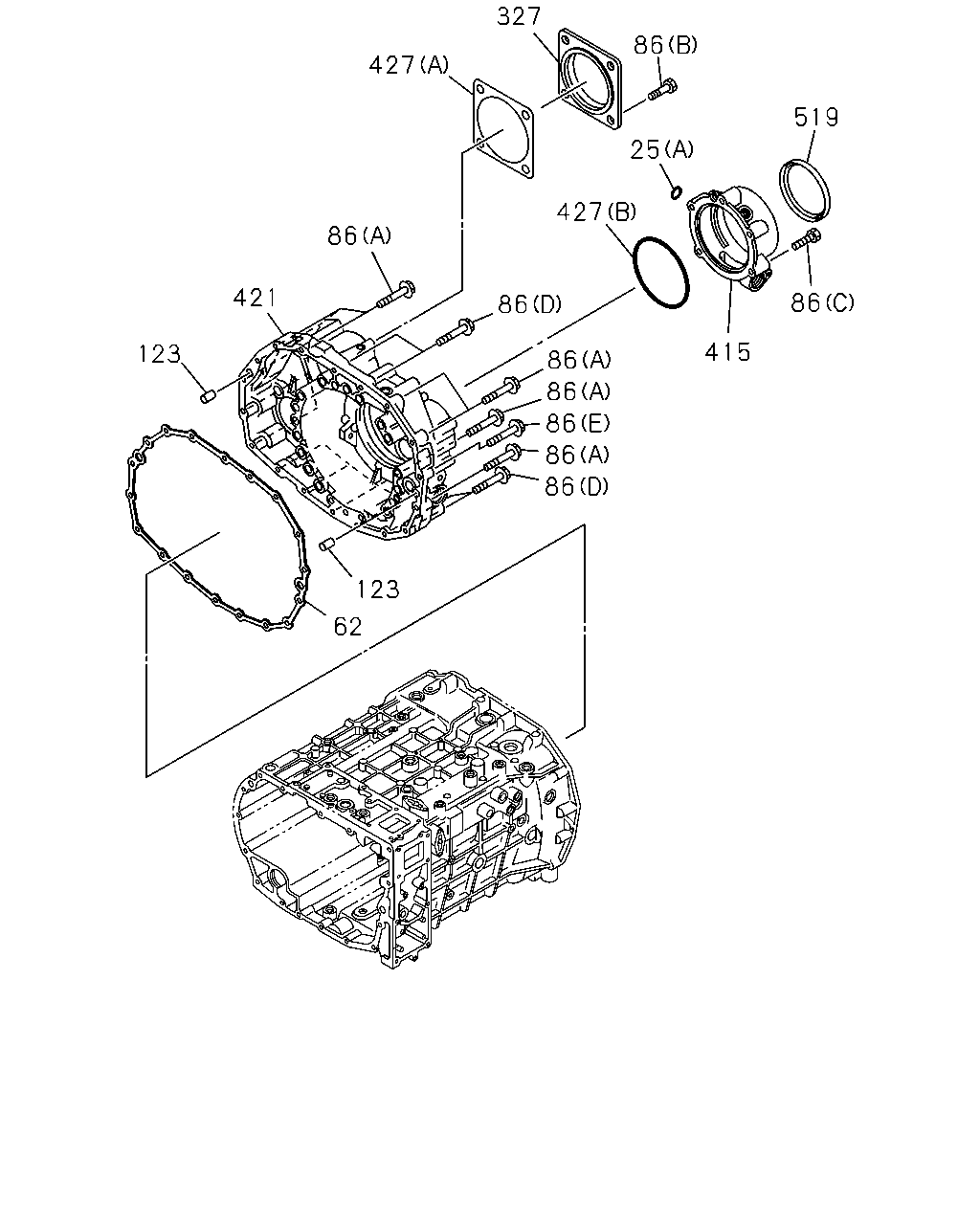

519
86
327
427
427
86
415
25
86
421
123
123
62
86
86
86
86
86
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
GASKET; COVER
(A)
1-33139-060-0
01
1
1402-
25
GASKET; COVER
(B)
8-98138-241-0
01
1
1402-
62
GASKET; RR COVER
1-33132-087-0
01
1
1402-
86
BOLT; RR COVER
(B) M12X25
1-33119-594-0
04
1
1402-
86
BOLT; RR COVER
(A) M10X70
1-33119-616-0
12
1
1402-
86
BOLT; RR COVER
(D) M10X110
1-33139-235-0
05
1
1402-
86
BOLT; RR COVER
(E) M10X50
1-33139-236-0
01
1
1402-
86
BOLT; RR COVER
(C) M10X60
1-33139-237-0
05
1
1402-
123
DOWEL; TRANS CASE
1-33119-292-0
04
1
1402-
327
COVER; RR,COUNTER
1-33131-273-0
01
1
1402-
415
COVER; BRG
1-33131-269-0
01
1
1402-
421
COVER; RR,TRANS
1-33131-275-0
01
1
1402-
427
GASKET; RR COVER
(A)
1-33132-054-0
01
1
1402-
427
GASKET; RR COVER
(B)
1-33132-088-0
01
1
1402-
519
GASKET; SHAFT
1-33139-059-0
01
1
1402-

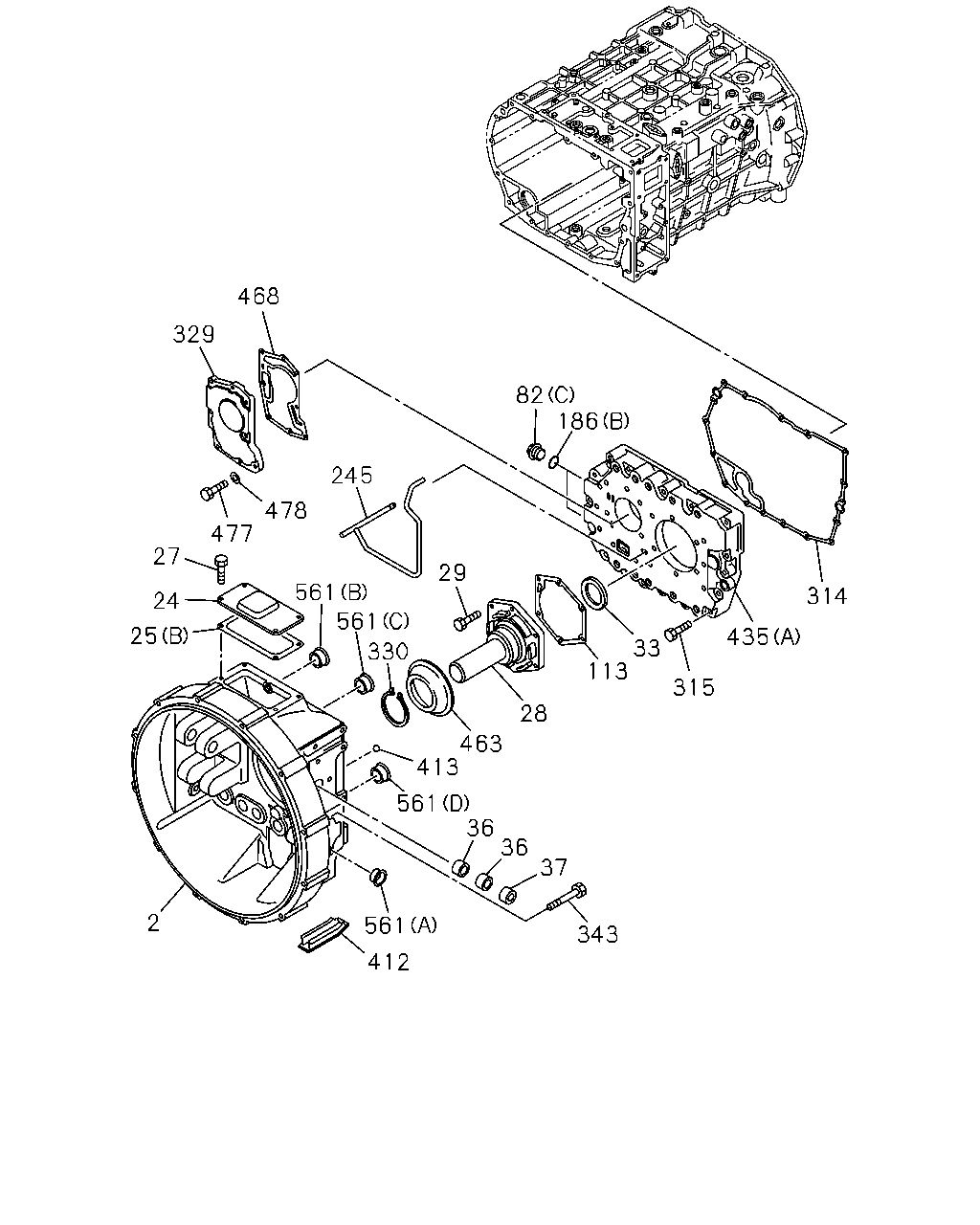

468
329
245
478
477
27
24
561
29
561
330
28
113
82
186
314
435
315
33
463
413
561
36
36
37
343
561
2
412
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; CLU
1-31111-183-0
01
1
1402-
24
COVER; CHECK HOLE,DUST
1-31119-059-0
01
1
1402-
25
GASKET; COVER
(A)
1-33139-060-0
01
1
1402-
25
GASKET; COVER
(B)
8-98138-241-0
01
1
1402-
27
BOLT; COVER TO CLU HSG
1-31119-058-0
04
1
1402-
28
COVER; FRT,TRANS CASE
1-33121-166-0
01
1
1402-
29
BOLT; FRT COVER
M8X30
1-33549-581-0
06
1
1402-
33
SEAL; OIL,FRT COVER,T/M
1-33219-321-0
01
1
1402-
36
BEARING; NEEDLE,CLU HSG
1-09811-396-0
04
1
1402-
37
SEAL; DUST,CLU HSG
1-09625-002-0
02
1
1402-
82
PLUG; SCREW,CASE
(C)
1-33119-618-0
02
1
1402-
82
PLUG; SCREW,CASE
(A)
1-33119-619-0
01
1
1402-
82
PLUG; SCREW,CASE
(B)
1-33119-620-0
02
1
1402-
113
GASKET; FRT COVER TO TRANS CASE
1-33122-024-0
01
1
1402-
186
RING; SEAL
(A)
1-33119-249-0
01
1
1402-
186
RING; SEAL
(B)
1-33119-286-0
02
1
1402-
186
RING; SEAL
(C)
1-33119-435-0
02
1
1402-
245
PIPE; OIL
1-33119-517-0
01
1
1402-
314
GASKET; CASE
1-33112-052-0
01
1
1402-
315
BOLT; CASE
M10X70
1-33119-616-0
17
1
1402-
329
PUMP ASM; OIL
1-34150-123-0
01
1
1402-
330
RING; RET
1-33129-005-0
01
1
1402-
343
BOLT; CLU HSG TO PLATE
M10X75 FLANGE
8-94399-669-1
01
1
1402-
412
CAP; CLU HSG
1-31119-026-0
01
1
1402-
413
BALL; CLU HSG
1-31119-014-0
04
1
1402-
435
CASE; TRANS
(B)
1-33111-372-0
01
1
1402-
435
CASE; TRANS
(A)
1-33111-380-0
01
1
1402-
463
COVER; DUST,FRT COVER
1-33129-018-0
01
1
1402-
468
GASKET; OIL PUMP
1-34159-122-0
01
1
1402-
477
BOLT; OIL PUMP
M8X30
1-33549-581-0
08
1
1402-
478
WASHER; LK,OIL PUMP
1-33549-583-0
08
1
1402-
561
PLUG
(A)
1-31119-044-0
02
1
1402-
561
PLUG
(B)
1-31119-045-0
03
1
1402-
561
PLUG
(C)
1-31119-046-0
02
1
1402-
561
PLUG
(D)
1-31119-047-0
01
1
1402-
