2-01 — CLUTCH (#133817) — 54 parça

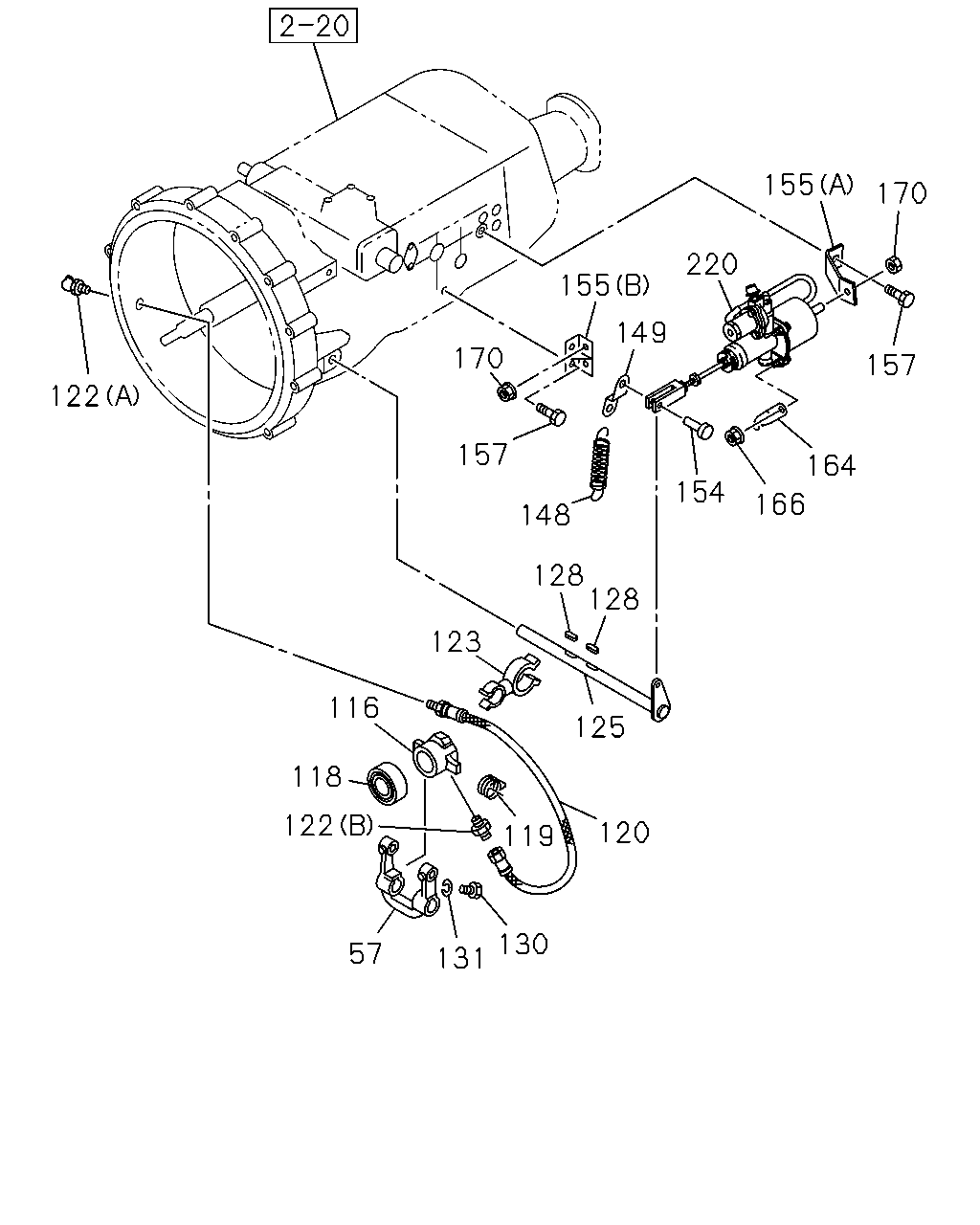

çizim 406552
122 170 170 155 157 164 166 154 220 155 149 157 148 128 128 125 123 120 119 116 118 122 57 131 130
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-036-0 01 1 1402-
116 BLOCK; SHIFT,CLU 1-31321-086-1 01 1 1402-
118 BEARING; CLU RELEASE
BEST VALUE PARTS 		1-87610-108-0 01 1 1402-
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 1402-
119 SPRING; SHIFT FORK 1-31329-014-0 01 1 1402-
119 SPRING; SHIFT FORK 1-31329-015-0 01 1 1402-
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=360 		1-09364-881-0 01 1 1402-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 ELBOW 		0-90301-610-0 01 1 1402-
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 1402-
123 CLIP; FLEX HOSE,SHIFT BLOCK 8-97010-484-0 01 1 1402-
125 SHAFT; CLU 1-31342-336-0 01 1 1402-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 1402-
130 SCREW; SHIFT FORK 9-06120-816-0 01 1 1402-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1402-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1402-
149 EYE; SPRING,RETURN SPRING 1-31426-041-0 01 1 1402-
154 PIN; JAW JOINT 1-31424-009-0 01 1 1402-
155 BRACKET; MINIPACK
(B) 		1-31429-472-1 01 1 1402-
155 BRACKET; MINIPACK
(A) 		1-31429-473-0 01 1 1402-
157 BOLT; BRKT
M10X25 FLANGE THA 		0-28151-025-0 03 1 1402-
164 EYE; SPRING 1-31426-050-0 01 1 1402-
166 NUT; SPRING EYE
M10 FLANGE THA 		0-91180-210-0 01 1 1402-
170 NUT; BOOSTER FIX
M10 FLANGE THA 		0-91180-210-0 03 1 1402-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-089-0 01 1 1402-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-516-1 01 1 1402-

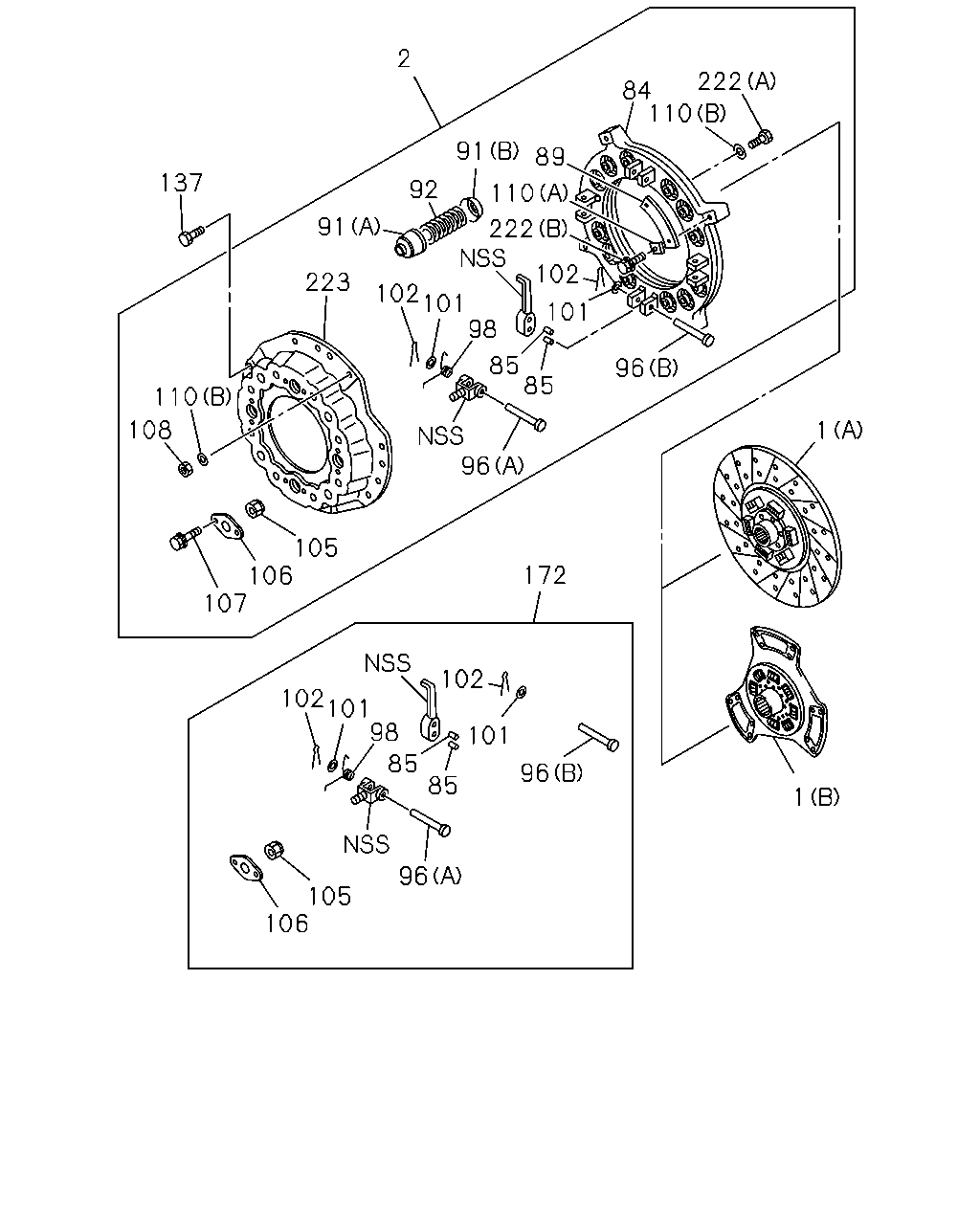

çizim 406825
222 110 84 2 137 91 91 92 89 110 223 222 102 102 101 101 96 98 85 85 96 110 108 105 106 107 172 1 101 102 102 101 96 98 85 85 96 105 106 1
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
FINAL GEAR 39/7 17.5"<W3Z>,FINAL GEAR 41/8 17.5"<W4A> (A) 15" 		1-31240-972-1 01 1 1402-
1 DISC; CLUTCH
FINAL GEAR 39/8 17.5"<W4B> (B) 15" 		1-31240-977-2 01 1 1402-
1 DISC; CLUTCH
FINAL GEAR 39/8 17.5"<W4B> (B) BEST VALUE PARTS 		1-87610-143-0 01 1 1411-
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 39/7 17.5"<W3Z>,FINAL GEAR 41/8 17.5"<W4A> 		1-31220-416-0 01 1 1402-
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 39/8 17.5"<W4B> 		1-31220-380-2 01 1 1402-
2 PLATE ASM; PRESSURE,CLU
FINAL GEAR 39/8 17.5"<W4B> BEST VALUE PARTS 		1-87610-145-0 01 1 1402-
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 1402-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 1402-
89 PLATE; STRAP 1-31229-050-0 16 1 1402-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 1402-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 1402-
92 SPRING; CLU
FINAL GEAR 39/7 17.5"<W3Z>,FINAL GEAR 41/8 17.5"<W4A> 		1-31214-074-0 12 1 1402-
92 SPRING; CLU
FINAL GEAR 39/8 17.5"<W4B> 		1-31214-053-0 12 1 1402-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 1402-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 1402-
98 SPRING; RETURN 1-31233-003-0 04 1 1402-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 1402-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 1402-
105 NUT; SUPPORT 1-31235-014-0 04 1 1402-
106 PLATE; LK,LEVER SUPPORT 1-31239-019-0 04 1 1402-
107 BOLT; LK PLATE 1-31239-061-0 08 1 1402-
108 NUT; STRAP 1-09449-036-0 04 1 1402-
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 1402-
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 1402-
137 BOLT; CLU COVER
M10X20 FLANGE THA 		0-28151-020-0 12 1 1402-
172 LEVER KIT; RELEASE,CLU 1-87831-172-1 01 1 1402-
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 1402-
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 1402-
223 COVER; CLU 1-31211-019-1 01 1 1402-
