◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11578 - FVM CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#133814) — 182 parça
çizim 406472
81 107 60 105 22 81 22 94 75 56 75 62 70
BalonParca AdiParca NoAdetTipApplied Date
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1402-
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
75 RUBBER; SUPPORT,BRKT
OD=40 THA 		1-22159-094-0 02 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 06 1 1402-
107 BOLT; BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
çizim 406595
126 36 84 506 12 506 84
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1402-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1402-
126 PIPE; EXH,RR
WHEEL BASE 6300MM<63W> THA 		8-98217-353-0 01 1 1402-
126 PIPE; EXH,RR
WHEEL BASE 7100MM<71W> THA 		8-98200-667-0 01 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-

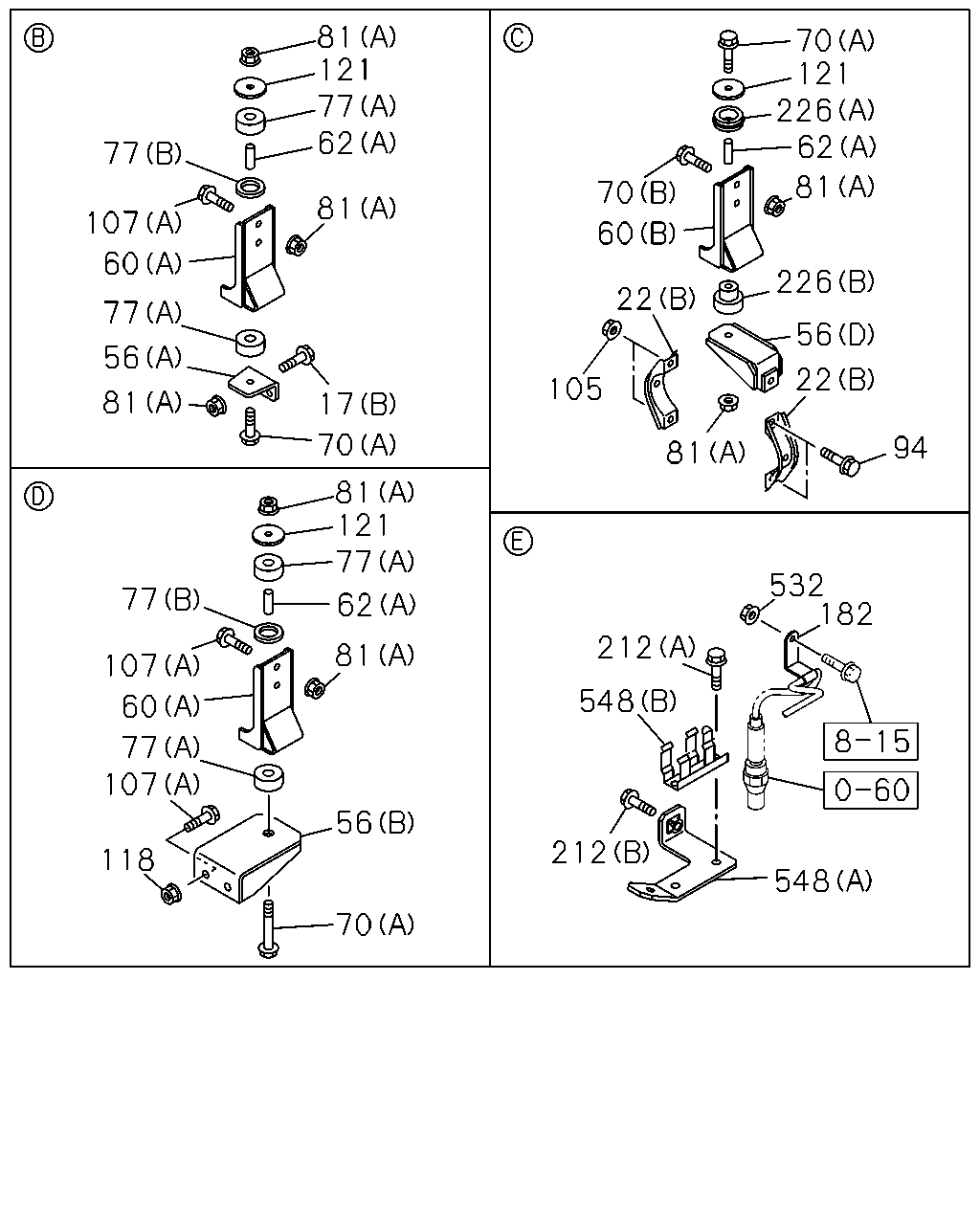

çizim 406732
70 56 118 107 77 60 107 77 81 62 77 121 81 70 17 81 56 77 60 107 77 81 62 77 121 81 212 548 212 532 548 182 94 81 105 22 60 70 226 56 22 81 62 226 121 70
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1402-
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
77 RUBBER; CUSHION,BRKT
(A) 		8-97379-882-0 04 1 1402-
77 RUBBER; CUSHION,BRKT
(B) 		8-98090-400-0 02 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
107 BOLT; BRKT
(A) M10X35 FLANGE THA 		0-28651-035-0 06 1 1402-
107 BOLT; BRKT
(B) M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
182 CLIP; HARNESS
ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 1402-
212 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1402-
212 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1402-
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1402-
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1402-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1402-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
548 BRACKET; O2 SENSOR
(B) 		8-97262-725-0 01 1 1402-
548 BRACKET; O2 SENSOR
(A) THA 		8-98152-132-0 01 1 1402-

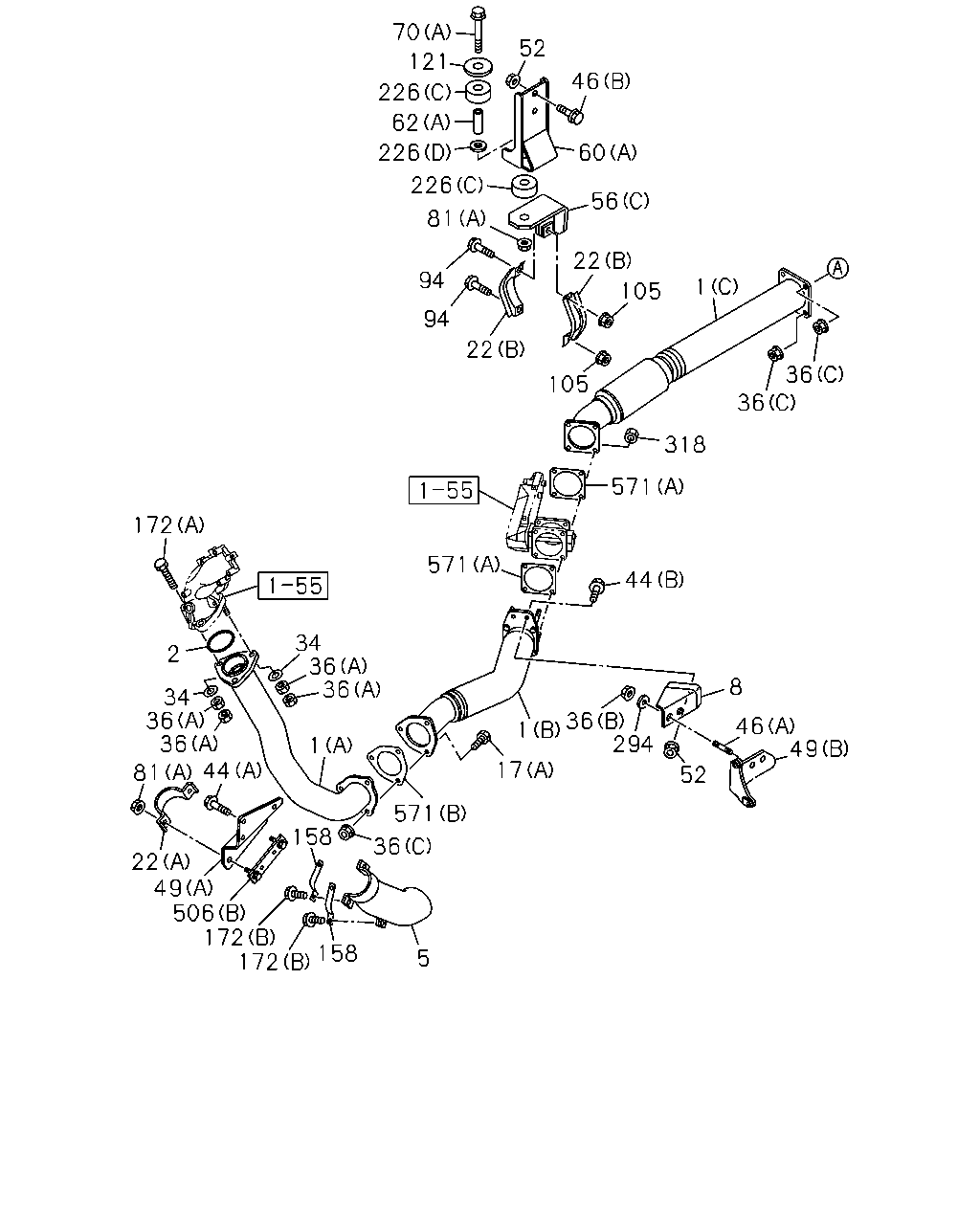

çizim 406965
70 226 62 226 226 81 94 94 22 105 105 22 56 60 46 52 1 36 36 318 571 44 8 46 49 52 294 36 1 17 571 36 5 158 172 172 506 49 22 81 44 36 36 34 2 172 34 36 36 1 571 158 121
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(C) THA 		8-97925-381-0 01 1 1402-
1 PIPE; EXH
(A) THA 		8-98126-486-5 01 1 1402-
1 PIPE; EXH
(B) 		8-98221-117-0 01 1 1402-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1402-
5 PROTECTOR; HEAT
THA 		8-97630-122-2 01 1 1402-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1402-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1402-
36 NUT; EXH PIPE
(B) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(C) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
44 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 1402-
44 BOLT; BRKT
(A) M10X20 FLANGE THA 		0-28751-020-0 03 1 1402-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(B) THA 		8-97948-676-0 01 1 1402-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 6300MM<63W> (E) 		8-98217-354-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
WHEEL BASE 7100MM<71W> (E) THA 		8-98200-669-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) THA 		8-97925-383-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 6300MM<63W> (C) 		8-98220-876-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
WHEEL BASE 7100MM<71W> (C) THA 		8-98200-861-1 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1402-
60 BRACKET; FRAME TO BRKT
(B) 		8-98245-532-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) L=25 		1-14234-083-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 02 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(A) THA 		8-97948-228-0 01 1 1402-
70 BOLT; BRKT
(C) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
70 BOLT; BRKT
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1402-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1402-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1402-
226 RUBBER; CUSHION
(C) 		8-97379-882-0 02 1 1402-
226 RUBBER; CUSHION
(A) THA 		8-97948-226-0 01 1 1402-
226 RUBBER; CUSHION
(B) THA 		8-97948-227-0 01 1 1402-
226 RUBBER; CUSHION
(D) 		8-98090-400-0 01 1 1402-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1402-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-
571 GASKET
(A) 		1-22116-043-0 02 1 1402-
571 GASKET
(B) 		8-98043-481-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
