1-41 — FUEL PIPING; CHASSIS (#133813) — 382 parça

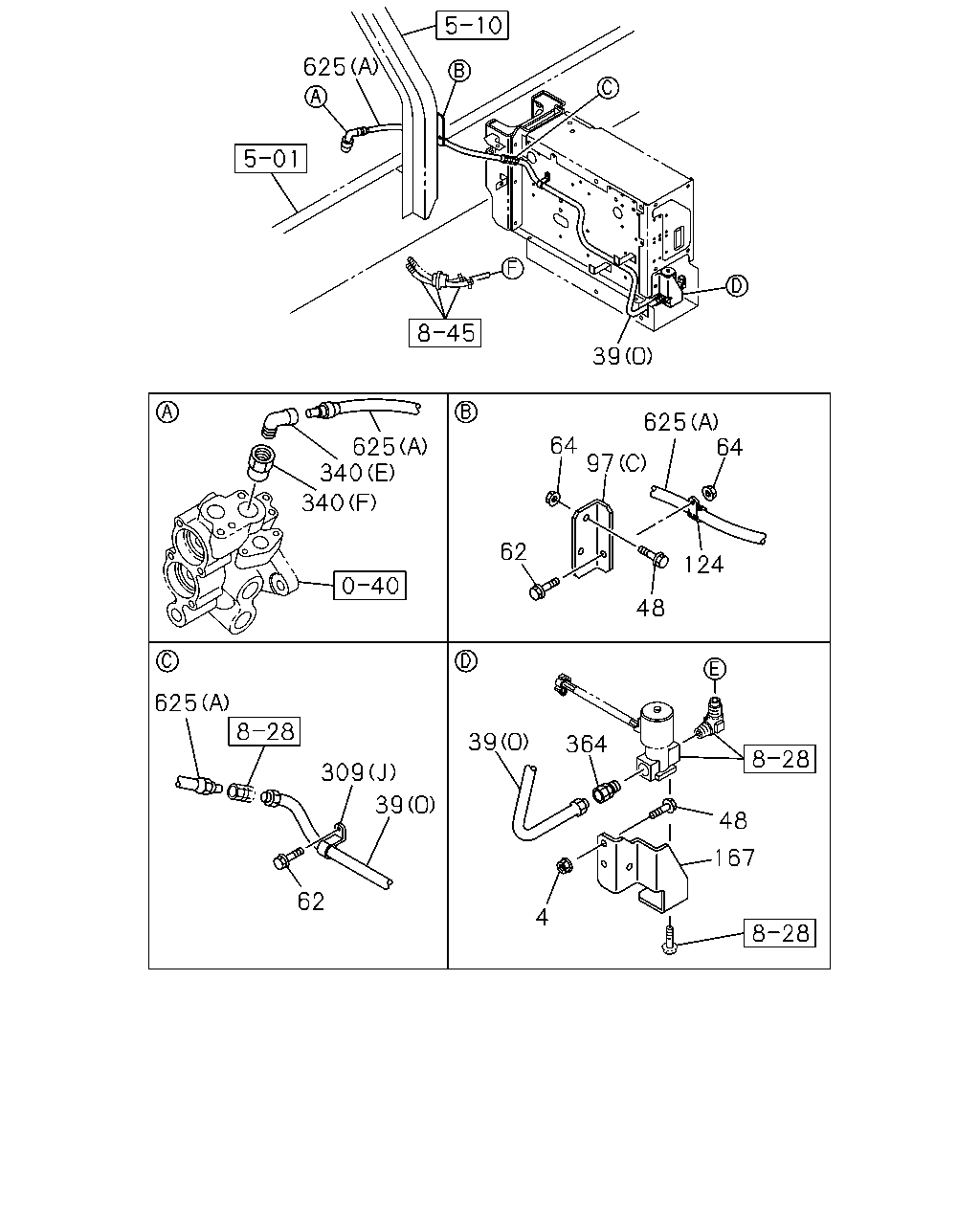

çizim 406044
39 64 625 97 62 48 124 64 625 340 340 625 309 39 62 4 39 364 48 167 625
BalonParca AdiParca NoAdetTipApplied Date
4 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1402-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1402-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1402-
124 CLIP; HOSE
ID=18 L=28 		1-09701-067-0 01 1 1402-
167 BRACKET
THA 		8-98163-159-0 01 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
364 CONNECTOR; MANIFOLD TO FILTER 8-98152-137-0 01 1 1402-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1402-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1402-

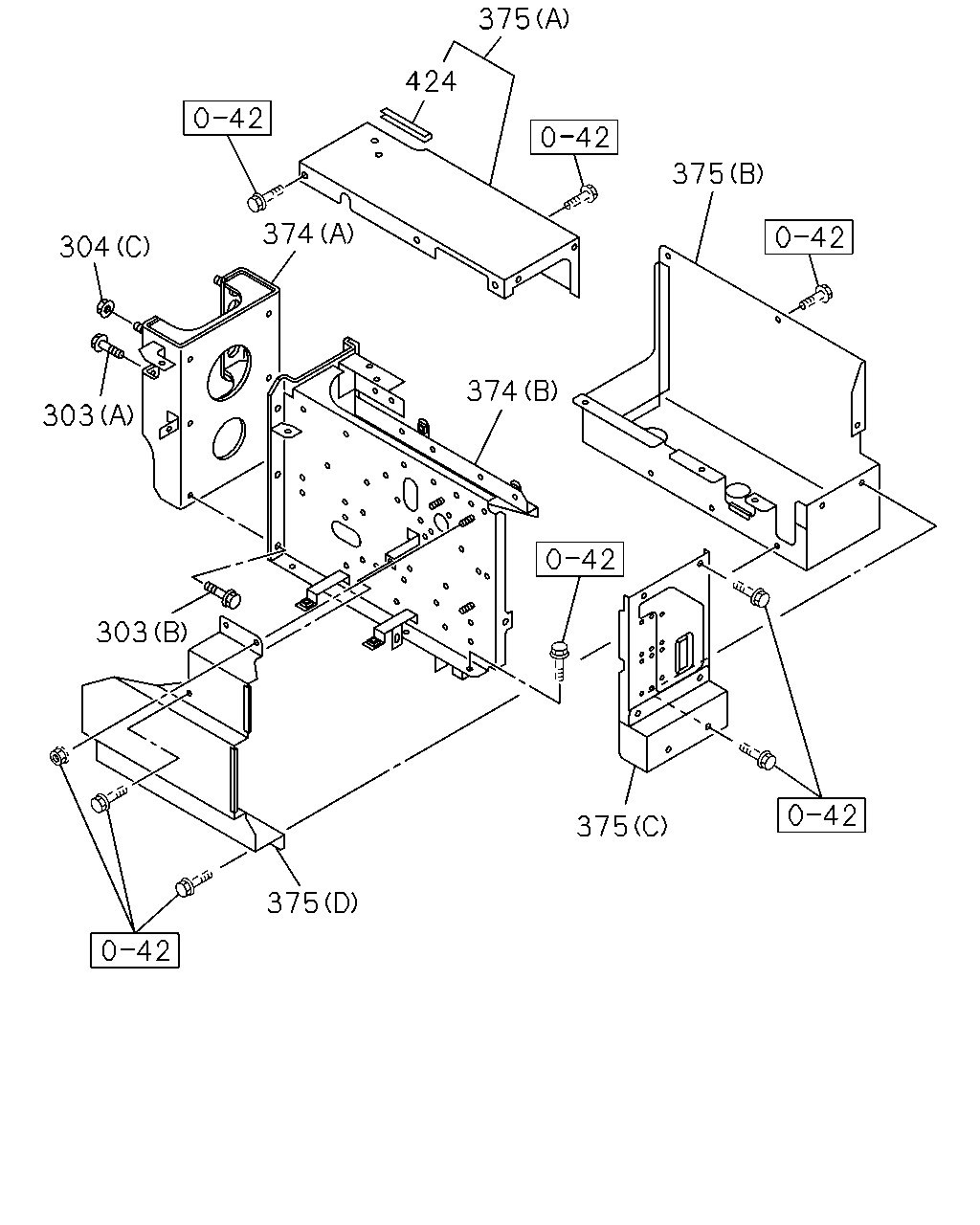

çizim 406451
375 375 303 303 304 374 374 424 375 375
BalonParca AdiParca NoAdetTipApplied Date
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
374 BRACKET; REGULATOR
(A) THA 		8-97948-486-0 01 1 1402-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1402-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1402-
375 COVER; REGULATOR
(A) THA 		8-98127-791-1 01 1 1402-
375 COVER; REGULATOR
(C) THA 		8-98163-407-1 01 1 1402-
375 COVER; REGULATOR
(D) THA 		8-98239-085-0 01 1 1402-
375 COVER; REGULATOR
(B) THA 		8-98239-107-0 01 1 1402-
424 FINISHER
L=120 THA 		1-73948-004-0 02 1 1402-

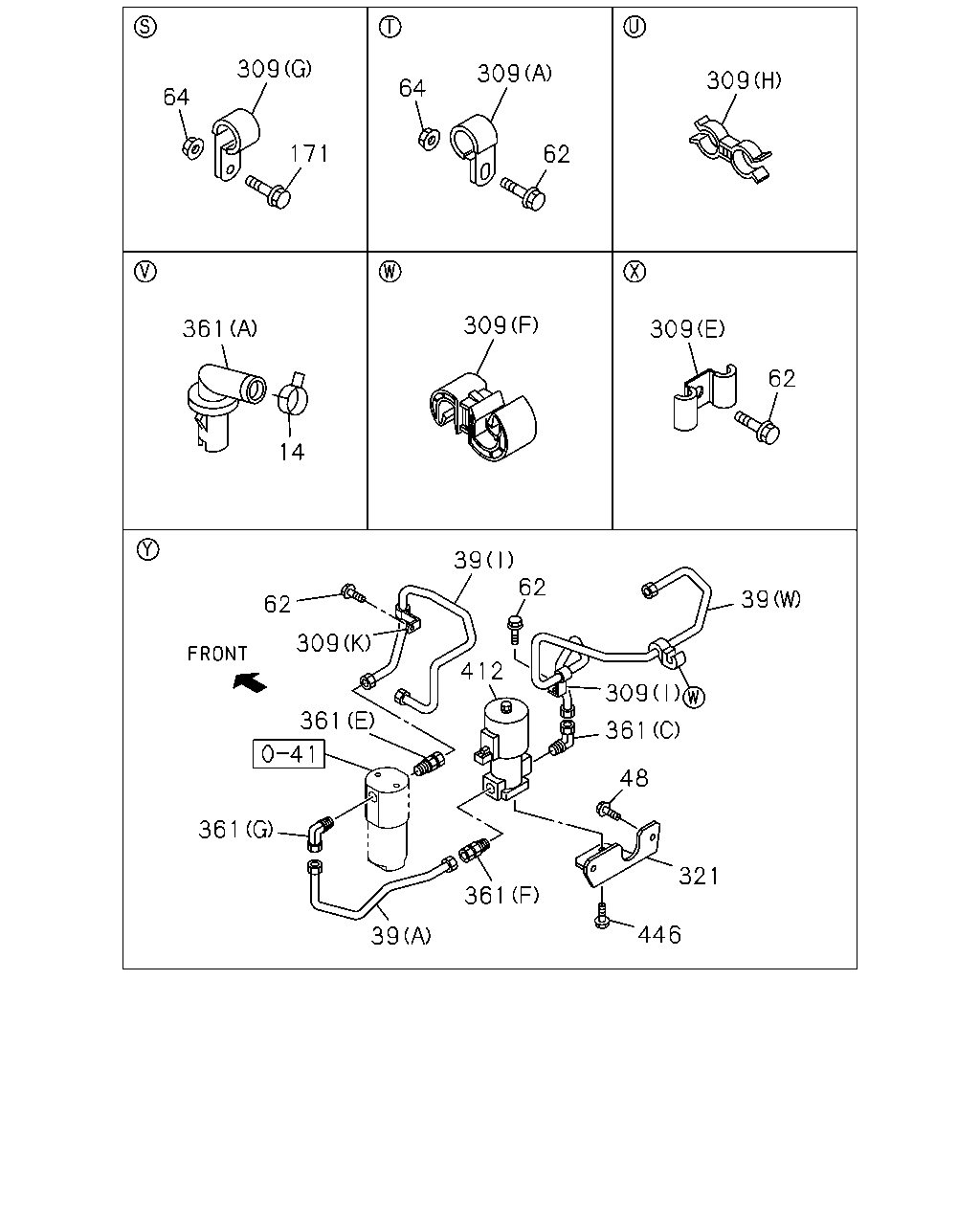

çizim 406470
64 309 171 64 309 62 309 361 14 309 309 62 39 39 62 62 309 361 361 412 361 39 446 321 48 361 309
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=13.8 		8-97306-552-0 04 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
48 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1402-
48 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 04 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1402-
171 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
321 BRACKET; VLV
THA 		8-98239-023-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-
412 VALVE; MAG 8-98237-584-0 01 1 1402-
446 BOLT; CUT VALVE
M8X16 THA 		8-98056-122-0 02 1 1402-

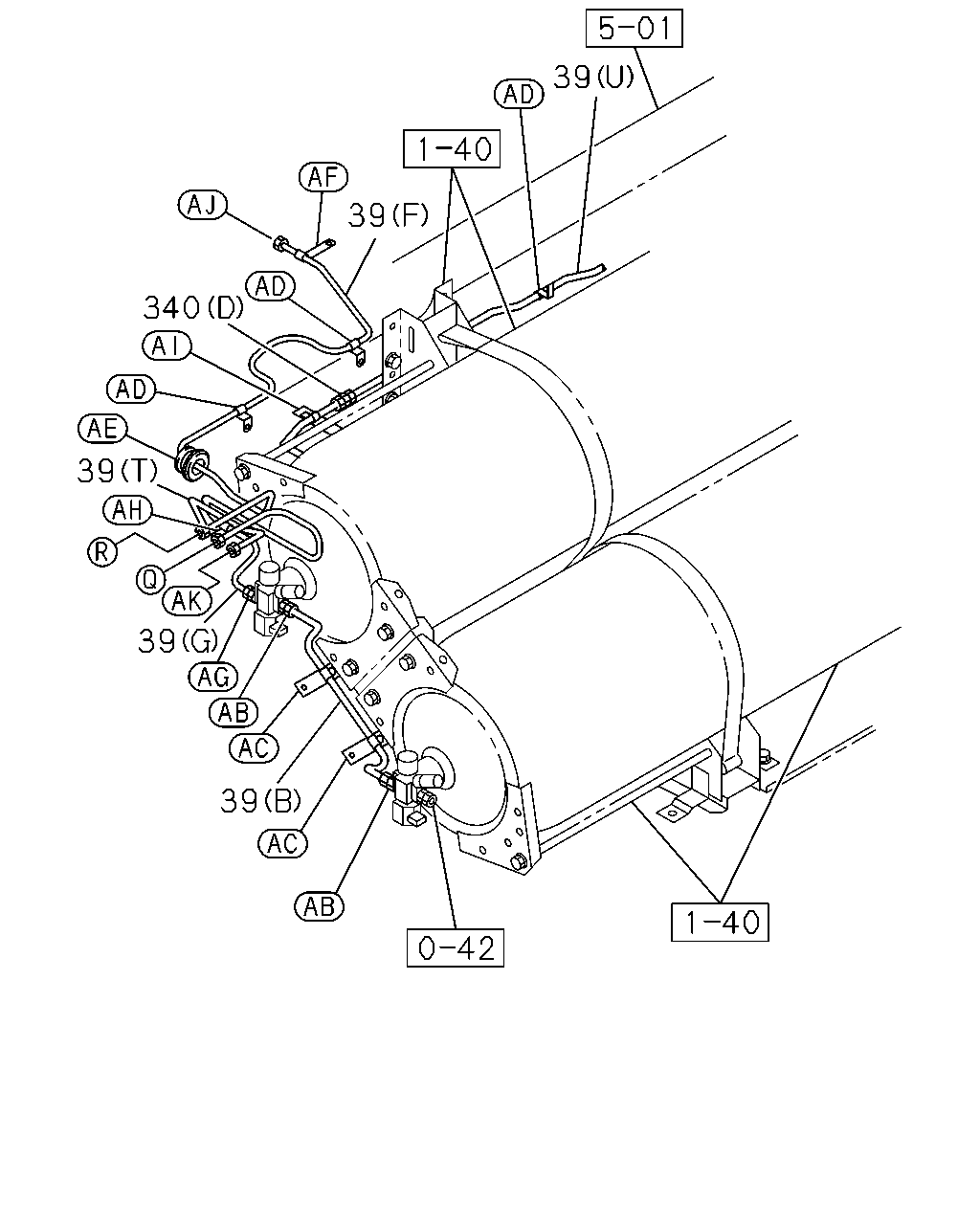

çizim 406511
39 39 39 340 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-

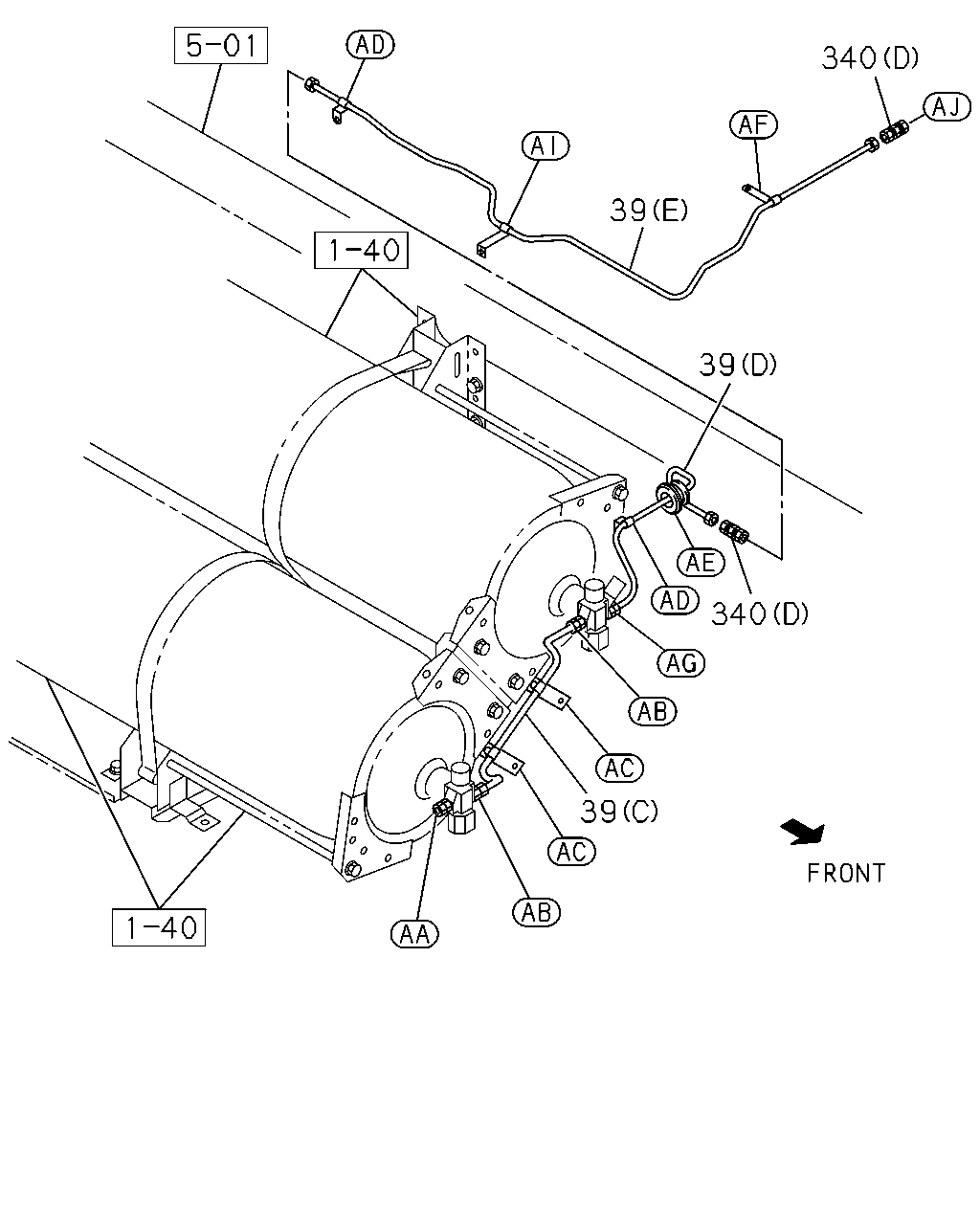

çizim 406534
39 340 39 340 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-

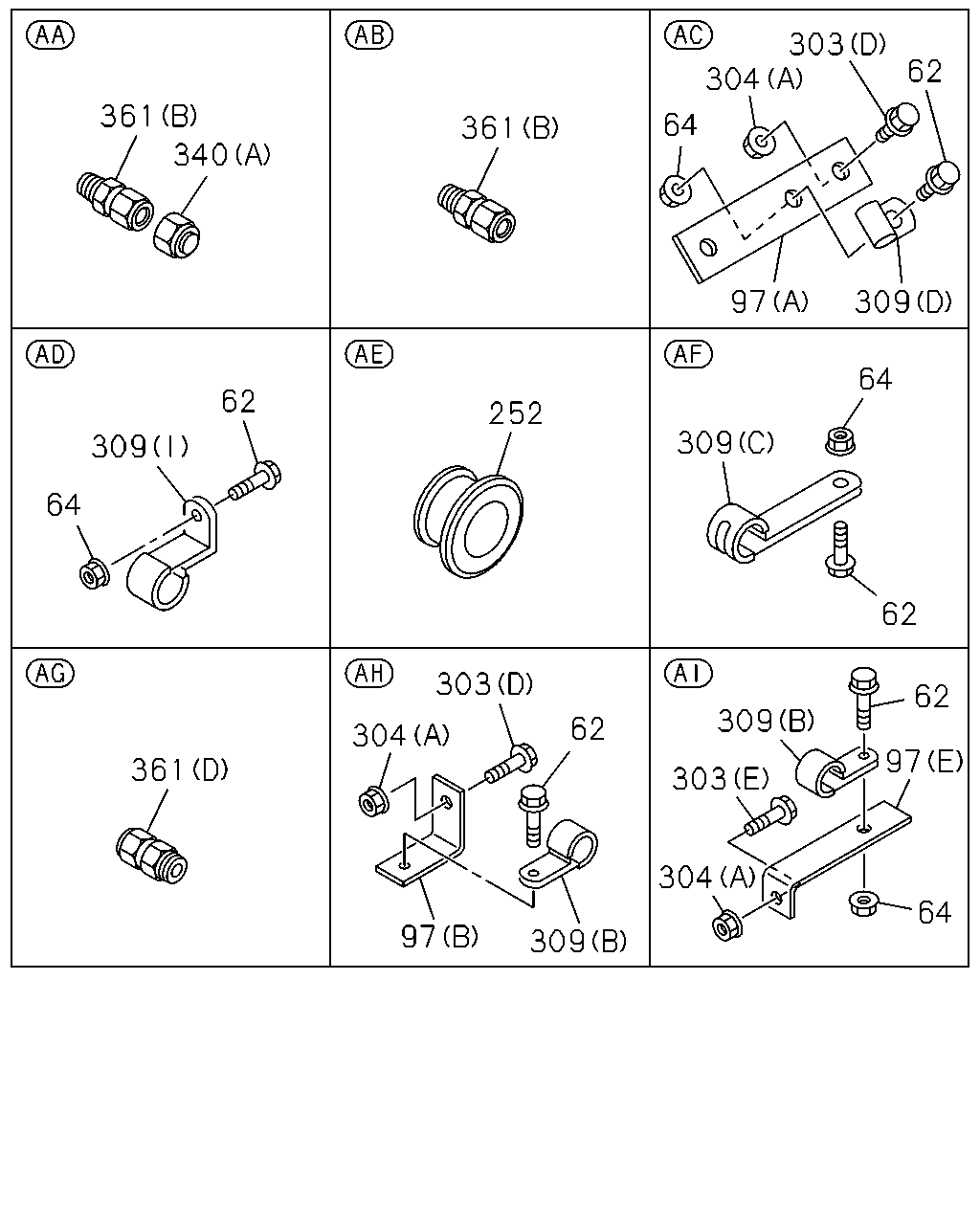

çizim 406541
361 340 361 64 304 303 62 309 97 62 309 64 361 252 309 64 62 303 304 62 97 309 62 309 303 304 97 64
BalonParca AdiParca NoAdetTipApplied Date
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 08 1 1402-
64 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 20 1 1402-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1402-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1402-
252 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 03 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-

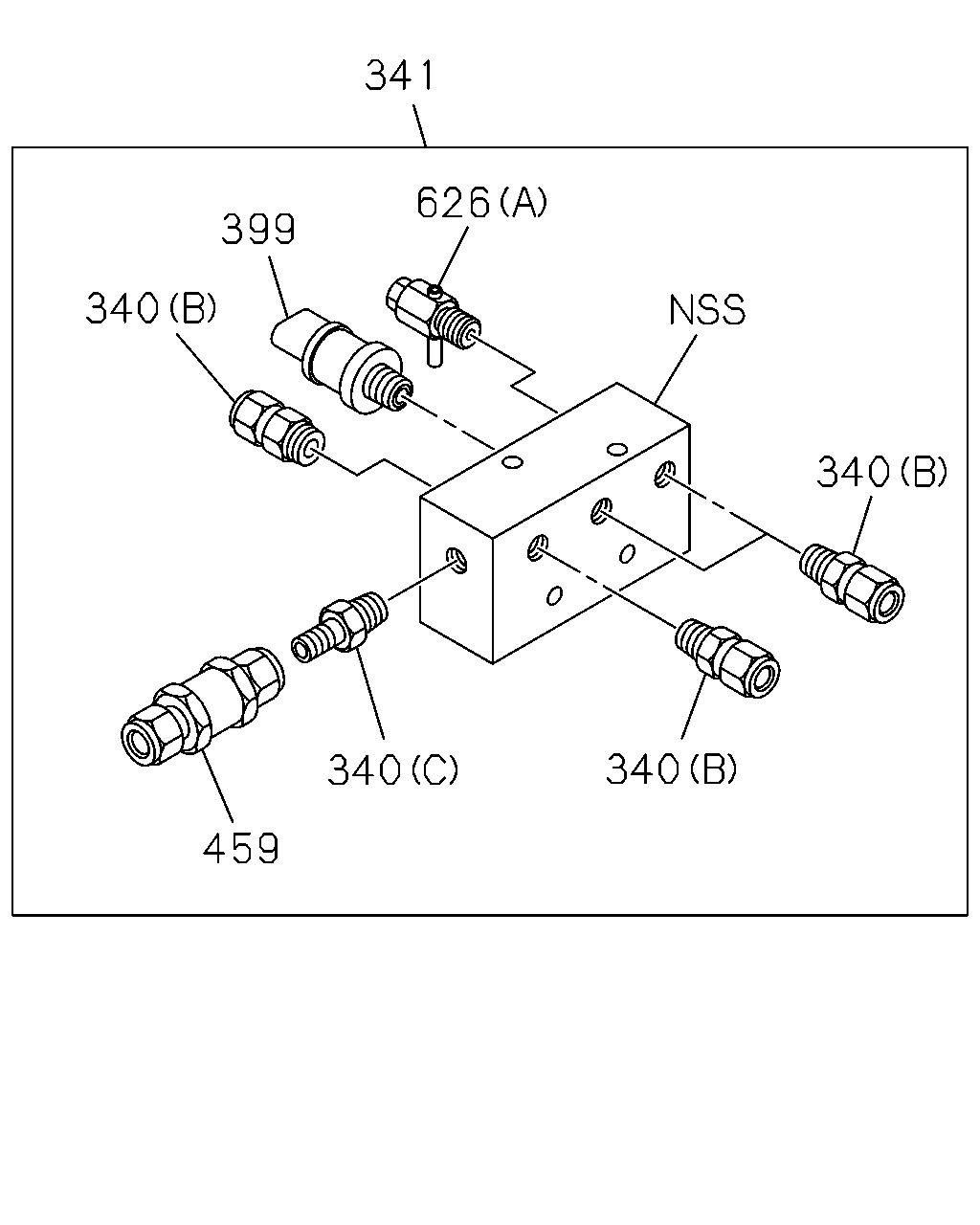

çizim 406728
341 626 399 340 340 459 340 340
BalonParca AdiParca NoAdetTipApplied Date
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
341 MANIFOLD; CNG 8-98176-529-0 01 1 1402-
399 SENSOR; VENT PRESS 8-98108-286-0 01 1 1402-
459 VALVE; CHECK 8-98120-763-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1402-

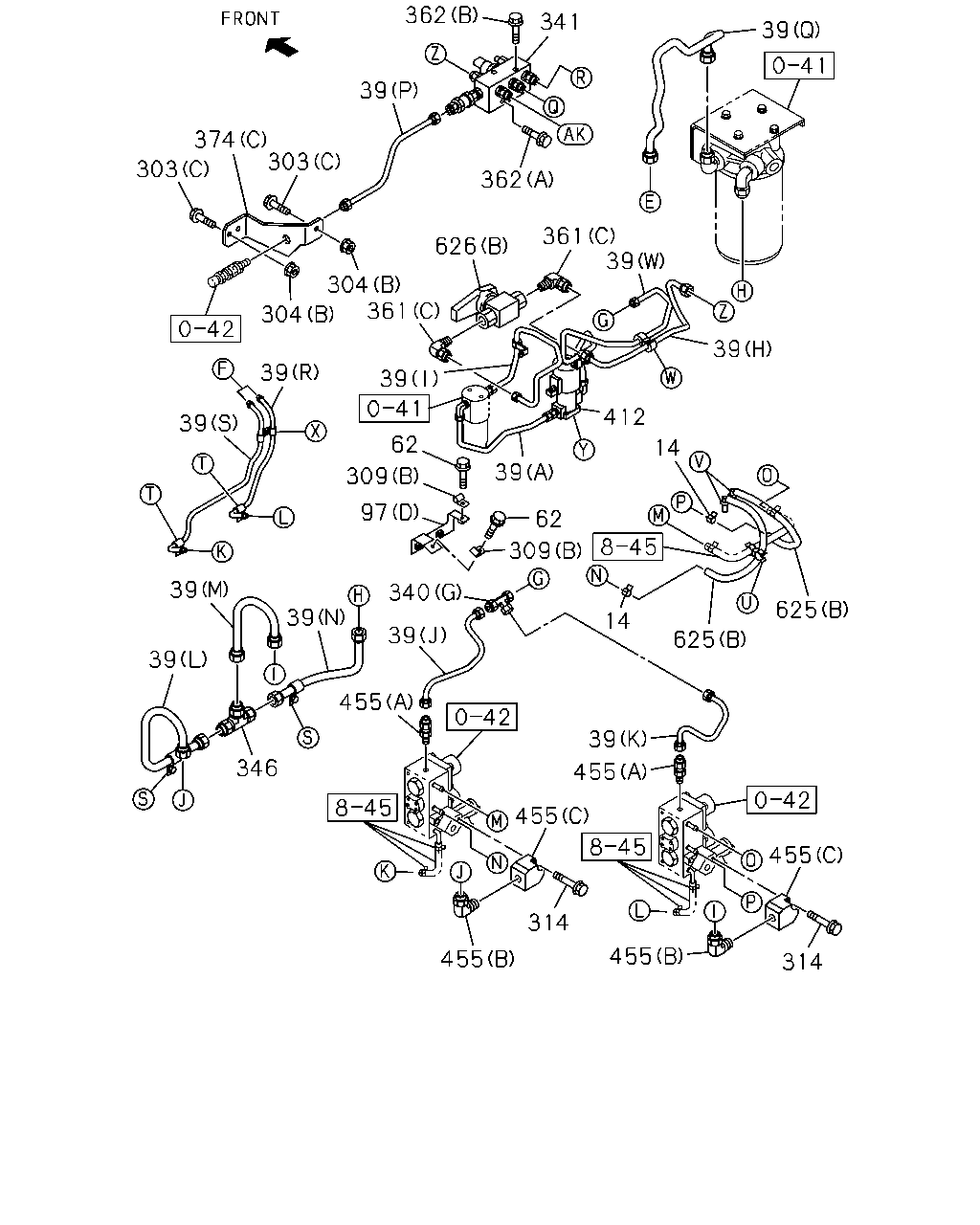

çizim 406849
362 341 39 303 374 303 304 304 361 39 39 39 39 346 455 39 39 340 97 309 39 626 362 361 39 39 39 412 39 62 62 309 14 625 625 14 39 455 455 314 455 455 314 455
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; HOSE
ID=13.8 		8-97306-552-0 04 1 1402-
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 02 1 1402-
62 BOLT; CLIP FIX
M8X20 FLANGE THA 		0-28650-820-0 08 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
62 BOLT; CLIP FIX
M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
62 BOLT; CLIP FIX
M8X30 FLANGE THA 		0-28650-830-0 13 1 1402-
97 BRACKET; CLIP
(E) L=115 B=25 		1-47476-758-0 02 1 1402-
97 BRACKET; CLIP
(D) THA 		8-97637-008-0 01 1 1402-
97 BRACKET; CLIP
(B) THA 		8-98141-102-0 01 1 1402-
97 BRACKET; CLIP
(C) 		8-98163-161-0 01 1 1402-
97 BRACKET; CLIP
(A) 		8-98174-069-0 06 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1402-
303 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 06 1 1402-
303 BOLT; BRKT
(E) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
303 BOLT; BRKT
(C) M8X25 FLANGE THA 		0-28660-825-0 03 1 1402-
303 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28661-030-0 06 1 1402-
303 BOLT; BRKT
(A) M12X40 FLANGE 		0-28661-240-0 04 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 01 1 1402-
304 NUT; BRKT
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1402-
304 NUT; BRKT
(B) M8 FLANGE THA 		0-91180-208-0 03 1 1402-
304 NUT; BRKT
(C) M12 FLANGE THA 		0-91180-212-0 02 1 1402-
309 CLIP; PIPE
(A) ID=9 L=16 		0-95234-825-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 02 1 1402-
309 CLIP; PIPE
(B) ID=11 L=16 		0-95235-025-0 03 1 1402-
309 CLIP; PIPE
(C) ID=11 L=60 		0-95235-096-0 02 1 1402-
309 CLIP; PIPE
(K) ID=11 H=30 L=17 		1-09700-113-0 01 1 1402-
309 CLIP; PIPE
(D) ID=8 H=20 L=20 		1-09700-604-0 06 1 1402-
309 CLIP; PIPE
(E) ID=9 & 9 L=17 & 17 		1-09700-651-0 01 1 1402-
309 CLIP; PIPE
(J) ID=17 		1-09700-840-0 01 1 1402-
309 CLIP; PIPE
(G) ID=17 L=28 		8-94427-862-0 02 1 1402-
309 CLIP; PIPE
(H) ID=13.2 & 14.5 		8-94475-649-0 02 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 01 1 1402-
309 CLIP; PIPE
(I) ID=11 H=20 L=20 		8-98033-780-0 10 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
309 CLIP; PIPE
(F) ID=10 & 10 		1-09709-277-1 01 1 1402-
314 BOLT; FLANGE
M6X60 FLANGE 		0-28050-660-0 02 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
341 MANIFOLD; CNG 8-98176-529-0 01 1 1402-
346 CONNECTOR; 3WAY,CNG 8-97630-849-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(A) 		8-97357-261-0 02 1 1402-
361 CONNECTOR; FUEL TANK
(B) 		8-97630-777-0 08 1 1402-
361 CONNECTOR; FUEL TANK
(C) 		8-97630-845-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(E) 		8-98050-040-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(D) 		8-98050-041-0 03 1 1402-
361 CONNECTOR; FUEL TANK
(F) 		8-98238-227-0 01 1 1402-
361 CONNECTOR; FUEL TANK
(G) 		8-98238-507-0 01 1 1402-
362 BOLT; MANIFOLD
(A) M8X16 FLANGE THA 		0-28050-816-0 02 1 1402-
362 BOLT; MANIFOLD
(B) M8X20 FLANGE THA 		0-28050-820-0 02 1 1402-
374 BRACKET; REGULATOR
(A) THA 		8-97948-486-0 01 1 1402-
374 BRACKET; REGULATOR
(C) 		8-98200-241-0 01 1 1402-
374 BRACKET; REGULATOR
(B) THA 		8-98239-083-1 01 1 1402-
412 VALVE; MAG 8-98237-584-0 01 1 1402-
455 CONNECTOR; REGULATOR
(A) 		8-97630-843-0 02 1 1402-
455 CONNECTOR; REGULATOR
(B) M16 ELBOW 		8-97630-844-0 02 1 1402-
455 CONNECTOR; REGULATOR
(C) 		8-98127-020-1 02 1 1402-
625 HOSE; FUEL,CNG
(B) L=290 SERVICED BY L=3000 		0-03559-300-0 02 1 1402-
625 HOSE; FUEL,CNG
(A) 		8-98163-155-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(A) 		8-97630-824-0 01 1 1402-
626 VALVE; FUEL RECIRCULATION
(B) 		8-97630-825-0 01 1 1402-

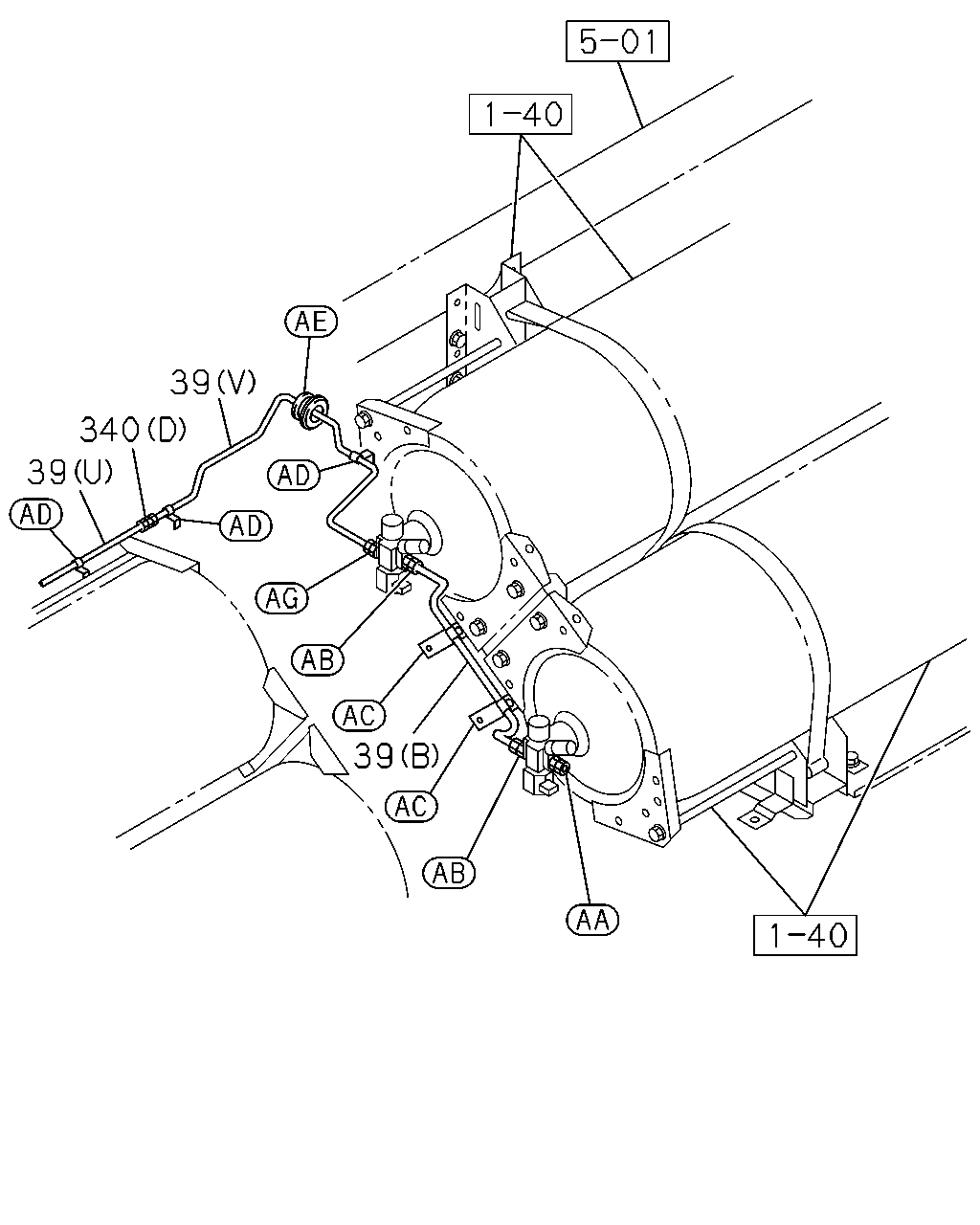

çizim 406903
39 39 340 39
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
(B) 		8-97630-769-1 02 1 1402-
39 PIPE; FUEL
(C) 		8-97630-770-1 01 1 1402-
39 PIPE; FUEL
(G) 		8-97630-775-1 01 1 1402-
39 PIPE; FUEL
(M) 		8-97630-832-1 01 1 1402-
39 PIPE; FUEL
(N) 		8-97630-833-1 01 1 1402-
39 PIPE; FUEL
(R) THA 		8-97631-261-0 01 1 1402-
39 PIPE; FUEL
(S) THA 		8-97631-262-0 01 1 1402-
39 PIPE; FUEL
(J) 		8-97635-470-0 01 1 1402-
39 PIPE; FUEL
(K) 		8-97635-471-0 01 1 1402-
39 PIPE; FUEL
(F) THA 		8-97925-364-0 01 1 1402-
39 PIPE; FUEL
(E) THA 		8-97925-365-0 01 1 1402-
39 PIPE; FUEL
(D) THA 		8-97925-366-0 01 1 1402-
39 PIPE; FUEL
(T) THA 		8-97925-367-0 01 1 1402-
39 PIPE; FUEL
(U) THA 		8-97925-368-0 01 1 1402-
39 PIPE; FUEL
(V) THA 		8-97925-369-0 01 1 1402-
39 PIPE; FUEL
(H) 		8-98163-150-0 01 1 1402-
39 PIPE; FUEL
(L) 		8-98163-152-0 01 1 1402-
39 PIPE; FUEL
(Q) 		8-98163-153-0 01 1 1402-
39 PIPE; FUEL
(P) 		8-98200-243-0 01 1 1402-
39 PIPE; FUEL
(A) THA 		8-98239-012-0 01 1 1402-
39 PIPE; FUEL
(I) THA 		8-98241-199-0 01 1 1402-
39 PIPE; FUEL
(W) THA 		8-98241-200-0 01 1 1402-
39 PIPE; FUEL
(O) THA 		8-98241-201-0 01 1 1402-
340 CONNECTOR; CNG
(A) 		8-97630-779-0 02 1 1402-
340 CONNECTOR; CNG
(B) 		8-97630-843-0 04 1 1402-
340 CONNECTOR; CNG
(C) 		8-98050-033-0 01 1 1402-
340 CONNECTOR; CNG
(G) 		8-98050-034-0 01 1 1402-
340 CONNECTOR; CNG
(D) 		8-98050-043-0 04 1 1402-
340 CONNECTOR; CNG
(E) 		8-98144-428-0 01 1 1402-
340 CONNECTOR; CNG
(F) 		8-98157-111-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
