Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#133812) — 56 parça

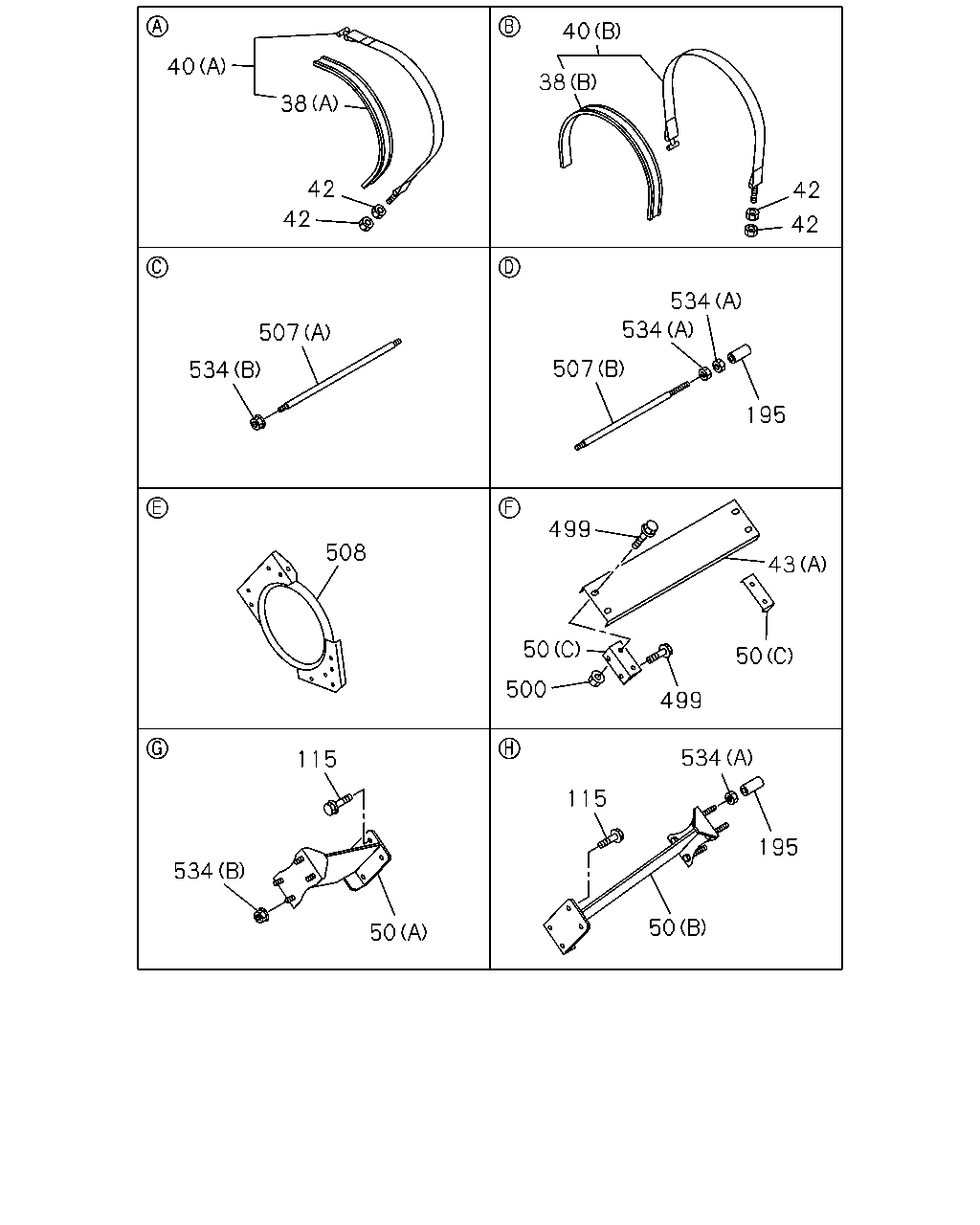

38 40 38 40 42 42 42 42 534 534 507 195 507 534 508 115 534 50 115 50 195 534 499 500 499 50 50 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	INSULATION; SUPPORT BELT (A) L=540 THA	1-22553-014-2	06	1	1402-
38	INSULATION; SUPPORT BELT (B)	1-22553-025-1	06	1	1402-
40	BELT; SUPPORT,FUEL TANK (A) THA	8-98050-304-0	06	1	1402-
40	BELT; SUPPORT,FUEL TANK (B) THA	8-98050-305-1	06	1	1402-
42	NUT; SUPPORT BELT M10 THA	0-91110-510-0	24	1	1402-
43	BRACKET; FUEL TANK WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-416-0	01	1	1402-
43	BRACKET; FUEL TANK (B) THA	8-98126-506-4	03	1	1402-
43	BRACKET; FUEL TANK (A) THA	8-98126-563-0	01	1	1402-
43	BRACKET; FUEL TANK (C) THA	8-98137-147-3	03	1	1402-
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1402-
43	BRACKET; FUEL TANK WHEEL BASE 7100MM<71W> (A) REAR THA	8-98050-251-0	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-412-0	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 6300MM<63W> (B) REAR THA	8-97925-413-0	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT (B) THA	8-97633-885-2	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT (C) THA	8-98050-250-0	06	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT (A) THA	8-98126-564-3	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT (B) FRONT THA	8-97633-884-1	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 7100MM<71W> (B) REAR THA	8-97633-884-1	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT (A) FRONT THA	8-98126-508-2	01	1	1402-
50	BRACKET; SUPPORT,FUEL BRKT WHEEL BASE 7100MM<71W> (A) REAR THA	8-98126-508-2	01	1	1402-
115	BOLT; BRKT M10X25 FLANGE THA	0-28051-025-0	24	1	1402-
195	RUBBER; CUSHION,TANK CARRIER ID=9.0	8-94207-303-0	18	1	1402-
499	BOLT; STAY M10X25 FLANGE THA	0-28051-025-0	24	1	1402-
500	NUT; STAY M10 FLANGE THA	0-91180-110-0	12	1	1402-
507	ROD WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-414-0	02	1	1402-
507	ROD WHEEL BASE 6300MM<63W> (B) REAR THA	8-97925-415-0	02	1	1402-
507	ROD (A) REAR THA	8-97633-887-1	02	1	1402-
507	ROD (A) REAR THA	8-98126-566-1	02	1	1402-
507	ROD (B) FRONT THA	8-97633-886-0	02	1	1402-
507	ROD WHEEL BASE 7100MM<71W> (B) REAR THA	8-97633-886-0	02	1	1402-
507	ROD (A) FRONT THA	8-98126-511-0	02	1	1402-
507	ROD WHEEL BASE 7100MM<71W> (A) REAR THA	8-98126-511-0	02	1	1402-
508	STOPPER THA	8-97925-339-0	12	1	1402-
534	NUT; STOPPER (A) M10 THA	0-91110-510-0	36	1	1402-
534	NUT; STOPPER (B) M10 FLANGE THA	0-91180-110-0	18	1	1402-

1 1

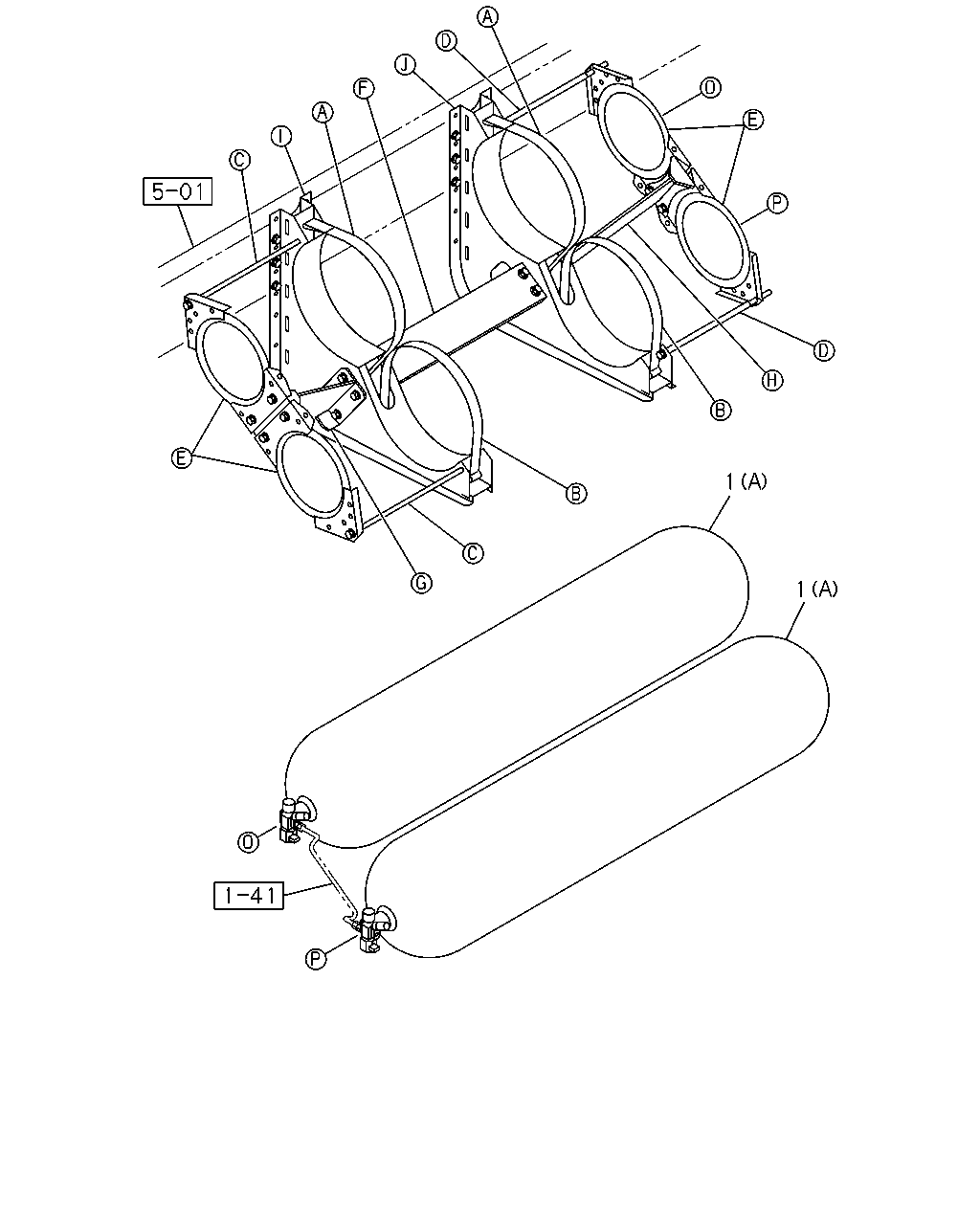

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-97948-412-0	02	1	1402-
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-97948-413-0	04	1	1402-
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-97948-413-0	06	1	1402-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-97948-412-0	02	1	1402-
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-97948-413-0	04	1	1402-
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-97948-413-0	06	1	1402-

322 49 460 43 43 49 460 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	BRACKET; FUEL TANK WHEEL BASE 6300MM<63W> (A) REAR THA	8-97925-416-0	01	1	1402-
43	BRACKET; FUEL TANK (B) THA	8-98126-506-4	03	1	1402-
43	BRACKET; FUEL TANK (A) THA	8-98126-563-0	01	1	1402-
43	BRACKET; FUEL TANK (C) THA	8-98137-147-3	03	1	1402-
43	BRACKET; FUEL TANK (A) FRONT THA	8-98050-251-0	01	1	1402-
43	BRACKET; FUEL TANK WHEEL BASE 7100MM<71W> (A) REAR THA	8-98050-251-0	01	1	1402-
49	NUT; BRKT M12 FLANGE THA	0-91180-212-0	36	1	1402-
322	BOLT; BRKT FIX M12X45 FLANGE	0-28061-245-0	36	1	1402-
460	WASHER; PL,BRKT ID=12.5 OD=32	0-91614-712-0	36	1	1402-

1 1

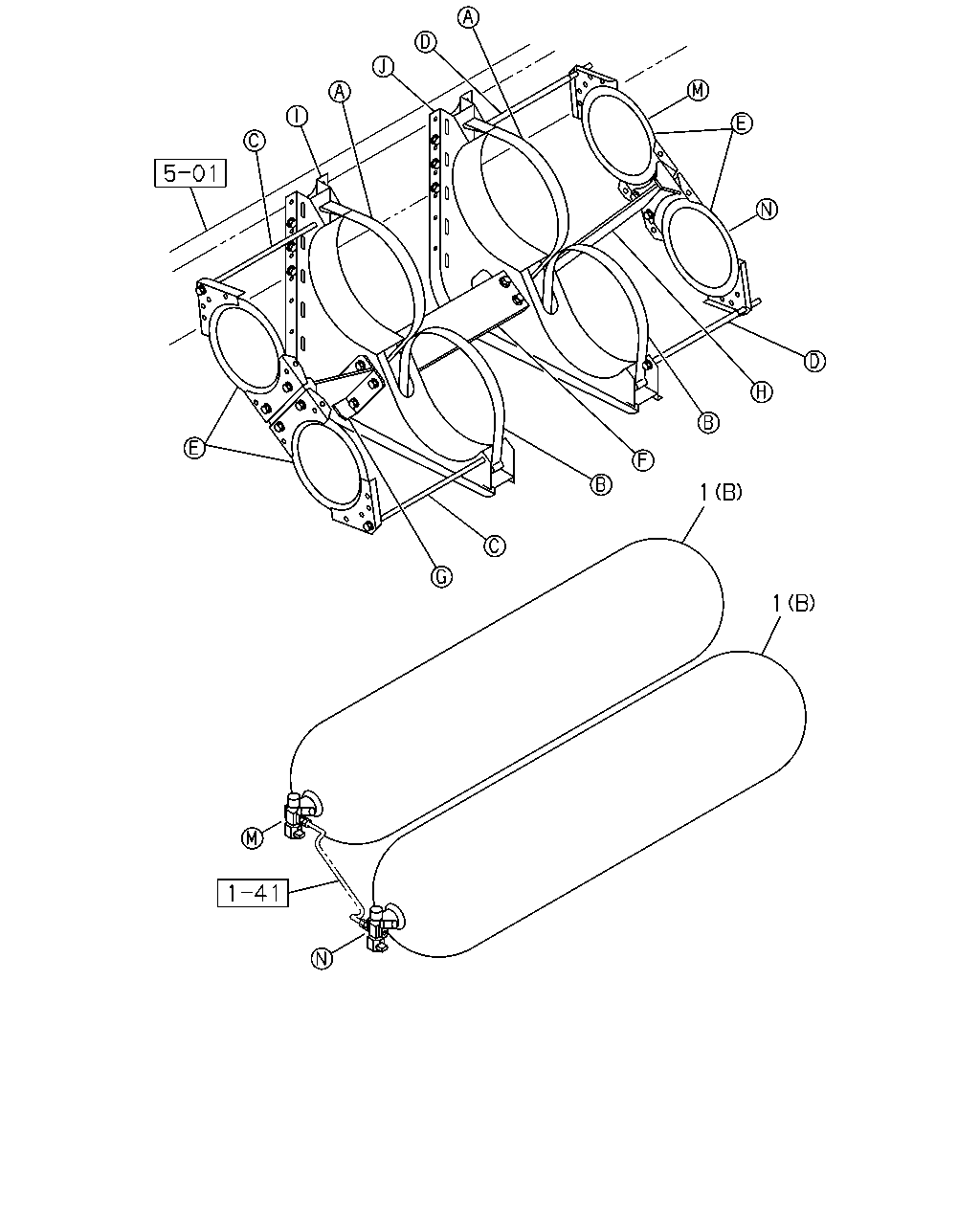

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-97948-412-0	02	1	1402-
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-97948-413-0	04	1	1402-
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-97948-413-0	06	1	1402-

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL WHEEL BASE 6300MM<63W> (B) OD=356 L=1120 90L THA	8-97948-412-0	02	1	1402-
1	TANK; FUEL WHEEL BASE 6300MM<63W> (A) OD=356 L=1660 140L THA	8-97948-413-0	04	1	1402-
1	TANK; FUEL WHEEL BASE 7100MM<71W> (A) OD=356 L=1660 140L THA	8-97948-413-0	06	1	1402-
