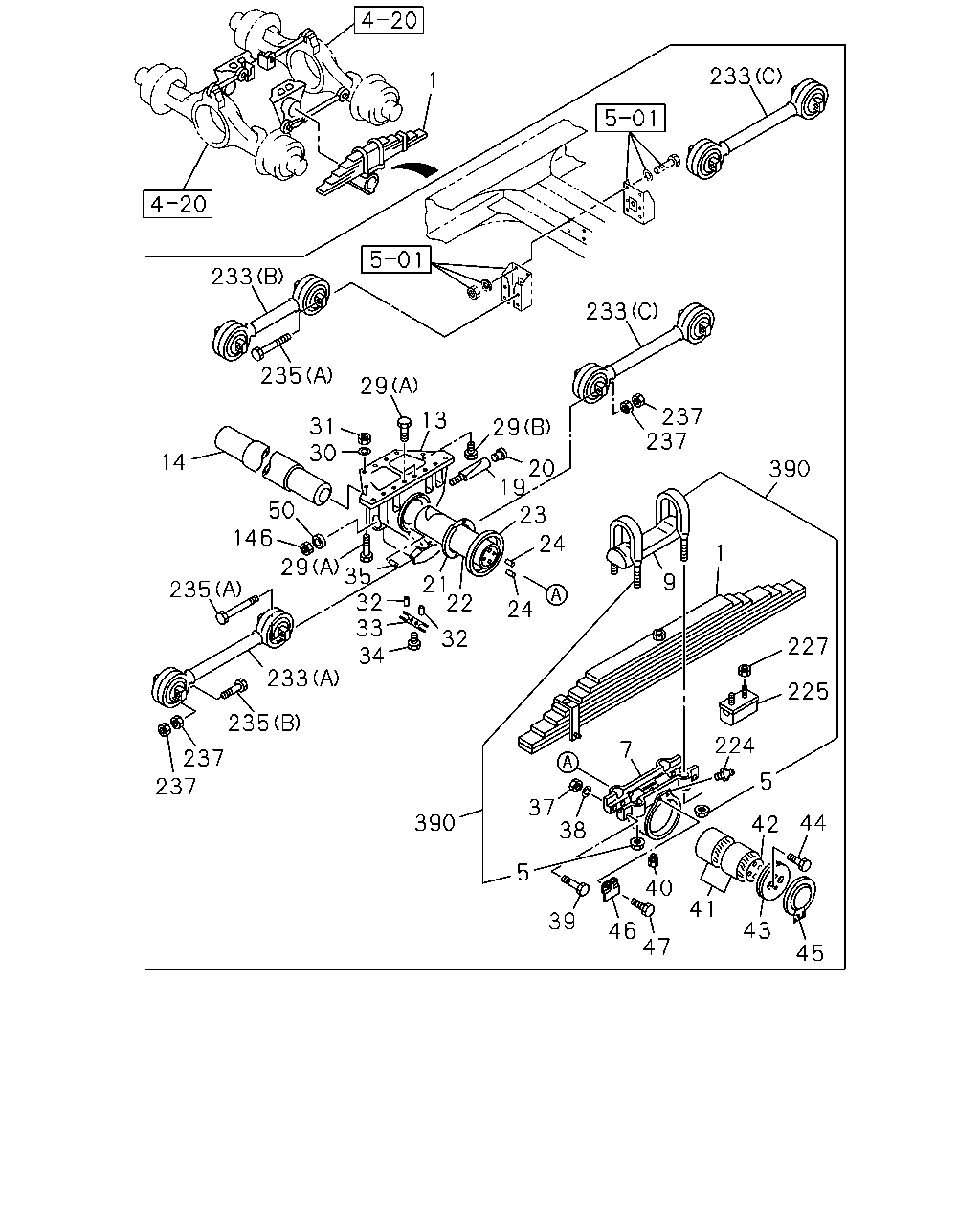

4-60 — REAR SUSPENSION (#13380) — 114 parça

237 237 390 1 9 24 23 19 20 29 13 29 235 233 14 31 30 50 146 29 235 35 21 22 24 32 32 33 34 233 235 237 237 390 5 37 7 224 227 225 38 39 46 47 40 41 43 45 44 42 5 233 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-055-1	02	1	0105-0209	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-055-1	02	1	0105-0209	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) EXC. SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-055-1	02	1	0105-0209	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SINGAPORE EQUIPMENT(WQ3),RR TIRE 12.00-20<98X> 9-LEAF	1-51410-055-1	02	1	0105-0209		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-294-0	02	1	0210-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-294-0	02	1	0210-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) EXC. SINGAPORE EQUIPMENT(WQ3) 9-LEAF	1-51410-294-0	02	1	0210-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. SINGAPORE EQUIPMENT(WQ3),RR TIRE 12.00-20<98X> 9-LEAF	1-51410-294-0	02	1	0210-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SINGAPORE EQUIPMENT(WQ3) 8-LEAF	1-51310-432-3	02	1	0105-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) 8-LEAF	1-51310-880-0	02	1	0105-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 5900MM(59W) SINGAPORE EQUIPMENT(WQ3) EXC. RR TIRE 12.00-20<98X> 8-LEAF	1-51310-880-0	02	1	0105-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. RR TIRE 12.00-20<98X> EXC. SINGAPORE EQUIPMENT(WQ3) 10-LEAF	1-51310-844-0	02	1	0105-		●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0105-	●	●
7	SEAT; SPR,LWR	1-51385-091-2	02	1	0105-0604	●	●
7	SEAT; SPR,LWR	8-97614-049-0	02	1	0605-	●	●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0105-	●	●
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	0105-	●	●
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	0105-	●	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0105-	●	●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	0105-	●	●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	0105-	●	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0105-	●	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0105-	●	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0105-	●	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0105-	●	●
29	BOLT; BRKT TO FRAME (A) M18X75	1-09000-221-2	24	1	0105-	●
29	BOLT; BRKT TO FRAME EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M18X75	1-09000-221-2	24	1	0105-		●
29	BOLT; BRKT TO FRAME (B) M18X55	9-92061-855-0	04	1	0105-	●	●
29	BOLT; BRKT TO FRAME FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (A) M18X80	1-09000-428-1	24	1	0105-		●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	AR	1	0105-	●	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	0105-0512	●	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0601-	●	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	0105-	●	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0105-	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	0105-0512	●	●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0601-	●	●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0105-	●	●
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	0105-0512	●	●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0601-	●	●
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	0105-0603	●	●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0604-	●	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0105-	●	●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0105-	●	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0105-	●	●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0105-	●	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0105-	●	●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	0105-	●	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	0105-	●	●
46	BRACKET; COVER	1-51387-015-2	02	1	0105-	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	0105-0512	●	●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0601-	●	●
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	0105-	●	●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	0105-0512	●	●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0601-	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	0105-0512	●	●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD RH, REARWARD LH	1-53366-045-0	02	1	0105-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MIXER TRUCK<RA2> FORWARD LH, REARWARD RH	1-53366-046-0	02	1	0105-	●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD RH, REARWARD LH	1-53366-072-1	02	1	0105-	●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD RH, REARWARD LH	1-53366-072-1	02	1	0105-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FORWARD RH, REARWARD LH	1-53366-072-1	02	1	0105-		●
225	RUBBER; CUSHION,RR SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) FORWARD LH, REARWARD RH	1-53366-073-1	02	1	0105-	●	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> FORWARD LH, REARWARD RH	1-53366-073-1	02	1	0105-	●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FORWARD LH, REARWARD RH	1-53366-073-1	02	1	0105-		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	0105-0602	●	●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-	●	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD L=550	1-51511-659-0	03	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (C) REARWARD L=550	1-51511-659-0	03	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) FORWARD LOWER L=525	1-51511-656-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP PE-SERIES ENG<1A0> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP PE-SERIES ENG<1A0> (A) FORWARD LOWER L=535	1-51511-657-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (B) FORWARD UPPER L=580	1-51511-661-0	01	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (A) FORWARD LOWER L=560	1-51511-669-0	02	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (C) REARWARD L=585	1-51511-672-0	03	1	0105-		●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	0105-	●	●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	0105-	●	●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	0105-	●	●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3) L=350	1-87870-392-1	04	1	0105-	●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) SINGAPORE EQUIPMENT(WQ3) L=350	1-87870-392-1	04	1	0105-	●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) EXC. SINGAPORE EQUIPMENT(WQ3) L=350	1-87870-392-1	04	1	0105-	●
390	U-BOLT SET; RR SPRING EXC. SINGAPORE EQUIPMENT(WQ3),RR TIRE 12.00-20<98X> L=350	1-87870-392-1	04	1	0105-		●
390	U-BOLT SET; RR SPRING WHEEL BASE 4500MM(45W) EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SINGAPORE EQUIPMENT(WQ3) L=330	1-87870-164-3	04	1	0105-	●
390	U-BOLT SET; RR SPRING WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) L=310	1-87870-166-3	04	1	0105-	●
390	U-BOLT SET; RR SPRING WHEEL BASE 5900MM(59W) SINGAPORE EQUIPMENT(WQ3) L=310	1-87870-166-3	04	1	0105-		●
390	U-BOLT SET; RR SPRING RR TIRE 12.00-20<98X> EXC. SINGAPORE EQUIPMENT(WQ3) L=370	1-87870-217-3	04	1	0105-		●

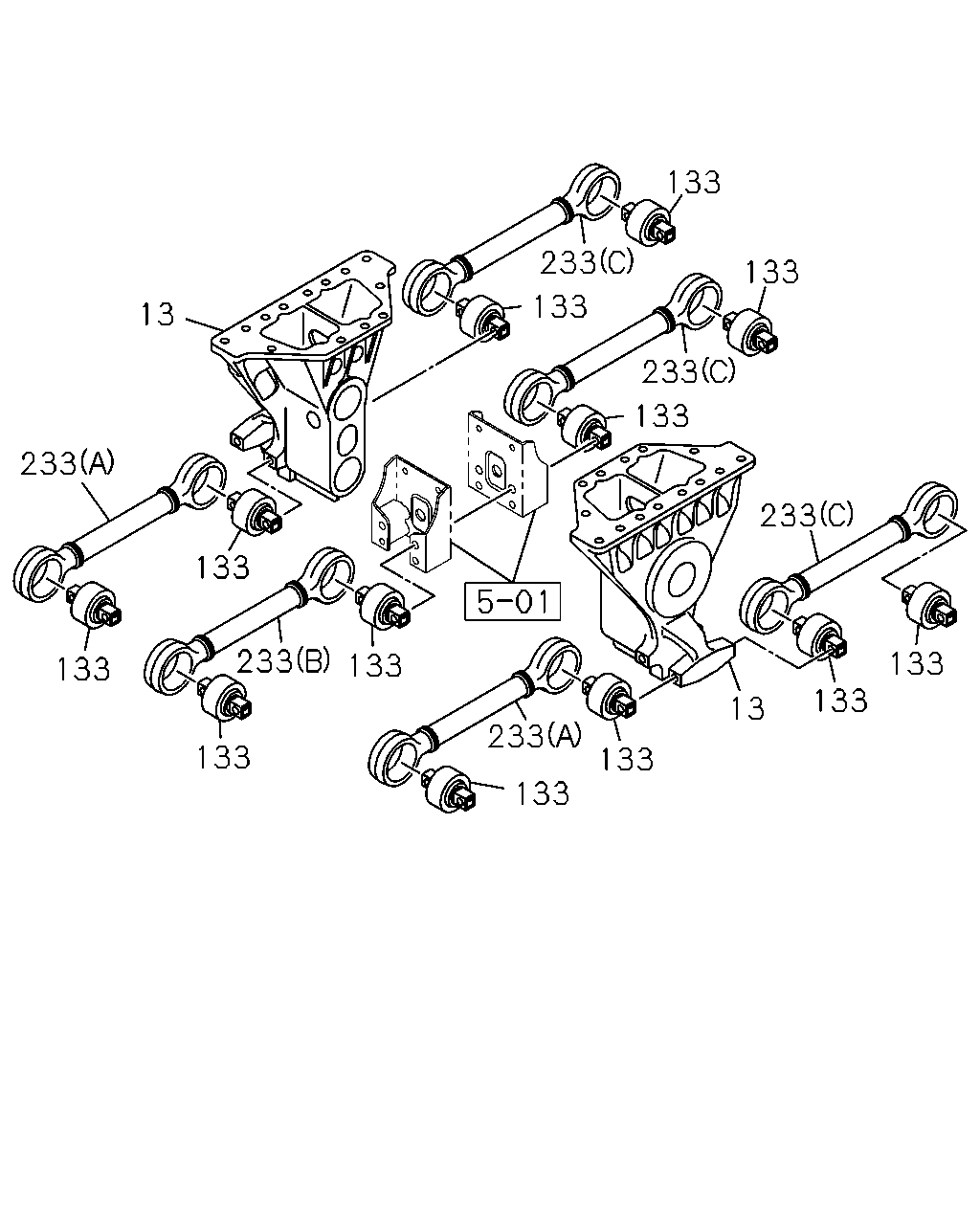

13 233 133 133 133 233 133 133 133 133 233 133 233 233 133 133 13 133 133 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BRACKET; TRUNNION SHAFT NEW ZEALAND EQUIPMENT(PK5)	1-53361-079-0	02	1	0105-	●	●
13	BRACKET; TRUNNION SHAFT EXC. NEW ZEALAND EQUIPMENT(PK5)	1-53361-065-0	02	1	0105-	●	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	06	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> OD=105	1-51519-113-1	06	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0105-		●
133	BUSHING; RUBBER,TORQUE ROD EXC. RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	06	1	0105-		●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> W-SERIES ENG<1A2> OD=105	1-51519-113-1	02	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD PE-SERIES ENG<1A0> OD=105	1-51519-113-1	02	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> W-SERIES ENG<1A2> OD=105	1-51519-113-1	04	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD PE-SERIES ENG<1A0> OD=105	1-51519-113-1	04	1	0105-	●
133	BUSHING; RUBBER,TORQUE ROD CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> OD=105	1-51519-113-1	12	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD L=550	1-51511-659-0	03	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (C) REARWARD L=550	1-51511-659-0	03	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) FORWARD LOWER L=525	1-51511-656-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP PE-SERIES ENG<1A0> (B) FORWARD UPPER L=525	1-51511-656-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP PE-SERIES ENG<1A0> (A) FORWARD LOWER L=535	1-51511-657-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (A) FORWARD LOWER L=515	1-51511-655-0	02	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	0105-	●
233	ROD ASM; TORQUE,RR SUSP EXC. RR TIRE 12.00-20<98X> (B) FORWARD UPPER L=535	1-51511-657-0	01	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (B) FORWARD UPPER L=580	1-51511-661-0	01	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (A) FORWARD LOWER L=560	1-51511-669-0	02	1	0105-		●
233	ROD ASM; TORQUE,RR SUSP CAB UP +110MM<TGG> W-SERIES ENG<1A2> RR TIRE 12.00-20<98X> (C) REARWARD L=585	1-51511-672-0	03	1	0105-		●
