Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#133797) — 33 parça
◀
[042A] NO.1 (12 parça)
[042A] NO.2 (9 parça)
[042A] NO.3 (12 parça)
▶

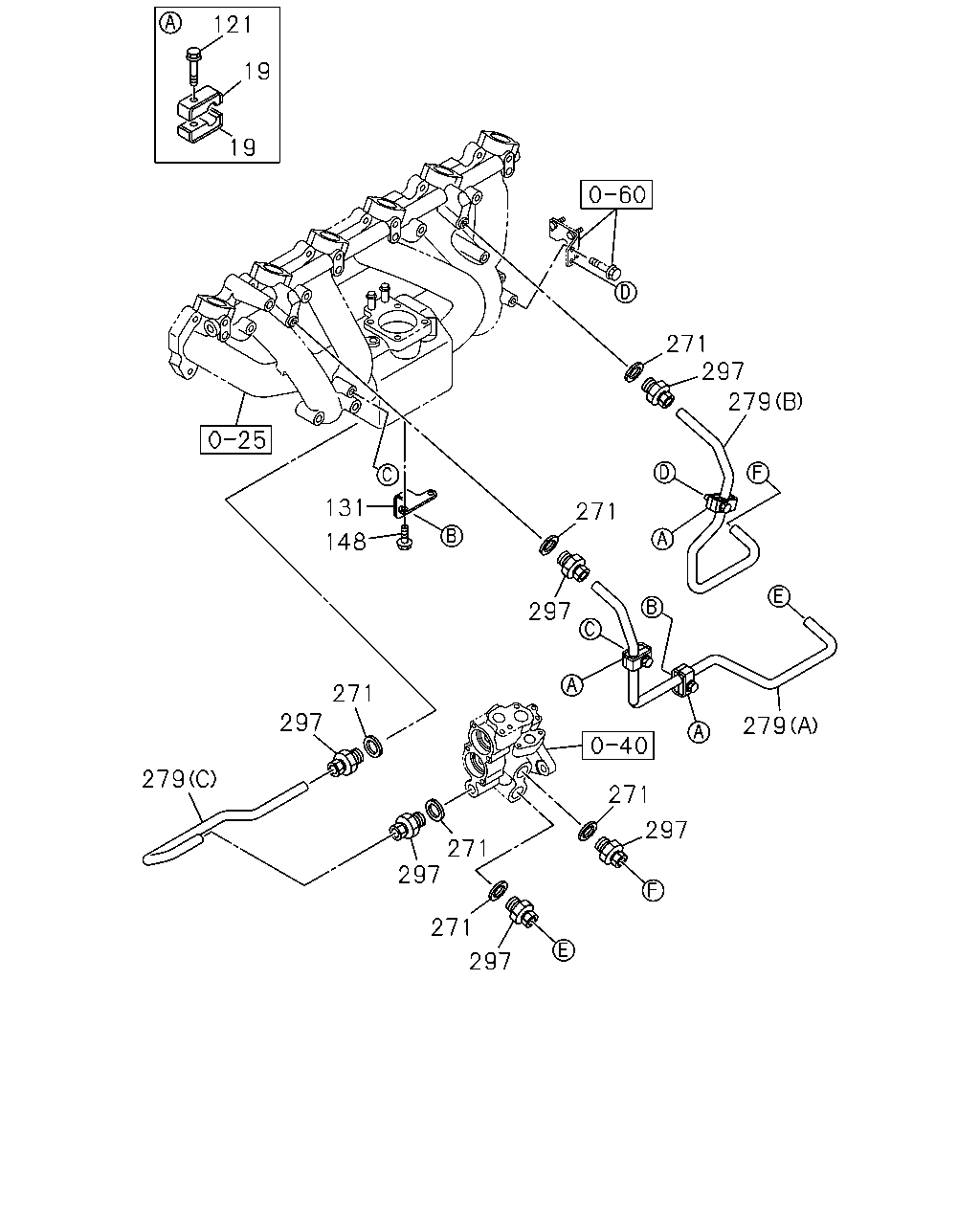

279
297
271
297
271
297
271
271
297
279
297
271
148
131
279
297
271
19
19
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
CLIP; FUEL PIPE
1-09701-282-0
06
1
1402-
121
BOLT; CLIP
M6X40 FLANGE
0-28650-640-0
03
1
1402-
131
BRACKET; FUEL PIPE CLIP
8-98121-158-0
01
1
1402-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
271
GASKET; CONNECTOR
8-98121-157-0
06
1
1402-
279
PIPE; FUEL,CNG
(A)
8-98121-153-1
01
1
1402-
279
PIPE; FUEL,CNG
(B)
8-98121-154-1
01
1
1402-
279
PIPE; FUEL,CNG
(C)
8-98121-155-1
01
1
1402-
279
PIPE; FUEL,CNG
(D)
8-98201-390-0
01
1
1402-
297
CONNECTOR
8-98121-156-0
06
1
1402-1404
297
CONNECTOR
8-98241-128-0
06
1
1405-

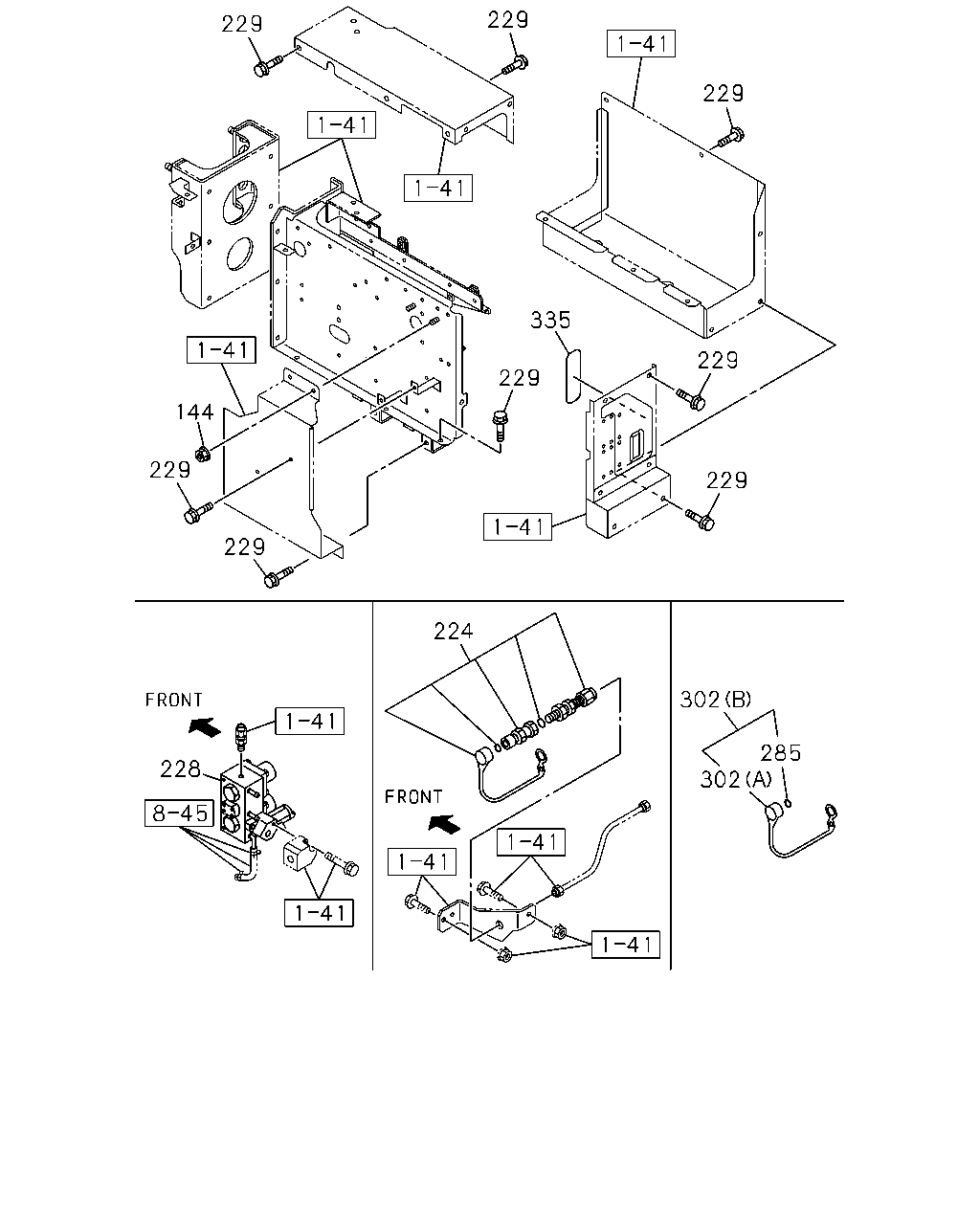

229
229
335
229
229
229
229
144
229
229
224
302
302
285
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
144
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
05
1
1402-
224
COUPLER; FUEL CHARGE
THA
8-97948-435-0
01
1
1402-
228
REGULATOR ASM; CNG
8-98127-565-2
02
1
1402-
229
BOLT; REGULATOR
M6X12 FLANGE THA
0-28050-612-0
06
1
1402-
229
BOLT; REGULATOR
M8X20 FLANGE THA
0-28650-820-0
24
1
1402-
285
SEAL; COUPLER
THA
8-97948-385-0
01
1
1402-
302
CAP; COUPLER
(A) THA
8-97948-386-0
01
1
1402-
302
CAP; COUPLER
(B) THA
8-97948-387-0
01
1
1402-
335
SEAL; PROTECT
8-98090-873-1
01
1
1402-
291
226
148
152
266
199
279
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
148
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1402-
152
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
01
1
1402-
199
CONNECTOR; PIPE
(A)
8-98201-461-0
01
1
1402-
199
CONNECTOR; PIPE
(B)
8-98201-462-0
01
1
1402-
226
METER; FUEL PRESSURE
8-98201-397-0
01
1
1402-
266
BRACKET; VLV
THA
8-98216-166-0
01
1
1402-
279
PIPE; FUEL,CNG
(A)
8-98121-153-1
01
1
1402-
279
PIPE; FUEL,CNG
(B)
8-98121-154-1
01
1
1402-
279
PIPE; FUEL,CNG
(C)
8-98121-155-1
01
1
1402-
279
PIPE; FUEL,CNG
(D)
8-98201-390-0
01
1
1402-
291
COVER; REG
8-98201-445-0
01
1
1402-
