Sayfa 4-55 - Isuzu EPC

4-55 — FRONT LEAF SPRING (#13379) — 221 parça

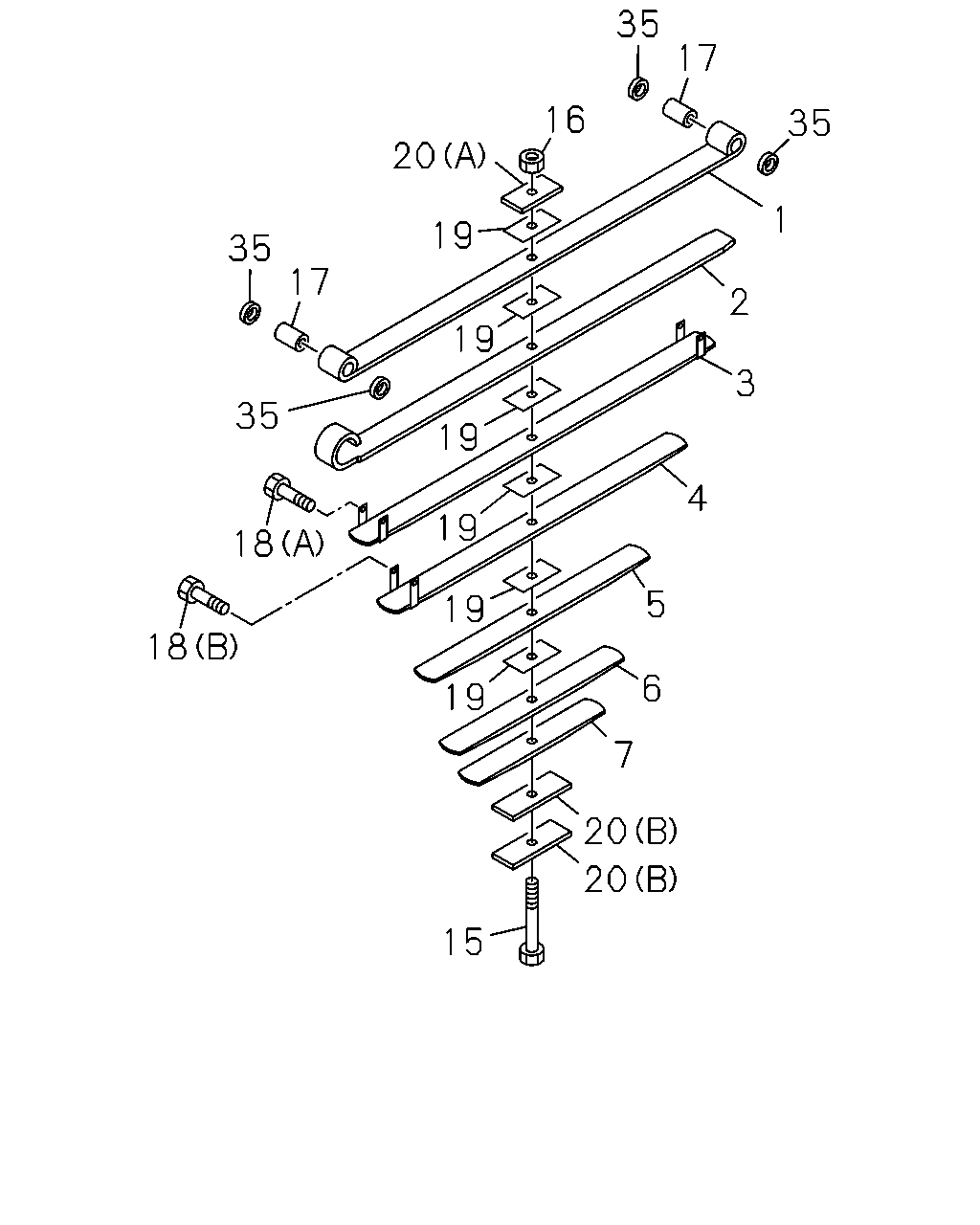

35 17 35 19 20 16 17 35 35 1 2 3 4 5 6 7 20 20 15 19 19 19 19 19 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-797-0	1-51131-797-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-800-0	1-51131-800-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-847-0	1-51131-847-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-797-0	1-51132-797-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-800-0	1-51132-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-847-0	1-51132-847-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-797-0	1-51133-797-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-800-0	1-51133-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: E = 1-51130-847-0	1-51133-847-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-797-0	1-51134-797-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-798-0	1-51134-798-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-799-0	1-51134-799-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-800-0	1-51134-800-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-797-0	1-51135-797-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51135-798-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51135-799-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: D = 1-51130-800-0	1-51135-800-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-797-0	1-51136-797-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-798-0	1-51136-798-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-799-0	1-51136-799-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-800-0	1-51136-800-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-797-0	1-51137-797-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-798-0	1-51137-798-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-799-0	1-51137-799-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-800-0	1-51137-800-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-797-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: C = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: D = 1-51130-800-0	1-51156-358-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51130-847-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: E = 1-51130-847-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-51351-036-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: E = 1-51130-847-0	1-51351-043-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X97 ASM PART: B = 1-51130-798-0, C = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X98 ASM PART: E = 1-51130-847-0	1-09000-325-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: D = 1-51130-800-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-797-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-797-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-797-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 1-51130-847-0	1-51177-339-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: C = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-797-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: D = 1-51130-800-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-797-0	1-51177-161-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=13 ASM PART: E = 1-51130-847-0	1-51177-295-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=13 ASM PART: E = 1-51130-847-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=11 ASM PART: E = 1-51130-847-0	1-51177-340-0	05	1	-
35	SEAL; DUST ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0, E = 1-51130-847-0	1-51177-321-0	04	1	-

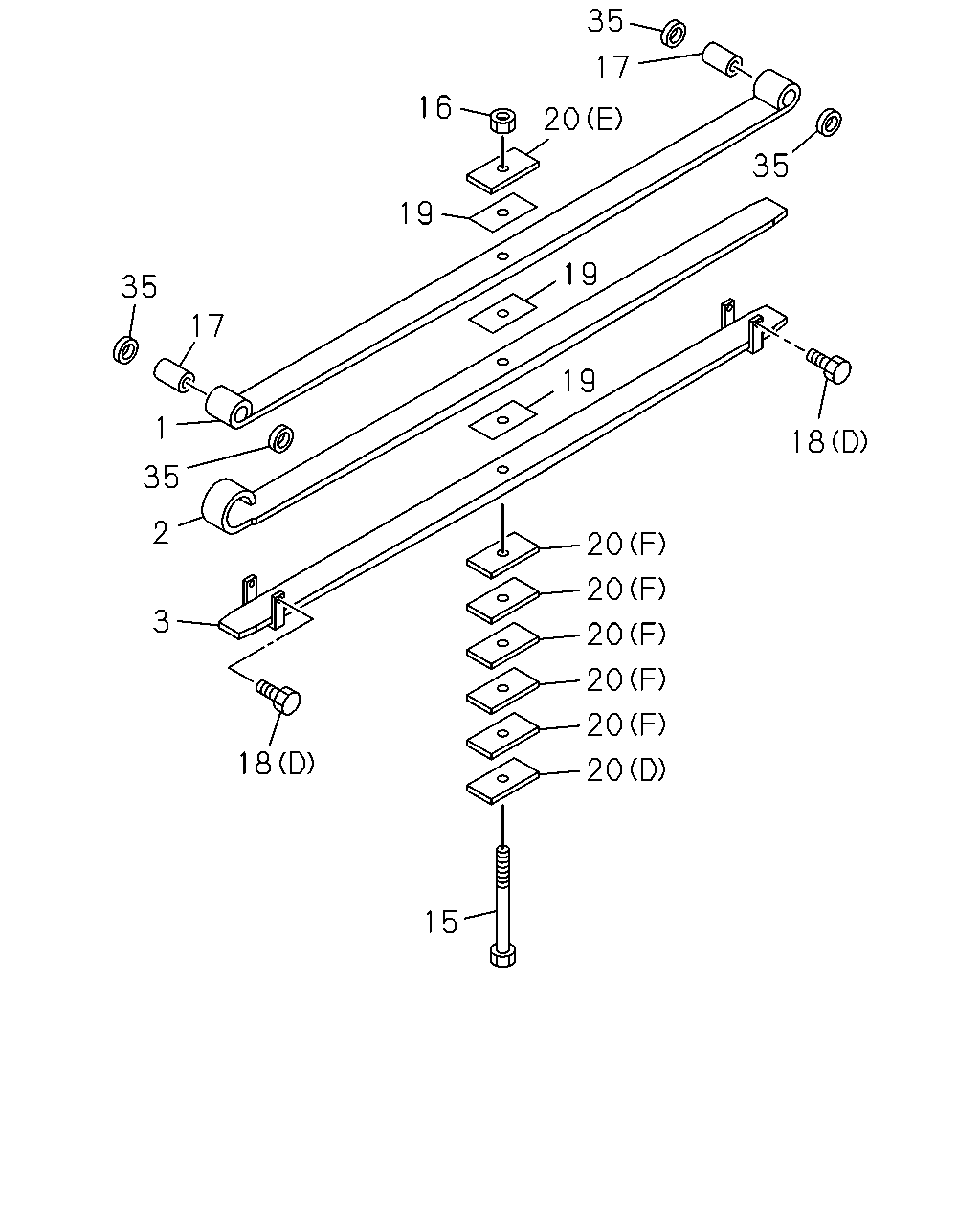

35 17 35 18 18 16 35 17 35 1 2 18 3 4 5 6 7 8 9 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-797-0	1-51131-797-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-800-0	1-51131-800-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-847-0	1-51131-847-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-797-0	1-51132-797-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-800-0	1-51132-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-847-0	1-51132-847-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-797-0	1-51133-797-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-800-0	1-51133-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: E = 1-51130-847-0	1-51133-847-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-797-0	1-51134-797-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-798-0	1-51134-798-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-799-0	1-51134-799-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-800-0	1-51134-800-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-797-0	1-51135-797-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51135-798-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51135-799-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: D = 1-51130-800-0	1-51135-800-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-797-0	1-51136-797-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-798-0	1-51136-798-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-799-0	1-51136-799-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-800-0	1-51136-800-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-797-0	1-51137-797-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-798-0	1-51137-798-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-799-0	1-51137-799-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-800-0	1-51137-800-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-798-0	1-51138-798-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51130-799-0	1-51138-799-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51130-800-0	1-51138-800-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-798-0	1-51139-798-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51130-799-0	1-51139-799-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51130-800-0	1-51139-800-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-797-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: C = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: D = 1-51130-800-0	1-51156-358-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51130-847-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: E = 1-51130-847-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-51351-036-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: E = 1-51130-847-0	1-51351-043-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X97 ASM PART: B = 1-51130-798-0, C = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X98 ASM PART: E = 1-51130-847-0	1-09000-325-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: D = 1-51130-800-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-797-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-797-0	1-09000-536-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: C = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-797-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: D = 1-51130-800-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-797-0	1-51177-161-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=13 ASM PART: E = 1-51130-847-0	1-51177-295-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=13 ASM PART: E = 1-51130-847-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=11 ASM PART: E = 1-51130-847-0	1-51177-340-0	05	1	-
35	SEAL; DUST ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0, E = 1-51130-847-0	1-51177-321-0	04	1	-

35 17 35 16 1 35 17 35 2 3 4 5 18 6 18 7 18 8 9 18 10 11 12 13 14 20 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-797-0	1-51131-797-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-800-0	1-51131-800-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-847-0	1-51131-847-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-797-0	1-51132-797-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-800-0	1-51132-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-847-0	1-51132-847-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-797-0	1-51133-797-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-800-0	1-51133-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: E = 1-51130-847-0	1-51133-847-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: A = 1-51130-797-0	1-51134-797-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: B = 1-51130-798-0	1-51134-798-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-799-0	1-51134-799-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 1-51130-800-0	1-51134-800-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: A = 1-51130-797-0	1-51135-797-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51135-798-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51135-799-0	01	1	-
5	SPRING; LEAF,NO 5,FRT W/CLIP ASM PART: D = 1-51130-800-0	1-51135-800-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: A = 1-51130-797-0	1-51136-797-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: B = 1-51130-798-0	1-51136-798-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-799-0	1-51136-799-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 1-51130-800-0	1-51136-800-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: A = 1-51130-797-0	1-51137-797-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: B = 1-51130-798-0	1-51137-798-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-799-0	1-51137-799-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 1-51130-800-0	1-51137-800-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: B = 1-51130-798-0	1-51138-798-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: C = 1-51130-799-0	1-51138-799-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 1-51130-800-0	1-51138-800-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: B = 1-51130-798-0	1-51139-798-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: C = 1-51130-799-0	1-51139-799-0	01	1	-
9	SPRING; LEAF,NO 9,FRT ASM PART: D = 1-51130-800-0	1-51139-800-0	01	1	-
10	SPRING; LEAF,NO 10,FRT W/CLIP ASM PART: D = 1-51130-800-0	1-51141-800-0	01	1	-
11	SPRING; LEAF,NO 11,FRT ASM PART: D = 1-51130-800-0	1-51142-800-0	01	1	-
12	SPRING; LEAF,NO 12,FRT ASM PART: D = 1-51130-800-0	1-51143-800-0	01	1	-
13	SPRING; LEAF,NO 13,FRT ASM PART: D = 1-51130-800-0	1-51144-800-0	01	1	-
14	SPRING; LEAF,NO 14,FRT ASM PART: D = 1-51130-800-0	1-51145-800-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-797-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: C = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: D = 1-51130-800-0	1-51156-358-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51130-847-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: E = 1-51130-847-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-51351-036-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: E = 1-51130-847-0	1-51351-043-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X97 ASM PART: B = 1-51130-798-0, C = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X98 ASM PART: E = 1-51130-847-0	1-09000-325-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: D = 1-51130-800-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-797-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-797-0	1-09000-536-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: C = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-797-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: D = 1-51130-800-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-797-0	1-51177-161-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=13 ASM PART: E = 1-51130-847-0	1-51177-295-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=13 ASM PART: E = 1-51130-847-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=11 ASM PART: E = 1-51130-847-0	1-51177-340-0	05	1	-
35	SEAL; DUST ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0, E = 1-51130-847-0	1-51177-321-0	04	1	-

18 3 2 35 1 17 35 15 20 20 20 20 20 20 19 19 19 16 20 17 35 35 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-797-0	1-51131-797-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-798-0	1-51131-798-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-799-0	1-51131-799-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 1-51130-800-0	1-51131-800-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 1-51130-847-0	1-51131-847-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-797-0	1-51132-797-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-798-0	1-51132-798-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-799-0	1-51132-799-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 1-51130-800-0	1-51132-800-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 1-51130-847-0	1-51132-847-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: A = 1-51130-797-0	1-51133-797-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: B = 1-51130-798-0	1-51133-798-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: C = 1-51130-799-0	1-51133-799-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 1-51130-800-0	1-51133-800-0	01	1	-
3	SPRING; LEAF,NO 3,FRT W/CLIP ASM PART: E = 1-51130-847-0	1-51133-847-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: A = 1-51130-797-0	1-51156-296-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=160 ASM PART: B = 1-51130-798-0	1-51156-356-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: C = 1-51130-799-0	1-51156-357-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=195 ASM PART: D = 1-51130-800-0	1-51156-358-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: E = 1-51130-847-0	1-51156-414-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-09400-054-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: E = 1-51130-847-0	1-09400-061-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0	1-51351-036-0	02	1	-
17	BUSHING; LEAF SPR,FRT ASM PART: E = 1-51130-847-0	1-51351-043-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X97 ASM PART: B = 1-51130-798-0, C = 1-51130-799-0	1-09000-294-0	03	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X98 ASM PART: E = 1-51130-847-0	1-09000-325-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: D = 1-51130-800-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X99 ASM PART: A = 1-51130-797-0	1-09000-328-0	01	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X103 ASM PART: A = 1-51130-797-0	1-09000-536-0	02	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-797-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 1-51130-847-0	1-51177-339-0	03	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: B = 1-51130-798-0	1-51177-033-0	02	1	-
20	SEAT; LEAF SPR,FRT (C), T=12 ASM PART: C = 1-51130-799-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: A = 1-51130-797-0	1-51177-107-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=12 ASM PART: D = 1-51130-800-0	1-51177-107-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: A = 1-51130-797-0	1-51177-161-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=13 ASM PART: E = 1-51130-847-0	1-51177-295-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=13 ASM PART: E = 1-51130-847-0	1-51177-311-0	01	1	-
20	SEAT; LEAF SPR,FRT (F), T=11 ASM PART: E = 1-51130-847-0	1-51177-340-0	05	1	-
35	SEAL; DUST ASM PART: A = 1-51130-797-0, B = 1-51130-798-0, C = 1-51130-799-0, D = 1-51130-800-0, E = 1-51130-847-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
