4-50 — FRONT SUSPENSION (#13378) — 62 parça

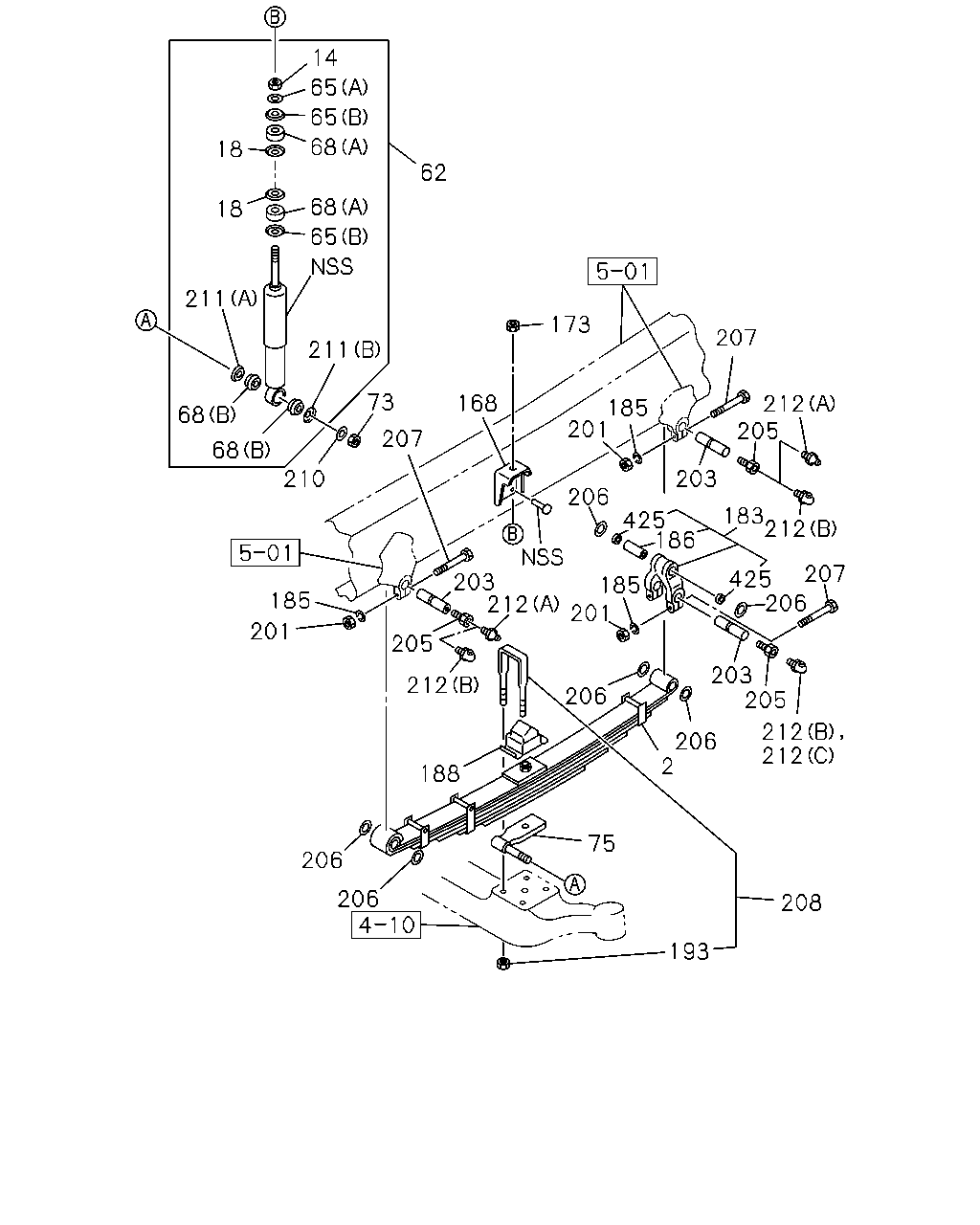

çizim 21861
62 18 18 14 65 65 68 68 65 211 211 68 68 210 73 207 168 173 207 185 201 206 203 205 212 212 183 186 425 203 205 185 201 425 207 206 185 201 212 212 206 203 205 212 212 206 2 188 75 208 193 206 206
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) FRT TAPER LEAF SUSPENSION<SAR> EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 3-LEAF 		1-51130-847-0 02 1 0110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) 14-LEAF 		1-51130-800-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) 14-LEAF 		1-51130-800-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 9-LEAF 		1-51130-799-0 02 1 0105-0109 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 9-LEAF 		1-51130-799-0 02 1 0105-0109 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 9-LEAF 		1-51130-799-0 02 1 0110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. FRT TAPER LEAF SUSPENSION<SAR>,SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 9-LEAF 		1-51130-799-0 02 1 0110- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SINGAPORE EQUIPMENT(WQ3) 9-LEAF 		1-51130-798-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60),SINGAPORE EQUIPMENT(WQ3) 9-LEAF 		1-51130-798-0 02 1 0105- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) 7-LEAF 		1-51130-797-0 02 1 0105- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0105- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 0105- ● ●
62 ABSORBER ASM; SHOCK,FRT
FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-433-1 02 1 0110- ●
62 ABSORBER ASM; SHOCK,FRT
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) 		1-51630-512-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) 		1-51630-512-0 02 1 0105- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. INDONESIA EQUIPMENT(WR7) 		1-51630-417-0 02 1 0105-0109 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. INDONESIA EQUIPMENT(WR7) 		1-51630-417-0 02 1 0110- ●
62 ABSORBER ASM; SHOCK,FRT
EXC. FRT TAPER LEAF SUSPENSION<SAR>,INDONESIA EQUIPMENT(WR7) 		1-51630-417-0 02 1 0110- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 0105- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 0105- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 0105- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0105- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 0105-0311 ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-520-0 02 1 0312- ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0105- ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0105- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0105- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 0105-0512 ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 0601- ● ●
183 SHACKLE; FRT SUSP 1-51162-064-0 02 1 0105- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 0105-0603 ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0604- ● ●
186 BUSHING; SHACKLE
OD=42 		1-51351-036-0 02 1 0105- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SINGAPORE EQUIPMENT(WQ3) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60),SINGAPORE EQUIPMENT(WQ3) 		1-51172-081-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51172-086-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51172-086-0 02 1 0105- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SINGAPORE EQUIPMENT(WQ3) 		1-51172-085-0 02 1 0105- ● ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 0105-0512 ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0601- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 0105-0512 ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0601- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 0105- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0105- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0105- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 0105-0512 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0601- ● ●
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) L=270 		1-87870-327-1 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) L=270 		1-87870-327-1 04 1 0105- ●
208 U-BOLT SET; FRT SPRING
EXC. INDONESIA EQUIPMENT(WR7) L=230 		1-87870-269-2 04 1 0105- ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 0105- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0105- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0105- ● ●
212 NIPPLE; GREASE,ELBOW
PE-SERIES ENG<1A0> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
PE-SERIES ENG<1A0> (B) PT1/8 ELBOW 		0-90301-610-0 06 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (A) PT1/8 STRAIGHT 		0-90301-410-0 04 1 0601- ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (C) PT1/8 ELBOW 		9-09031-210-0 02 1 0105-0512 ● ●
212 NIPPLE; GREASE,ELBOW
W-SERIES ENG<1A2> (C) PT1/8 ELBOW 		0-90301-610-0 02 1 0601- ● ●
425 SEAL; DUST 1-51177-321-0 04 1 0105- ● ●
