Isuzu WW
▶
TRUCKS
▶
FVM
▶
11578 - FVM CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#133779) — 48 parça
◀
[014A] IDLE GEAR (13 parça)

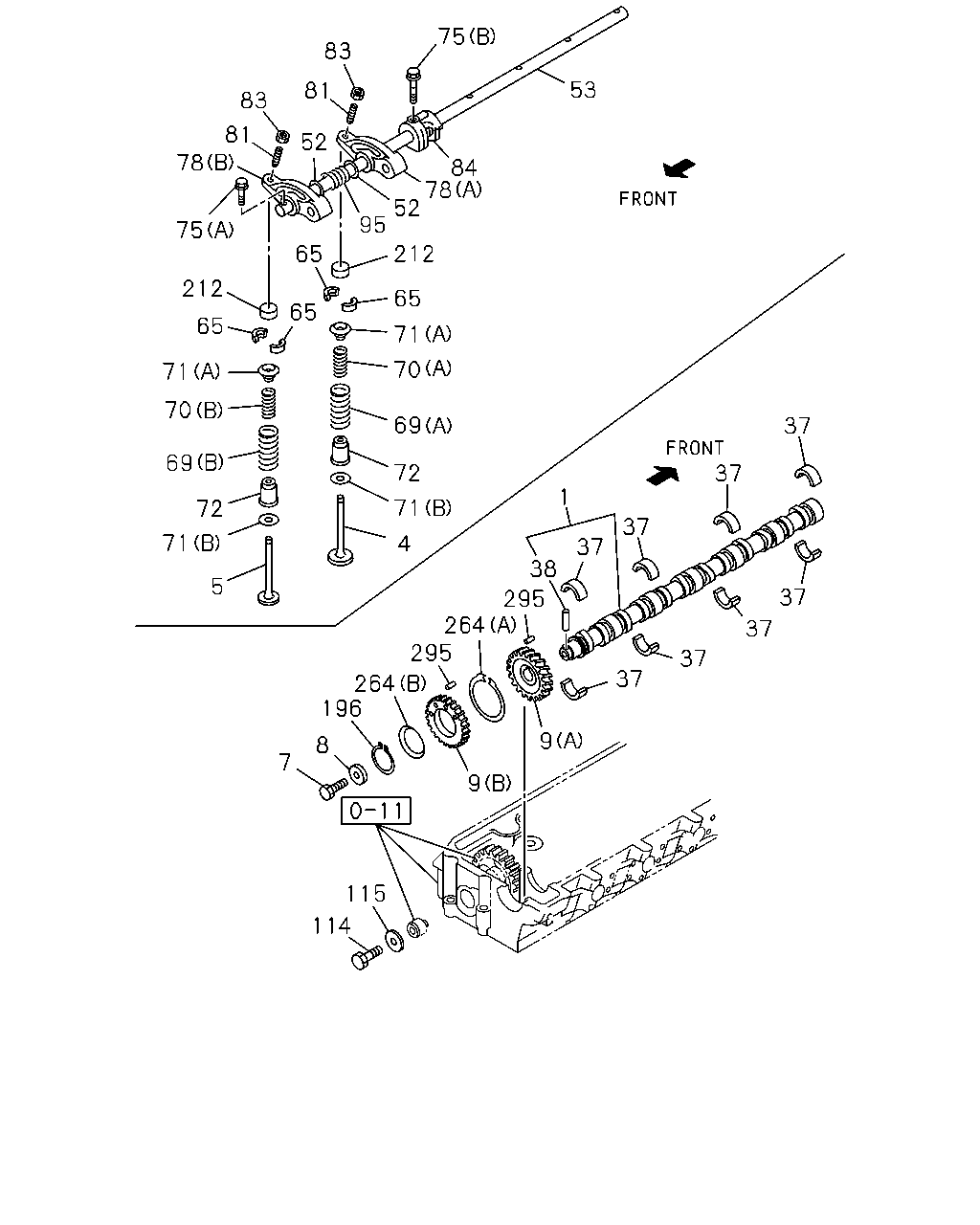

[014A] CAMSHAFT ASM (35 parça)
▶
111
112
107
106
101
107
112
111
101
101
107
112
111
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
101
BOLT; THRUST COLLAR
(C) M14X30
0-23951-430-0
01
1
1402-
101
BOLT; THRUST COLLAR
(B) M8X16 FLANGE
0-28060-816-0
03
1
1402-
101
BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET
8-94394-779-2
01
1
1402-
105
BOLT; IDLE GEAR SHAFT
M14X65
8-97066-798-0
01
1
1402-
106
WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23
1-09503-031-0
01
1
1402-
107
SHAFT; IDLE GEAR
(C)
8-94334-682-1
01
1
1402-
107
SHAFT; IDLE GEAR
(A)
8-97350-021-0
01
1
1402-
107
SHAFT; IDLE GEAR
(B)
8-97602-588-0
01
1
1402-
111
COLLAR; THRUST,IDLE GEAR
(A) ID=24 OD=70
8-94394-097-1
01
1
1402-
111
COLLAR; THRUST,IDLE GEAR
(B) ID=14.5 OD=46
8-97209-728-2
02
1
1402-
112
GEAR; IDLE
(A) Z=61
8-94393-439-4
01
1
1402-
112
GEAR; IDLE
(B) Z=72-30
8-94394-092-3
01
1
1402-
112
GEAR; IDLE
(C) Z=34
8-94394-509-3
01
1
1402-
75
53
78
84
52
212
65
71
69
70
72
4
71
1
37
37
37
37
37
37
37
9
295
38
37
264
295
264
196
9
8
7
115
114
5
71
72
69
70
71
65
212
65
65
95
52
81
83
83
81
78
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
8-98227-259-1
01
1
1402-
4
VALVE; INL
8-97136-435-1
06
1
1402-
5
VALVE; EXH
8-98223-771-0
06
1
1402-
7
BOLT; CM/SHF GEAR
M14X40
8-94396-439-0
01
1
1402-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
1402-
9
GEAR; CM/SHF
(B) SUB Z=35
8-97300-972-2
01
1
1402-
9
GEAR; CM/SHF
(A) MAIN Z=35
8-97601-946-2
01
1
1402-
37
METAL; CM/SHF
UPPER B=16
8-97386-189-0
04
1
1402-
37
METAL; CM/SHF
LOWER B=22
8-97602-698-0
04
1
1402-
38
PIN; CAM BRG SET
8-94399-487-0
01
1
1402-
52
WASHER; ROCKER ARM SHAFT
8-94362-105-0
12
1
1402-
53
SHAFT; ROCKER ARM
8-94393-984-4
01
1
1402-
65
COLLAR; SPLIT
5-12565-006-0
24
1
1402-
69
SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW
8-94393-310-0
06
1
1402-
69
SPRING; VLV,OUTER
(A) INLET MARK PINK
8-97120-912-0
06
1
1402-
70
SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW
8-94397-500-0
06
1
1402-
70
SPRING; VLV,INNER
(A) INLET MARK PINK
8-97120-911-0
06
1
1402-
71
SEAT; SPR
(A) UPPER OD=38
8-94385-029-2
12
1
1402-
71
SEAT; SPR
(B) LOWER ID=14.3 T=0.5
8-94396-014-0
12
1
1402-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98231-534-0
12
1
1402-
75
BOLT; BRKT
(A) M8X35 FLANGE THA
0-28050-835-0
02
1
1402-
75
BOLT; BRKT
(B) M10X62 FLANGE
8-94393-131-0
05
1
1402-
78
ARM; ROCKER
(B) EXHAUST JBK
8-97014-258-2
06
1
1402-
78
ARM; ROCKER
(A) INLET JBK
8-97074-614-1
06
1
1402-
81
SCREW; ADJ,ROCKER ARM
M10 L=32
8-94395-024-0
12
1
1402-
83
NUT; ADJ SCREW,LK
M10
0-91111-510-0
12
1
1402-
84
BRACKET; ROCKER SHAFT,INTER
JBK
8-94388-109-3
05
1
1402-
95
SPRING; ROCKER SHAFT
JBK
8-94397-263-0
06
1
1402-
114
BOLT; IDLE GEAR
M14X36.5
8-94372-221-1
01
1
1402-
115
WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
1402-
196
RING; SNAP
ID=50.8
9-09180-055-0
01
1
1402-
212
CAP; ADJ SCREW
8-94396-015-2
12
1
1402-
264
SPRING; GEAR
(A)
8-97190-117-1
01
1
1402-
264
SPRING; GEAR
(B)
8-97190-118-1
01
1
1402-
295
PIN; CM/SHF GEAR
OD=4 L=8.0
8-97213-454-0
02
1
1402-
