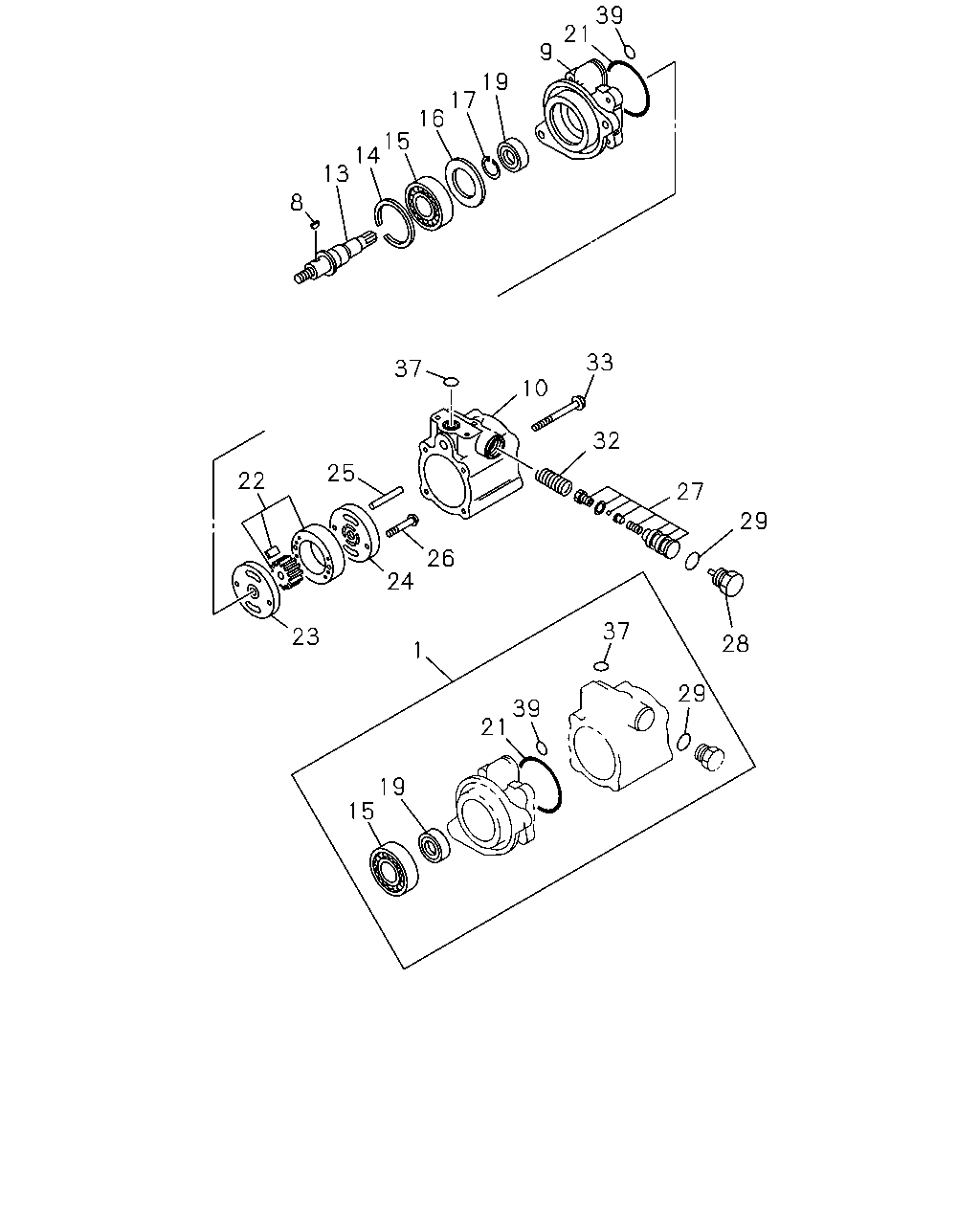

4-42 — POWER STEERING OIL PUMP (#13377) — 68 parça

8 13 14 15 16 17 19 9 21 39 37 10 33 25 22 32 29 27 26 24 23 1 37 28 29 39 21 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-85574-049-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-447-2	1-19511-130-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-130-0	01	1	0210-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-166-0	01	1	-0209
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-561-2	1-19511-168-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-131-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-447-2	1-19511-131-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-561-2	1-19511-171-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-193-0	01	1	0210-
13	SHAFT KIT; RET ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19521-018-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-135-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-252-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-314-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-311-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-312-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-142-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-447-2, C = 1-19500-563-2	1-19519-183-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-561-2	1-19519-347-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-447-2, C = 1-19500-563-2	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: B = 1-19500-561-2	1-19519-351-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-245-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-313-0	01	1	-

15 19 21 39 1 37 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-85574-049-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19515-004-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-252-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-314-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-313-0	01	1	-

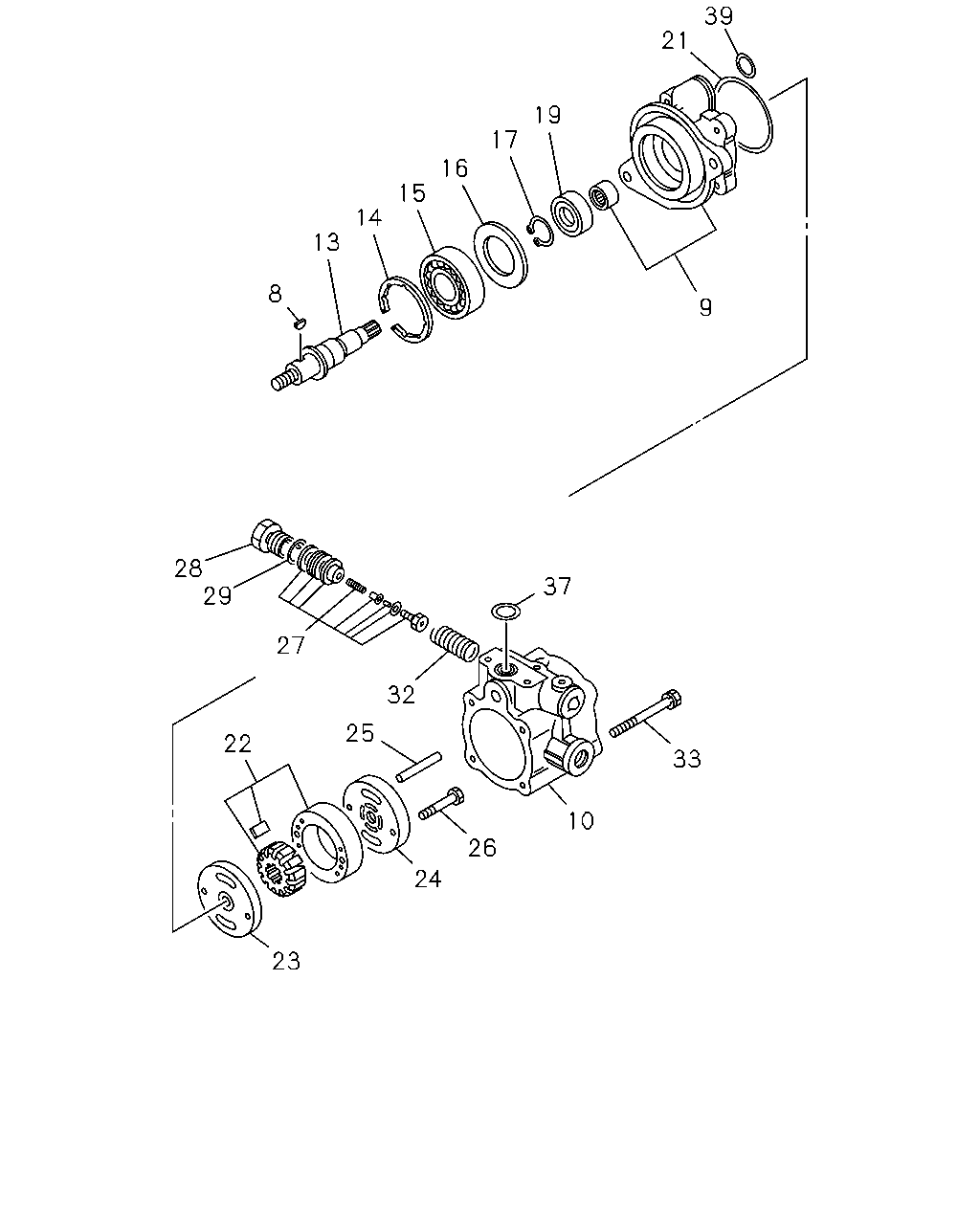

8 13 14 15 16 17 19 9 21 39 37 33 10 26 24 23 22 27 29 28 32 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-447-2	1-19511-130-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-130-0	01	1	0210-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-166-0	01	1	-0209
9	BODY ASM; FRT,OIL PUMP ASM PART: B = 1-19500-561-2	1-19511-168-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-131-0	01	1	-0209
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-447-2	1-19511-131-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: B = 1-19500-561-2	1-19511-171-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-563-2	1-19511-193-0	01	1	0210-
13	SHAFT KIT; RET ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19521-018-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-135-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19515-004-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-252-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-314-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-311-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-234-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-312-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-142-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-447-2, C = 1-19500-563-2	1-19519-183-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-561-2	1-19519-347-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-447-2, C = 1-19500-563-2	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: B = 1-19500-561-2	1-19519-351-0	01	1	-
29	GASKET; PLUG TO VLV ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	9-19529-013-0	01	1	-
33	BOLT; COVER ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-245-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-292-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-447-2, B = 1-19500-561-2, C = 1-19500-563-2	1-19519-313-0	01	1	-
