8-28 — CHASSIS ELECTRICAL
(#133761) — 24 parça
◀
[828A] RELAY;CAB HARNESS (2 parça)
[828A] VALVE;PTO CONT (9 parça)
[828A] RELAY;FRAME HARNESS (2 parça)
[828A] FRAME SIDE (4 parça)
[828A] FRONT SIDE (7 parça)
▶

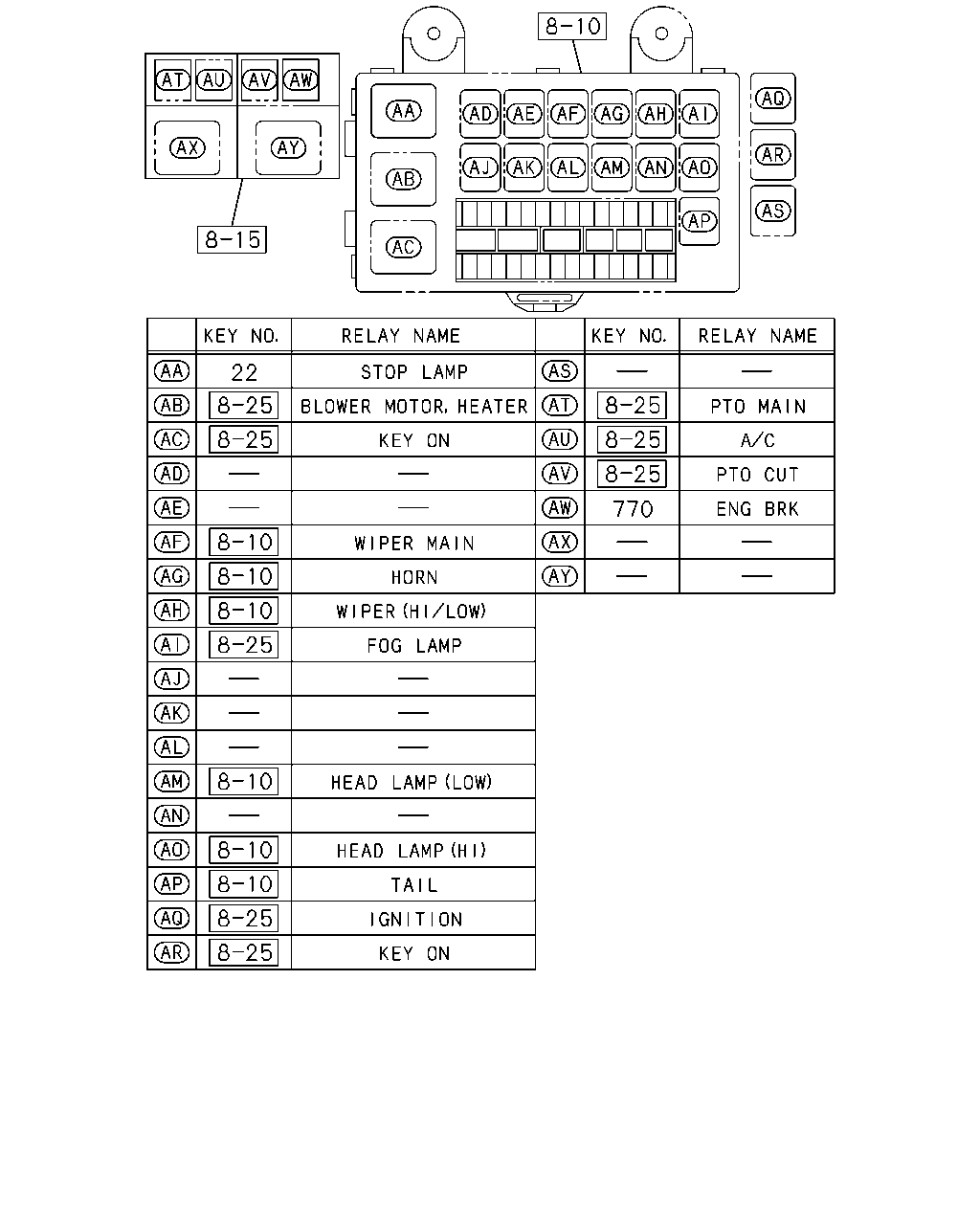

22
770
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1402-
770
RELAY; ENG BRK
ANTI LOCK BRAKE<JE5> 24V 10A PANASONIC
8-97173-035-1
01
1
1402-
34
34
34
33
261
41
35
36
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
MZW6P M/T<RSZ> PTO CONTROL<SV6> THA
8-97948-152-0
01
1
1402-
34
CONNECTOR; MAG VLV,INL PORT
MZW6P M/T<RSZ> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PTO CONTROL<SV6> (C) DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
1402-
34
CONNECTOR; MAG VLV,INL PORT
MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (A) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
1402-
34
CONNECTOR; MAG VLV,INL PORT
MZW6P M/T<RSZ> PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1402-
35
BRACKET; MAG VLV,PTO CONT
MZW6P M/T<RSZ> PTO CONTROL<SV6>
8-98154-633-0
01
1
1402-
36
BOLT; MAG VLV,PTO CONT
MZW6P M/T<RSZ> PTO CONTROL<SV6> M8X20 FLANGE THA
0-28650-820-0
02
1
1402-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE THA
0-28650-835-0
02
1
1402-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE THA
0-91180-108-0
02
1
1402-
261
PLUG; MAG VLV
MZW6P M/T<RSZ> PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1402-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITUBA
8-97238-540-0
01
1
1402-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-

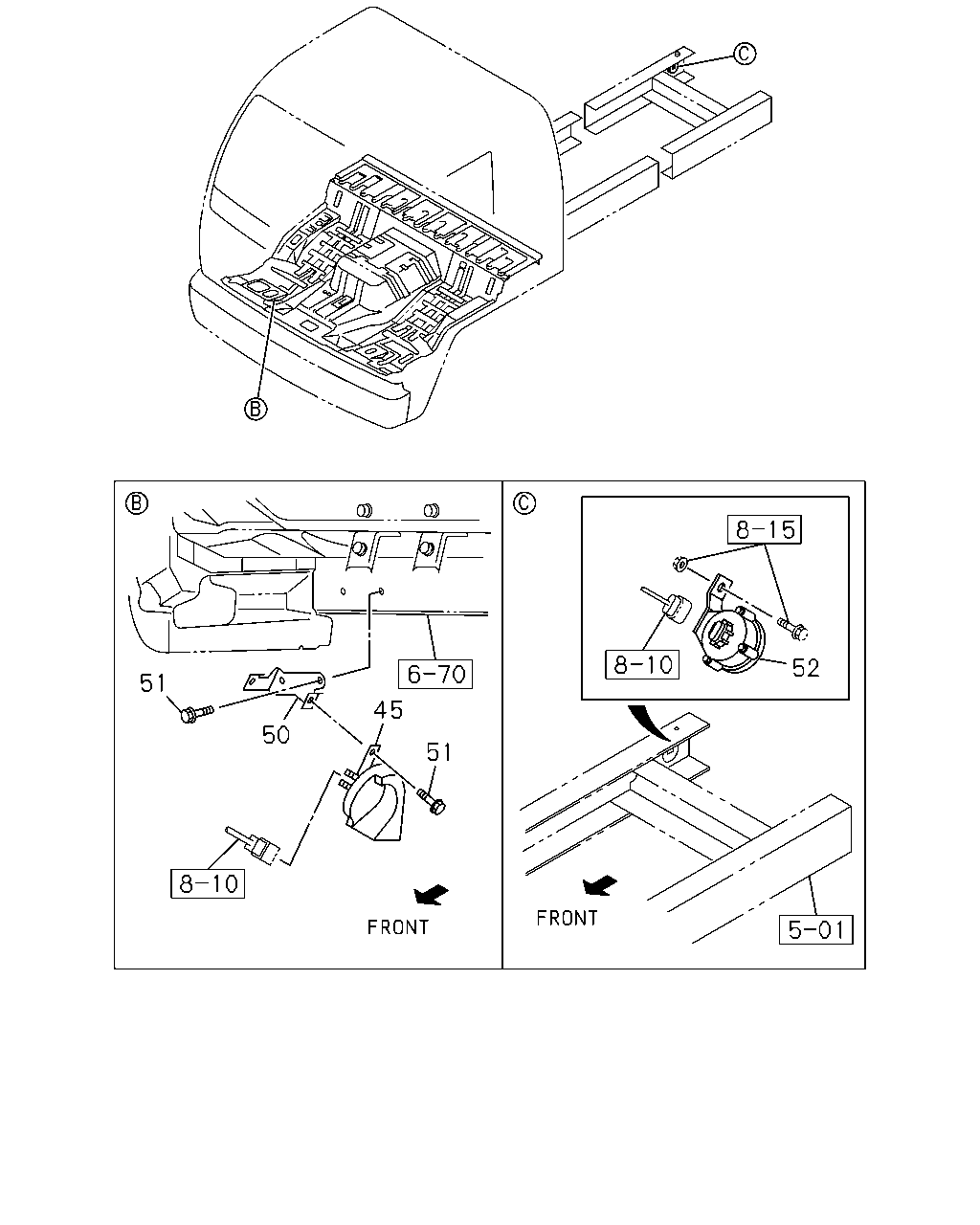

52
51
50
45
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
45
HORN; LOW NOTE
THA
8-97925-172-0
01
1
1402-
50
BRACKET; HORN
8-97613-300-2
01
1
1402-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
03
1
1402-
52
BUZZER; BACK
8-97617-027-0
01
1
1402-

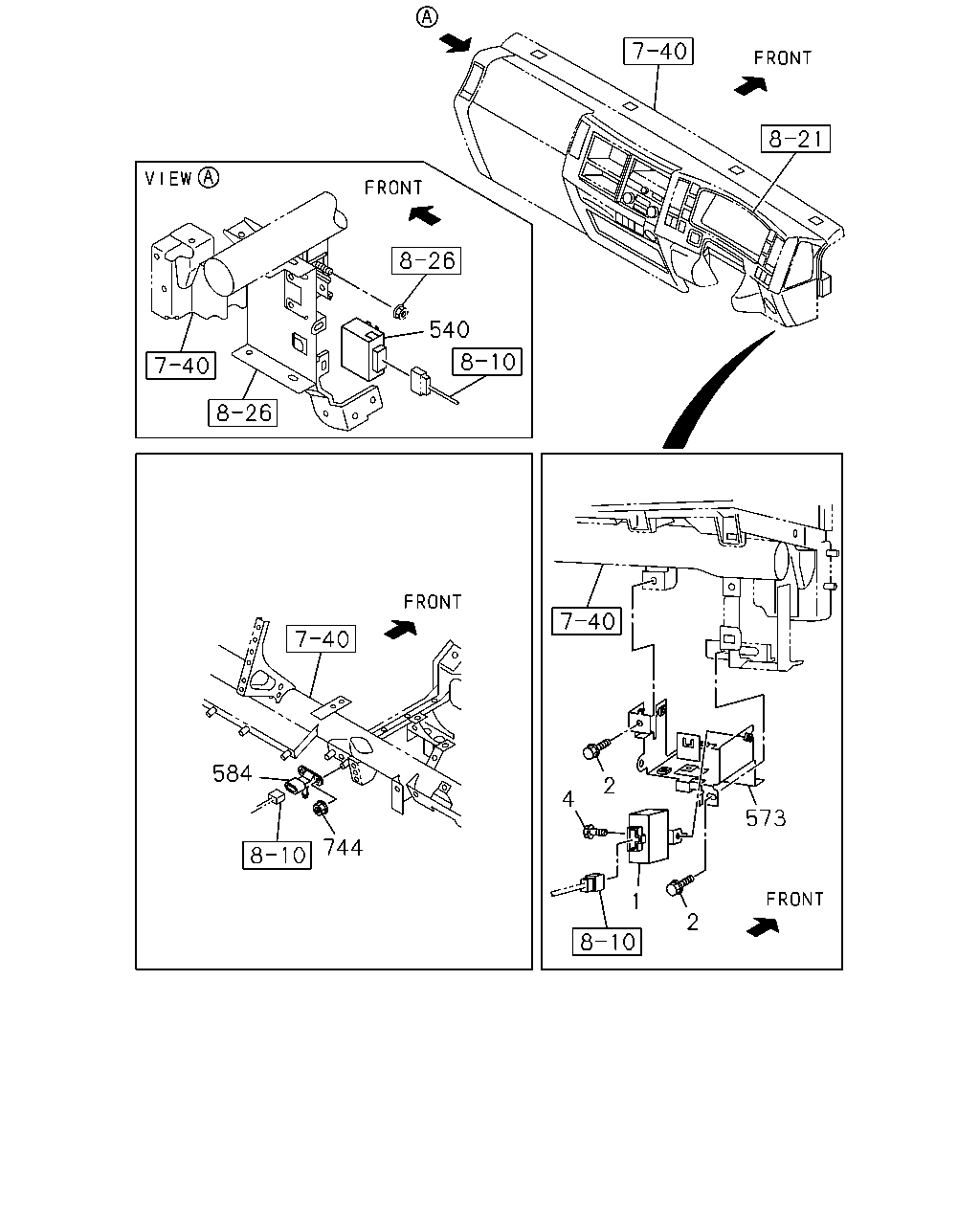

540
584
2
4
2
1
573
744
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1402-
2
BOLT; FLASHER UNIT
M6X16 FLANGE THA
0-28650-616-0
02
1
1402-
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE THA
0-28650-616-0
01
1
1402-
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1402-
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1402-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1402-
744
NUT; SENSOR
M6 FLANGE THA
0-91180-106-0
02
1
1402-
