Isuzu WW
▶
TRUCKS
▶
FVM
▶
11577 - FVM(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#133760) — 25 parça
◀

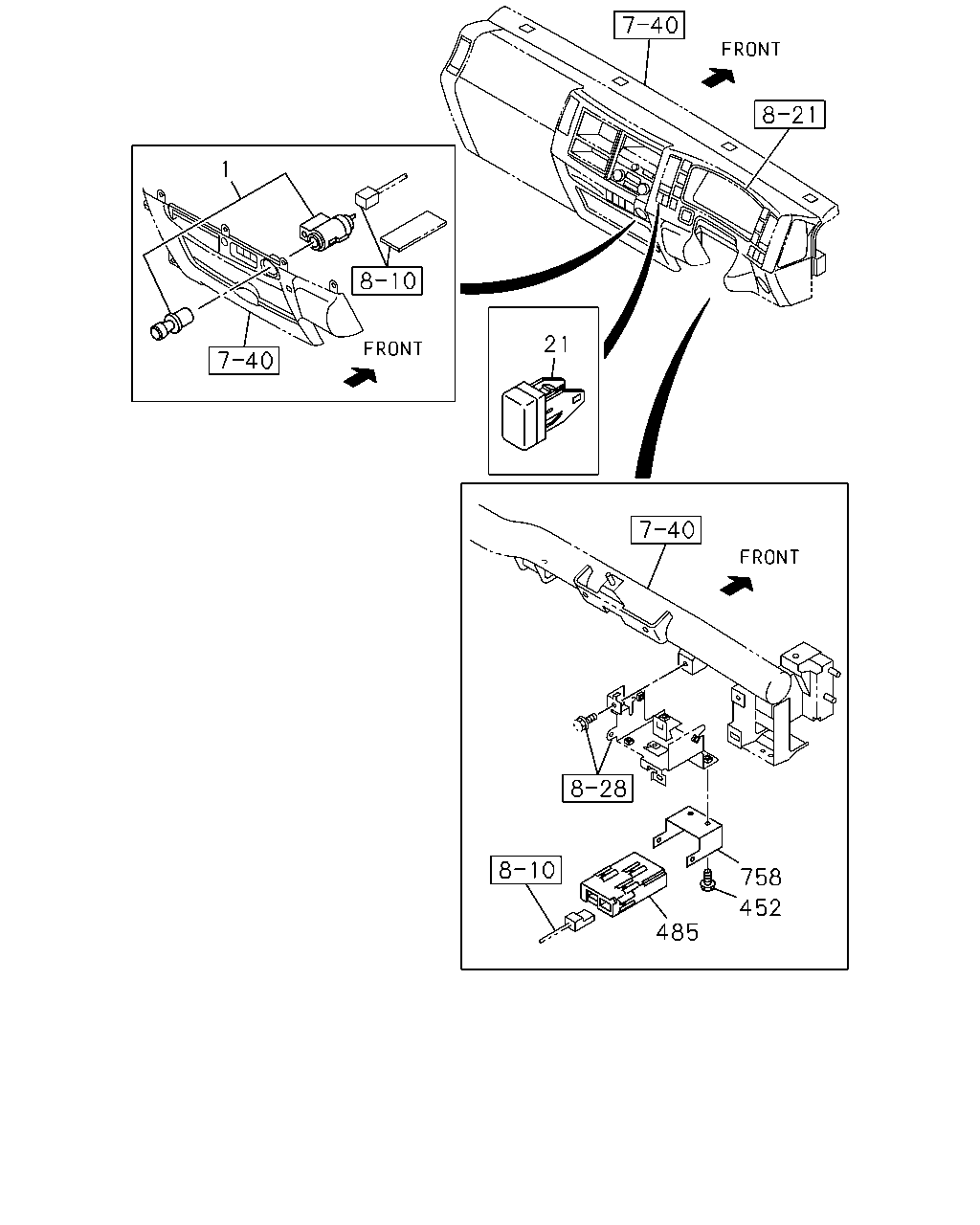

[826A] INST PANEL SIDE NO.2 (13 parça)

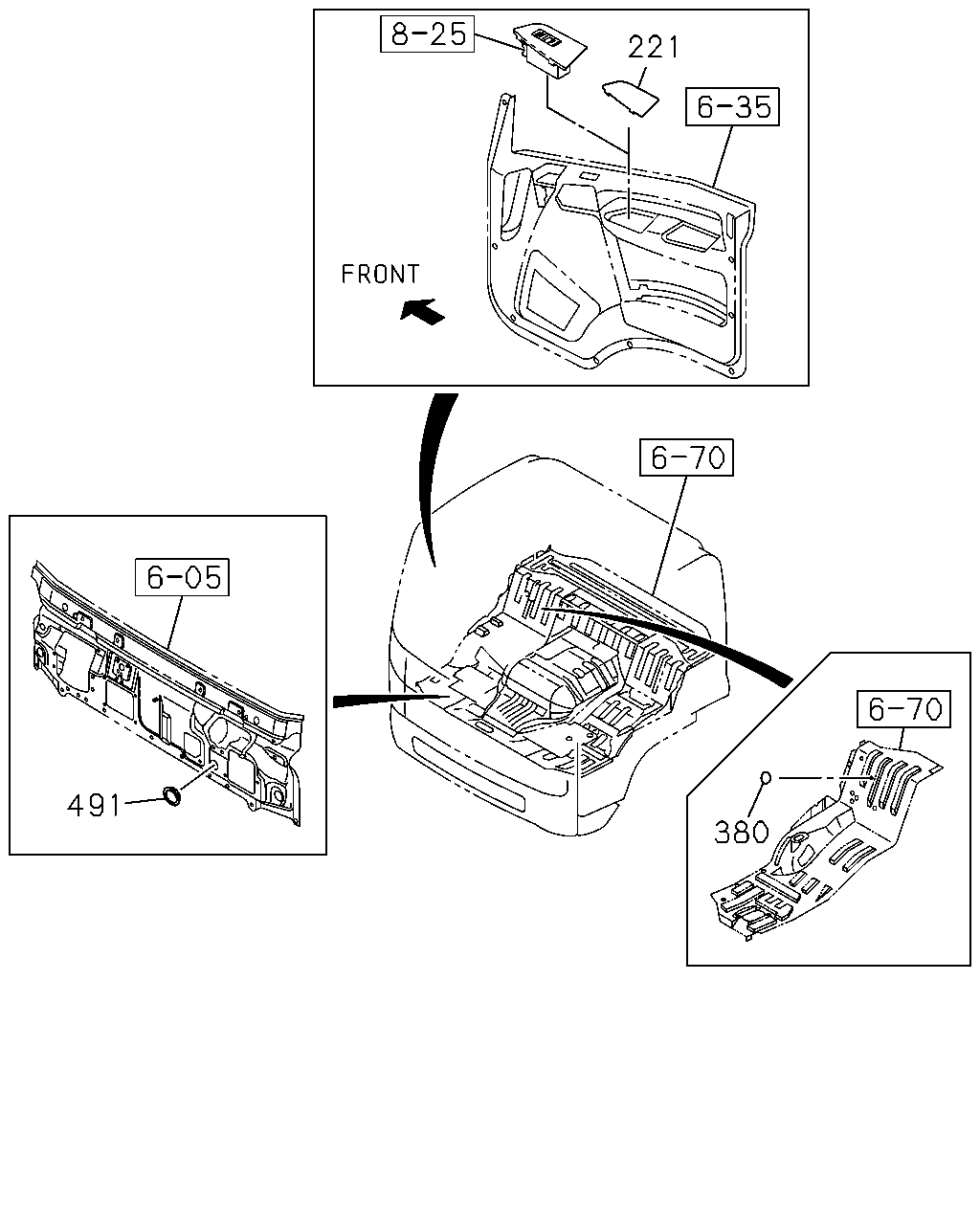

[826A] CAB SIDE (4 parça)

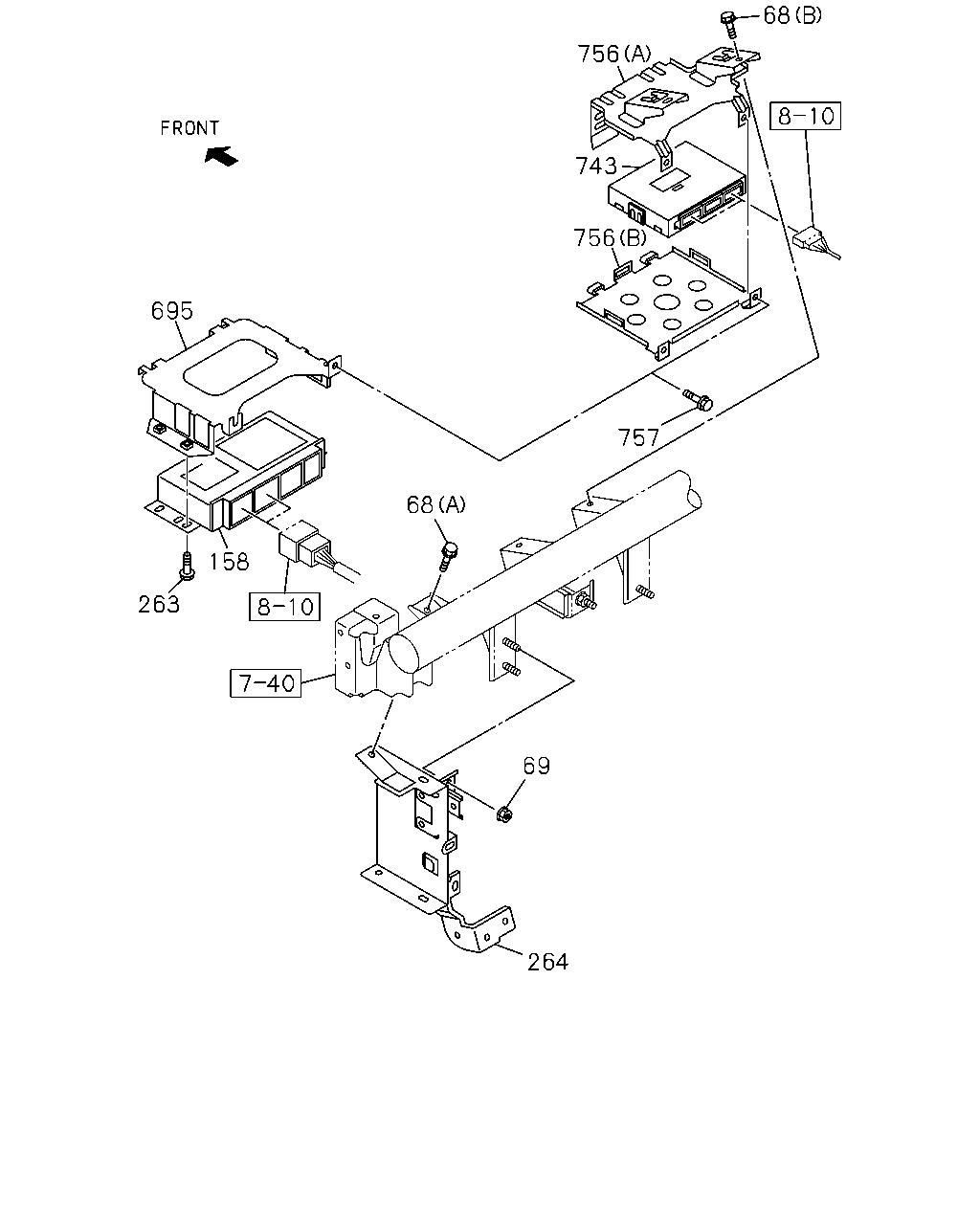

[826A] INST PANEL SIDE NO.1 (6 parça)

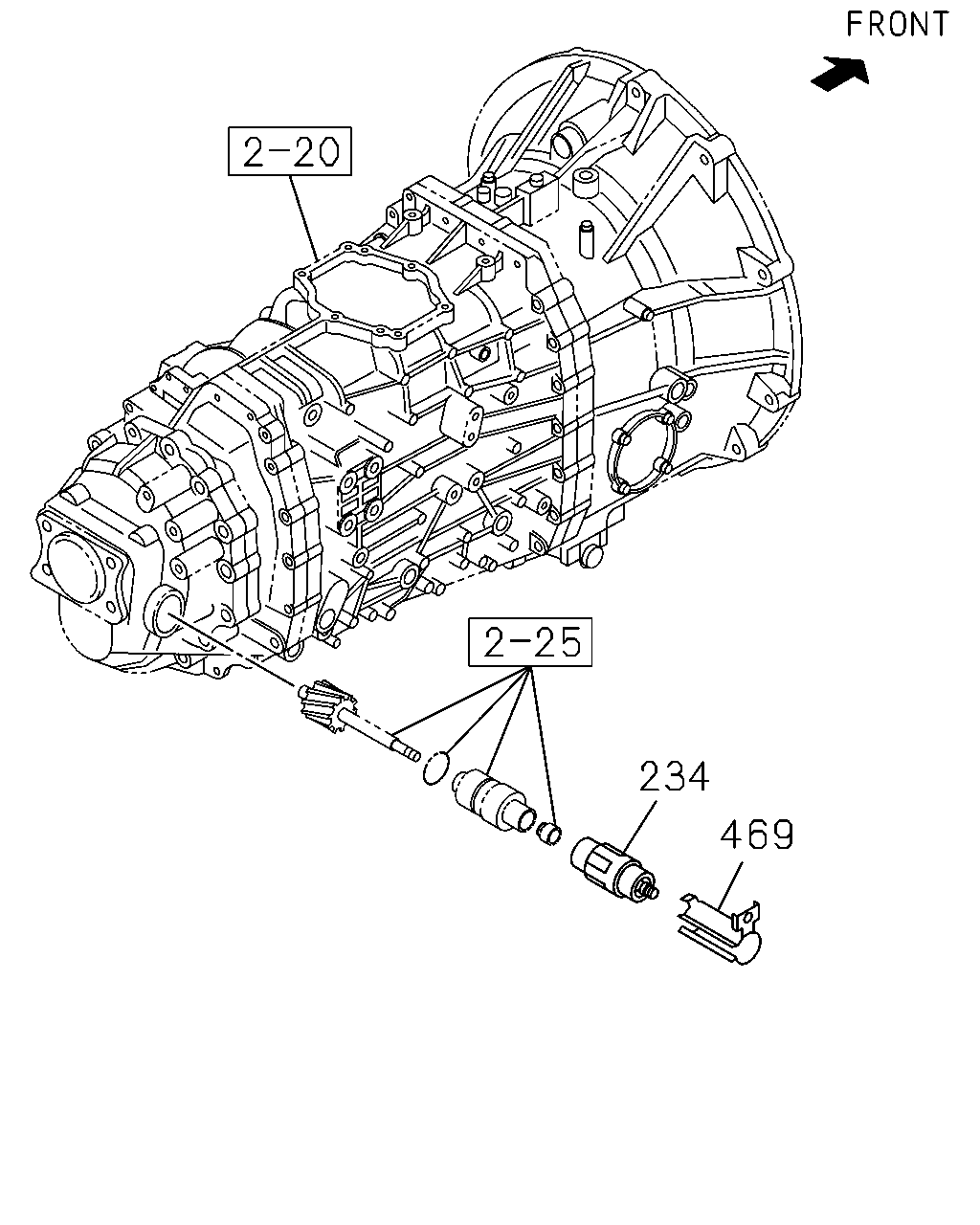

[826A] SENSOR;VEHICLE SPEED (2 parça)
▶
757
68
158
695
263
69
264
756
743
756
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1402-
68
BOLT; BRKT
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1402-
69
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1402-
158
CONTROLLER; ABS
ANTI LOCK BRAKE<JE5>
8-98170-648-0
01
1
1402-
263
BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE THA
0-28650-616-0
04
1
1402-
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1402-
695
BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5>
8-98045-016-1
01
1
1402-
743
CONTROL UNIT; BCM
MEMORY SYSTEM RUNNING CONDITION<NCR>
8-98182-026-3
01
1
1402-
756
BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> (A)
8-98056-411-3
01
1
1402-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (A)
8-98056-411-3
01
1
1402-
756
BRACKET; ECU,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> (B)
8-98111-836-1
01
1
1402-
757
BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA
0-28650-616-0
02
1
1402-
757
BOLT; BRKT,BCM
MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA
0-28650-616-0
02
1
1402-
491
221
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
8-98029-915-2
01
1
1402-
221
COVER; HOLE,DOOR LOCK SW
8-98029-916-2
01
1
1402-
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1402-
491
PLUG; HOLE,CONT UNIT
8-98054-651-0
01
1
1402-
1
758
452
485
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1402-
21
COVER; HOLE
8-98025-954-1
01
1
1402-
452
BOLT; BRKT
ZF9S1110 M/T<Y5E> M6X16 FLANGE THA
0-28650-616-0
02
1
1402-
485
CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T<Y5E>
1-80190-063-0
01
1
1402-1410
485
CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T<Y5E>
8-98232-695-0
01
1
1411-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T<Y5E>
8-98048-743-1
01
1
1402-
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
MZW6P M/T<RSZ> 25 PULSE ALUMINUM
8-97328-058-1
01
1
1402-
469
PROTECTOR; SPEED SENSOR
MZW6P M/T<RSZ>
8-98119-901-0
01
1
1402-
