Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#133756) — 307 parça

127 294 525 294 219 524 38 242 304 38 139 150 313 38 139 150 313 139 313 139 139 139 313 184 386 38 377 304 304 38 304 139 304 304 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE THA	0-28650-825-0	03	1	1402-
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1402-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (E) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
38	BOLT; CLIP,HARNESS ZF9S1110 M/T<Y5E> (C) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1402-
139	BOLT; BRKT (E) M8X12 FLANGE THA	0-28050-812-0	01	1	1402-
139	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
139	BOLT; BRKT (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
139	BOLT; BRKT (C) M10X25 FLANGE THA	0-28651-025-0	02	1	1402-
139	BOLT; BRKT (D) M10X30 FLANGE THA	0-28651-030-0	01	1	1402-
139	BOLT; BRKT (F) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	02	1	1402-
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE THA	0-28650-830-0	04	1	1402-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M8X35 FLANGE THA	0-28650-835-0	01	1	1402-
150	BOLT; CLIP (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
150	BOLT; CLIP (B) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1402-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	03	1	1402-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1402-
219	NUT M8 FLANGE THA	0-91180-108-0	02	1	1402-
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1402-
239	BOLT; GRAND M6X10 FLANGE THA	0-28050-610-0	01	1	1403-
242	BOLT; BRKT,HARNESS M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
294	NUT (B) M10 FLANGE THA	0-91180-210-0	02	1	1402-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	04	1	1402-
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	02	1	1402-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
294	NUT (A) M8 FLANGE THA	0-91180-108-0	01	1	1402-
294	NUT POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE THA	0-91180-210-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP (F) M8X20 FLANGE THA	0-28650-820-0	01	1	1503-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE THA	0-28050-612-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE THA	0-28050-810-0	01	1	1402-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE THA	0-28050-812-0	03	1	1402-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE THA	0-28050-816-0	03	1	1402-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE THA	0-28050-820-0	02	1	1402-
313	BOLT; BRKT (C) M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
313	BOLT; BRKT (A) M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
313	BOLT; BRKT (B) M8X35 FLANGE THA	0-28650-835-0	02	1	1402-
313	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (D) M10X35 FLANGE THA	0-28651-035-0	01	1	1402-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1402-
386	BOLT; GRAND HARNESS M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1402-
524	NUT; HARNESS M6 FLANGE THA	0-91180-106-0	04	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	1402-
525	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1402-

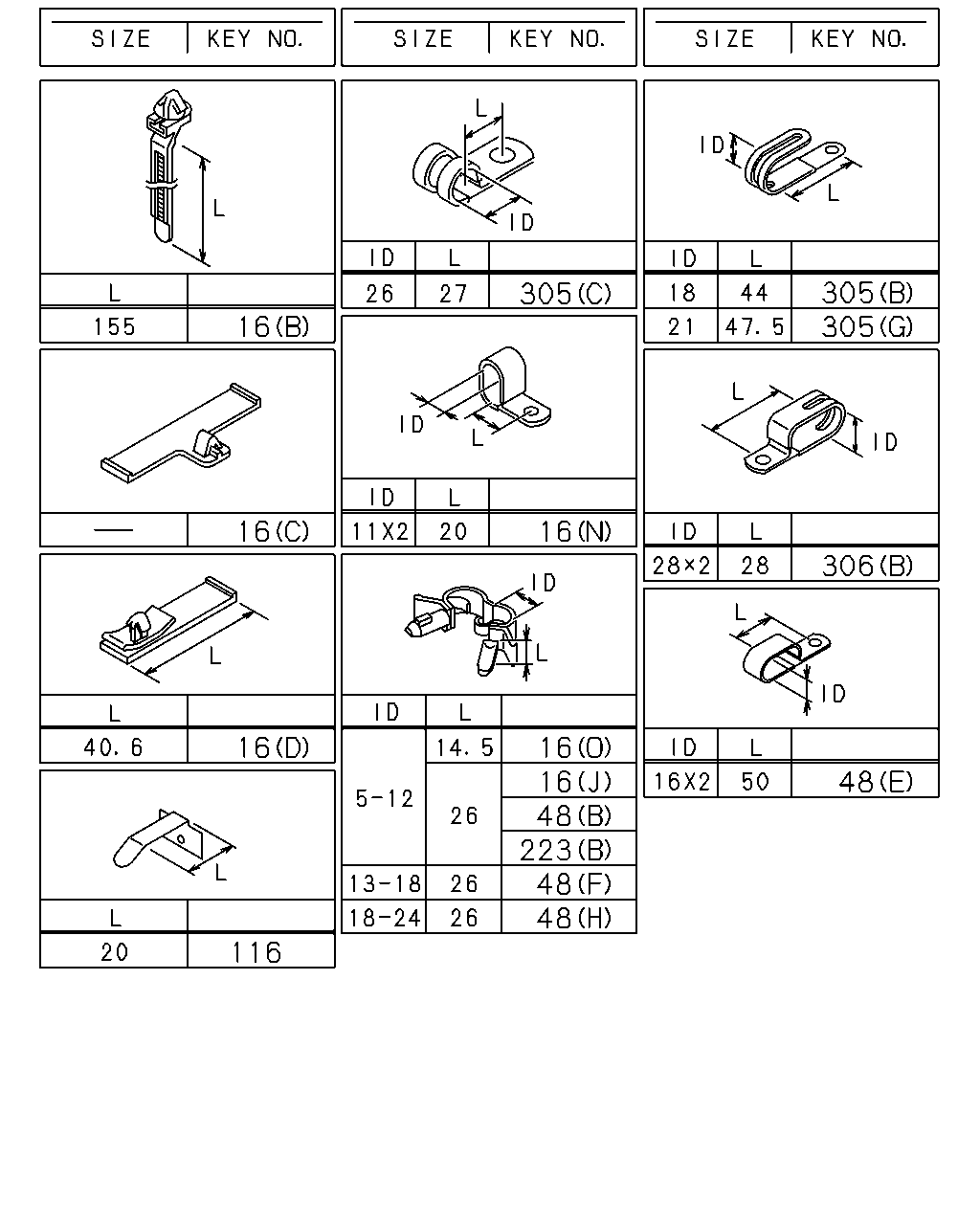

305 48 305 16 16 235 16 305 305 306 48 16 305 305 223 305 470 16 16 16 581 48 48 235 16 213 223 16 48 48 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	1402-
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26	1-09709-293-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26	1-09709-296-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26	1-09709-296-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1402-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6	1-09709-178-0	01	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	03	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1402-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	1402-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) ID=11 L=61	1-09700-484-0	02	1	1402-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1402-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1402-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1402-
305	CLIP; ENG HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	1402-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1402-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1402-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1402-
581	CLIP; HARNESS,REAR SUSP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=11 L=41	1-09700-403-0	01	1	1402-

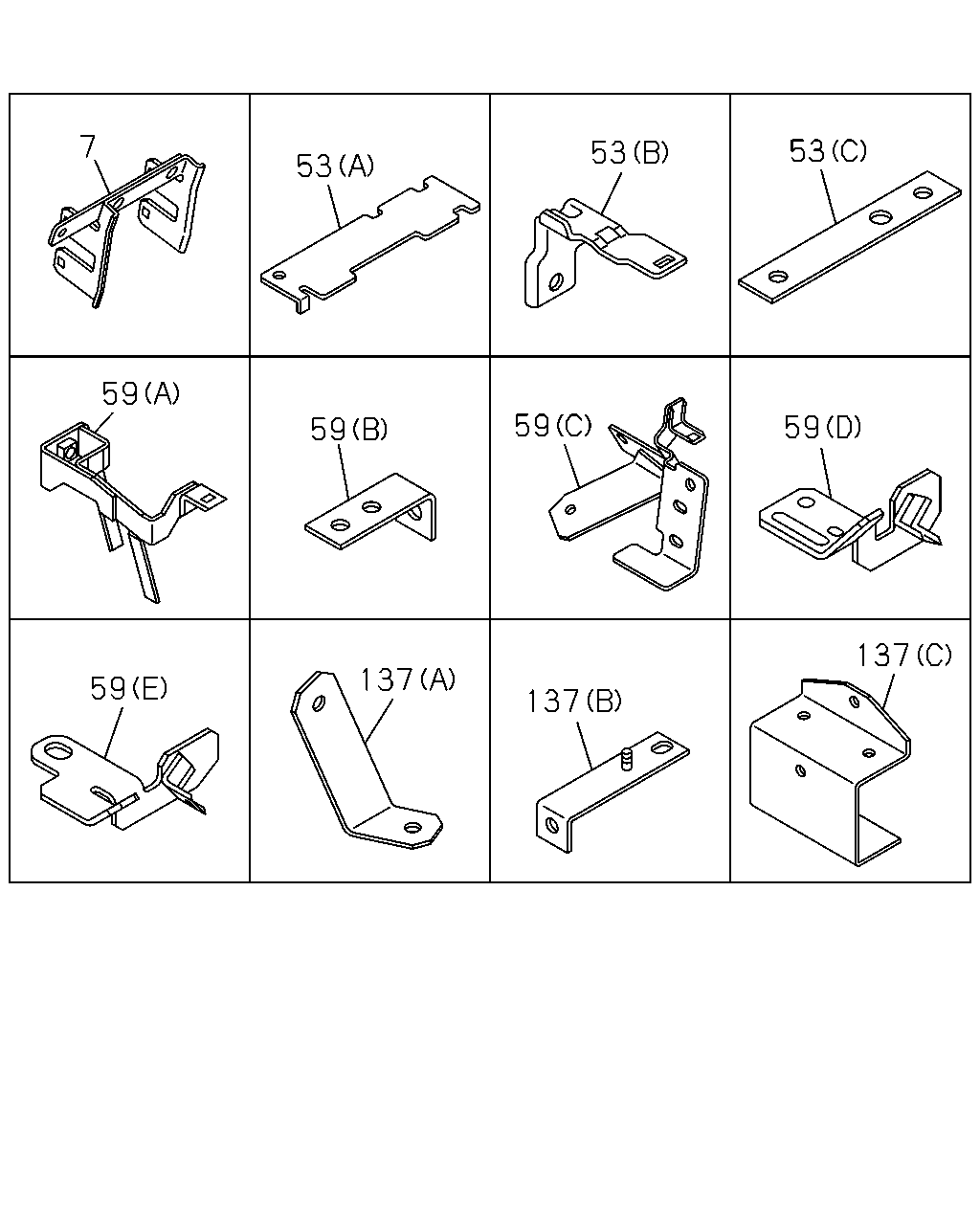

7 53 53 53 59 137 137 137 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR THA	8-97925-591-0	01	1	1402-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1402-
53	BRACKET; HARNESS (A)	8-98127-093-0	01	1	1402-
53	BRACKET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (C) L=170	1-47479-380-0	01	1	1402-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1402-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1402-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1402-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-21464-170-2	01	1	1402-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	1402-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1402-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (C)	8-97609-797-1	02	1	1402-

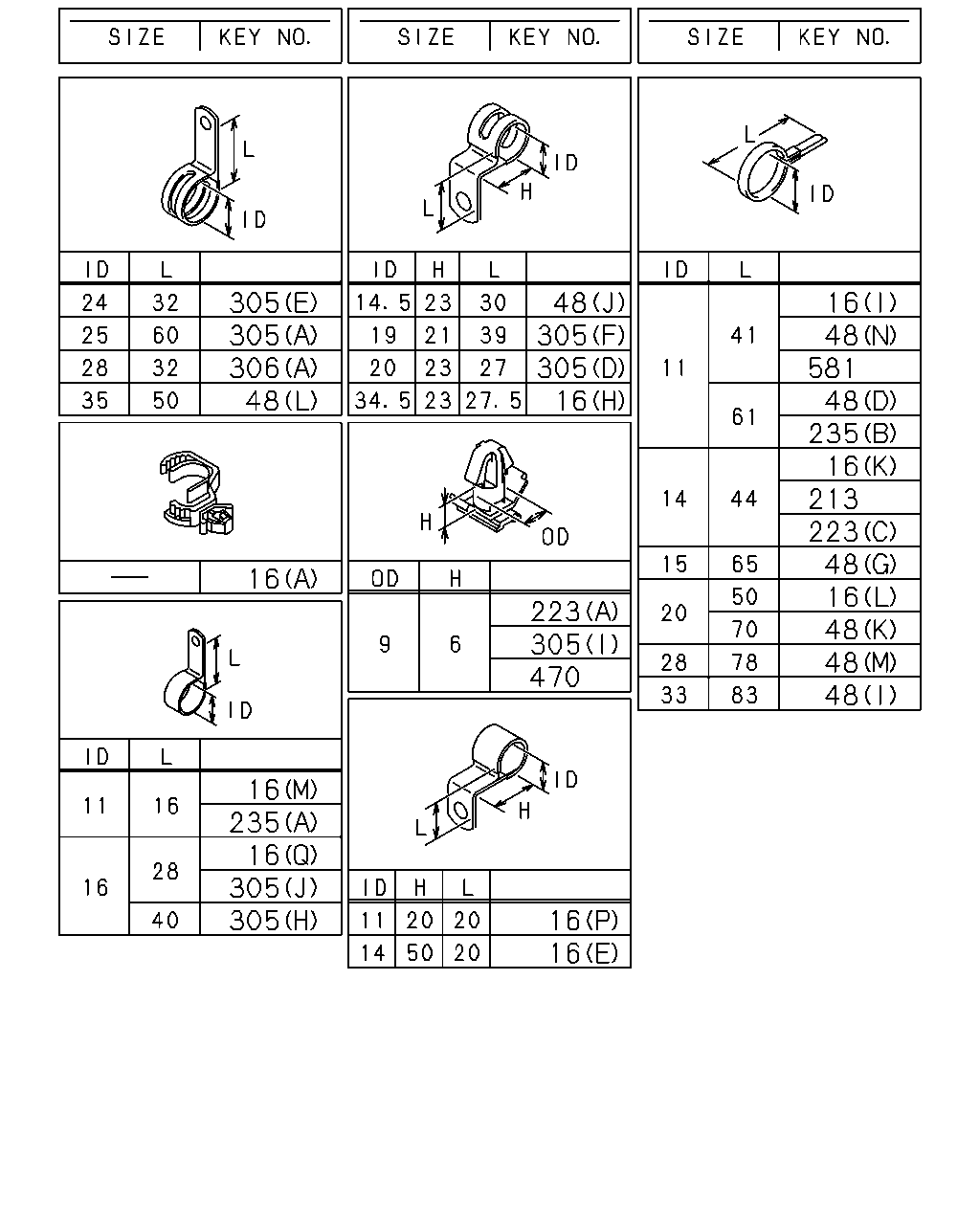

16 16 16 116 305 16 16 16 48 223 48 48 48 306 305 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	1402-
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26	1-09709-293-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26	1-09709-296-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26	1-09709-296-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1402-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) OD=9 H=6	1-09709-178-0	01	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	03	1	1402-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) ID=14 L=44	9-09917-427-0	02	1	1402-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1402-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1402-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	1402-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1402-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1402-
305	CLIP; ENG HARNESS (C) ID=26 L=27	1-09701-006-0	01	1	1402-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1402-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	1402-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1402-1402
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1402-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1402-

48 206 16 208 225 217 14 16 14 48 14 14 530 503 538 1 1 178 178

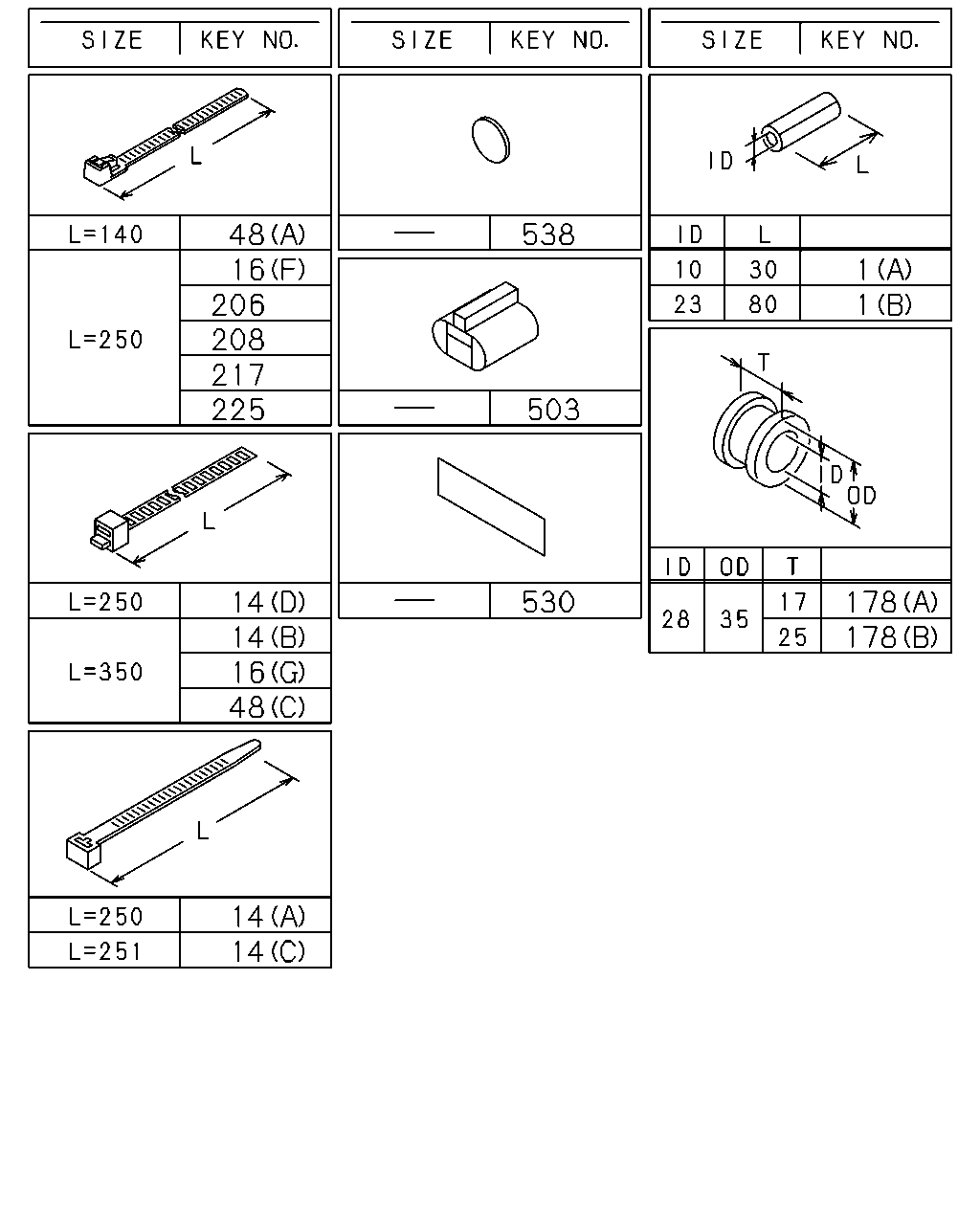

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	1402-1402
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	05	1	1403-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1402-1406
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	04	1	1407-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1402-
14	CLIP; BAND,HARNESS (C) L=251	8-97619-917-0	01	1	1402-
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	14	1	1402-
14	CLIP; BAND,HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ANTI LOCK BRAKE<JE5> (D) L=250	1-09707-126-0	02	1	1402-
16	CLIP; HARNESS (Q) ID=16 L=28	0-95235-556-0	02	1	1402-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1402-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1402-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	03	1	1402-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	1402-
16	CLIP; HARNESS (B) L=155 THA	8-97173-307-0	18	1	1402-
16	CLIP; HARNESS (D) L=40.6 THA	8-97229-357-0	02	1	1402-
16	CLIP; HARNESS (C) THA	8-98052-679-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=11 L=16	0-95235-025-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (N) ID=11X2 L=20	1-09700-871-0	03	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (O) ID=5-12 L=14.5	1-09987-221-0	02	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 H=20 L=20	8-98033-780-0	01	1	1402-
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (L) ID=20 L=50	9-09917-430-0	03	1	1402-
16	CLIP; HARNESS EXC. ANTI LOCK BRAKE<JE5> (K) ID=14 L=44	9-09917-427-0	03	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (I) ID=11 L=41	1-09700-403-0	02	1	1402-
16	CLIP; HARNESS POOR QUALITY DIESEL FUEL<KF0> (J) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	02	1	1402-
48	CLIP; FRAME HARNESS (L) ID=35 L=50	1-09701-214-0	01	1	1402-
48	CLIP; FRAME HARNESS (I) ID=33 L=83	1-09701-291-0	04	1	1402-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	01	1	1402-
48	CLIP; FRAME HARNESS (A) L=140 THA	8-97920-656-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (M) ID=28 L=78	1-09700-858-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=5-12 L=26	1-09709-289-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (F) ID=13-18 L=26	1-09709-293-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) ID=18-24 L=26	1-09709-296-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (N) ID=11 L=41	1-09700-403-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	01	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (M) ID=28 L=78	1-09700-858-0	02	1	1402-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) ID=18-24 L=26	1-09709-296-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	18	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS (G) ID=15 L=65	1-09700-466-0	01	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	03	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (K) ID=20 L=70	1-09700-485-0	24	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 6300MM<63W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	05	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS MZW6P M/T<RSZ> WHEEL BASE 5500MM<55W> ANTI LOCK BRAKE<JE5> (K) ID=20 L=70	1-09700-485-0	19	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	07	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> (G) ID=15 L=65	1-09700-466-0	24	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM<71W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (E) ID=16X2 L=50	0-95325-586-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> (J) ID=14.5 H=23 L=30	1-09700-859-0	01	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	17	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 5500MM<55W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM<58W> POOR QUALITY DIESEL FUEL<KF0> (D) ID=11 L=61	1-09700-484-0	02	1	1402-
48	CLIP; FRAME HARNESS ZF9S1110 M/T<Y5E> WHEEL BASE 6300MM<63W> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (G) ID=15 L=65	1-09700-466-0	22	1	1402-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-
178	GROMMET; HARNESS POOR QUALITY DIESEL FUEL<KF0> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1402-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1402-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1402-
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1402-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	1402-
208	CLIP; HARNESS,MAG VLV PTO CONTROL<SV6> L=250	5-09707-030-1	01	1	1402-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	1402-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250	5-09707-030-1	01	1	1402-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=250	5-09707-030-1	03	1	1402-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=250	5-09707-030-1	08	1	1402-
503	CONNECTOR	1-82690-668-0	01	1	1402-
530	SEAL; HARNESS 180X40	1-72498-019-1	06	1	1402-
538	SEAL; HOLE OD=25 BLACK THA	1-76798-019-0	01	1	1402-

308 308 308 308 335 324 312 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	1402-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	1402-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1402-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1402-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1402-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-921-1	01	1	1402-
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	8-98210-922-1	01	1	1402-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1402-
428	BRACKET	8-98212-082-1	01	1	1402-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
